It is mainly suitable for compaction work on subgrade, sub-base and fill materials of various types, making it an ideal compaction equipment for high-grade highways, airports, ports, dams and industrial construction sites.

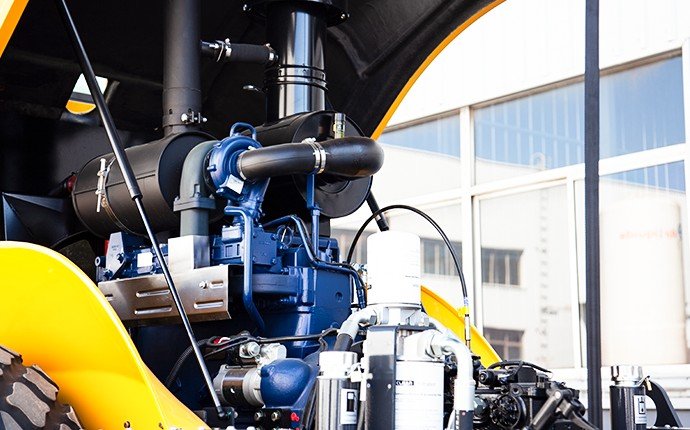

Adopts Weichai WP6 turbocharged engine with 147kw, fast start engine，long lifespan and low diesel cost.

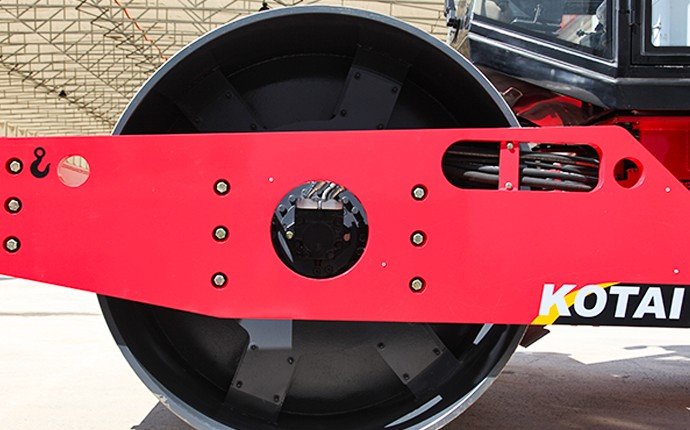

The closed hydraulic system composed of imported variable pump variable motor ensures that the roller has good driving performance and high climbing ability. Two levels of continuously variable speed ensure that the operation is carried out at the most suitable speed under different working conditions.

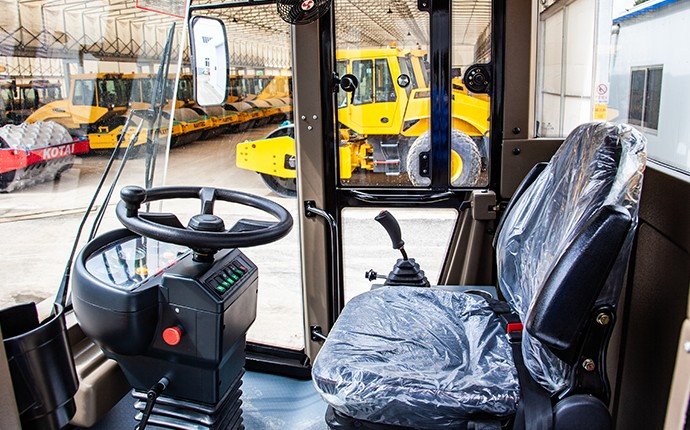

Single-lever operation ensures high safety and low working intensity.

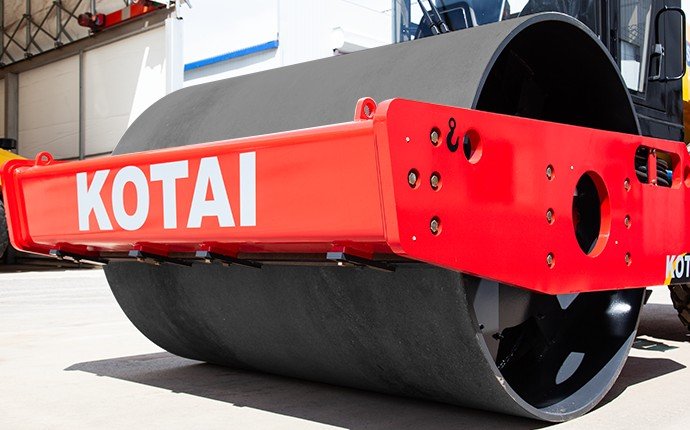

The vibratory drum adopts a reinforced internal baffle structure for high supporting rigidity.
Its four-point supported, impact-resistant heavy-duty vibratory bearings optimize stress distribution.
The elaborately designed bearing housing with integrated oil passages ensures excellent lubrication and heat dissipation.
Even under heavy alternating loads, the vibratory bearings maintain outstanding performance and long-term reliability.

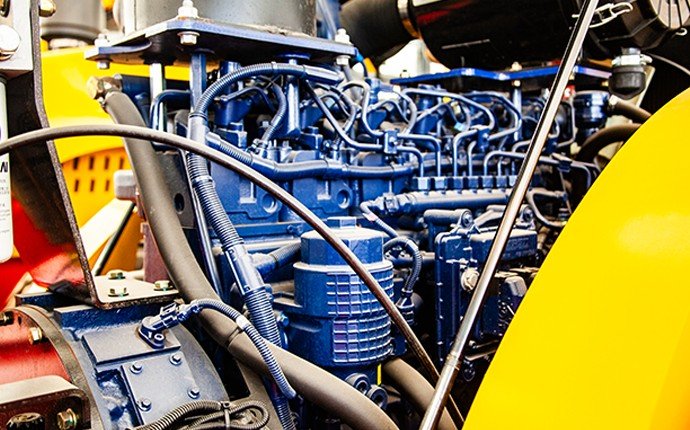

Adopts Weichai WP6G140 Turbocharged engine with 129kW, long lifespan and low diesel cost.

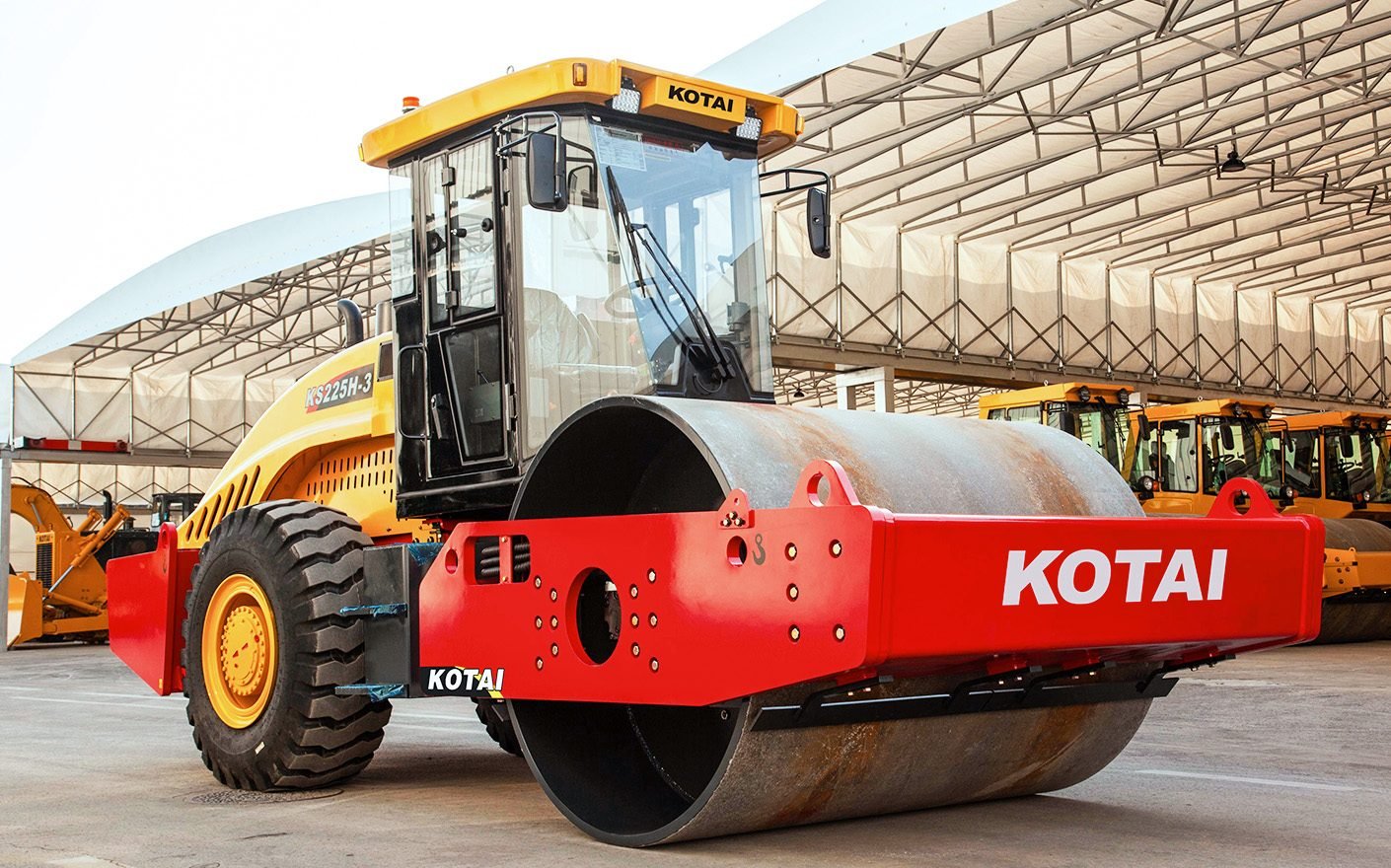

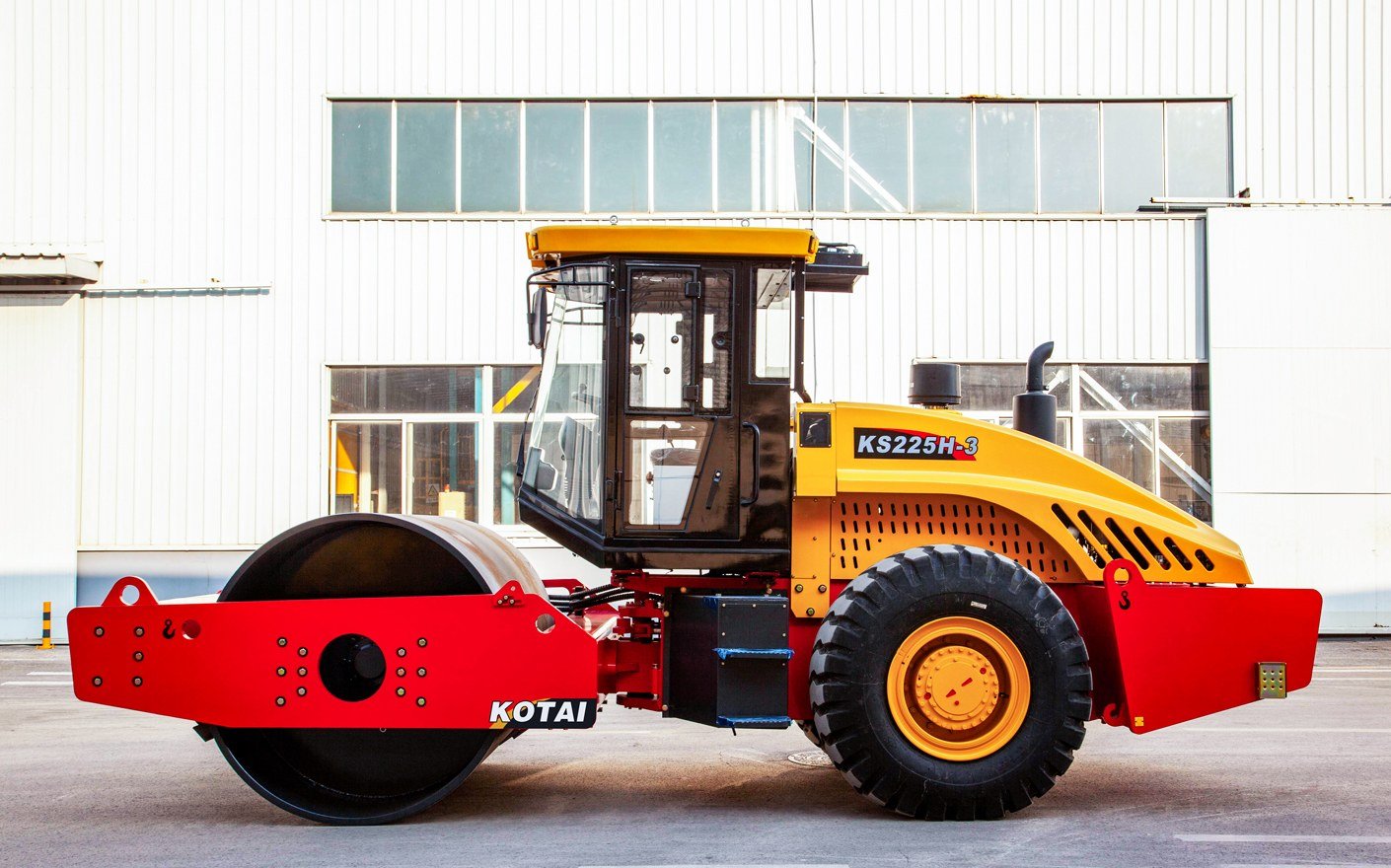

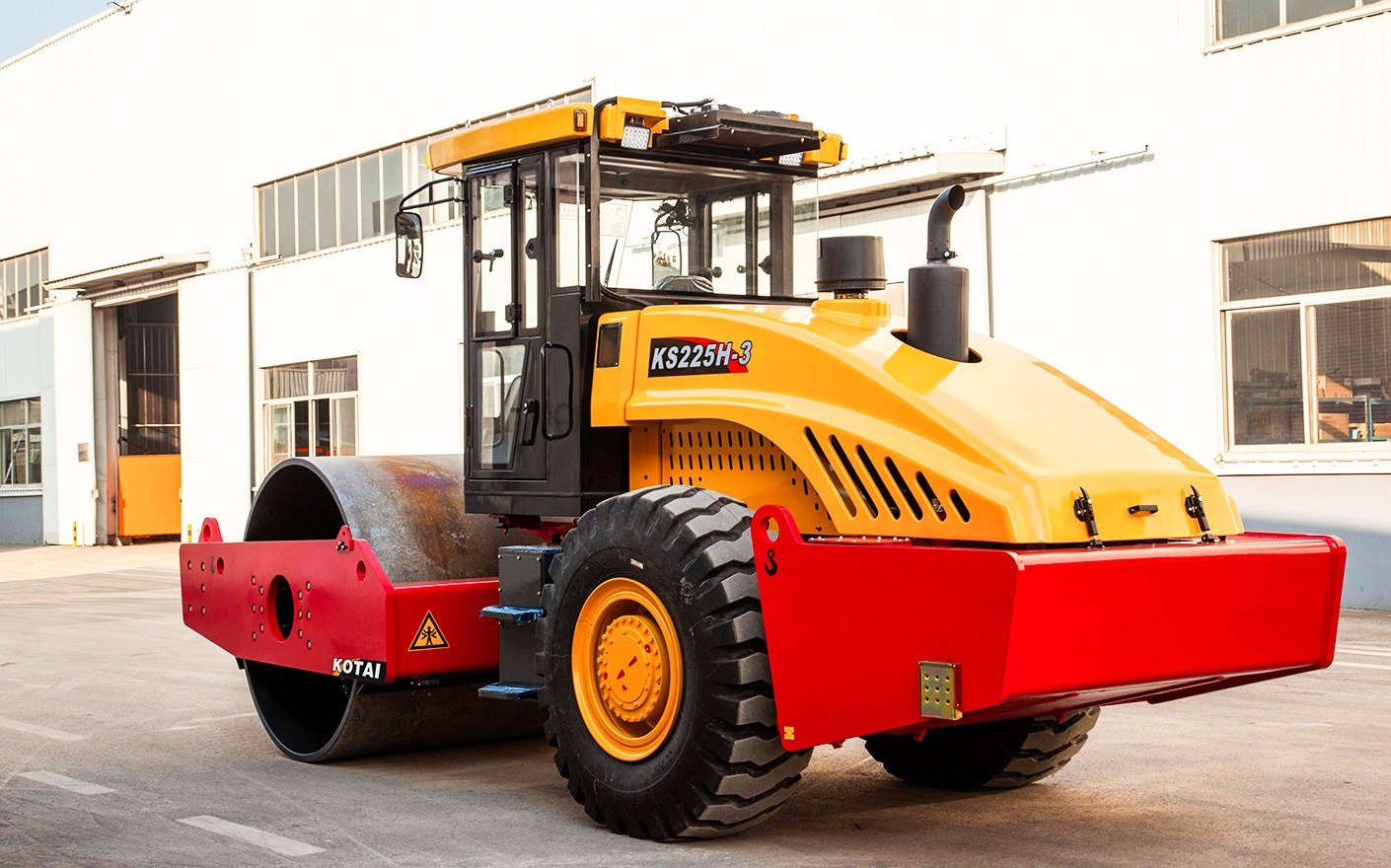

| Model | KS225H-3 |
| Series | KS |
| Operating Weight(kg) | 22000 |
| Static Line Load(N/cm) | 501 |
| Vibration Frequency(Hz) | 28/32 |
| Amplitude(mm) | 1.98/0.99 |
| Excitation Force(kN) | 395 |
| Traveling Speed(km/h) | 0-9 |
| Minimum Turning Radius(mm) | 6800 |
| Gradeability(%) | 35 |
| Steering Type | Articulated Steering |
| Overall Length(mm) | 6480 |
| Overall Width(mm) | 2330 |
| Overall Height(mm) | 3150 |
| Vibrating Wheel Diameter(mm) | 1600 |
| Vibrating Wheel Width(mm) | 2150 |
Normally we accept L/C,or TT30% down payment, balanceto be paid against BL copy and loading pictures.
Some of our products are in stock, while standard products without stock usually take 15-35 days.
Yes, we have over 20 years of experience in engineering machinery manufacturing.
We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Yes, we warmly welcome you to join us.
We have built a highly comprehensive product portfolio covering more than 100 core products, including road rollers, excavators, loaders, drilling rigs, motor graders, bulldozers, forklifts, cranes, dump trucks and others. Our products fully serve key sectors such as road equipment, earthmoving machinery, construction equipment and mining equipment.
