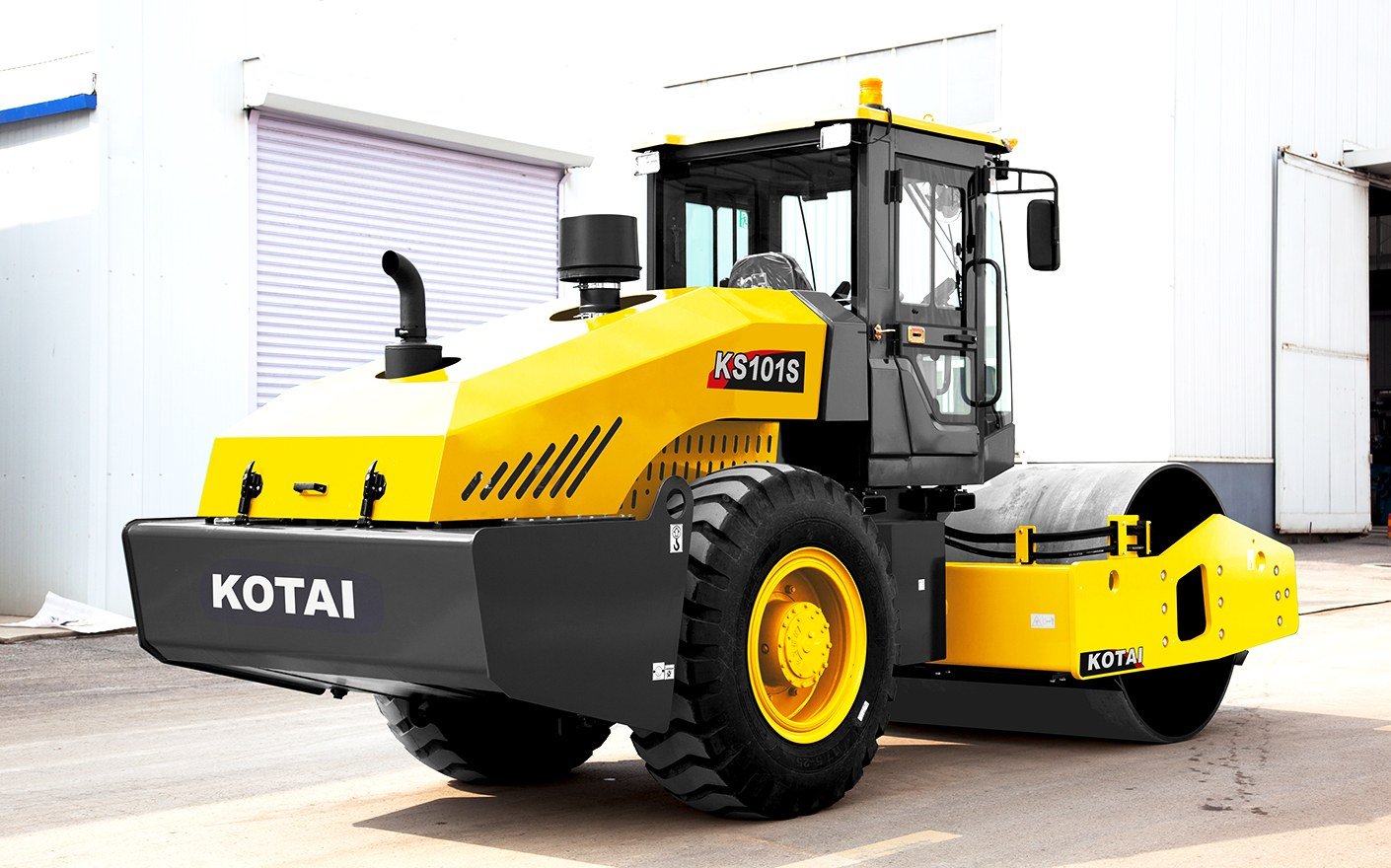

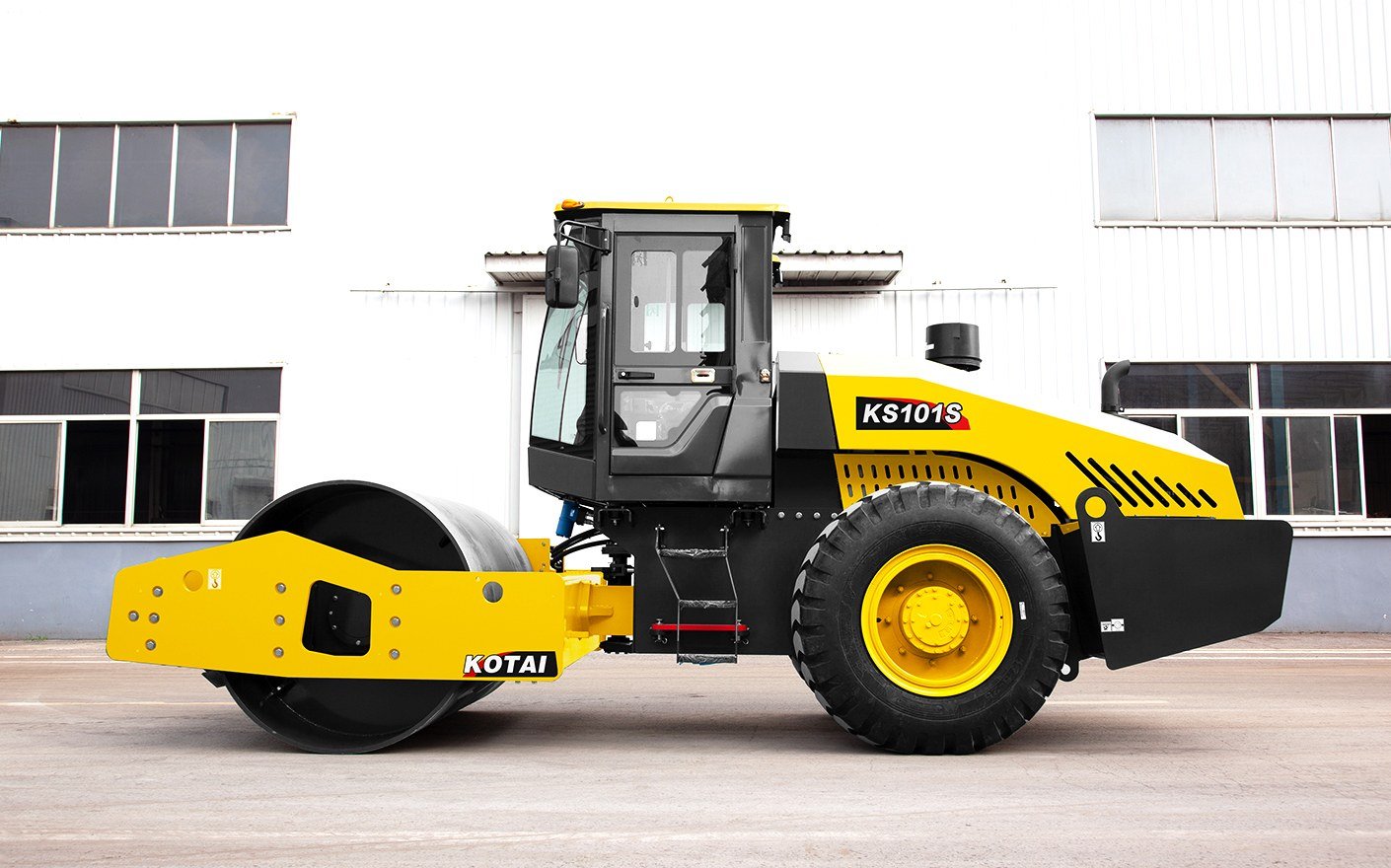

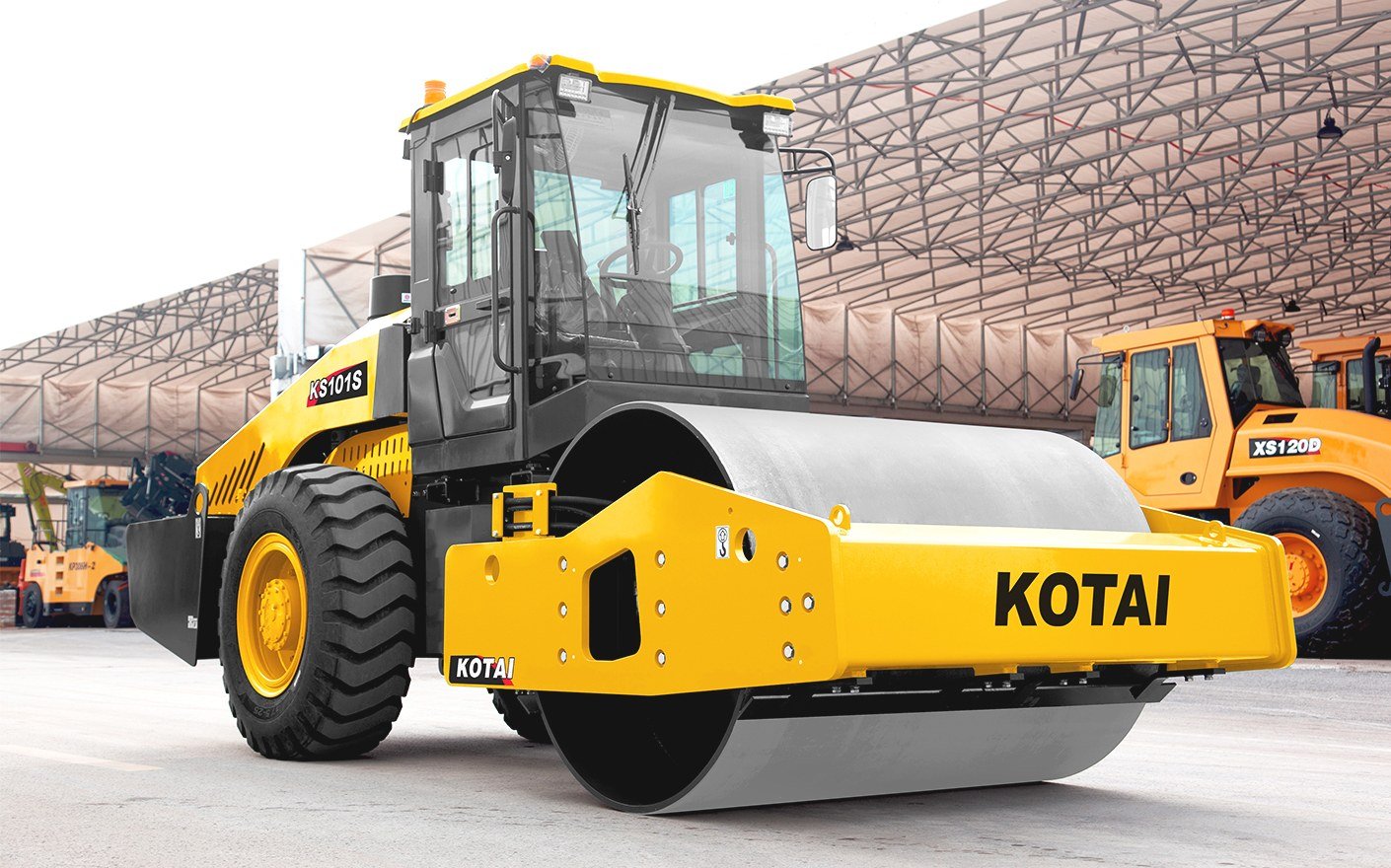

KS101S features excellent compaction performance, great compaction depth and high operating efficiency. Suitable for compacting various non-cohesive materials such as soil, gravel, crushed stone, sand and gravel mixtures, rock fills and various stabilized soils for subgrade and pavement projects. Widely used in highways, municipal works, airports, ports, wharves, dams and various industrial construction sites.
Equipped with Weichai WP4G engine, delivering 97.5 kW ratedpower. Features instant start, convenient electric shutdown,strong and durable performance, plus lower fuel consumption.
Adopts a hydraulic heavy-duty drive axle, which automatically distributes torque according to road conditions, ensuring the road roller delivers maximum traction required under all working conditions.
An open hydraulic vibration system consisting of a fixed-displacement gear pump and a motor is used, with a scientifically and rationally configured static linear load and excitation force to ensure efficient compaction of different types of material layers.
The cab features excellent sealing performance and can be optionally equipped with air conditioning and luxury seats.
It offers a spacious interior with large-area glass windows for wide visibility, providing operators with a safe and comfortable working environment.
The vibratory drum adopts a two-point support and reinforced inner cylinder vibration chamber structure, featuring simple structure, high strength and good rigidity.
Equipped with dedicated vibratory bearings and patented lubrication and cooling technology for vibratory bearings, it ensures a long service life and high reliability of the vibratory drum.
| Model | KS101S |
| Series | KS |
| Operating Weight(kg) | 10000 |
| Static Line Load(N/cm) | 278 |
| Vibration Frequency(Hz) | 30 |
| Amplitude(mm) | 1.3 |
| Excitation Force(kN) | 95 |
| Traveling Speed(km/h) | 0-9 |
| Minimum Turning Radius(mm) | 5800 |
| Gradeability(%) | 30 |
| Steering Type | Articulated Steering |
| Steering Angle(°) | ±32 |
| Swing Angle(°) | ±12 |
| Overall Length(mm) | 5600 |
| Overall Width(mm) | 1960 |
| Overall Height(mm) | 2800 |
| Wheelbase(mm) | 2800 |
| Minimum Ground Clearance(mm) | 330 |
| Vibrating Wheel Diameter(mm) | 1300 |
| Vibrating Wheel Width(mm) | 1800 |
| Fuel tank(L) | 235 |
| Hydraulic Oil Tank(L) | 145 |
Normally we accept L/C,or TT30% down payment, balanceto be paid against BL copy and loading pictures.
Some of our products are in stock, while standard products without stock usually take 15-35 days.
Yes, we have over 20 years of experience in engineering machinery manufacturing.
We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Yes, we warmly welcome you to join us.
We have built a highly comprehensive product portfolio covering more than 100 core products, including road rollers, excavators, loaders, drilling rigs, motor graders, bulldozers, forklifts, cranes, dump trucks and others. Our products fully serve key sectors such as road equipment, earthmoving machinery, construction equipment and mining equipment.
