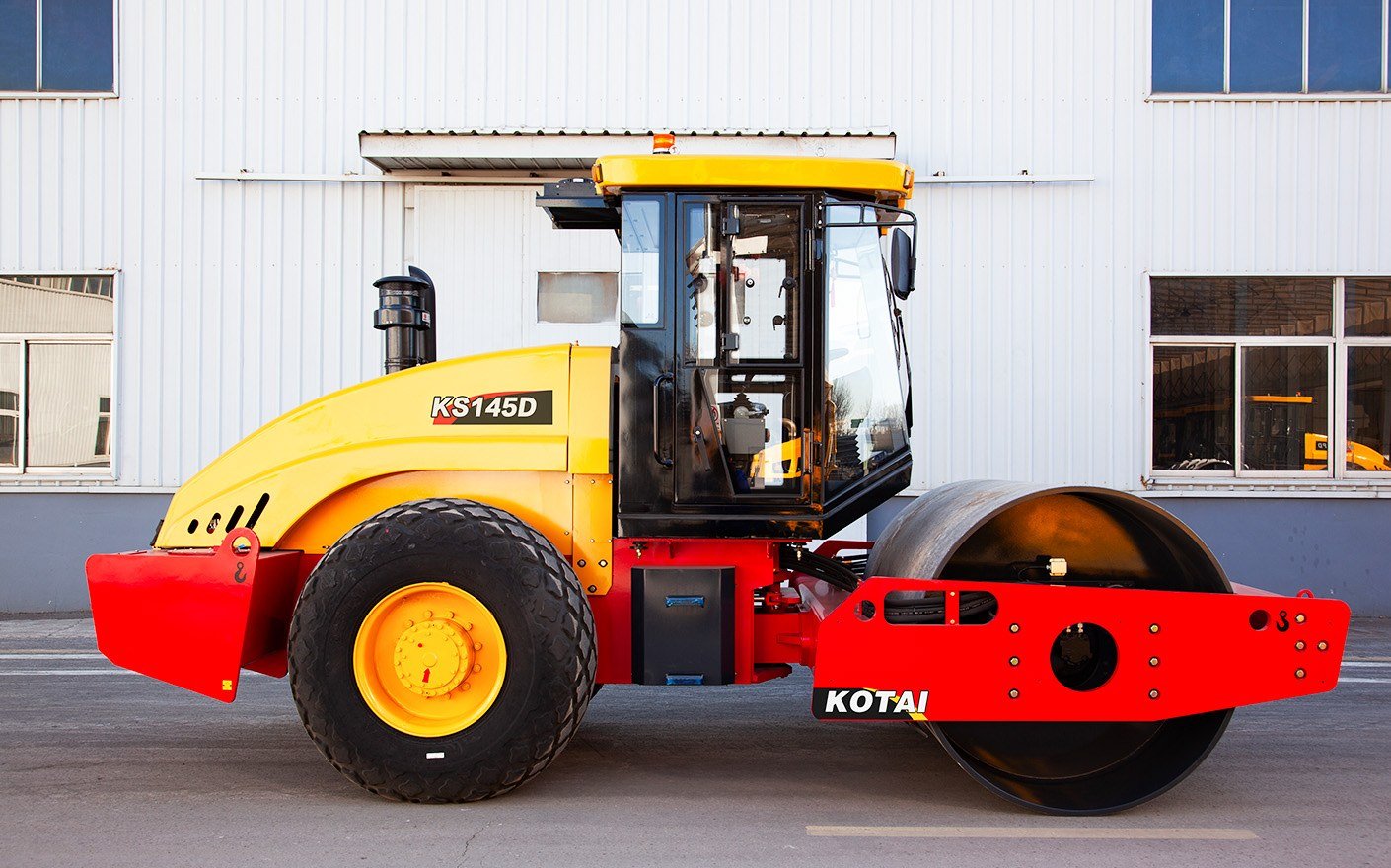

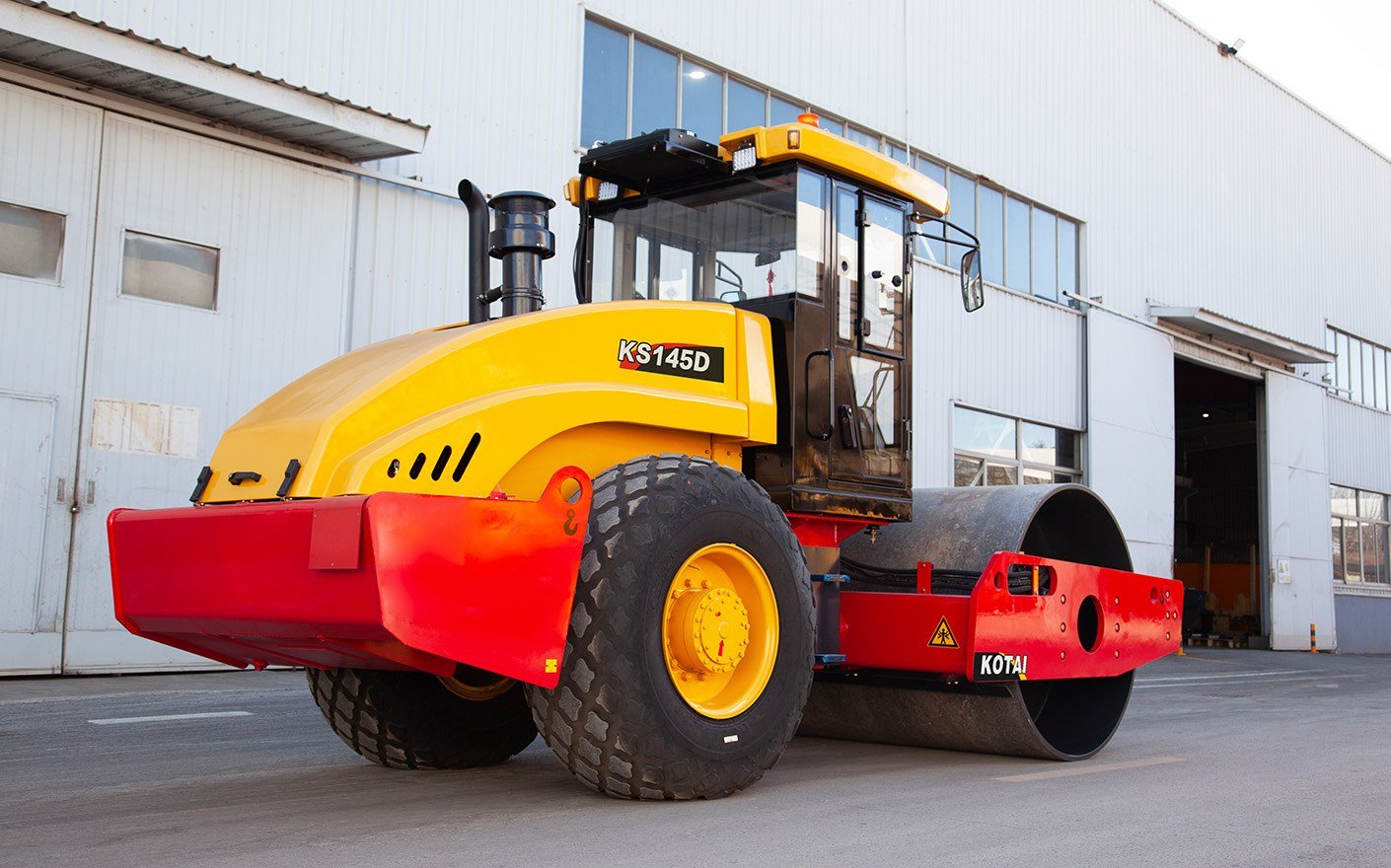

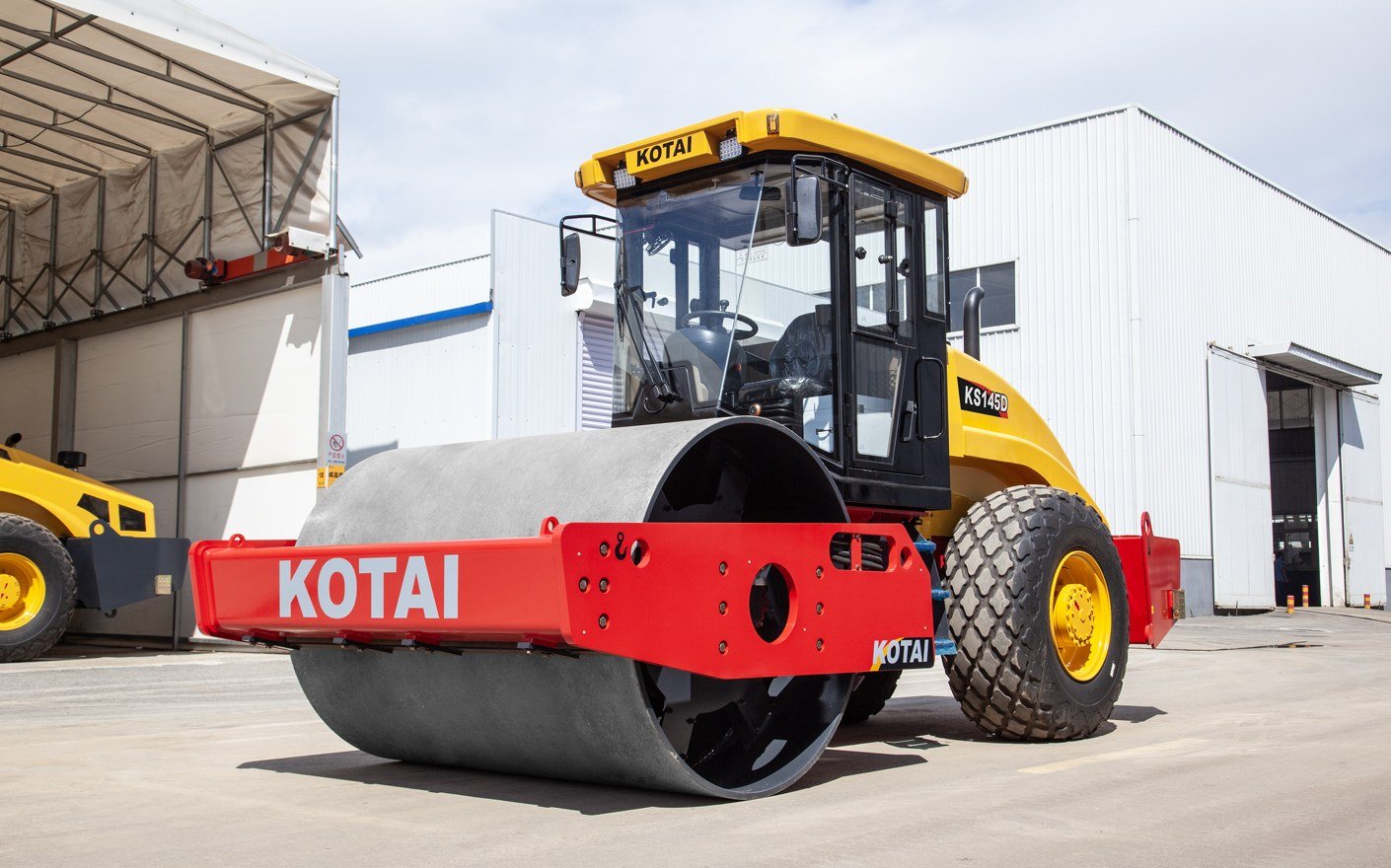

KS145D full hydraulic dual-drive vibratory roller are compacting soil materials as sand and gravel, which tend to loosen on the surface also suitable for surface compaction of gravel and ballast base layers; hydraulically compacting, suitable for high-speed express road, airport, water dam, industry construction site. The roller adopts powerful engine and hydrostatic drive system; suitable for all construction site.

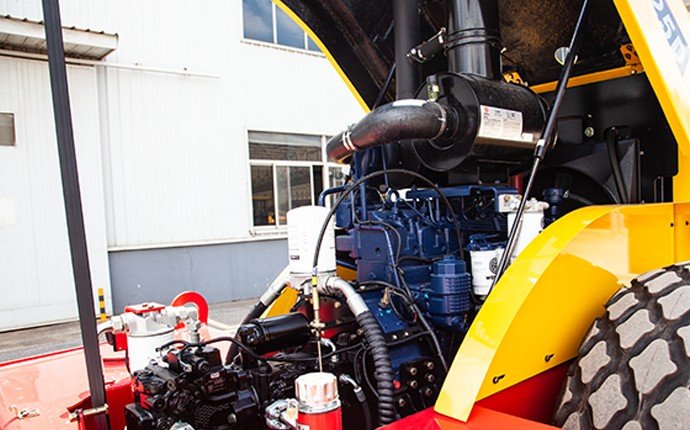

Adopts Weichai WP6G140 Turbocharged engine with 105 kw, long lifespan and low diesel cost.

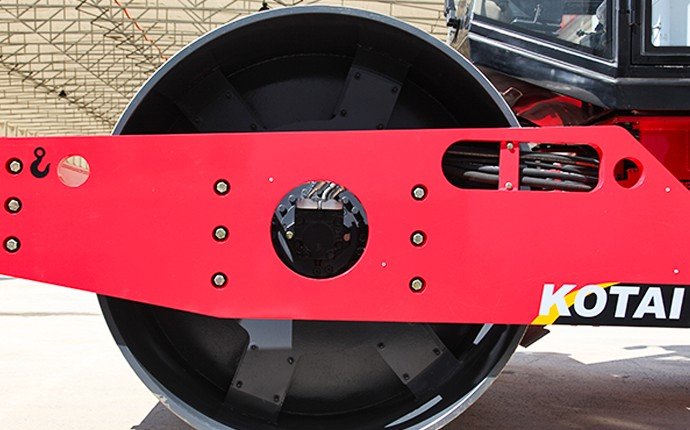

The internationally renowned brand Danfoss hydraulic walking system, coupled with a well-known domestic engineering machinery drive axle, forms an almost perfect walking transmission system. Steel wheel reducer with spring compression and hydraulic release wet brake, drive axle with differential and wet brake; The bridge motor is a high torque quantitative motor that can easily adapt to the speed and traction requirements of various working conditions.

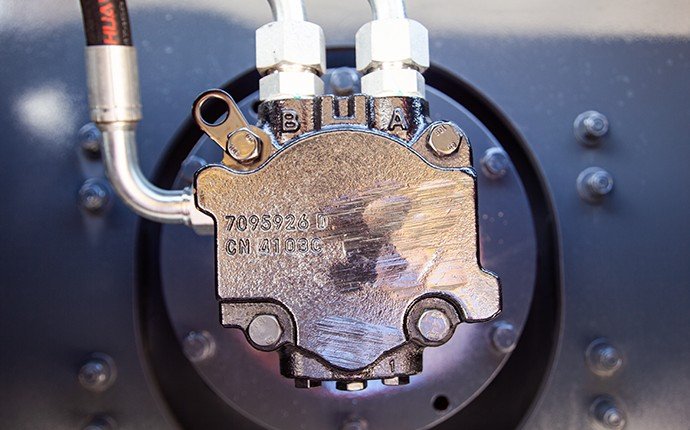

Circulate hydraulic vibration system dual- Amplitude and dual- Vibrating frequency.

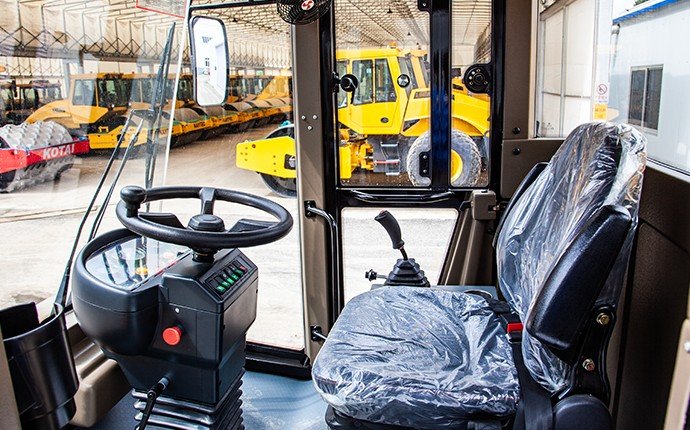

Single-lever operation ensures high safety and low working intensity.

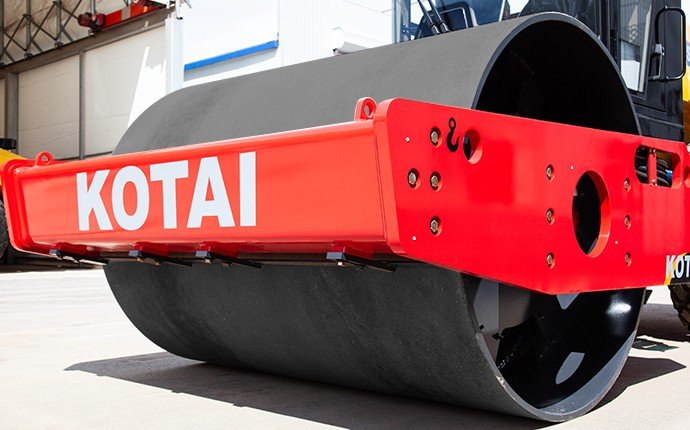

The vibratory drum adopts a reinforced internal baffle structure for high supporting rigidity.
Its four-point supported, impact-resistant heavy-duty vibratory bearings optimize stress distribution.
The elaborately designed bearing housing with integrated oil passages ensures excellent lubrication and heat dissipation.
Even under heavy alternating loads, the vibratory bearings maintain outstanding performance and long-term reliability.
| Model | KS145D |
| Series | KS |
| Operating Weight(kg) | 14000 |
| Static Line Load(N/cm) | 391 |
| Vibration Frequency(Hz) | 30/34 |
| Amplitude(mm) | 1.85/0.83 |
| Excitation Force(kN) | 315/190 |
| Traveling Speed(km/h) | 0-9 |
| Minimum Turning Radius(mm) | 6500 |
| Gradeability(%) | 45 |
| Steering Type | Articulated Steering |
| Steering Angle(°) | ±32 |
| Swing Angle(°) | ±12 |
| Overall Length(mm) | 5970 |
| Overall Width(mm) | 2290 |
| Overall Height(mm) | 3150 |
| Minimum Ground Clearance(mm) | 440 |
| Vibrating Wheel Diameter(mm) | 1533 |
| Vibrating Wheel Width(mm) | 2130 |
| Fuel tank(L) | 235 |
| Hydraulic Oil Tank(L) | 145 |
|
Model |
|
|
Operating Weight(kg) |
|
|
Model |
|
|
Operating Weight(kg) |
|
|
|
Normally we accept L/C,or TT30% down payment, balanceto be paid against BL copy and loading pictures.
Some of our products are in stock, while standard products without stock usually take 15-35 days.
Yes, we have over 20 years of experience in engineering machinery manufacturing.
We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Yes, we warmly welcome you to join us.
We have built a highly comprehensive product portfolio covering more than 100 core products, including road rollers, excavators, loaders, drilling rigs, motor graders, bulldozers, forklifts, cranes, dump trucks and others. Our products fully serve key sectors such as road equipment, earthmoving machinery, construction equipment and mining equipment.
