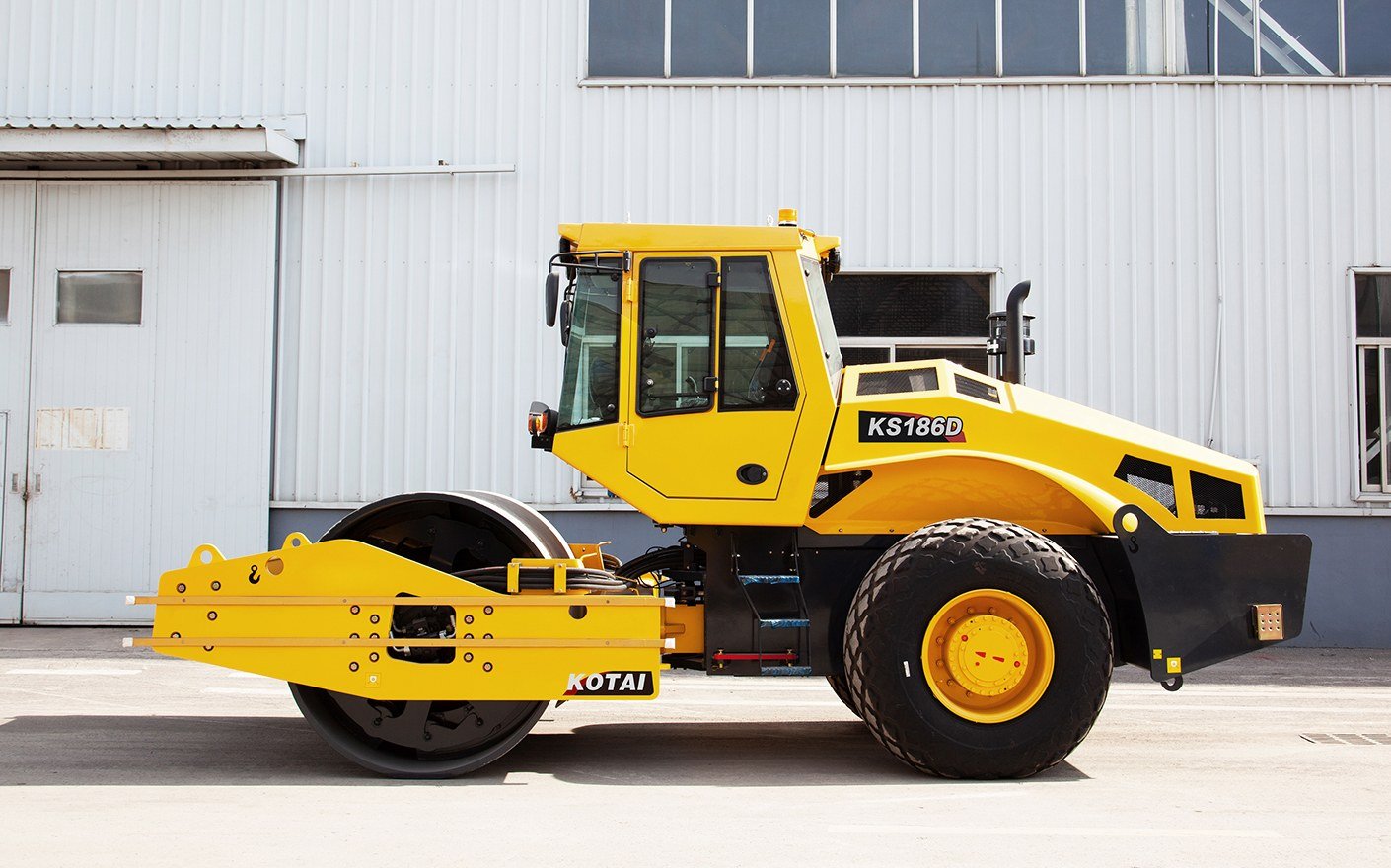

KS186D Full hydraulic duel-drive roller apply on high speed express road, railway infrastructure, airport, parking, hydro engineering dam; for foundation base layer, gravel, crushed rock as well as slight cohesive soil and rock.

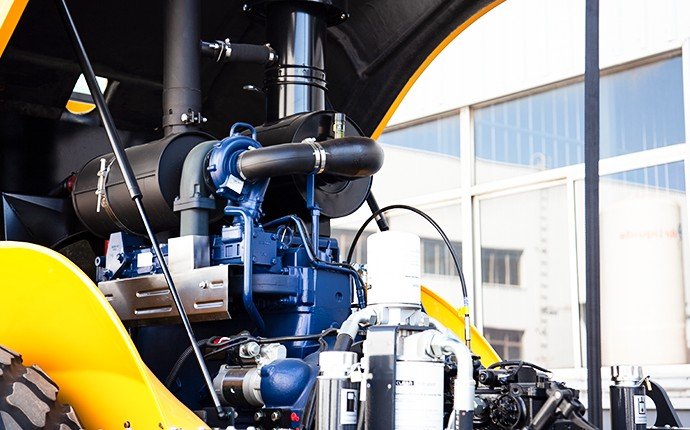

Adopts Weichai WP6G140 Turbocharged engine with 129kW, long lifespan and low diesel cost.

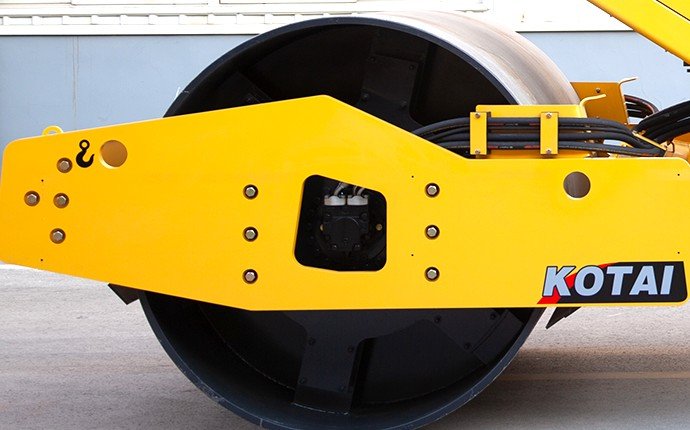

The internationally renowned brand Danfoss hydraulic walking system, coupled with a well-known domestic engineering machinery drive axle, forms an almost perfect walking transmission system. Steel wheel reducer with spring compression and hydraulic release wet brake, drive axle with differential and wet brake; The bridge motor is a high torque quantitative motor that can easily adapt to the speed and traction requirements of various working conditions.

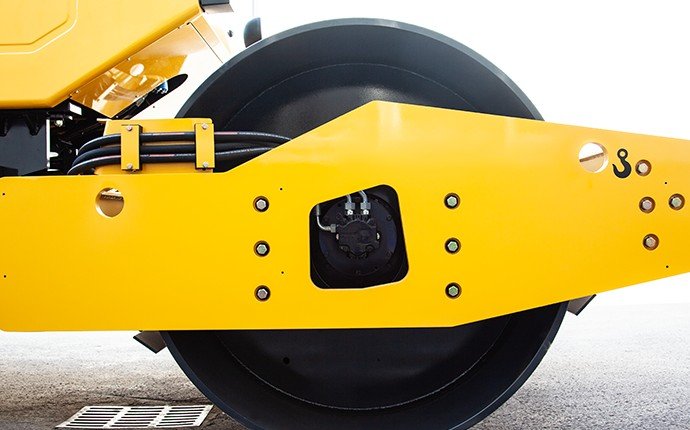

Circulate hydraulic vibration system dual- Amplitude and dual- Vibrating frequency.
Circulate hydraulic vibration system dual- Amplitude and dual- Vibrating frequency.

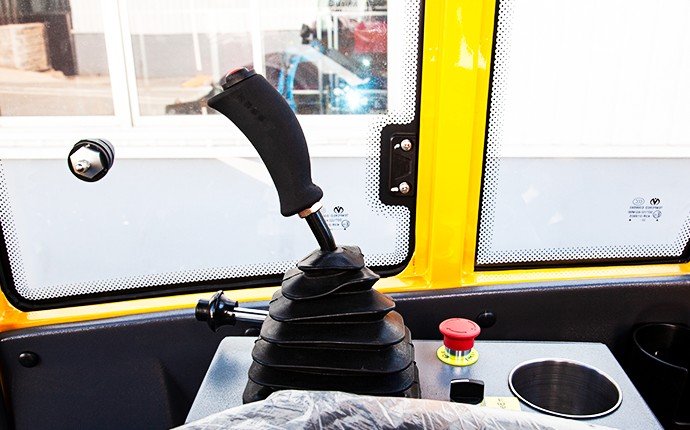

Single-lever operation ensures high safety and low working intensity.
| Model | KS186D |
| Series | KS |
| Operating Weight(kg) | 18000 |
| Static Line Load(N/cm) | 510 |
| Vibration Frequency(Hz) | 28/33 |
| Amplitude(mm) | 1.9/0.9 |
| Excitation Force(kN) | 380/265 |
| Traveling Speed(km/h) | 0-9 |
| Minimum Turning Radius(mm) | 6500 |
| Gradeability(%) | 45 |
| Steering Type | Articulated Steering |
| Steering Angle(°) | ±32 |
| Swing Angle(°) | ±12 |
| Overall Length(mm) | 6400 |
| Overall Width(mm) | 2300 |
| Overall Height(mm) | 3200 |
| Minimum Ground Clearance(mm) | 440 |
| Vibrating Wheel Diameter(mm) | 1540 |
| Vibrating Wheel Width(mm) | 2110 |
| Fuel tank(L) | 300 |
| Hydraulic Oil Tank(L) | 180 |
Normally we accept L/C,or TT30% down payment, balanceto be paid against BL copy and loading pictures.
Some of our products are in stock, while standard products without stock usually take 15-35 days.
Yes, we have over 20 years of experience in engineering machinery manufacturing.
We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Yes, we warmly welcome you to join us.
We have built a highly comprehensive product portfolio covering more than 100 core products, including road rollers, excavators, loaders, drilling rigs, motor graders, bulldozers, forklifts, cranes, dump trucks and others. Our products fully serve key sectors such as road equipment, earthmoving machinery, construction equipment and mining equipment.
