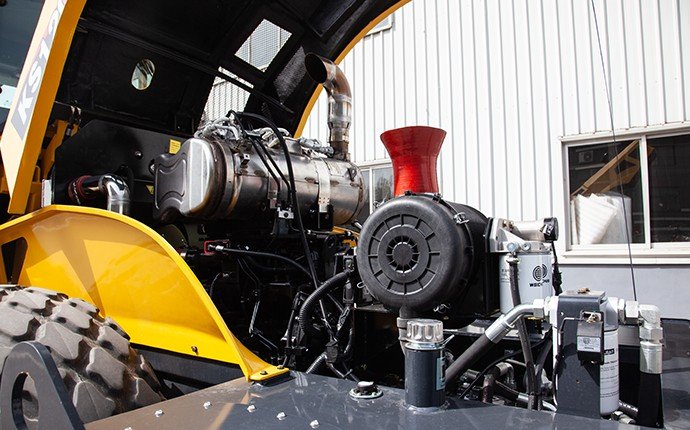

Equipped with a Chinese Weichai WP4.6NG150 water-cooled engine that meets Euro V emission standards, it delivers a power output of 111 kW with abundant power reserve, low fuel consumption and low noise.

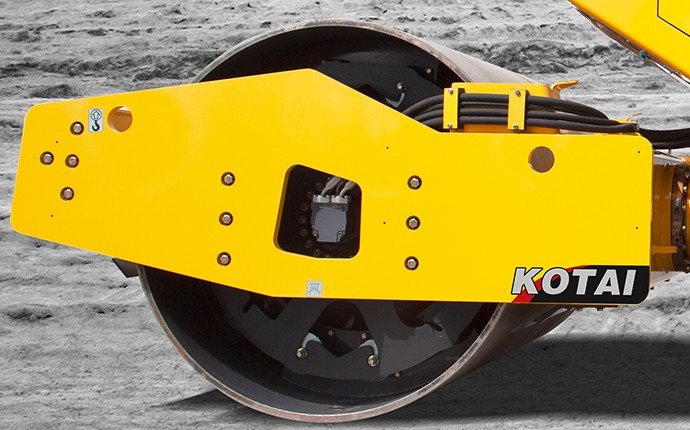

The closed-loop hydraulic drive system consists of an electronically controlled proportional pump, motors, and a long-service-life reducer, enabling full drive of the front and rear wheels.

This ensures the roller delivers excellent driving performance and gradeability.

Infinitely variable speed within the set range allows operation at the optimal speed under various working conditions.

The standard automatic idle function reduces energy consumption.

An automatic anti-slip escape mode is available as an option, which prevents machine slippage to a certain extent.

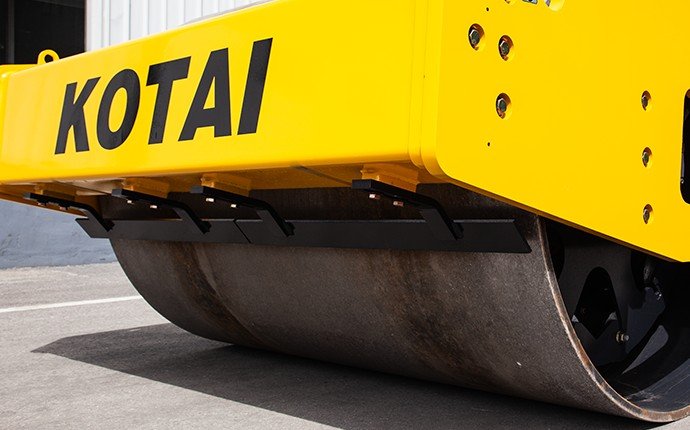

Closed-loop hydraulic vibration system, composed of an electro-hydraulically controlled variable displacement pump and a fixed displacement motor, realizes dual-frequency and dual-amplitude vibration.

Vibration automatically starts and stops according to the traveling speed.

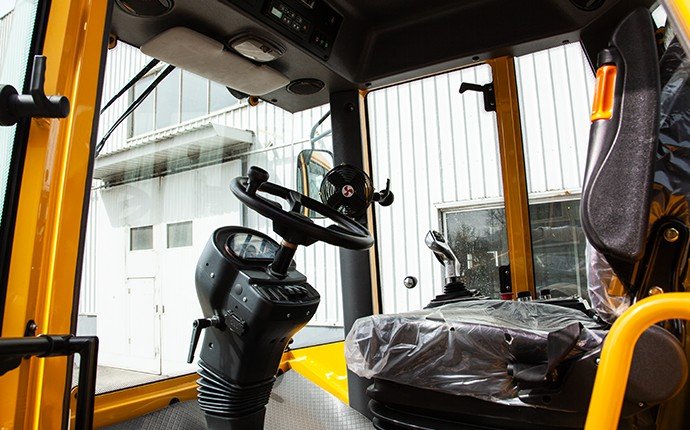

The anti rollover cab is equipped with a sturdy protective space for the driver in case of accidental tipping or overturning of equipment, effectively avoiding squeezing and impact injuries, and greatly improving construction safety. Can be paired with sealed design, air conditioning, and shock-absorbing seats to ensure safety while providing a comfortable and quiet operating environment, reducing long-term work fatigue.

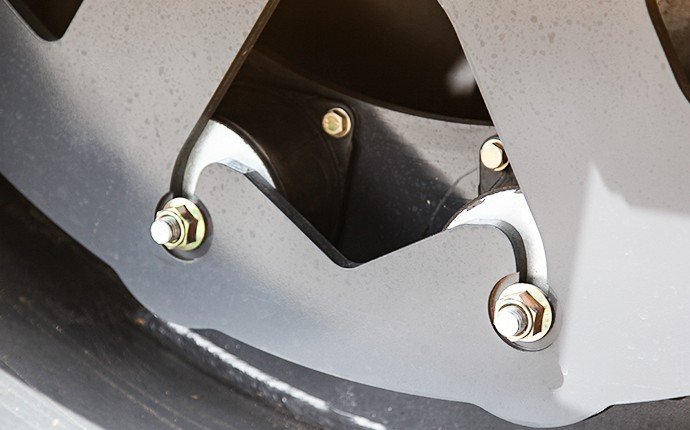

The vibratory drum adopts a reinforced internal baffle structure for high supporting rigidity.

Its four-point supported, impact-resistant heavy-duty vibratory bearings optimize stress distribution.

The elaborately designed bearing housing with integrated oil passages ensures excellent lubrication and heat dissipation.

Even under heavy alternating loads, the vibratory bearings maintain outstanding performance and long-term reliability.
