Equipped with genuine Cummins engine, it achieves excellent fuel efficiency and outstanding operational reliability. It performs stably under long-term heavy-duty work with low wear and long service life, and features simple maintenance to effectively reduce subsequent operating costs.
Built with reinforced chassis, it ensures superior driving and working stability, enabling greater digging depth and wider working coverage. It is widely applicable to medium and large municipal projects, deep trench excavation, bridge foundation construction, river regulation, auxiliary mining operations, large factory renovation, bulk material handling and other medium-to-heavy construction tasks on complex terrains.

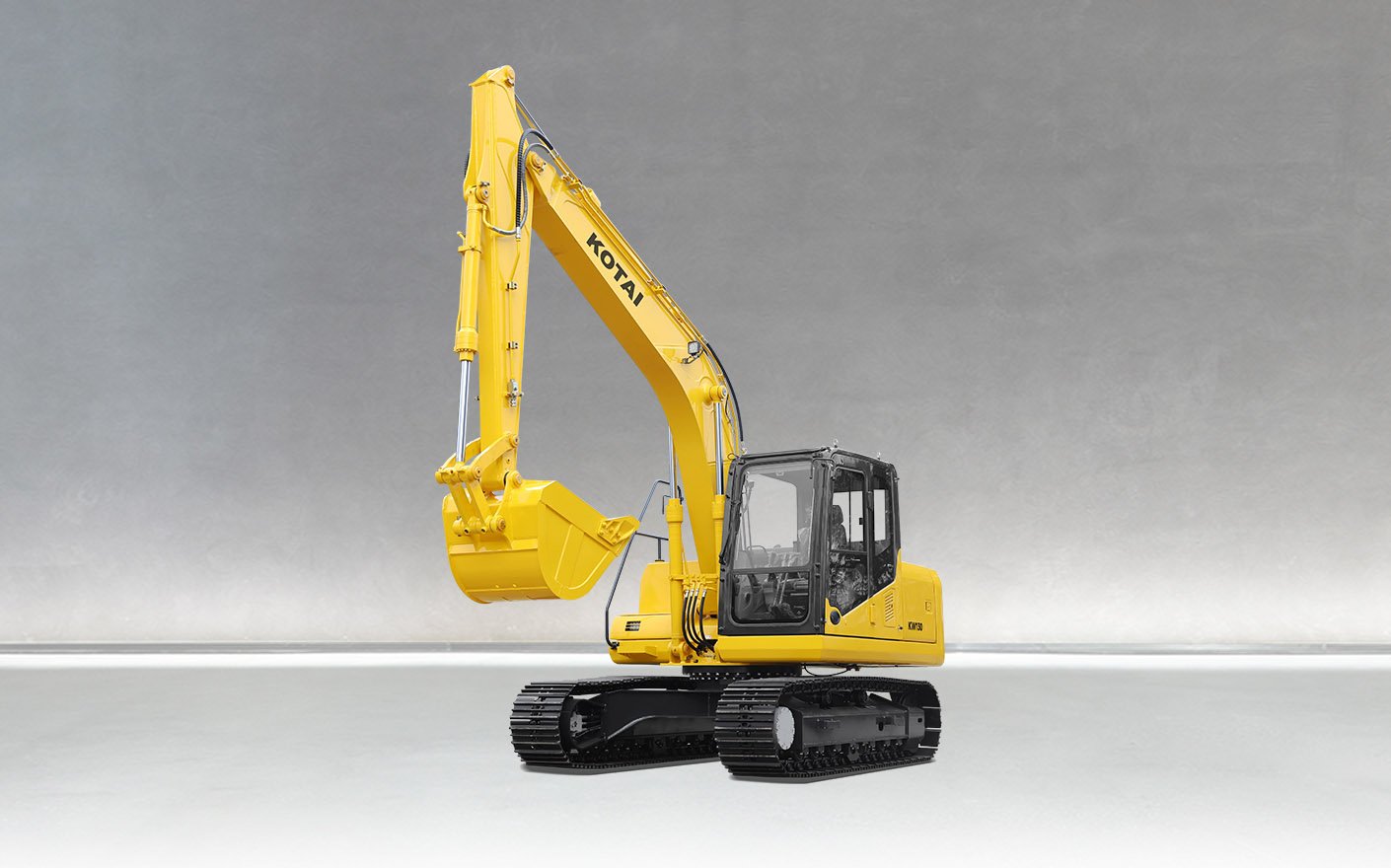

| Model | KW130 |
| Series | KW |
| Description | Crawler Excavator |
| Engine Brand | Cummins |
| Rated Power(kW) | 86 |
| Rated Speed(r/min) | 2200 |
| Weight(t) | 13 |
| Bucket Capacity(m³) | 0.5 |
| Travel Speed(km/h) | 5.3/3.1 |
| Swing Speed(r/min) | 12 |
| Gradeability(%) | 70 |
| Bucket Digging Force(kN) | 90 |
| Drawbar Pull(kN) | 128 |
| Ground Pressure(kPa) | 39 |
| Total Length(mm) | 7580 |
| Total Width(mm) | 2490 |
| Total Height(to Boom Top)(mm) | 2780 |
| Total Height(to Cab Top)(mm) | 2815 |
| Counterweight Ground Clearance(mm) | 870 |
| Minimum Ground Clearance(mm) | 430 |
| Tail Swing Radius(mm) | 2155 |
| Track Ground Contact Length(mm) | 3000 |
| Track Length(mm) | 3735 |
| Track Gauge(mm) | 2000 |
| Track Width(mm) | 2500 |
| Track Shoe Width(mm) | 500 |
| Upper Frame Width(mm) | 2490 |
| Arm Length(mm) | 2500 |
| Boom Length(mm) | 4600 |
| Max. Digging Height(mm) | 8630 |
| Max. Dumping Height(mm) | 6180 |
| Max. Digging Depth(mm) | 5500 |
| Max. Vertical Wall Digging Depth(mm) | 4940 |
| Max. Digging Depth at 2.5m Horizontal Level(mm) | 5285 |
| Max. Digging Reach(mm) | 8305 |
| Max. Digging Reach at Ground Level(mm) | 8180 |
| Min. Swing Radius(mm) | 2495 |
| Max. Height at Min. Swing Radius(mm) | 6430 |
| Distance from Swing Center to Rear End(mm) | 2155 |
| Counterweight Height(mm) | 1935 |
| Ground Contact Length During Transportation(mm) | 4410 |
| Fuel tank(L) | 247 |
| Hydraulic Oil Tank(L) | 130 |
