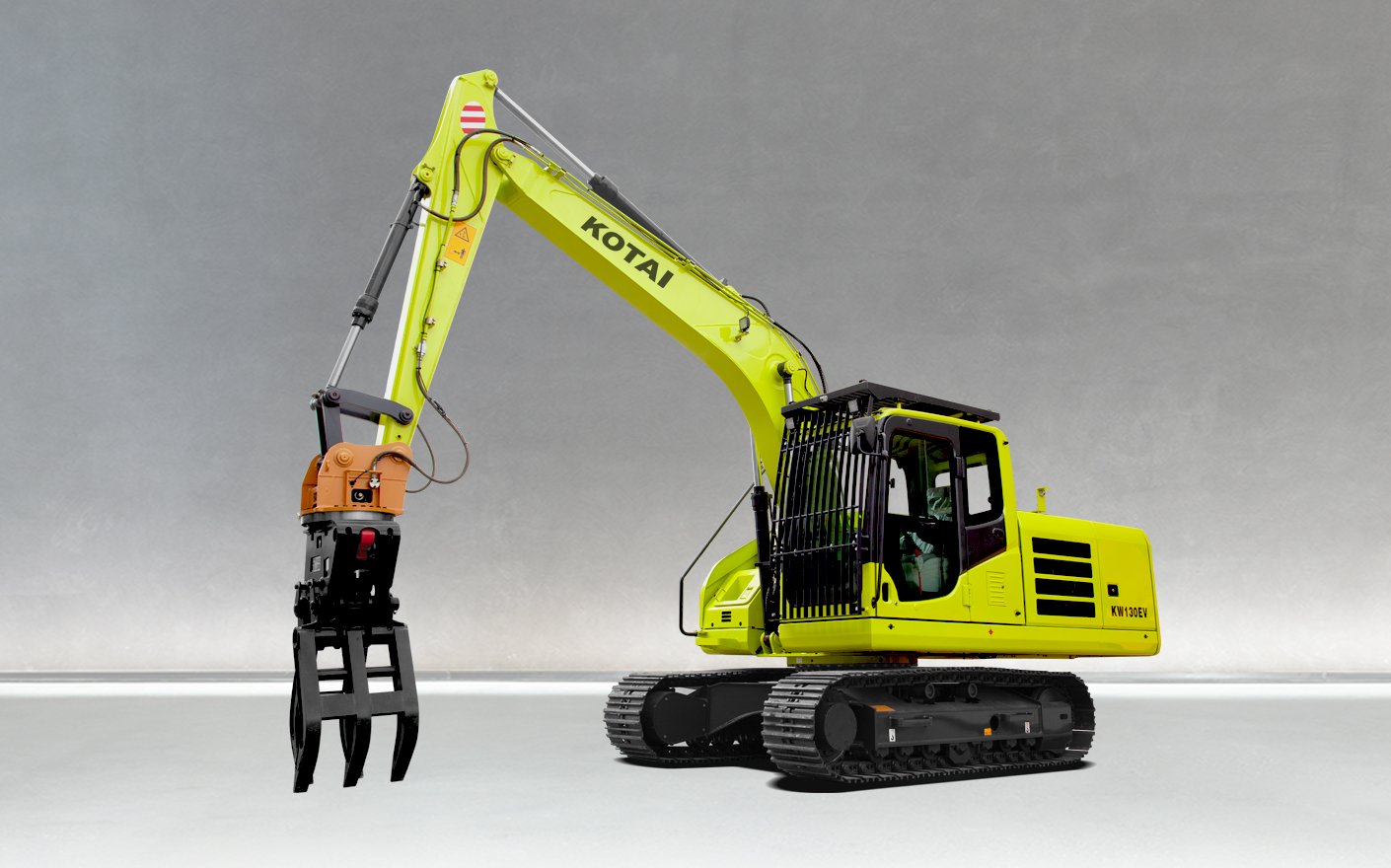

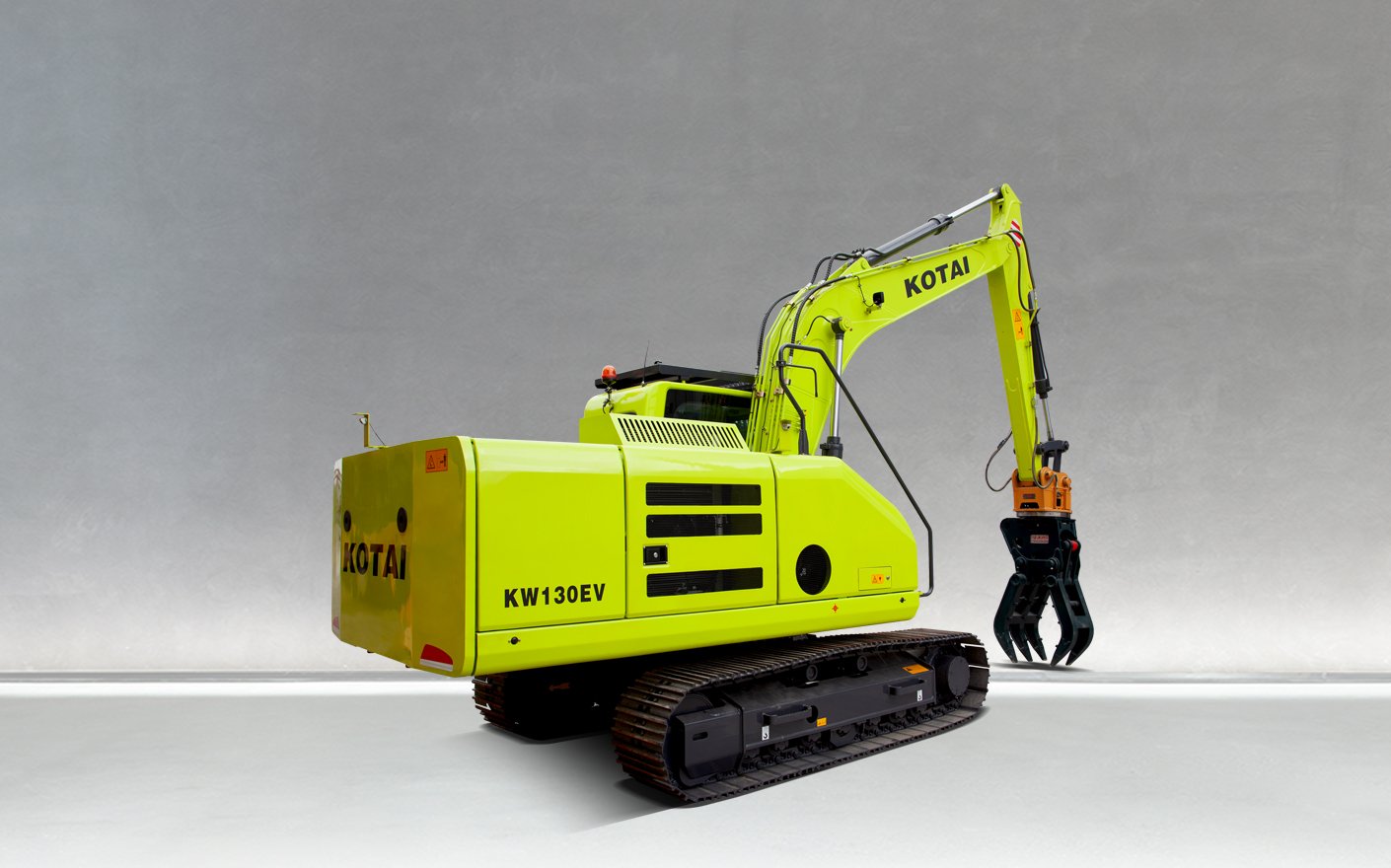

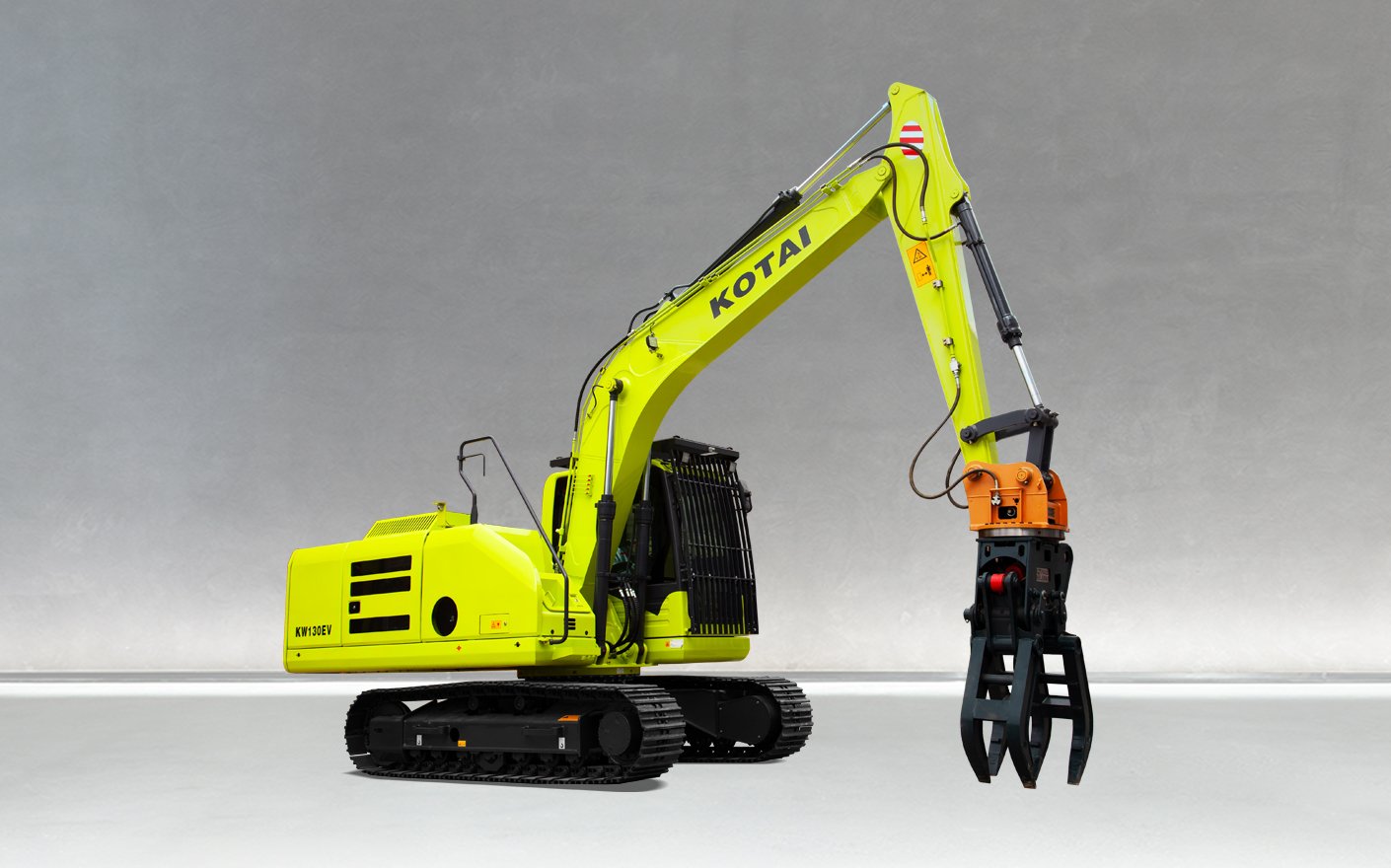

The KW130EV series electric excavator is suitable for excavation, loading and transportation operations under various working conditions, serving as an ideal high-efficiency equipment for earthwork construction and bulk material handling.
Equipped with a three-electric drive system and precisely calibrated hydraulic system, it features energy conservation, low consumption and smooth operation. It is fitted with an 8-inch intelligent display screen, 5G short/long-distance control and fault diagnosis functions, as well as an intelligent thermal management heat dissipation system.
Boasting a brand-new appearance and ergonomic cab, it has lower maintenance cost and longer maintenance intervals. With a small tail swing radius, it adapts to narrow working spaces and realizes multi-purpose operation with various attachments.
| Model | KW130EV |
| Series | KW-EV |
| Description | Electric Excavator |
| Weight(t) | 14.2 |
| Rated Power(kW) | 105 |
| Rated Speed(r/min) | 2000 |
| Bucket Capacity(m³) | 0.66 |
| Travel Speed(km/h) | 5.3/3.1 |
| Swing Speed(r/min) | 12.6 |
| Gradeability(%) | 35 |
| Bucket Digging Force(kN) | 106 |
| Ground Pressure(kPa) | 86 |
| Total Length(mm) | 8378 |
| Total Width(mm) | 2490 |
| Total Height(to Boom Top)(mm) | 2780 |
| Total Height(to Cab Top)(mm) | 2813 |
| Counterweight Ground Clearance(mm) | 870 |
| Minimum Ground Clearance(mm) | 433 |
| Tail Swing Radius(mm) | 2905 |
| Track Gauge(mm) | 1960 |
| Track Shoe Width(mm) | 500 |
| Upper Frame Width(mm) | 2490 |
| Max. Digging Height(mm) | 8630 |
| Max. Dumping Height(mm) | 6180 |
| Max. Digging Depth(mm) | 5501 |
| Min. Swing Radius(mm) | 2495 |
