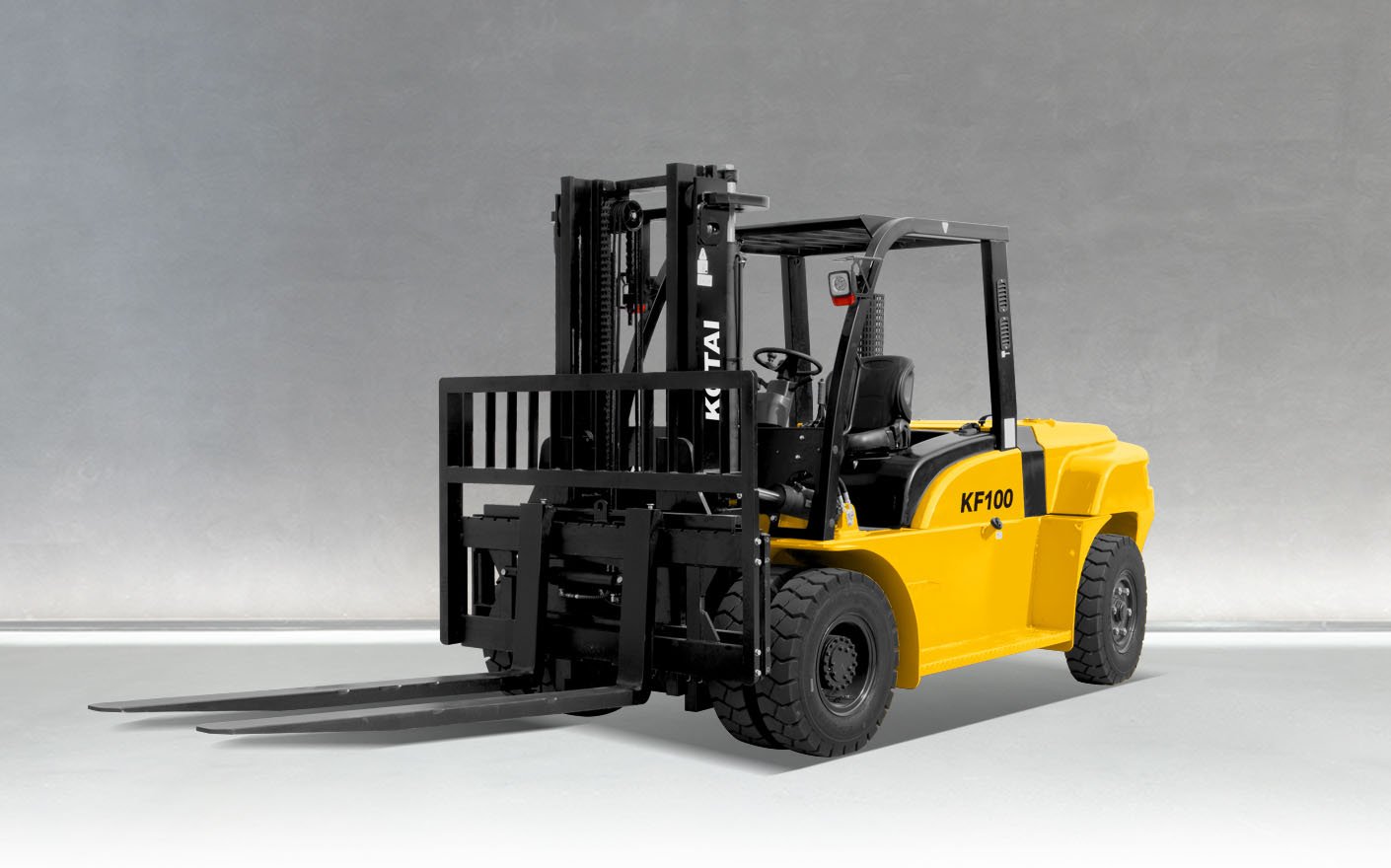

The KF100 Internal Combustion Counterbalanced Forklift is suitable for outdoor working conditions, such as construction sites, mines, ports and other places with relatively harsh operating environments that require high power and load-bearing capacity of the forklift. It can be used for loading and unloading heavy objects such as construction materials and ores, as well as handling and stacking goods on uneven ground.
| Model | KF100 |
| Series | KF |
| Description | Internal Combustion Counterbalance Forklift |
| Power Type | Diesel |
| Weight(kg) | 12900 |
| Engine Brand | Xichai |
| Rated Power(kW) | 83 |
| Rated Load Capacity(kg) | 10000 |
| Load Center Distance(mm) | 600 |
| Max. Lifting Height(mm) | 3000 |
| Free Lift Height(mm) | 195 |
| Mast Tilt Angle(°) | 6°/12° |
| Min. Turning Radius(mm) | 4100 |
| Gradeability (Full Load / Empty Load)(%) | 254%/30% |
| Min. Ground Clearance (mm) | 200 |
| Overall Length(mm) | 4340 |
| Overall Width(mm) | 2200 |
| Overall Height(mm) | 2850 |
| Wheelbase(mm) | 1800 |
| Track Width(mm) | 1600/1725 |
| Fork Dimensions(mm) | 1220*180*75 |
