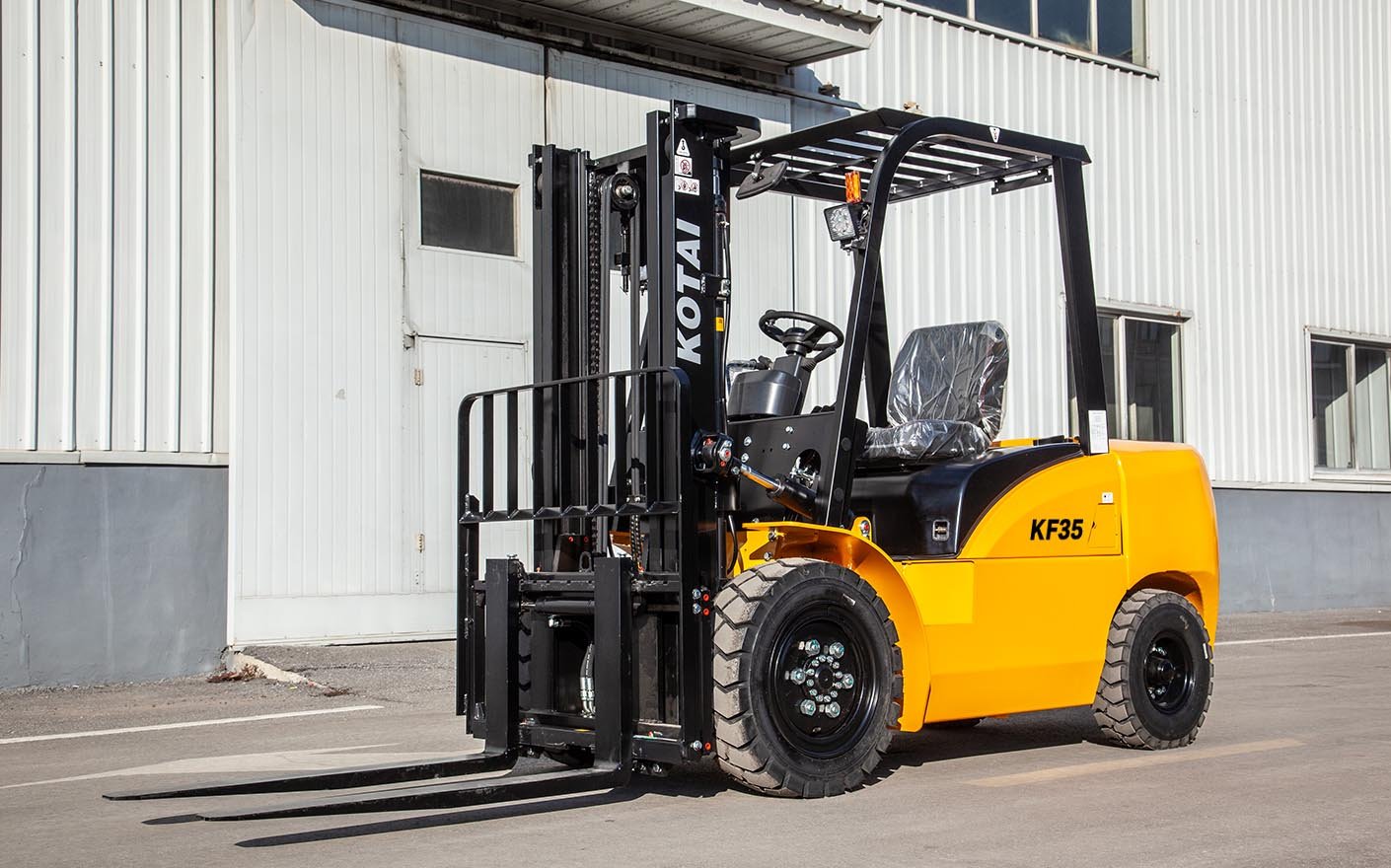

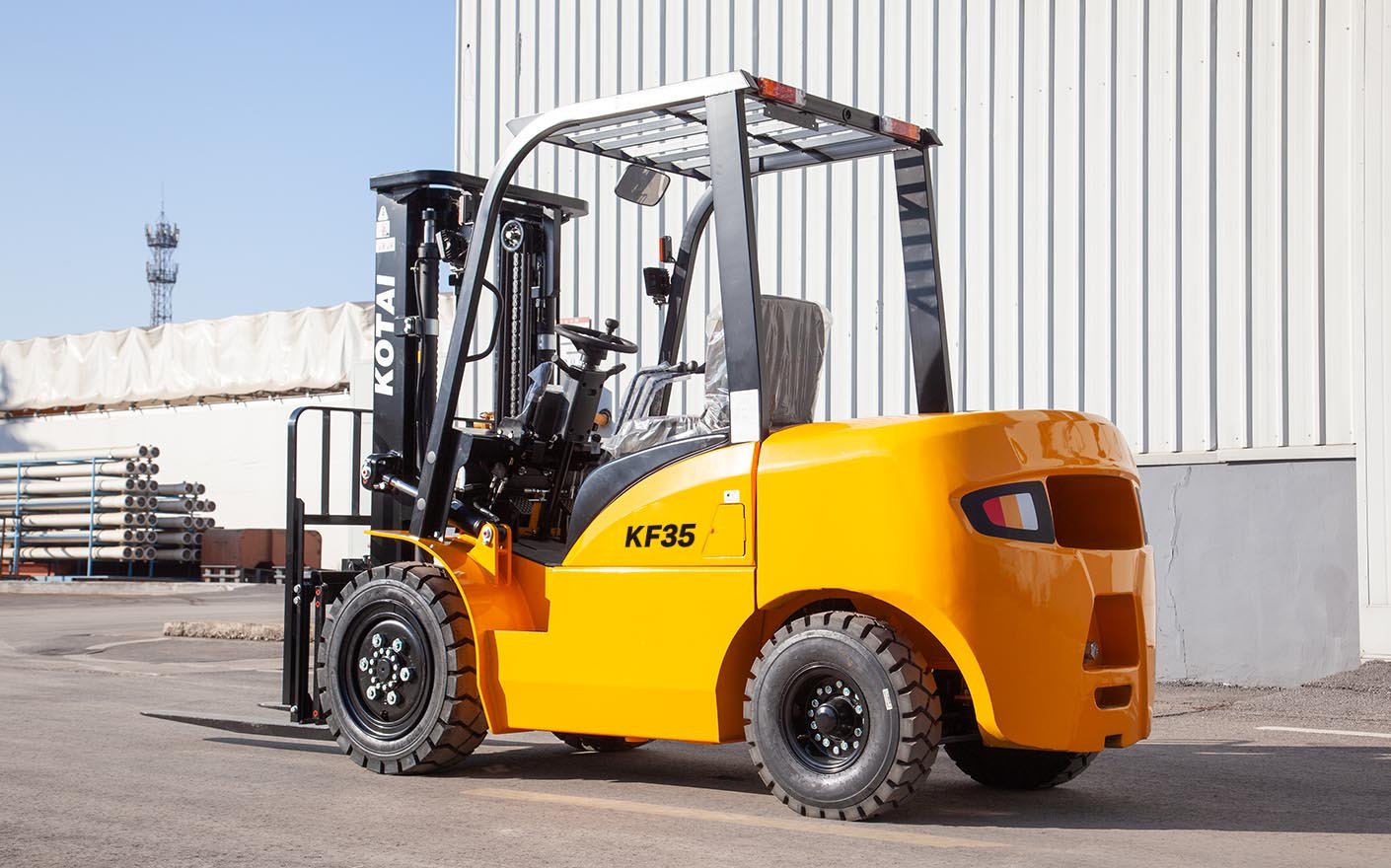

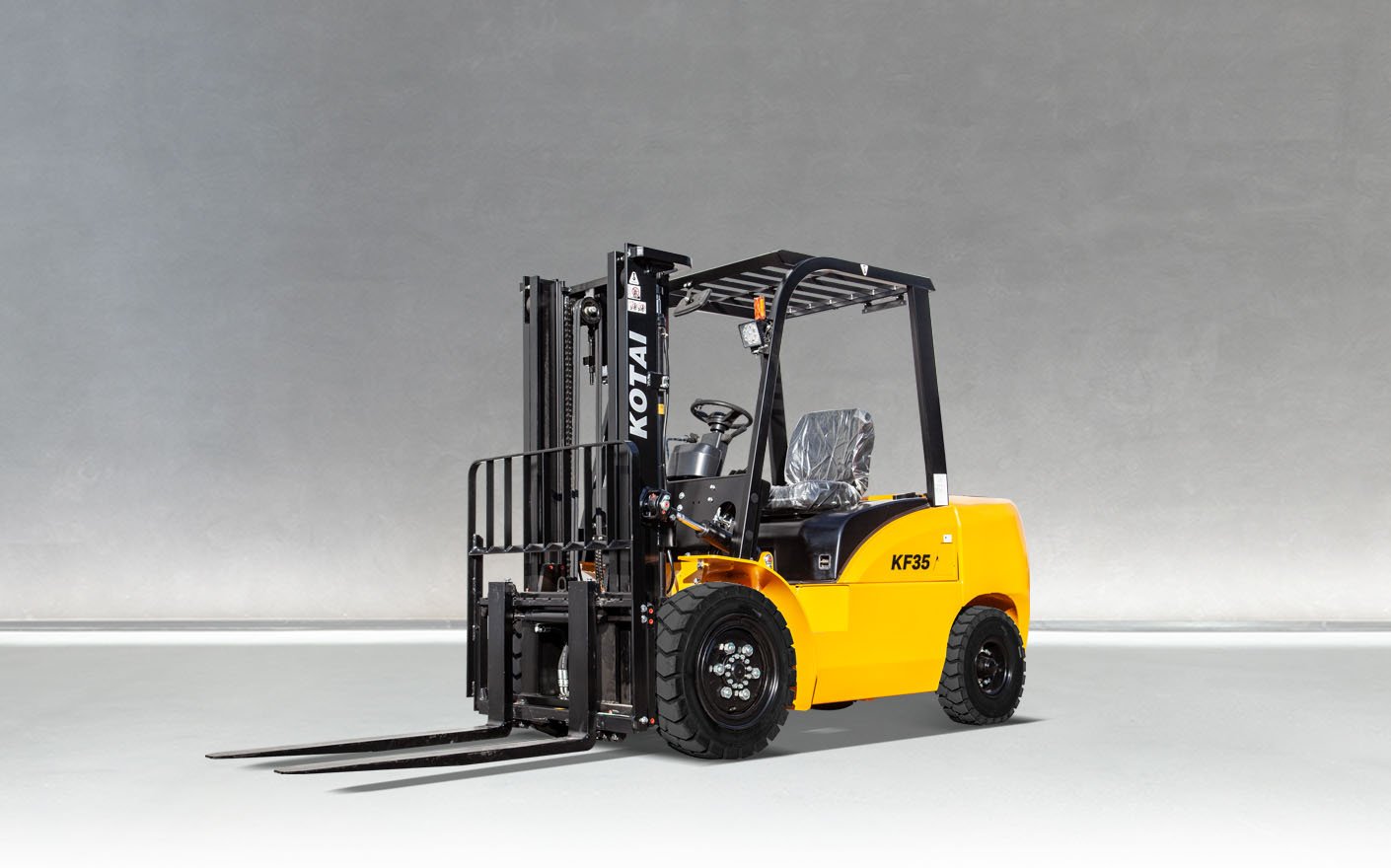

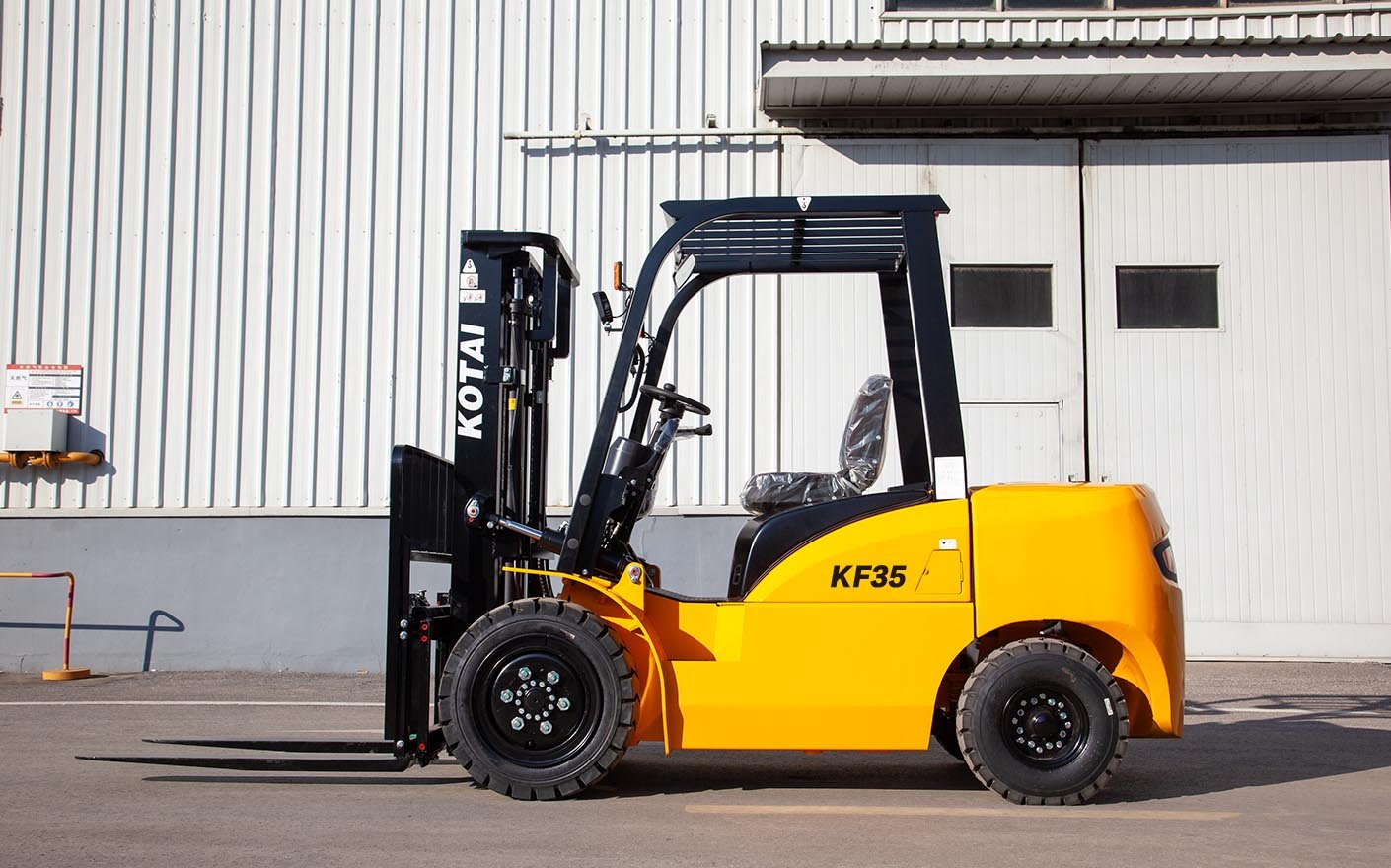

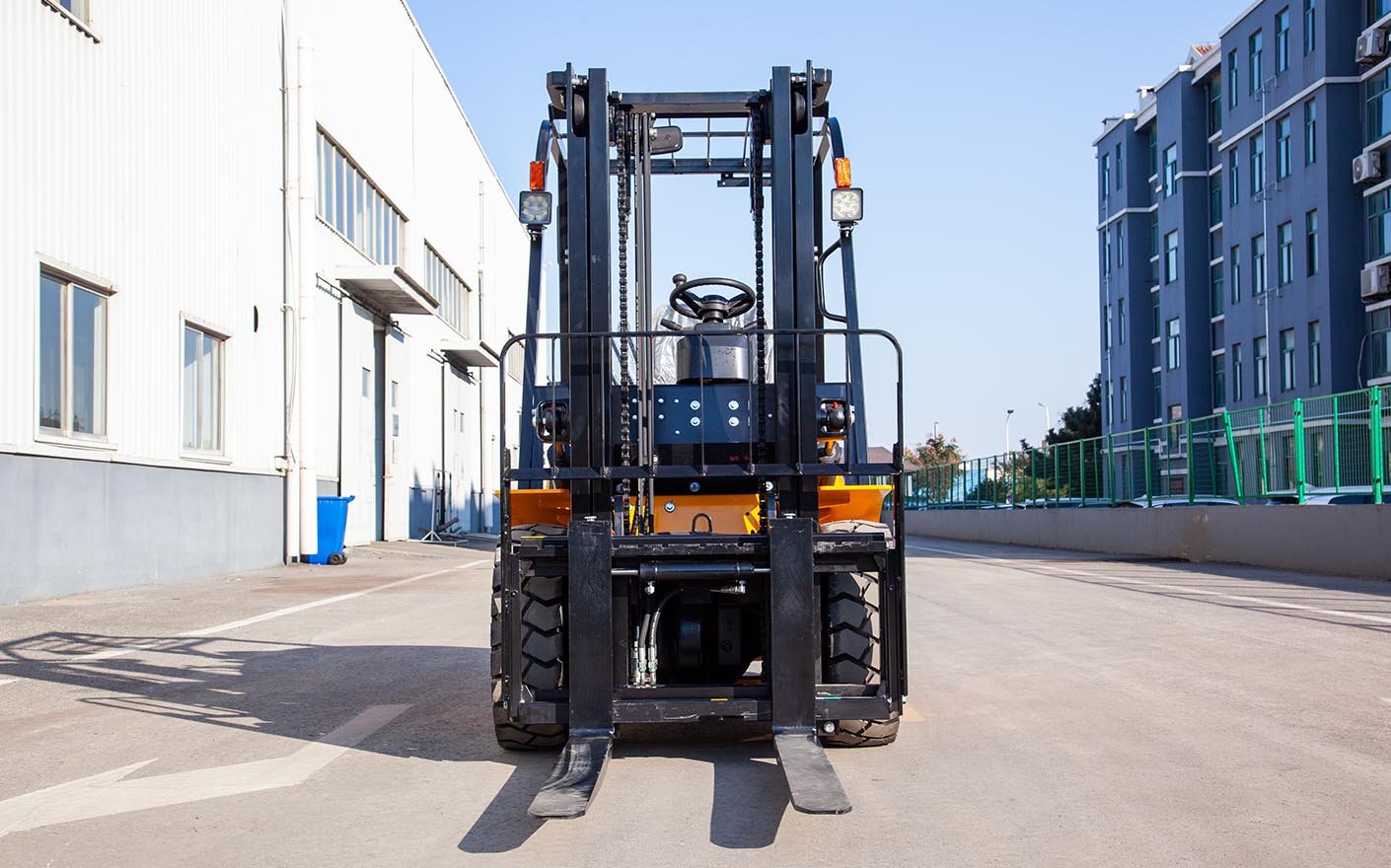

The KF35 internal combustion engine counterbalanced forklift is suitable for outdoor working conditions, such as construction sites, mines, ports, and other relatively harsh operating environments that require high power and load-bearing capacity. It can be used for loading and unloading construction materials, ores, and other heavy goods, as well as for transporting and stacking cargo on uneven ground.
| Model | KF35 |
| Series | KF |
| Description | Internal Combustion Counterbalance Forklift |
| Power Type | Diesel |
| Weight(kg) | 4600 |
| Engine Brand | Xinchai |
| Rated Power(kW) | 36.8 |
| Rated Load Capacity(kg) | 3500 |
| Load Center Distance(mm) | 500 |
| Max. Lifting Height(mm) | 3000 |
| Free Lift Height(mm) | 130 |
| Mast Tilt Angle(°) | 6°/12° |
| Min. Turning Radius(mm) | 2620 |
| Gradeability (Full Load / Empty Load)(%) | 15%/20% |
| Min. Ground Clearance (mm) | 130 |
| Overall Length(mm) | 2880 |
| Overall Width(mm) | 1230 |
| Overall Height(mm) | 2145 |
| Wheelbase(mm) | 1800 |
| Track Width(mm) | 1000/970 |
| Fork Dimensions(mm) | 1220*122*50 |
