Articulated boom aerial work platforms are mainstream equipment for low-level working operations. They are widely applied in construction, interior renovation, telecommunication engineering, social housing construction, airports and other scenarios.
With lightweight design, compact structure and superior flexibility, they perfectly suit operation in narrow spaces and frequent site relocation.

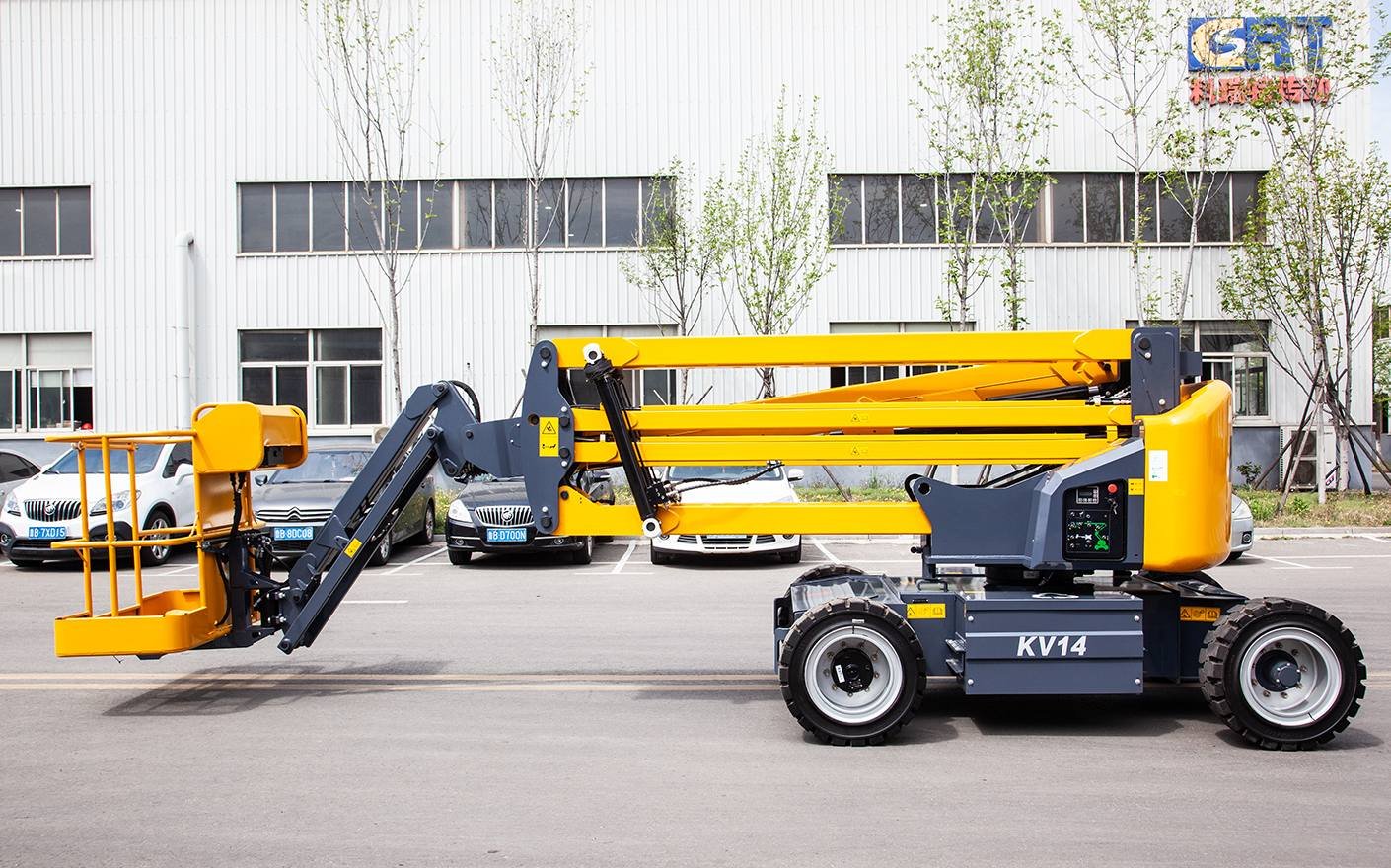

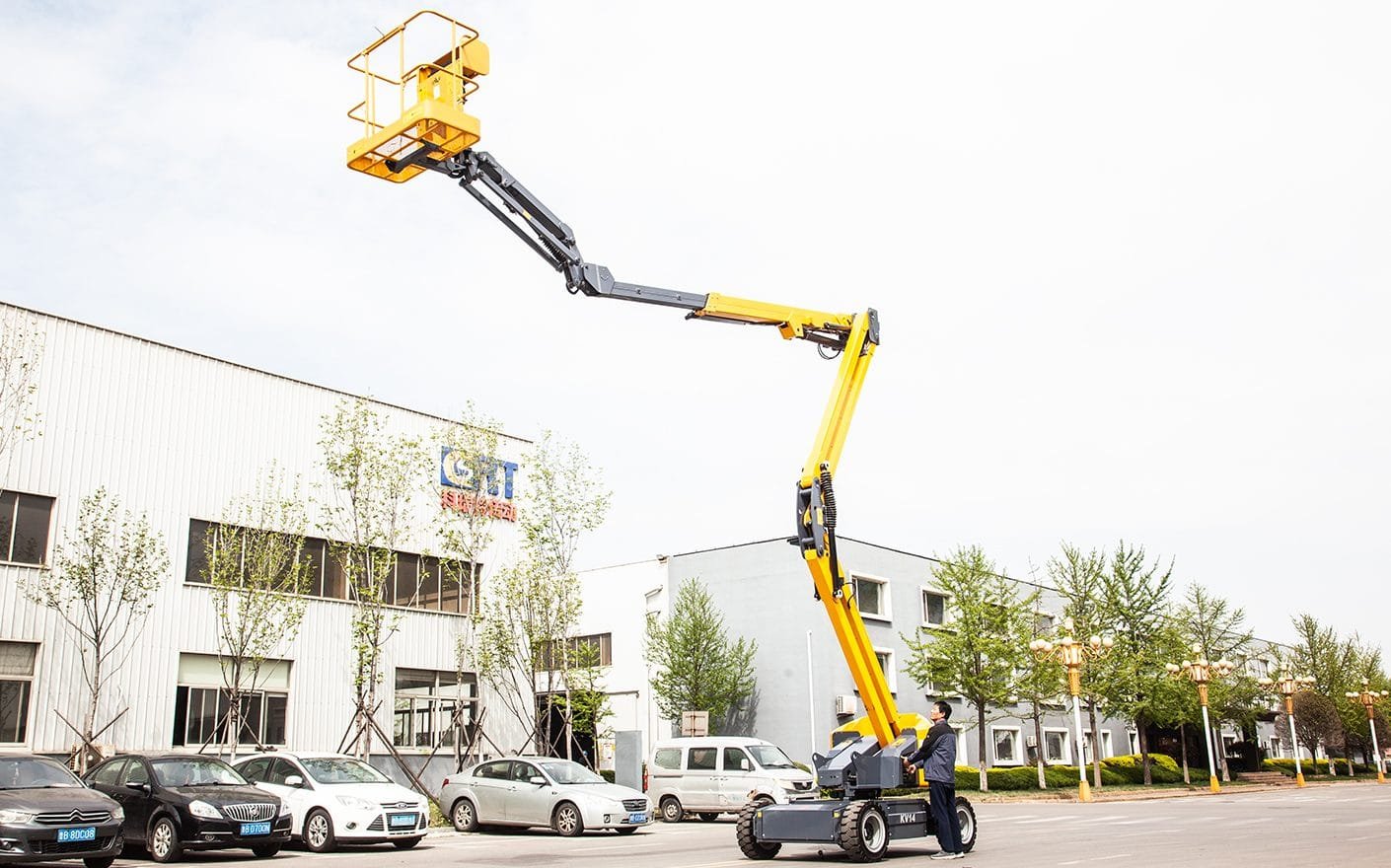

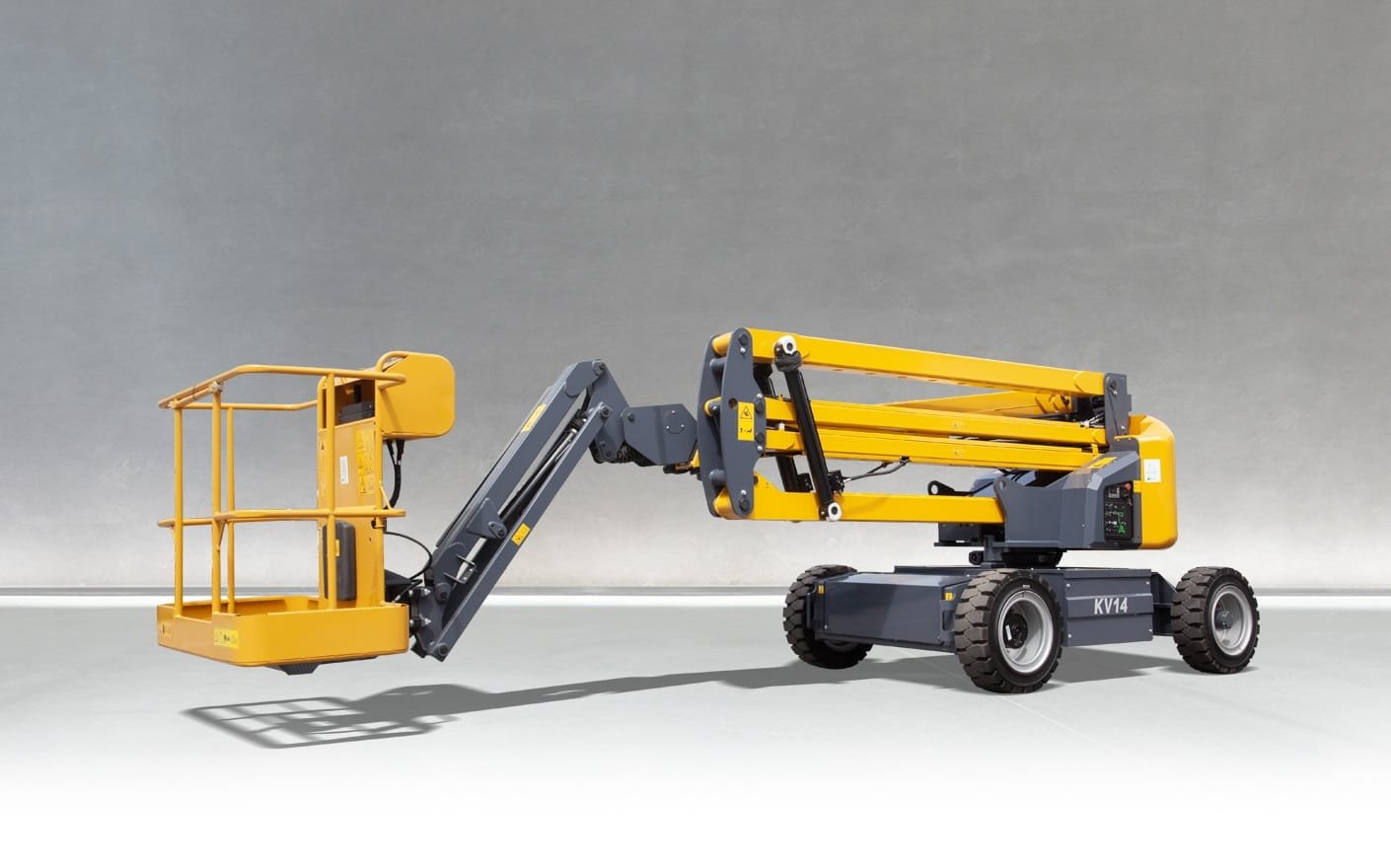

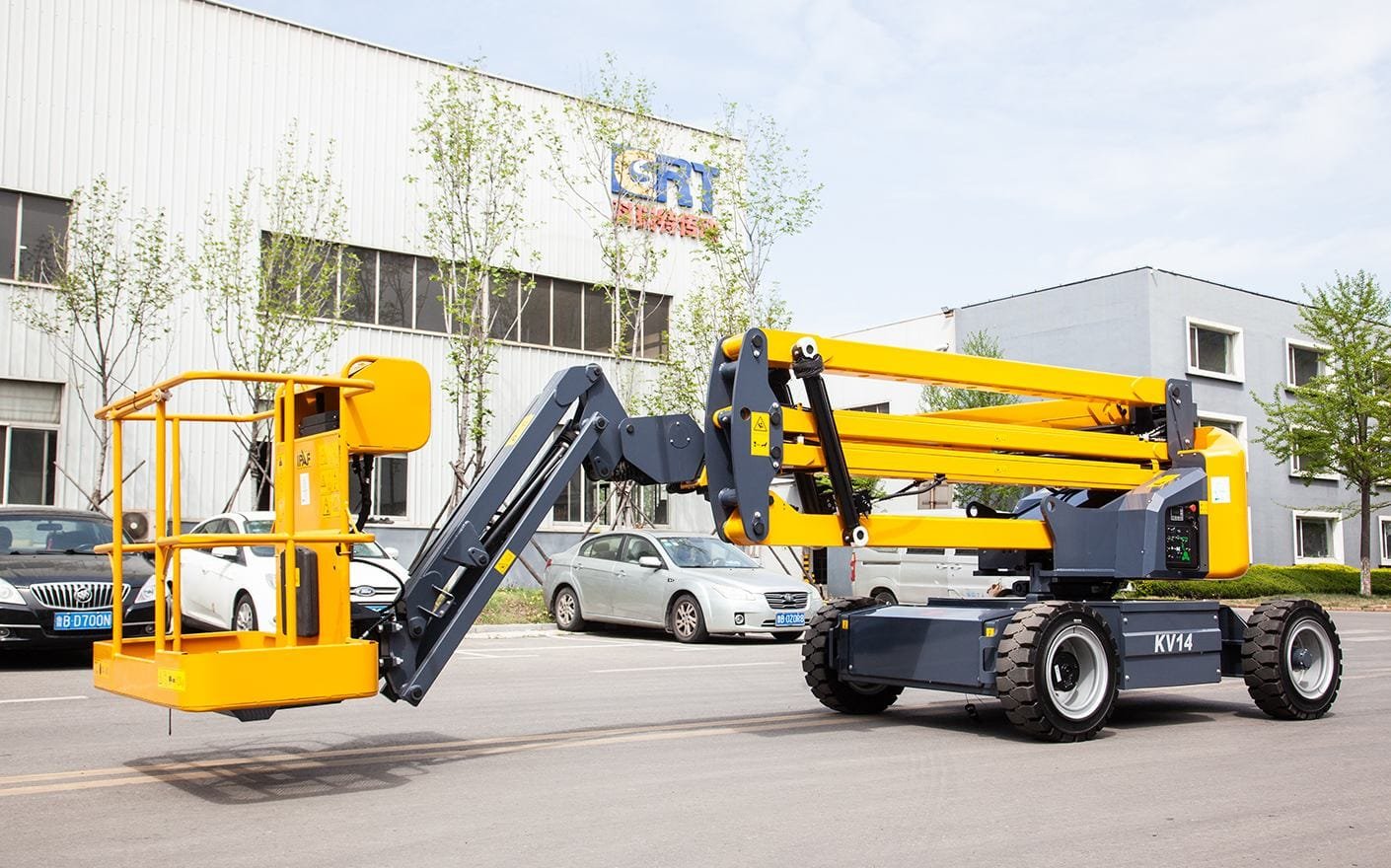

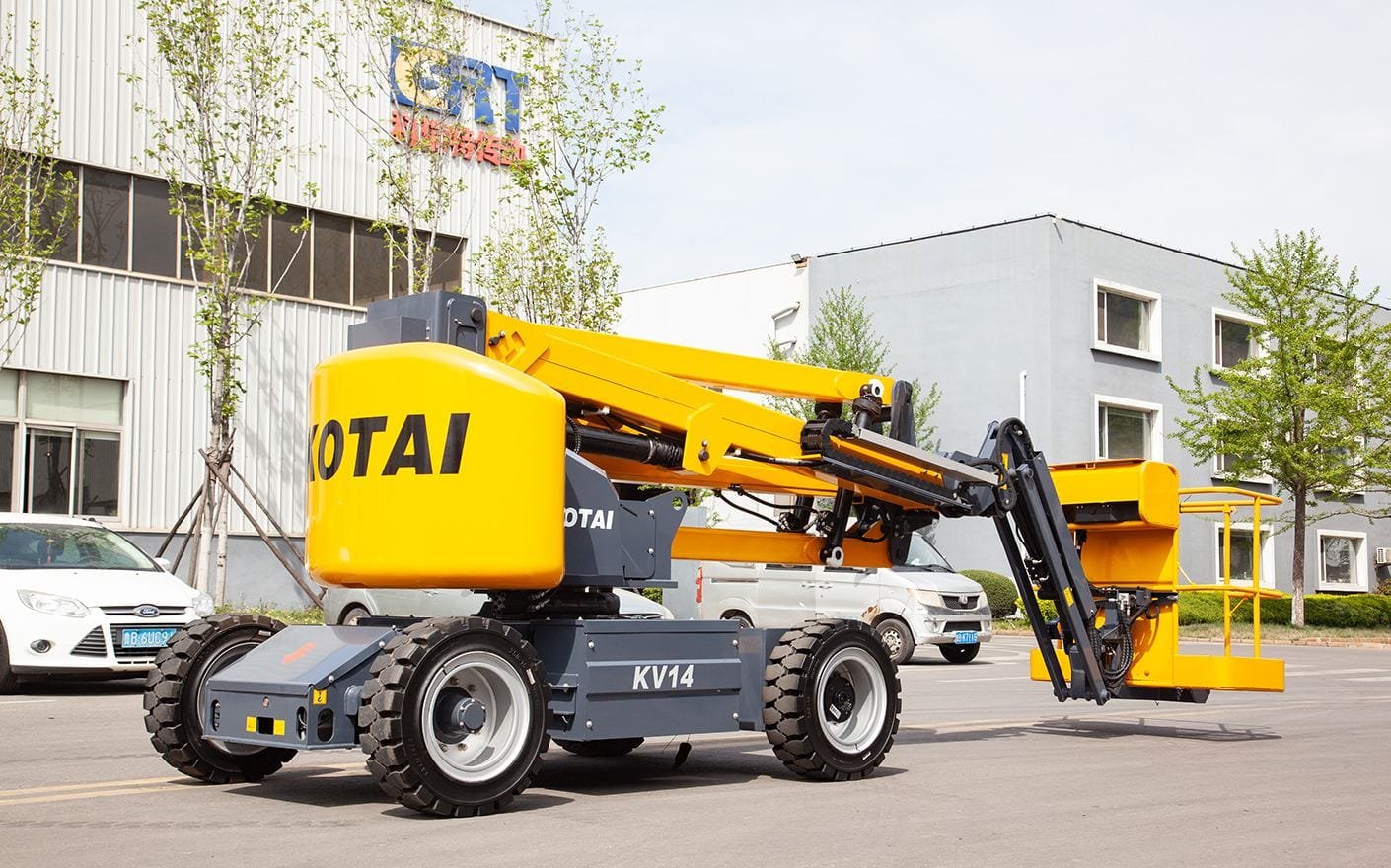

| Model | KV14 |
| Series | KV |
| Description | Electric Articulated Boom Lift |
| Weight(kg) | 5960 |
| Battery(V/Ah) | 48/320 |
| Max. Lift capacity(kg) | 230 |
| Number of platform occupants | 2 |
| Platform Rotation(°) | ±80 |
| Turntable Rotation(°) | 355 |
| Vertical Jib Rotation(°) | ±70 |
| Drive speed(km/h) | 5.1 |
| Gradeability(%) | 30 |
| Max. Working angle(°) | 3 |
| Turning radius(m) | 3.2 |
| Overall dimensions(L×W×H) (m) | 6.5*1.76*2 |
