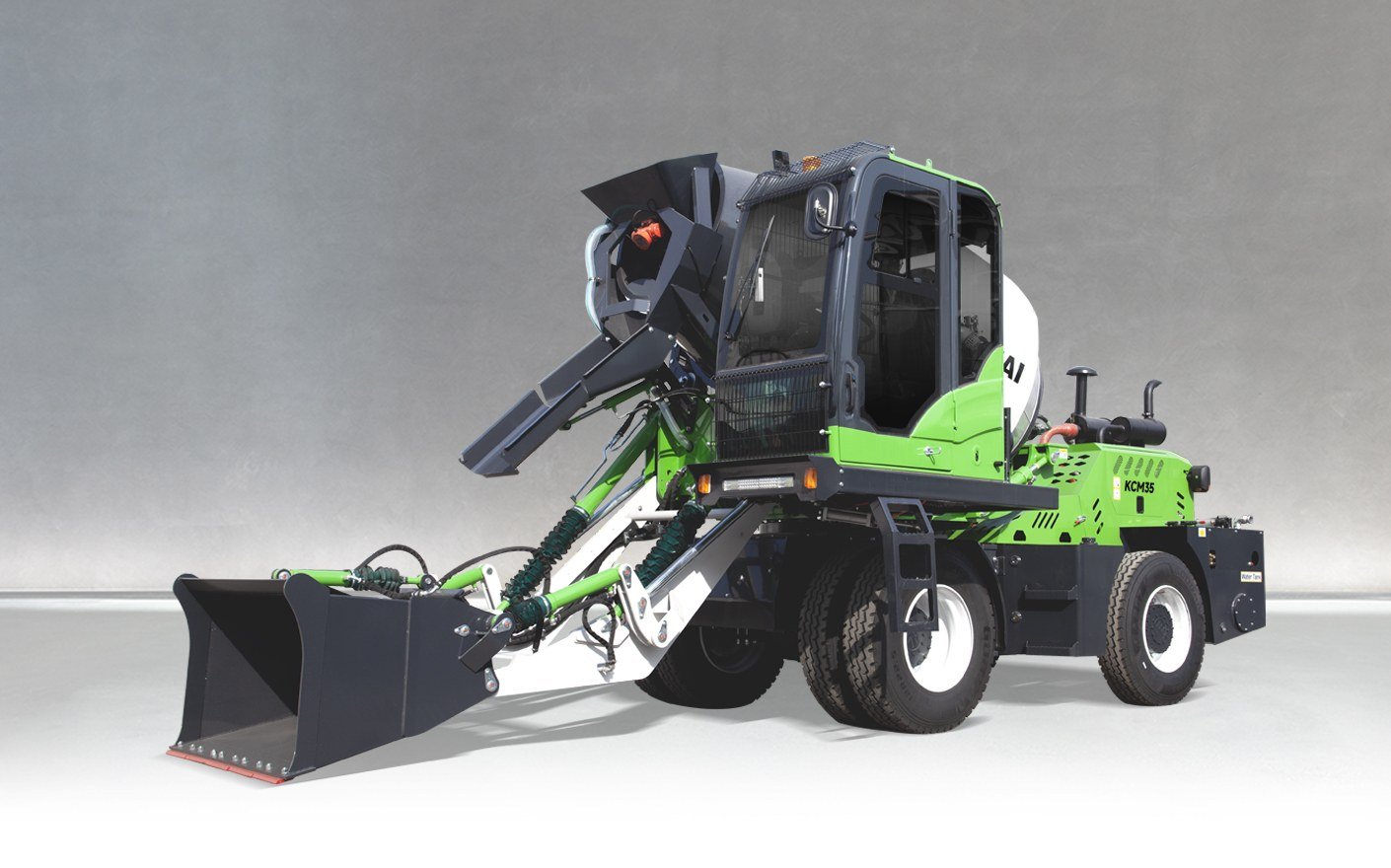

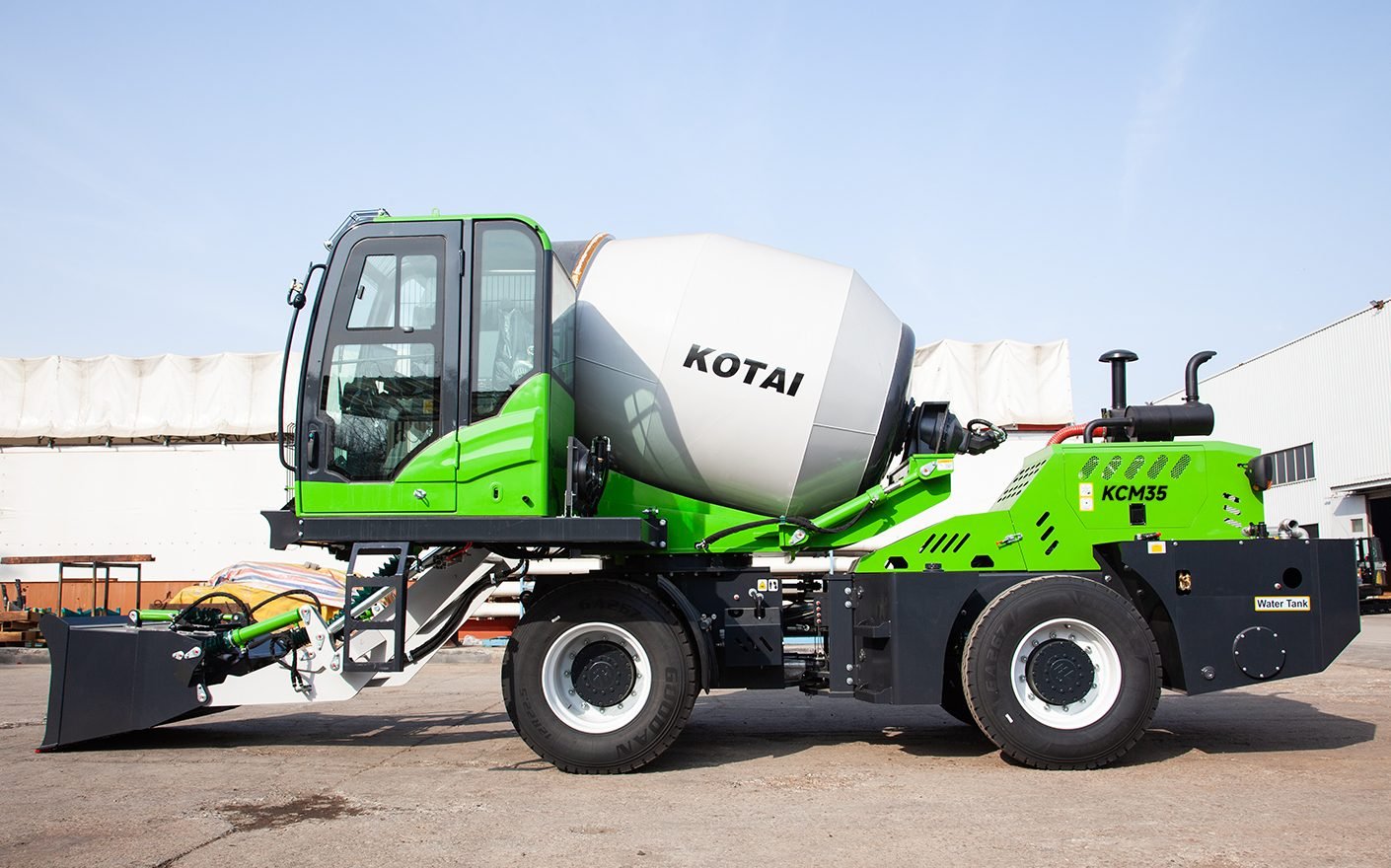

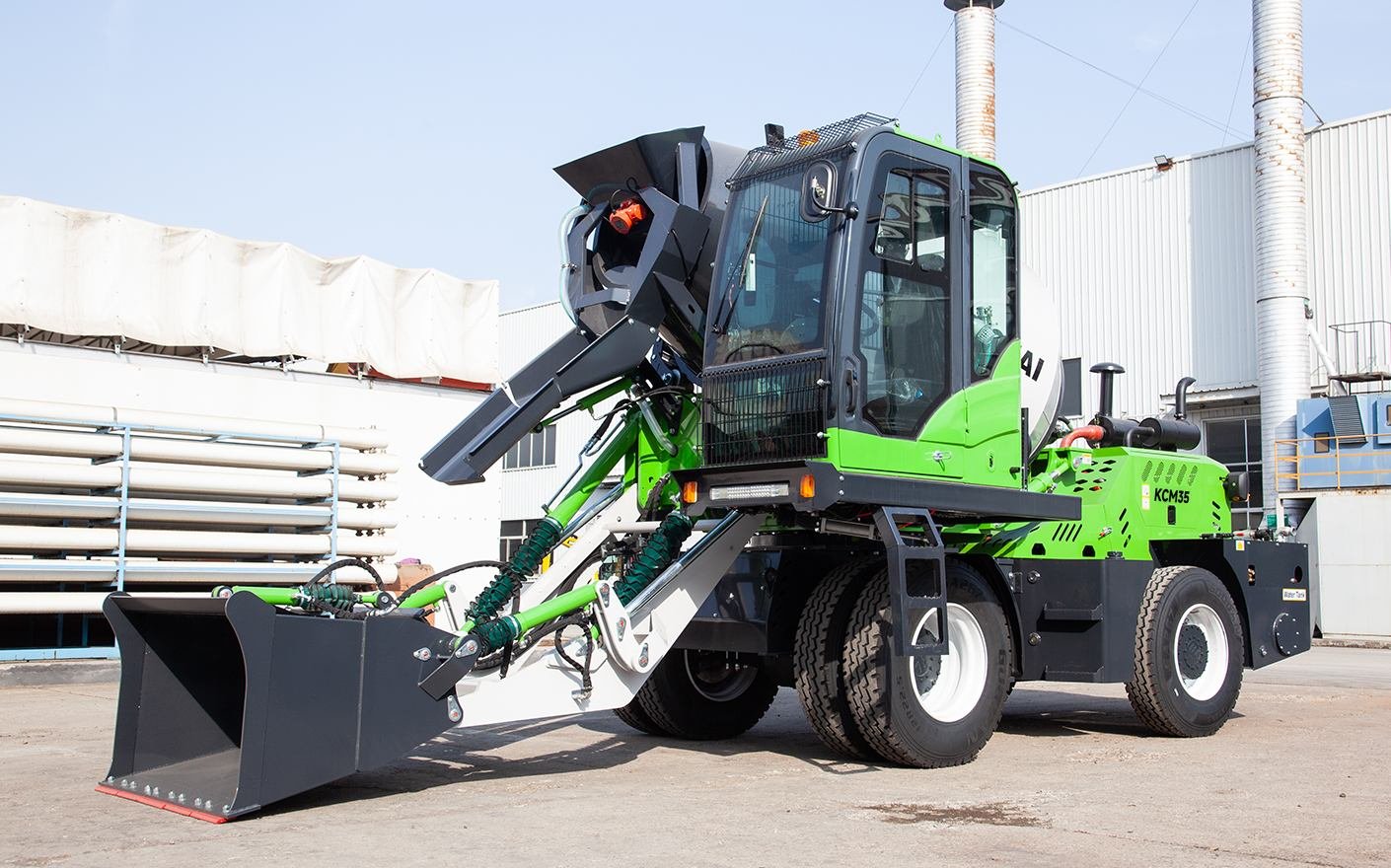

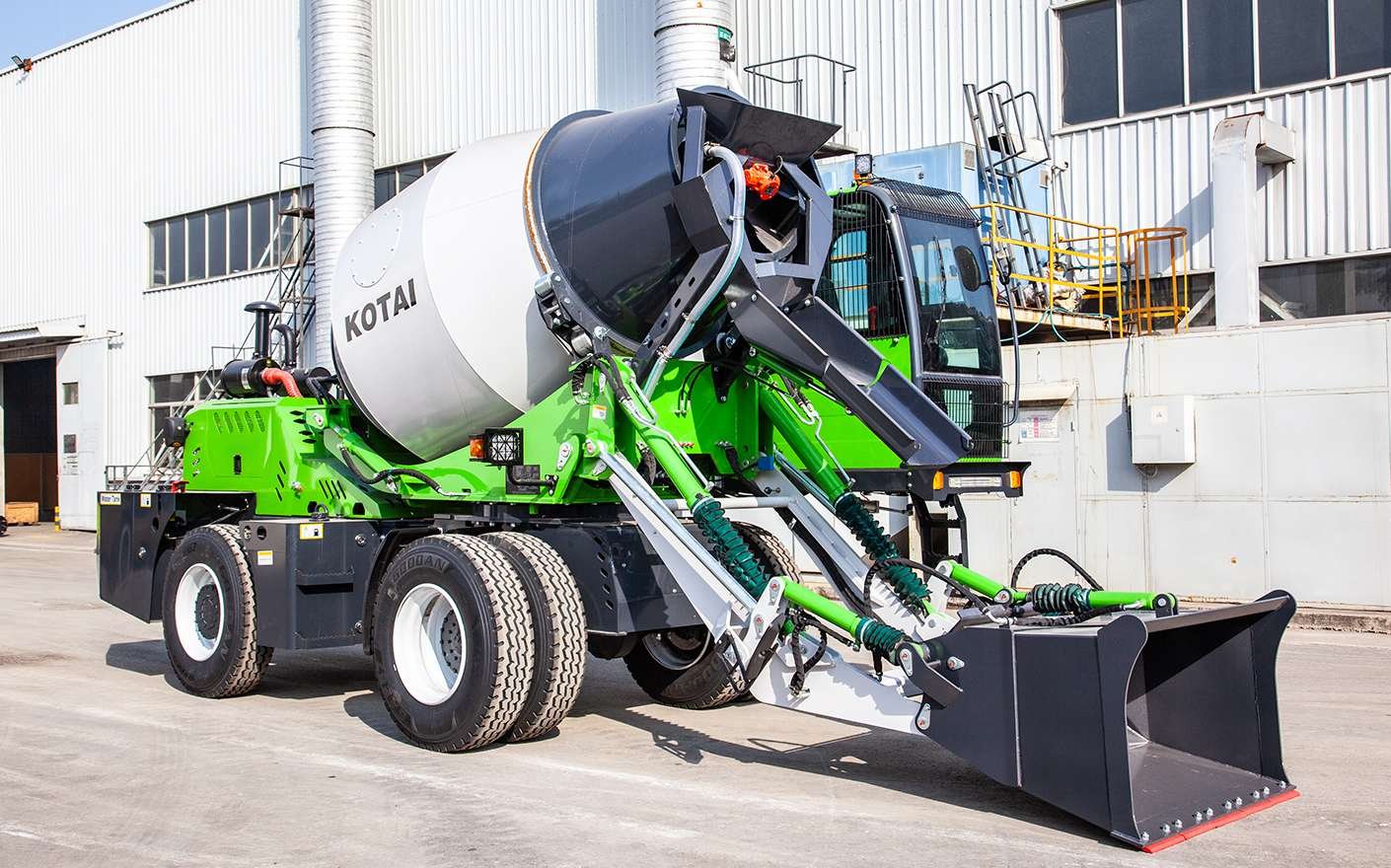

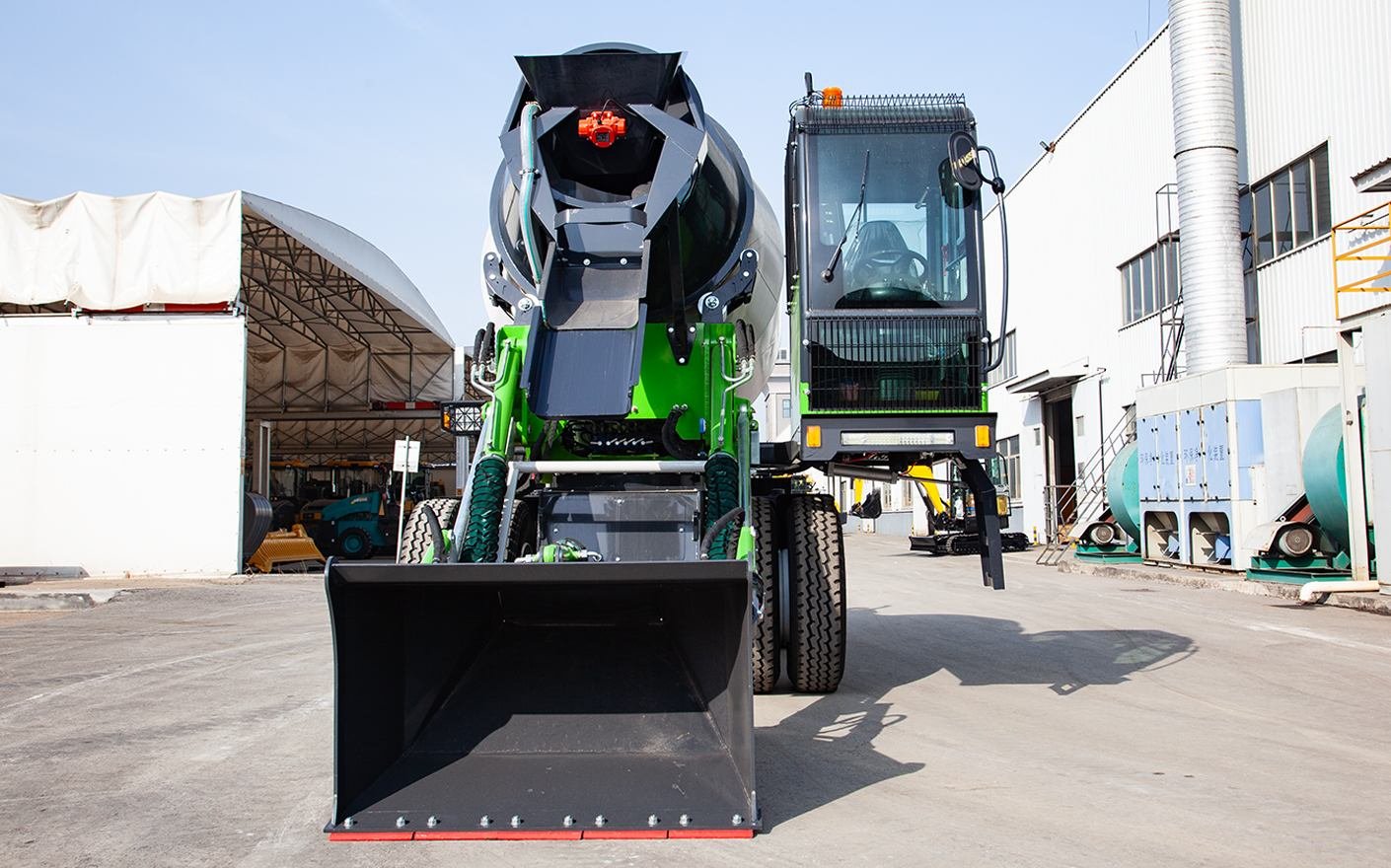

| Basic Data | Self Loading Concrete Mixer(KCM35) |
| Model | KCM35 |
| Series | KCM |
| Description | Self Loading Concrete Mixer(4WD) |
| Weight(kg) | 8000 |
| Engine Brand | Yuchai |
| Rated Power(kW) | 85 |
| Total Length(mm) | 7600 |
| Total Width(mm) | 2872 |
| Total Height(mm) | 3374 |
| Wheelbase(mm) | 2450 |
| Minimum Ground Clearance(mm) | 290 |
| Travel Speed (km/h) | 35 |
| Gradeability(°) | 40 |
| Drum Capacity(m³) | 5.55 |
| Drum Rotation Speed (r/min) | 20 |
| Concrete Output (m³/per batch) | 3.5 |
| Fuel Tank(L) | 120 |
| Hydraulic Oil Tank(L) | 120 |
| Water Tank(L) | 750 |
