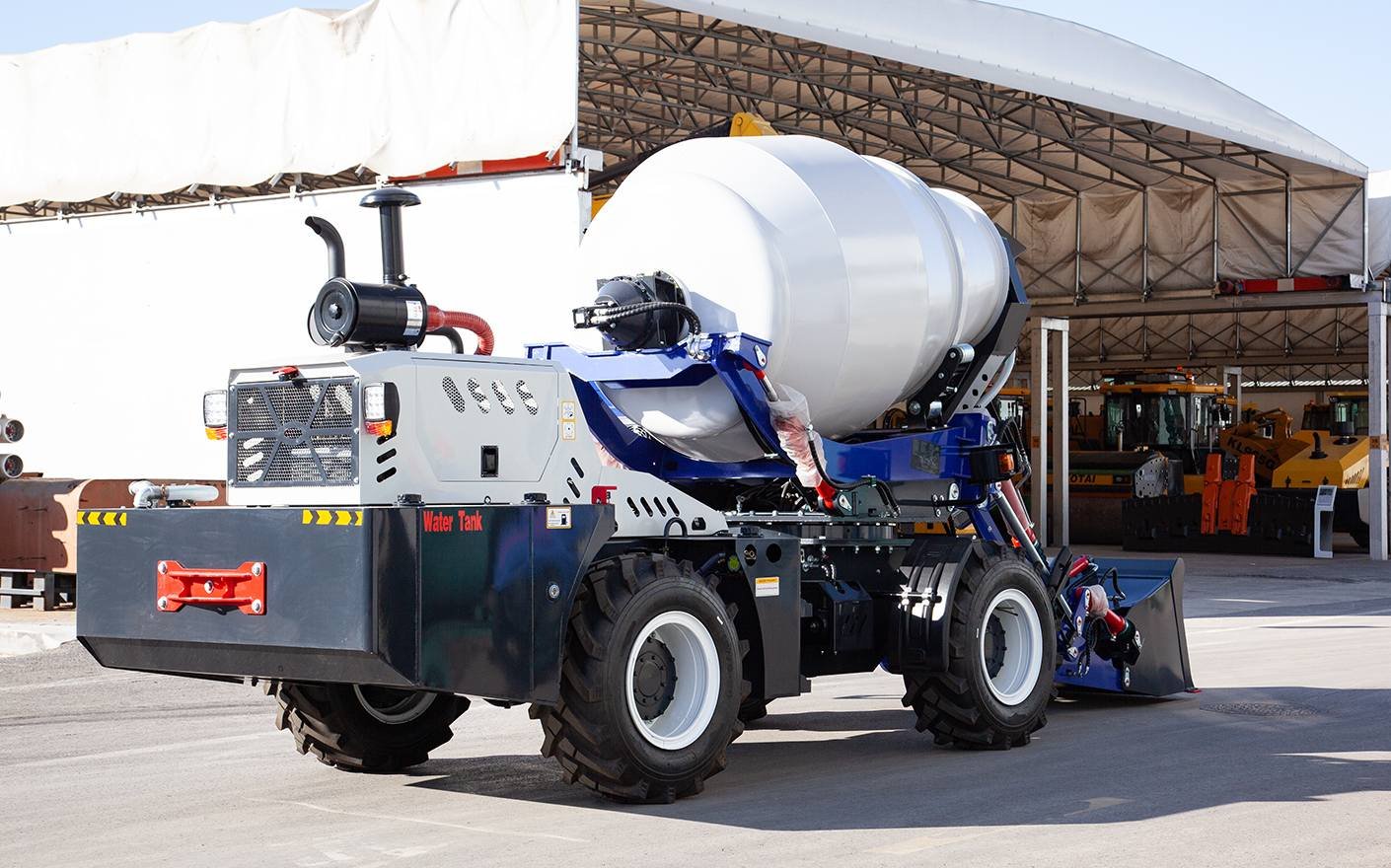

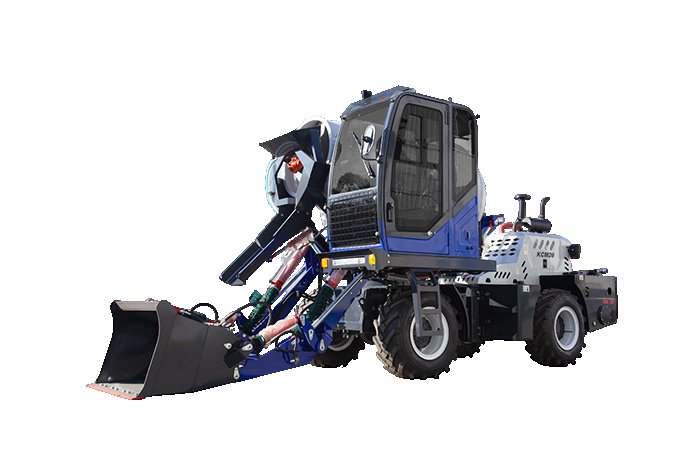

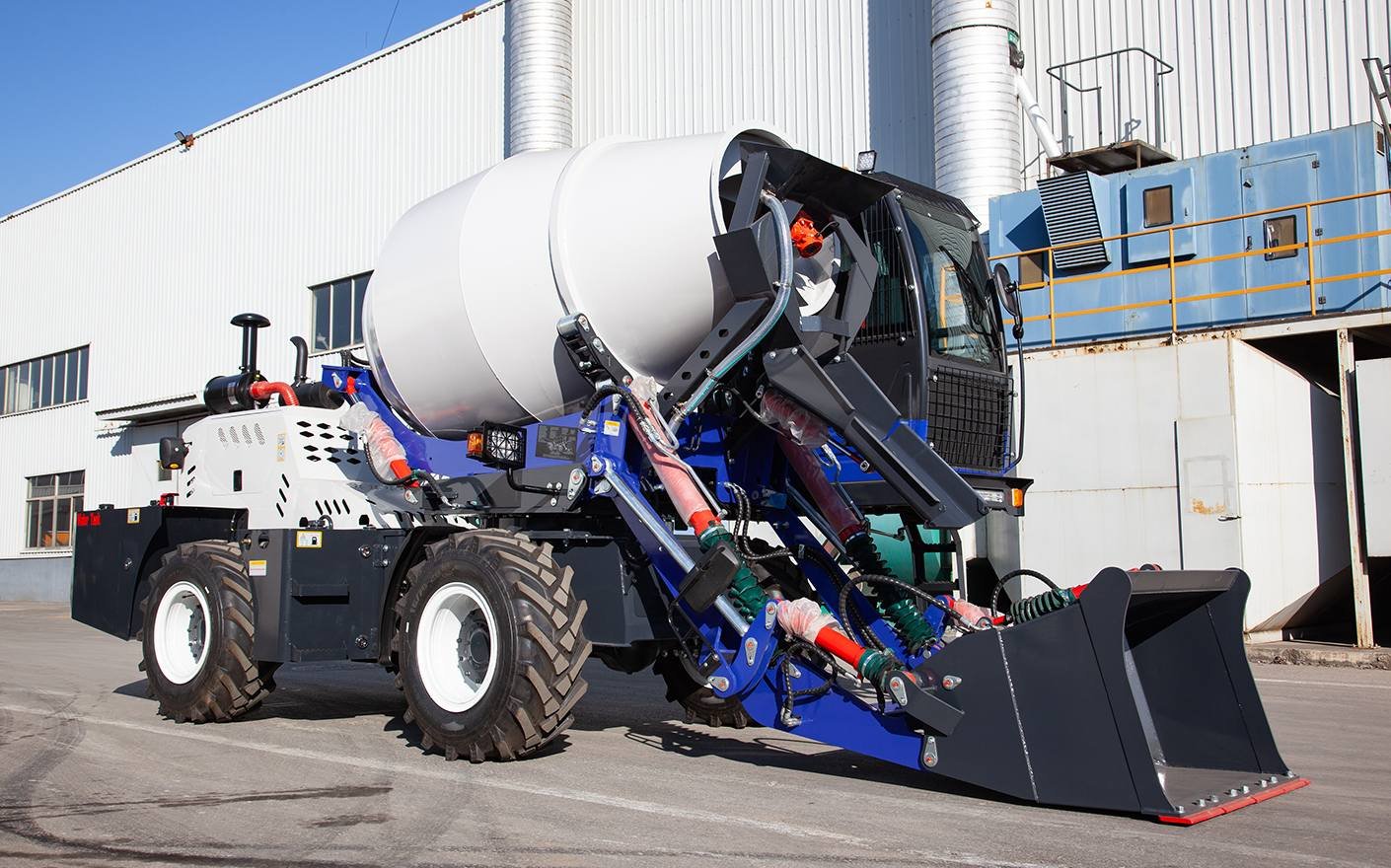

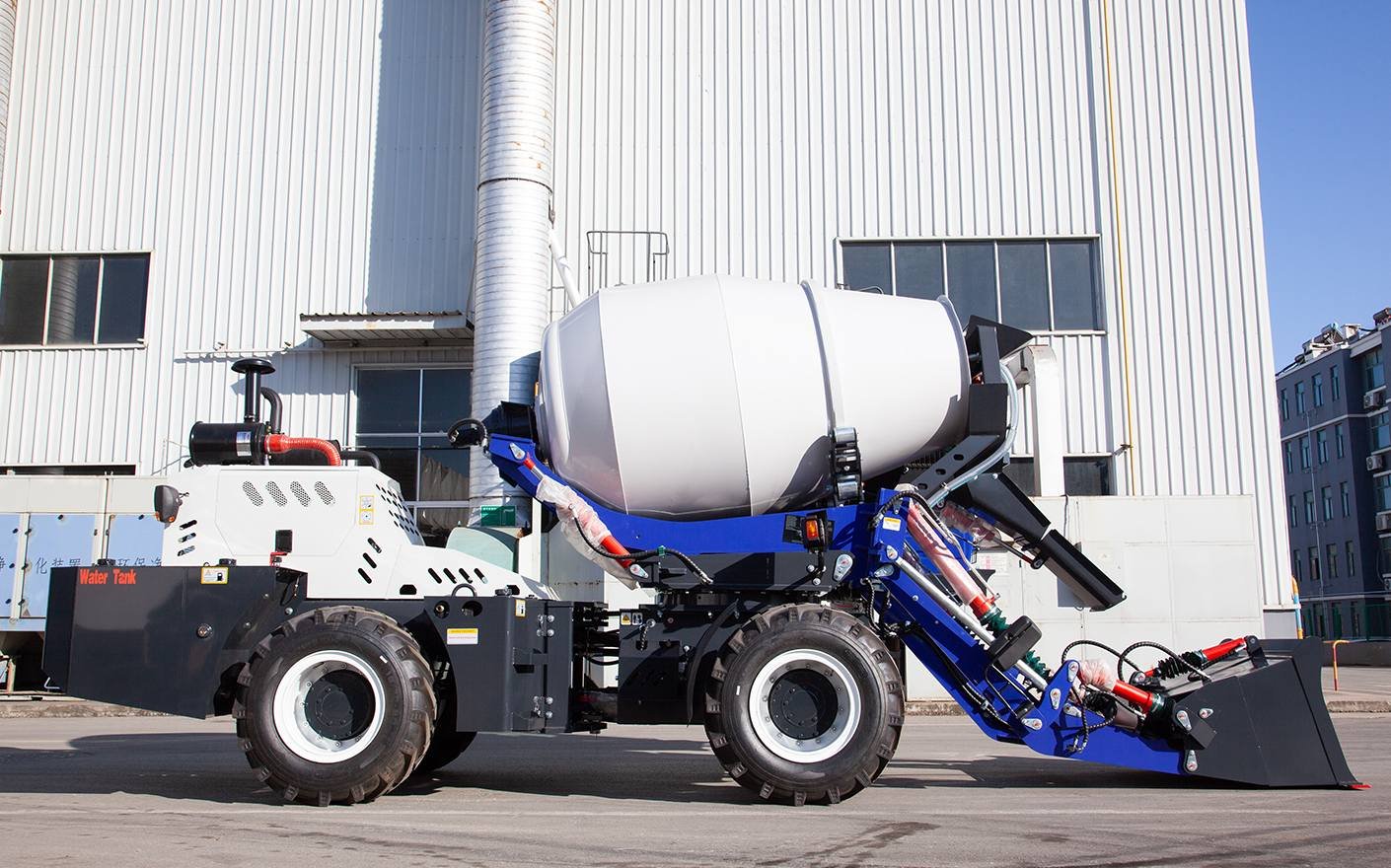

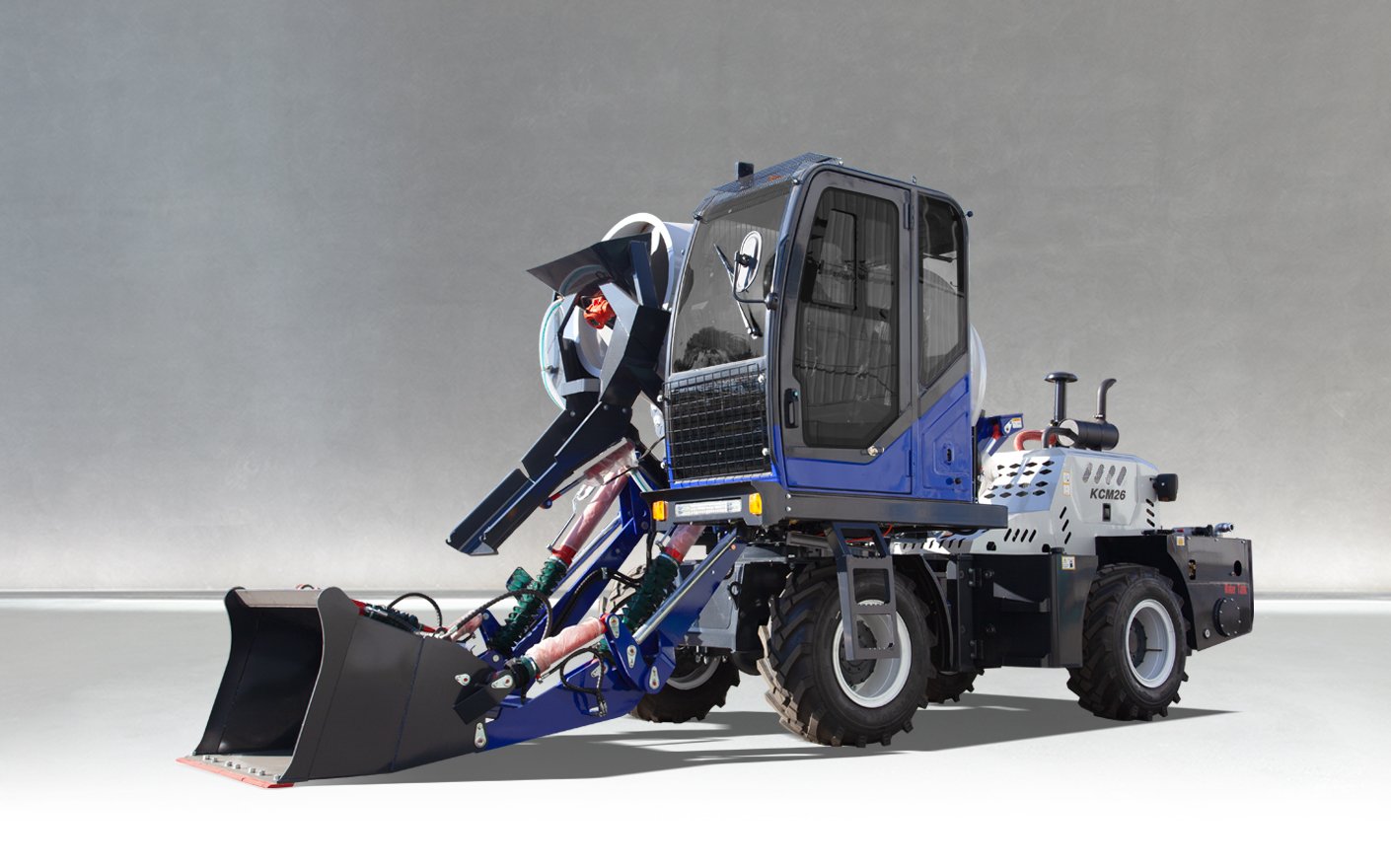

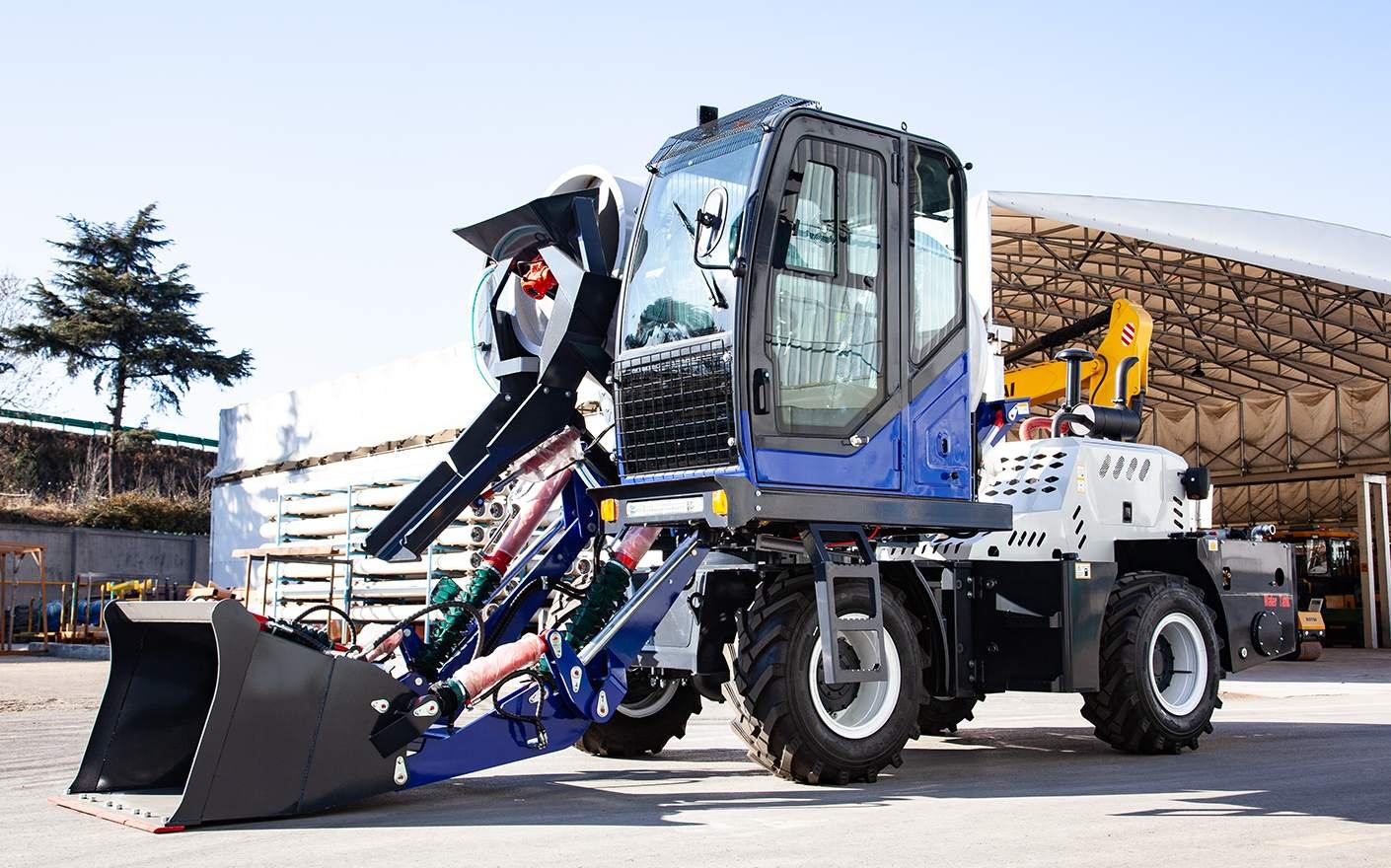

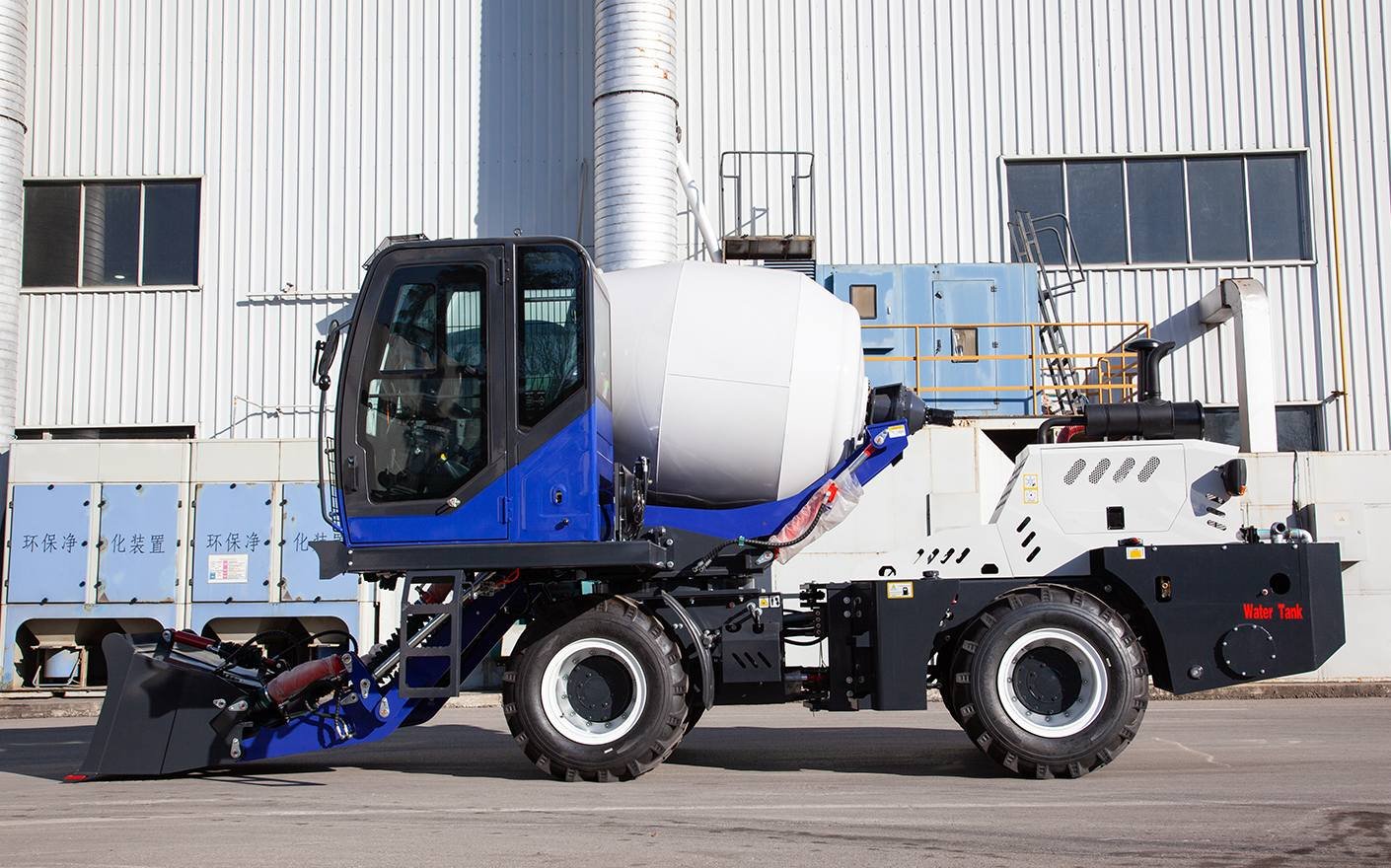

| Model | KCM26 |
| Series | KCM |
| Description | Self Loading Concrete Mixer(4WD) |
| Weight(kg) | 6200 |
| Engine Brand | Yuchai |
| Rated Power(kW) | 77.3 |
| Total Length(mm) | 7040 |
| Total Width(mm) | 2733 |
| Total Height(mm) | 3189 |
| Wheelbase(mm) | 2400 |
| Minimum Ground Clearance(mm) | 270 |
| Travel Speed (km/h) | 35 |
| Gradeability(°) | 40 |
| Drum Capacity(m³) | 3.95 |
| Drum Rotation Speed (r/min) | 20 |
| Concrete Output (m³/per batch) | 2.6 |
| Fuel Tank(L) | 120 |
| Hydraulic Oil Tank(L) | 120 |
| Water Tank(L) | 750 |
