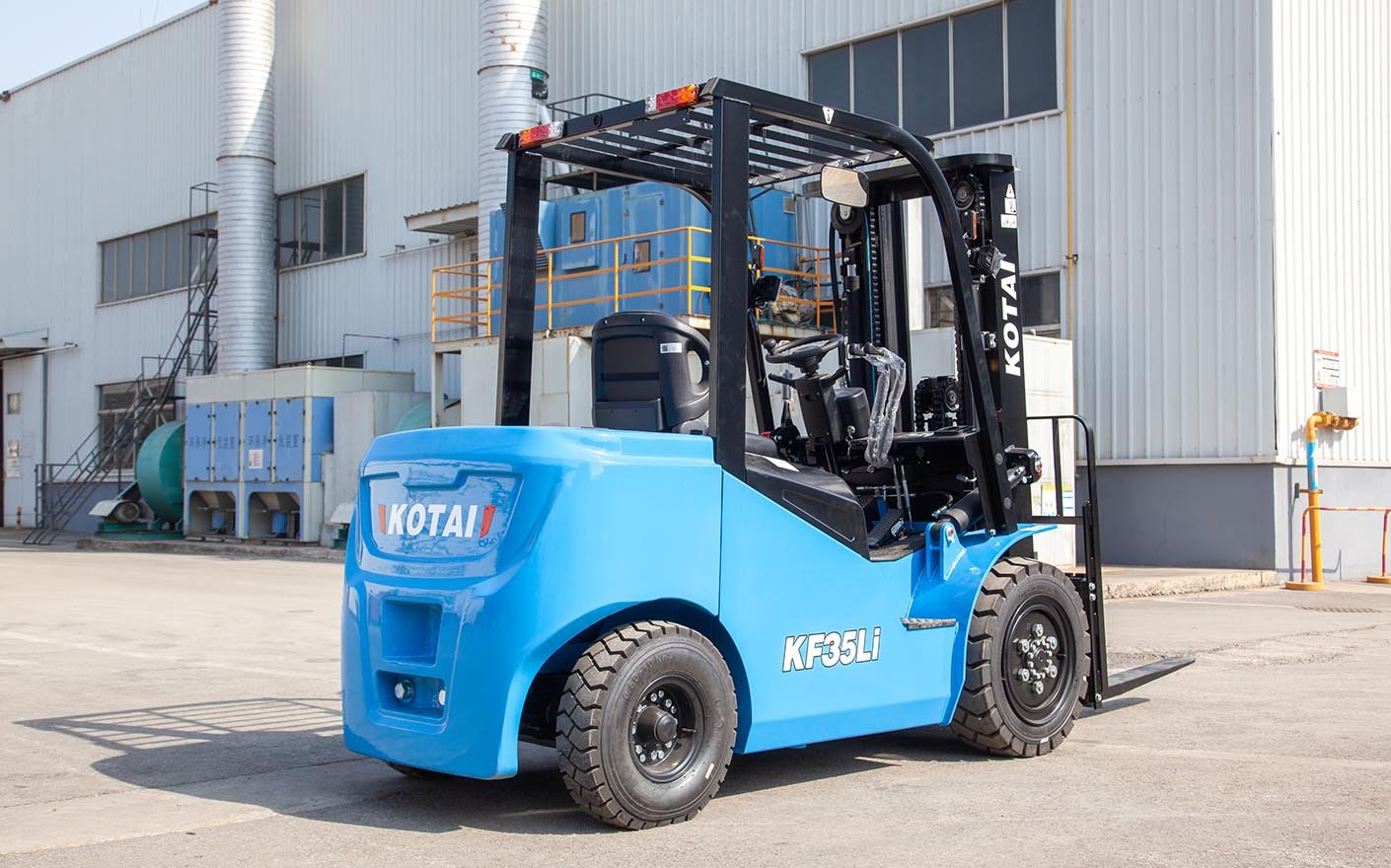

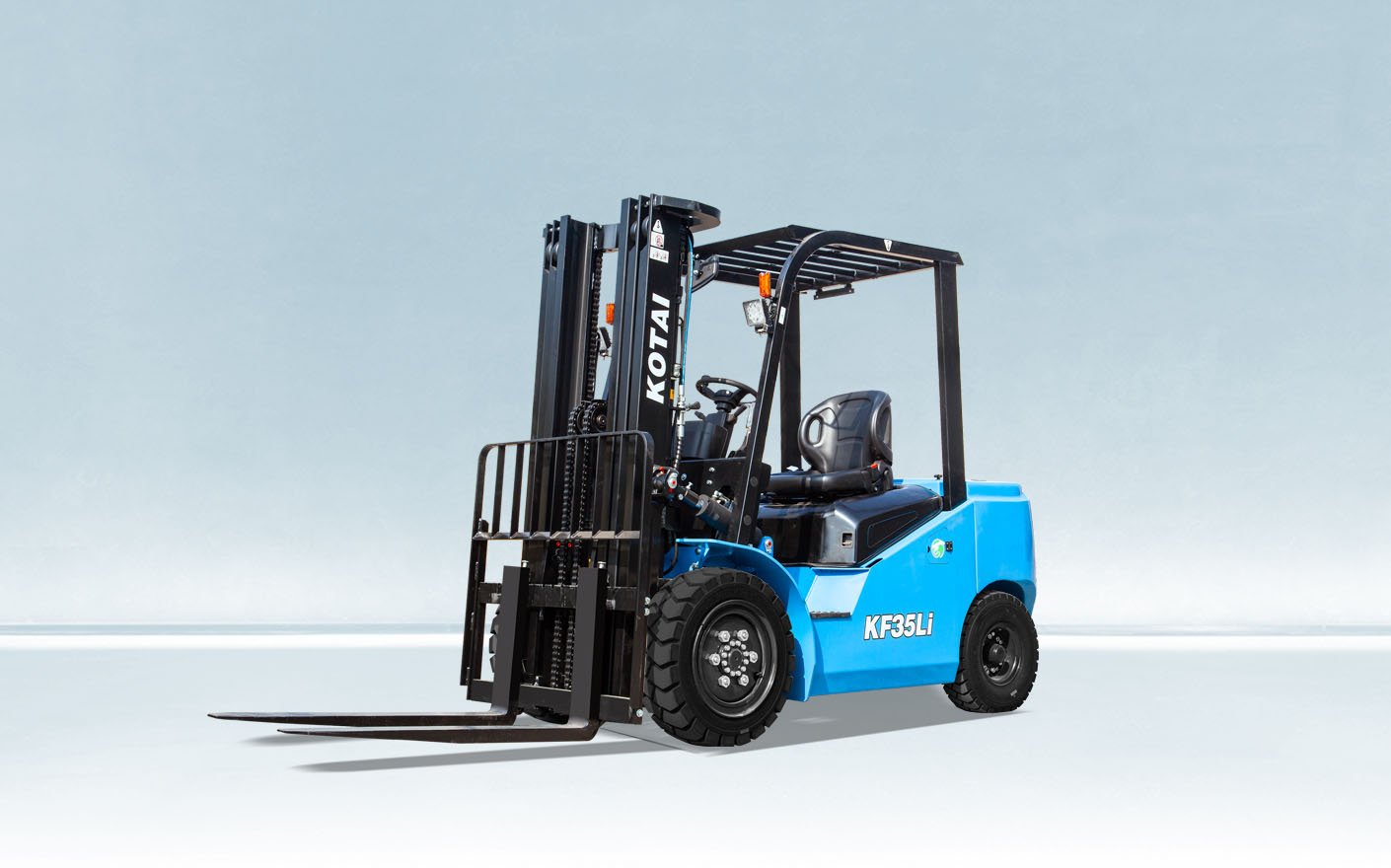

The KF35Li electric counterbalanced forklift adopts the latest electric forklift frame and is equipped with a mature 80V AC system. Combining the advantages of electric and internal combustion forklifts, it features a lower overall center of gravity, more compact dimensions, better performance, and more flexible operation.
It is widely applicable to various indoor and outdoor operating scenarios, especially in indoor environments with higher environmental protection requirements and relatively limited space, such as warehouses, workshops, supermarkets, and logistics distribution centers.
| Model | KF35Li |
| Series | KF |
| Description | Lithium battery forklift/New energy forklift |
| Power Type | Lithium battery |
| Weight(kg) | 4550 |
| Battery Voltage / Capacity (V/Ah) | 76.8/202 |
| Battery Weight (kg) | 200 |
| Rated Load Capacity(kg) | 3500 |
| Load Center Distance(mm) | 500 |
| Max. Lifting Height(mm) | 3000 |
| Free Lift Height(mm) | 140 |
| Mast Tilt Angle(°) | 6°/12° |
| Min. Turning Radius(mm) | 2500 |
| Gradeability (Full Load / Empty Load)(%) | 20%/20% |
| Min. Ground Clearance (mm) | 130 |
| Overall Length(mm) | 2700 |
| Overall Width(mm) | 1230 |
| Overall Height(mm) | 2145 |
| Wheelbase(mm) | 1750 |
| Track Width(mm) | 1000/970 |
| Fork Dimensions(mm) | 1070*122*45 |
