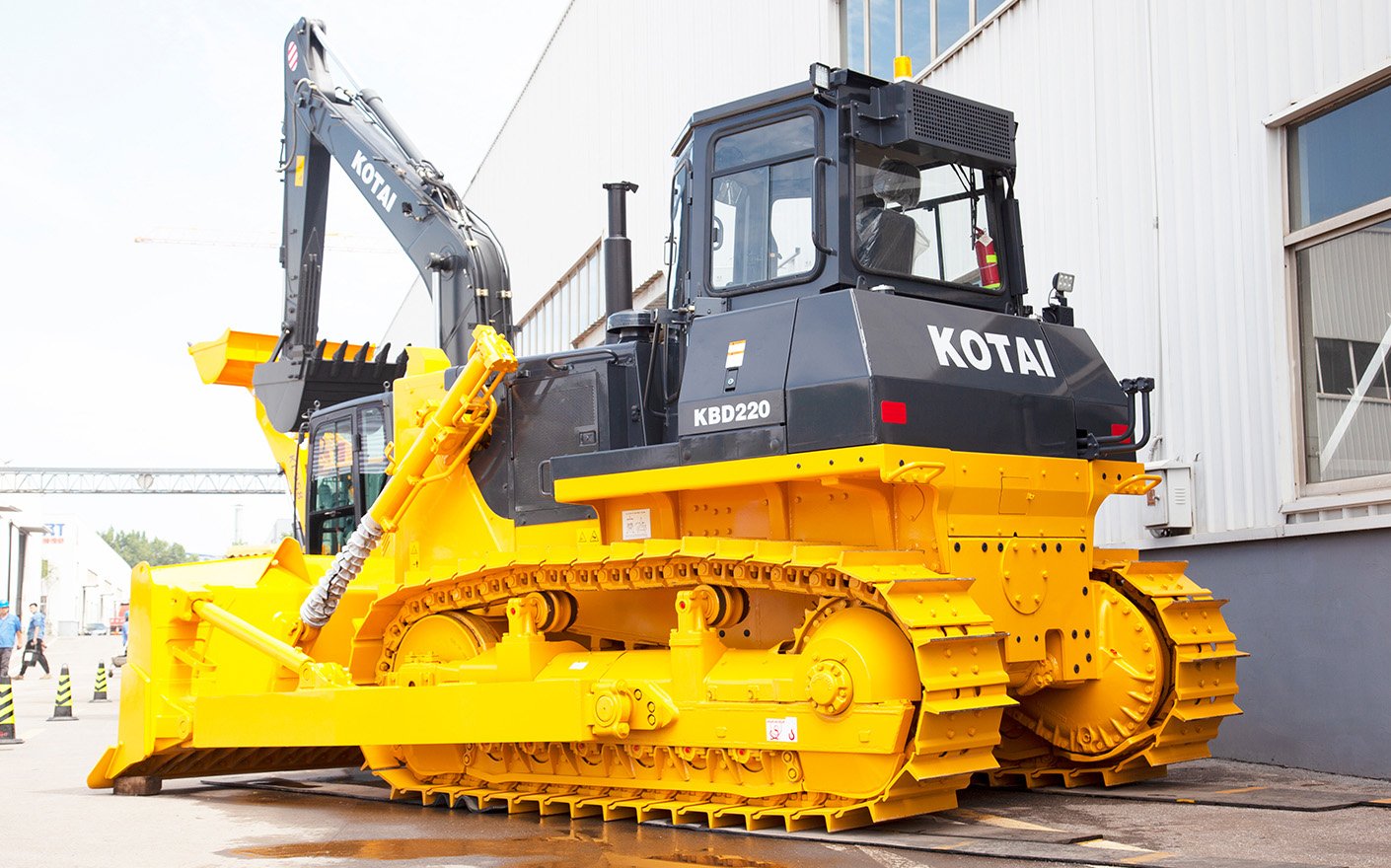

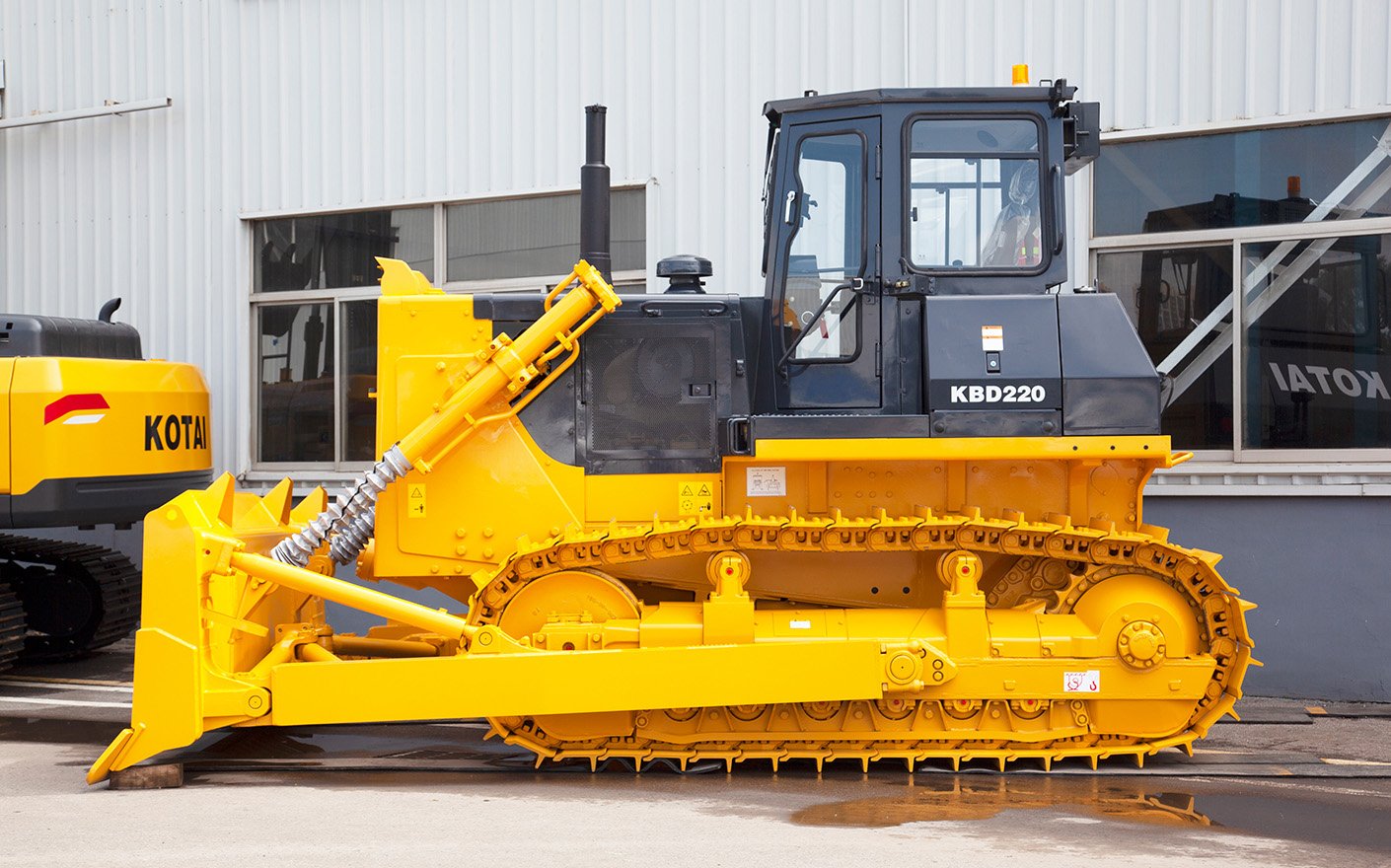

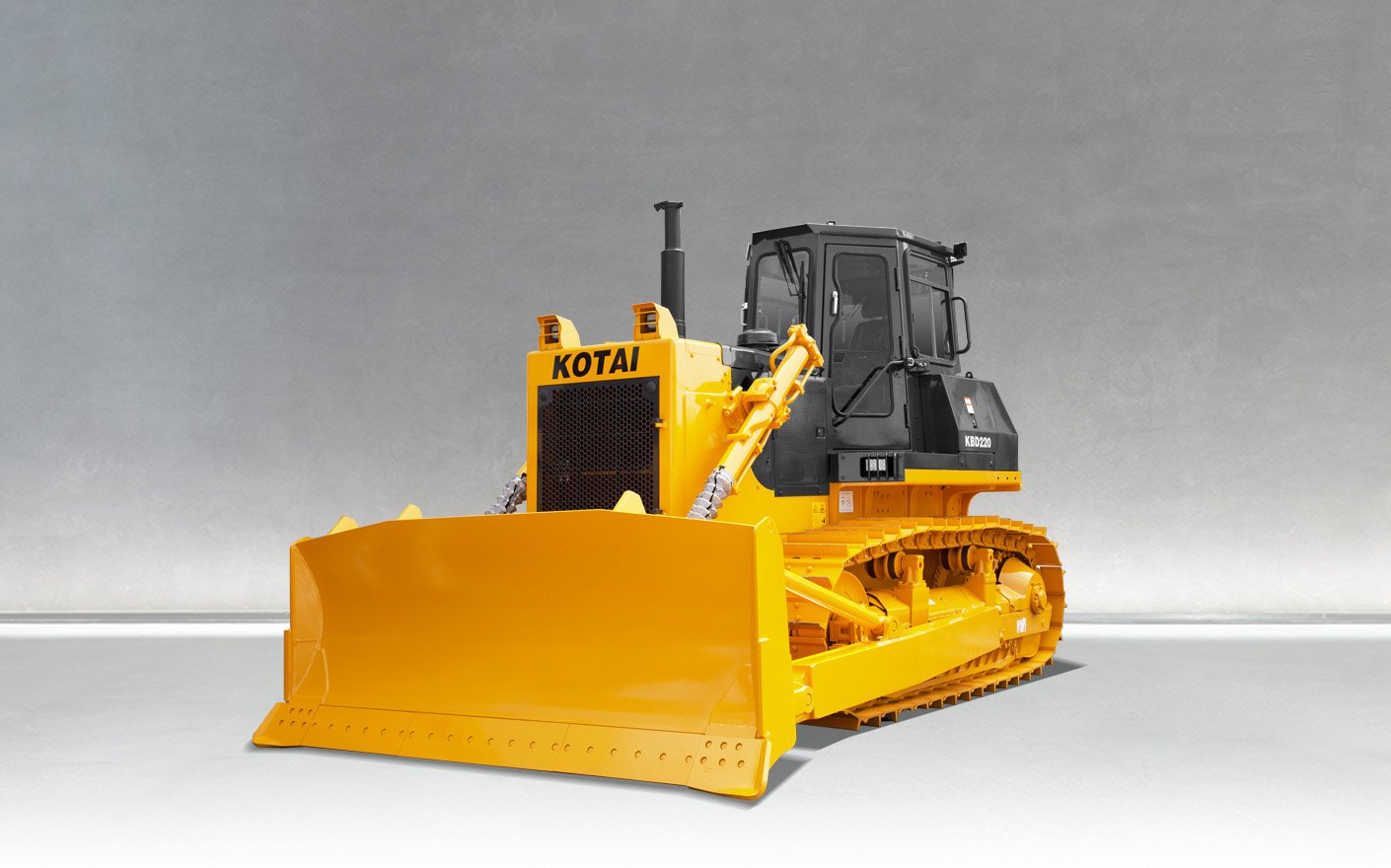

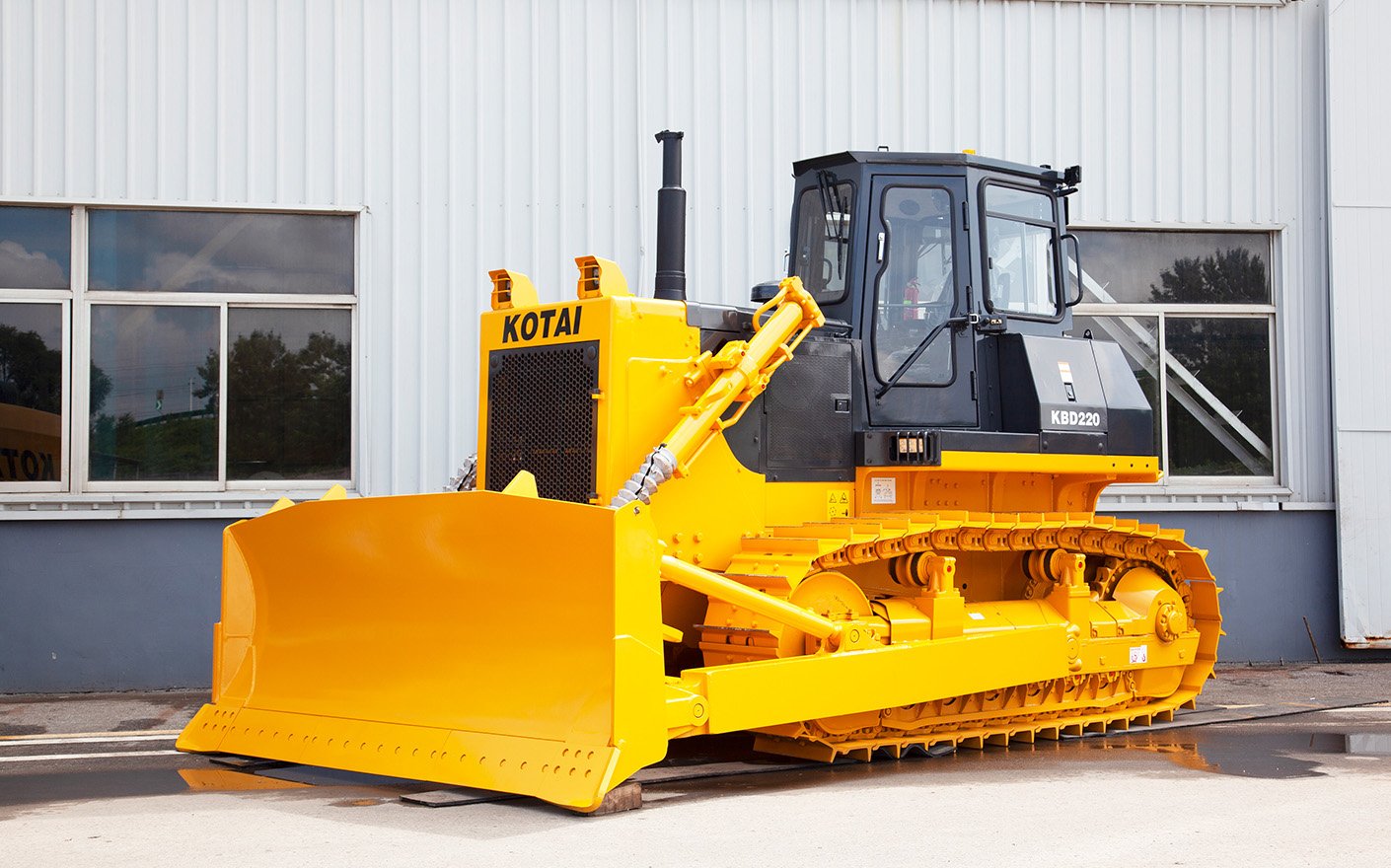

The KBD220 bulldozer is equipped with thickened wear-resistant tracks and an enhanced chassis structure, featuring excellent load-bearing, pressure resistance and strong trafficability. It is widely applicable to earthwork engineering, mining, site leveling, roadbed construction, farmland reconstruction and other scenarios. With flexible operation, low failure rate and convenient maintenance, the high-power model boasts large bearing capacity and high bulldozing efficiency, making it the preferred heavy-duty bulldozer for infrastructure and mining sites.
| Model | KBD220 |
| Series | KBD |
| Description | Bulldozer |
| Weight(t) | 23.4 |
| Engine Brand | Cummins |
| Rated Power(kW) | 164 |
| Rated Speed(r/min) | 1800 |
| Max.Torque(N.m/rpm) | 1030 |
| Total Length(mm) | 5950 |
| Total Width(mm) | 4000 |
| Total Height(mm) | 3400 |
| Blade Capacity(m³) | 6.4 |
| Efficiency (Theoretical 40m)(m³/h) | 330 |
| Width(mm) | 3725 |
| Height(mm) | 1315 |
| Max. Digging Depth(mm) | 538 |
| Max. Tilt Amount(mm) | ＞735 |
