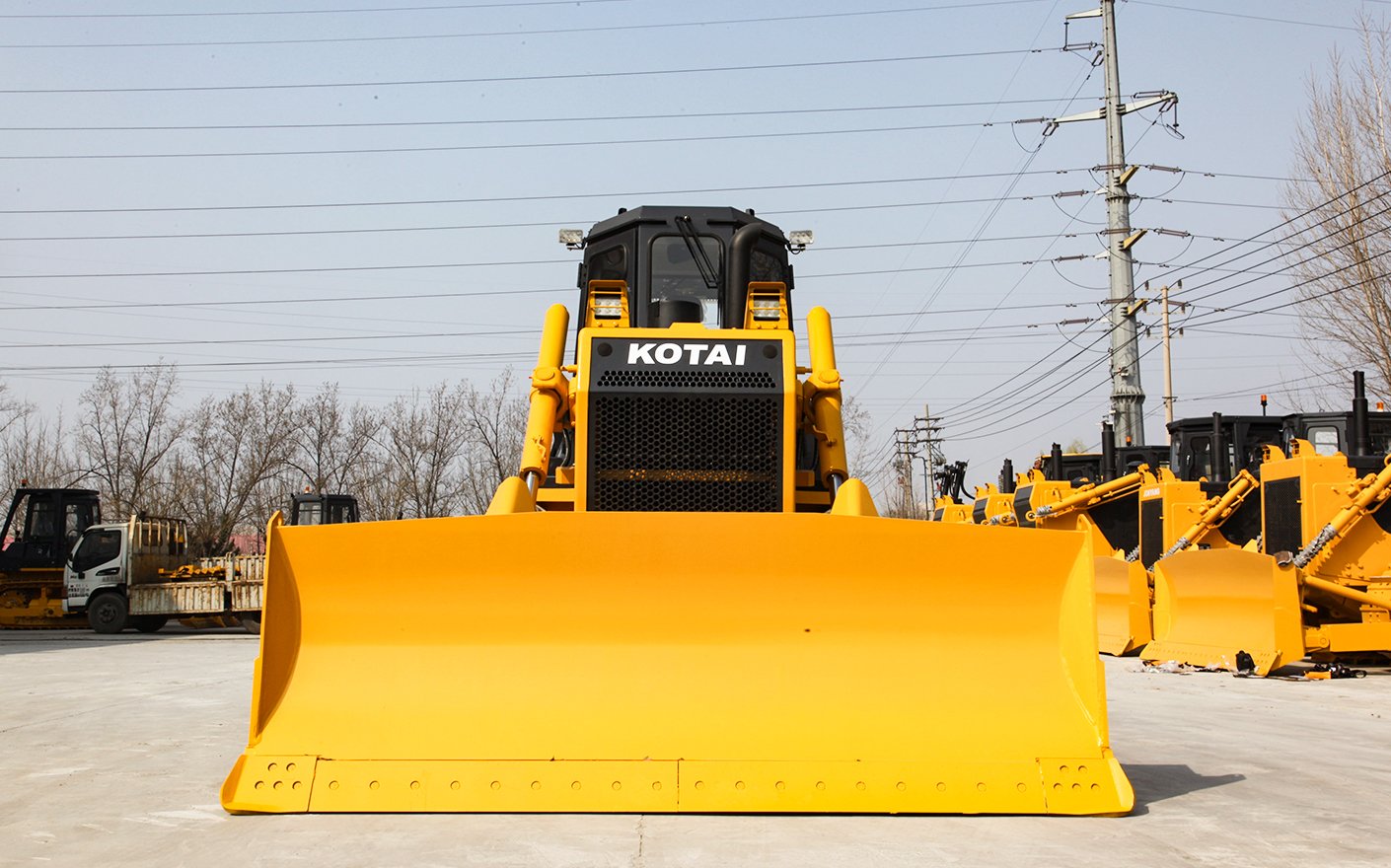

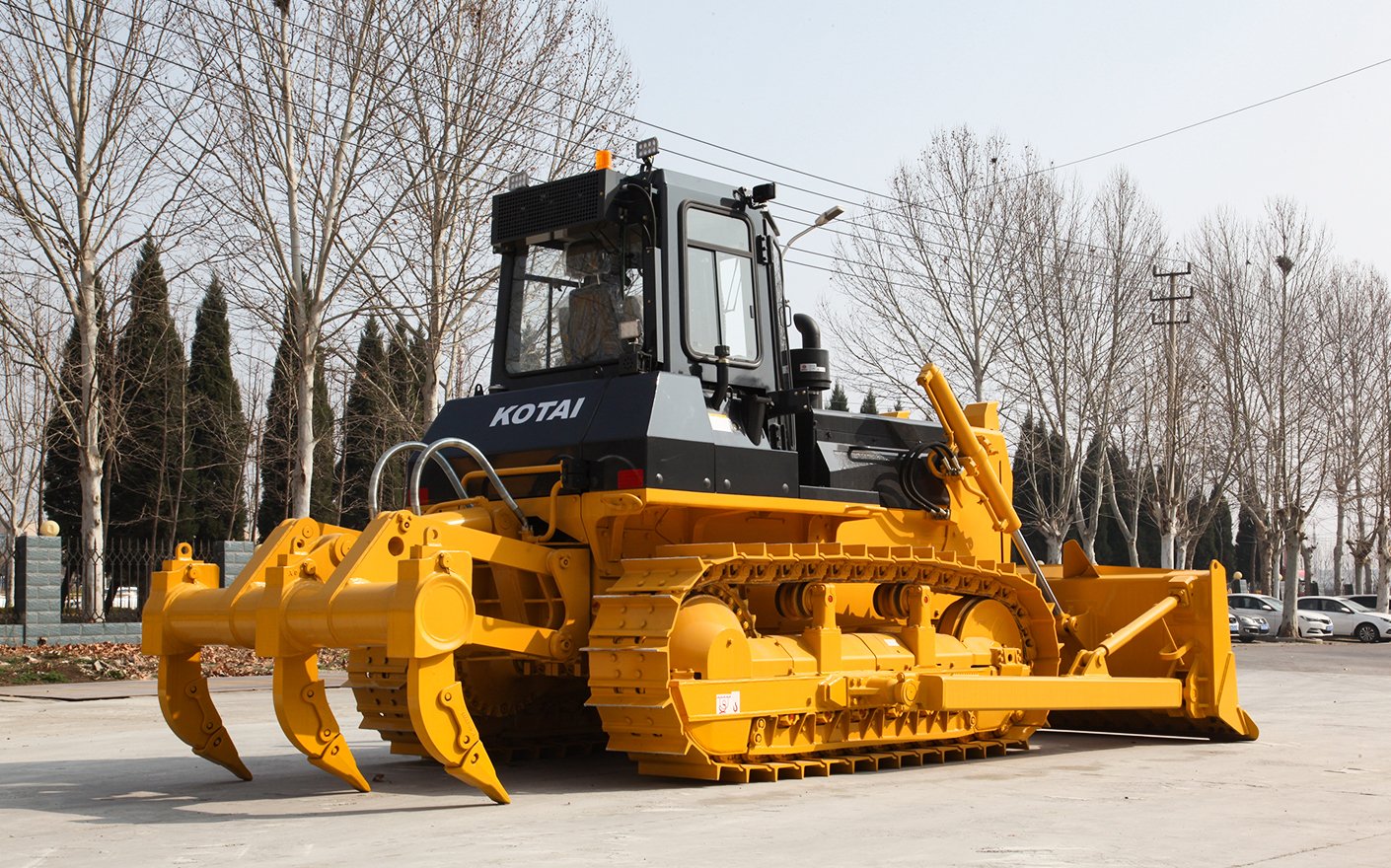

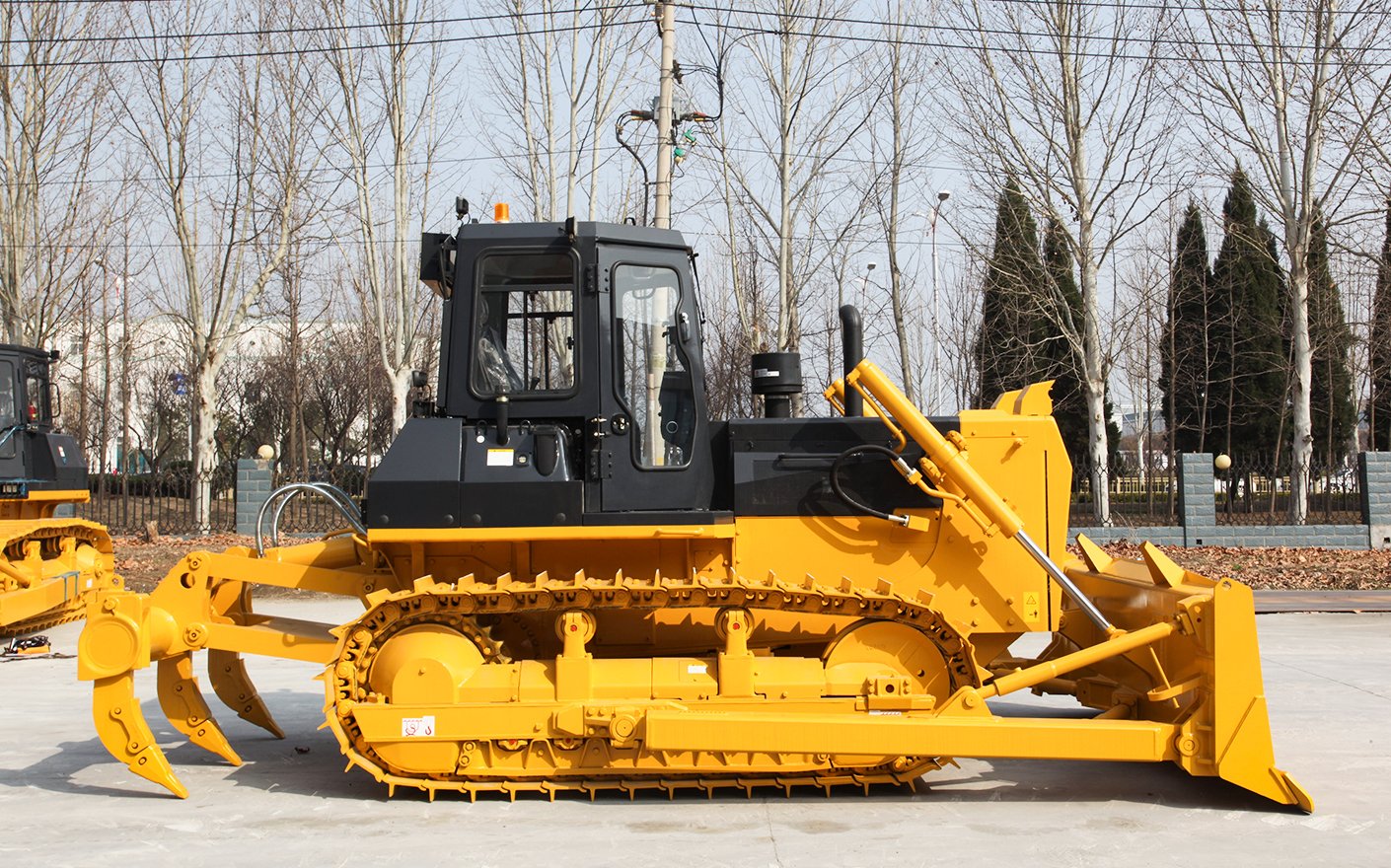

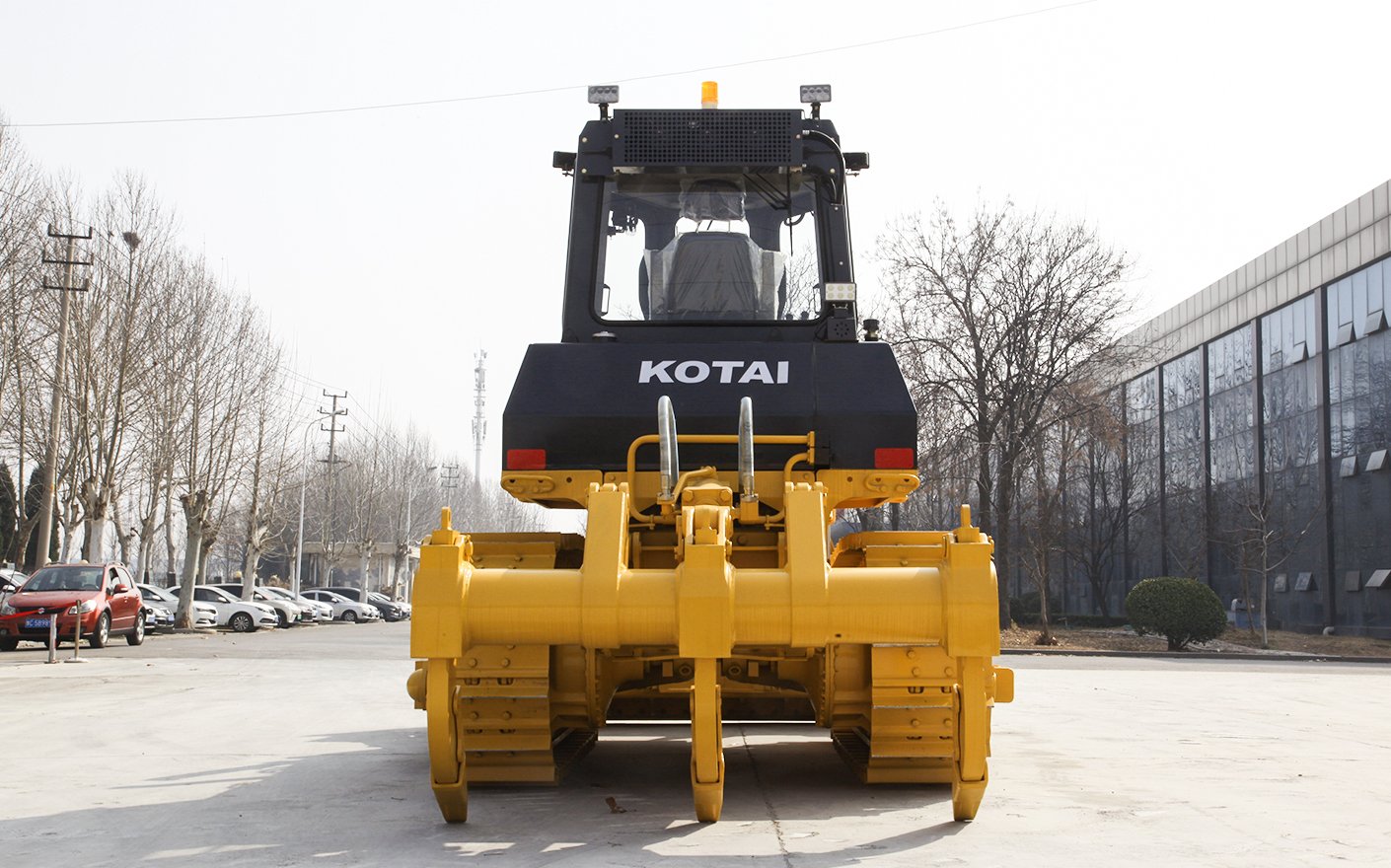

The KBD170 bulldozer is a highly efficient mechanical equipment specially designed for medium and large-scale earthwork operations. It possesses powerful capabilities in earth pushing, scraping and site leveling, integrating advanced technologies and reliable manufacturing processes to meet the requirements of various complex working conditions.
| Model | KBD170 |
| Series | KBD |
| Description | Bulldozer |
| Weight(t) | 17 |
| Engine Brand | Weichai |
| Rated Power(kW) | 120 |
| Rated Speed(r/min) | 1850 |
| Max.Torque(N.m/rpm) | 765 |
| Total Length(mm) | 5260 |
| Total Width(mm) | 2950 |
| Total Height(mm) | 3200 |
| Blade Capacity(m³) | 4.5 |
| Efficiency (Theoretical 40m)(m³/h) | 225 |
| Width(mm) | 3388 |
| Height(mm) | 1149 |
| Max. Digging Depth(mm) | 540 |
| Max. Tilt Amount(mm) | 400 |
