Motor grader is a core earthmoving machine for road construction. Equipped with a multi-directionally adjustable blade, it features high-precision leveling, subgrade shaping, slope trimming, roadside ditch excavation, material spreading and mixing, as well as road snow removal and maintenance.
It is mainly used for precision leveling of highway subgrades and cement stabilized layers, slope renovation, and large-area site leveling and sloping at airports and factory yards. It is also applicable to farmland consolidation, water conservancy ditch excavation, mining platform shaping, daily maintenance of urban and rural roads, and emergency clearance. With flexible operation and high leveling accuracy, it is essential equipment for infrastructure projects.

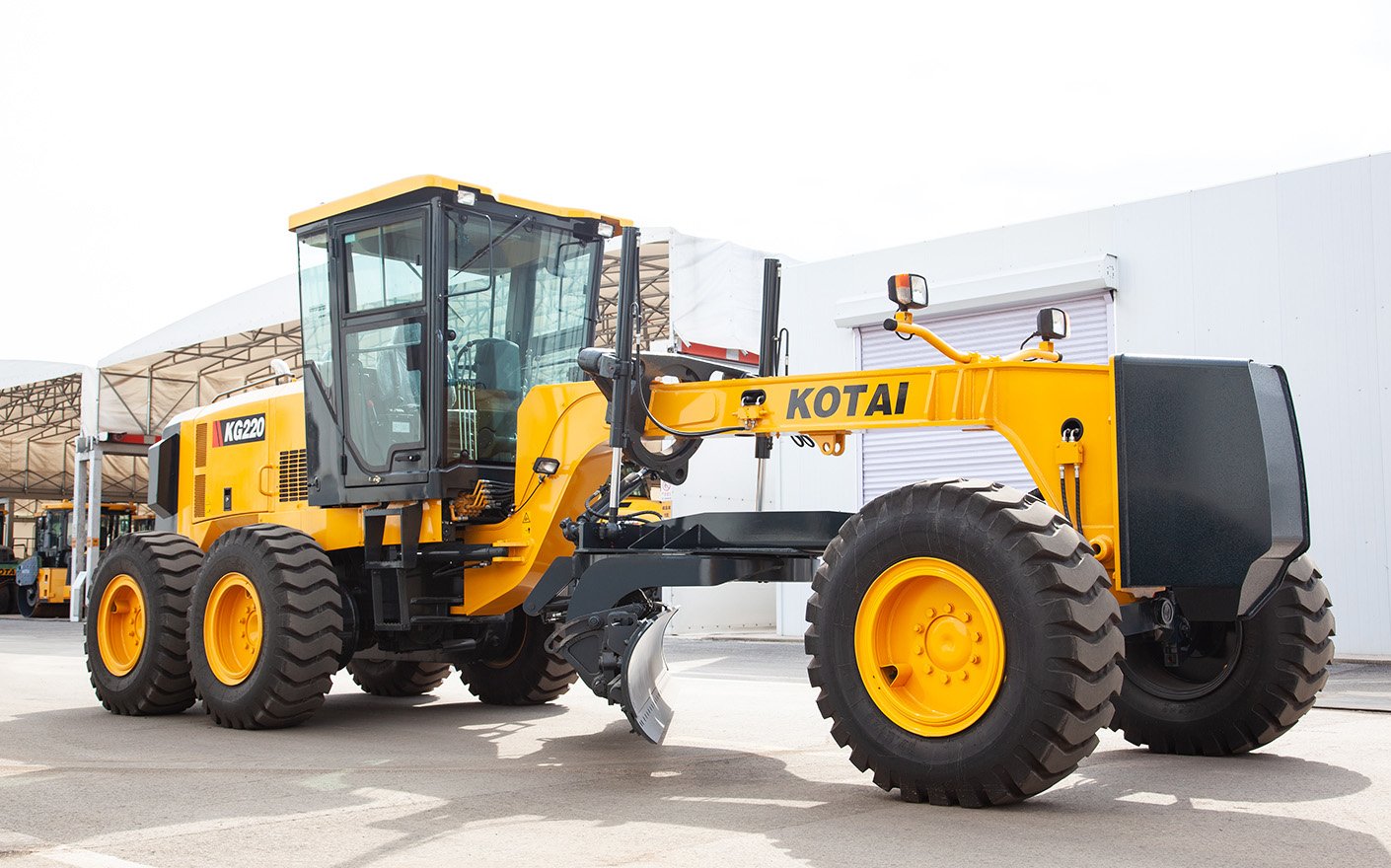

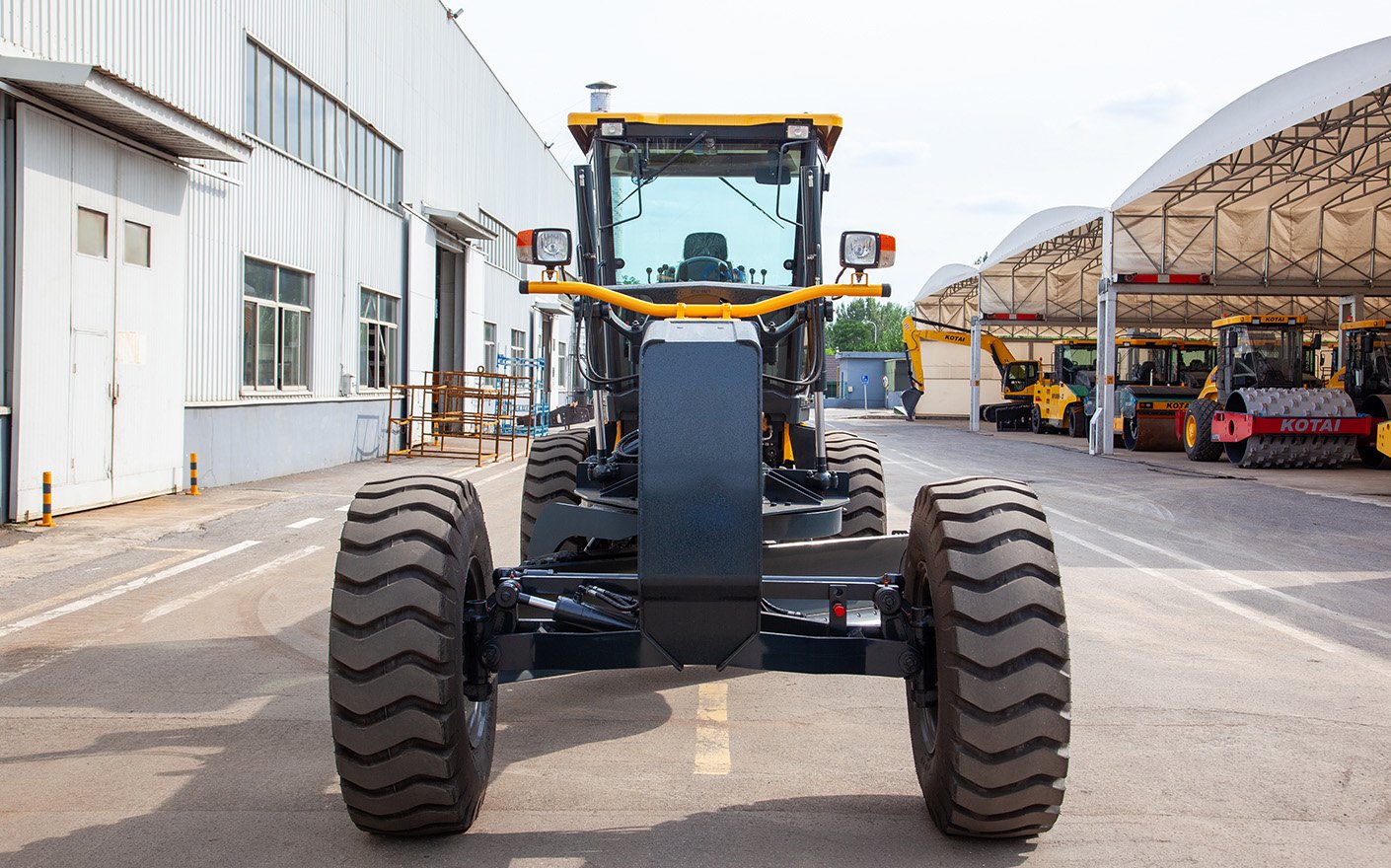

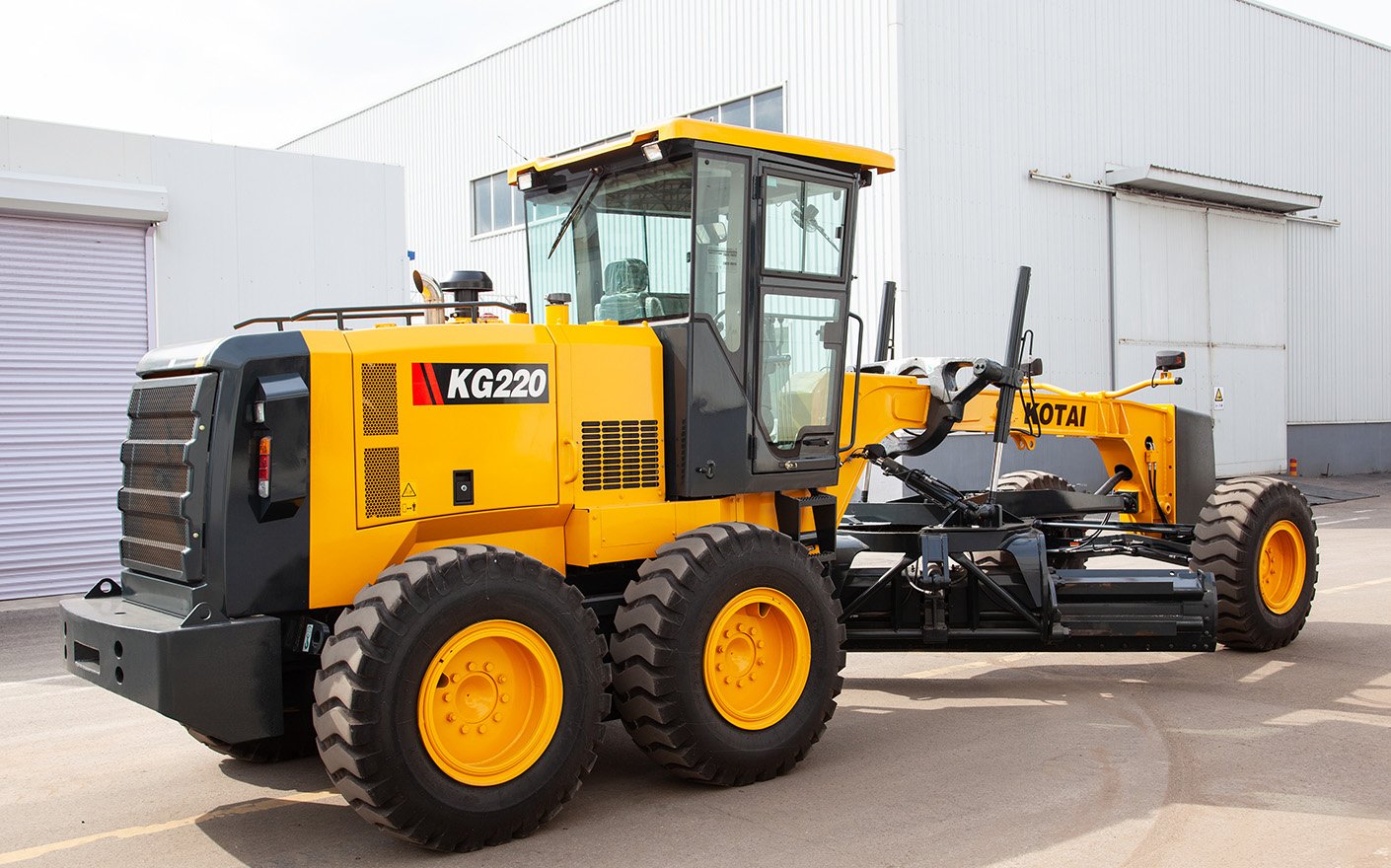

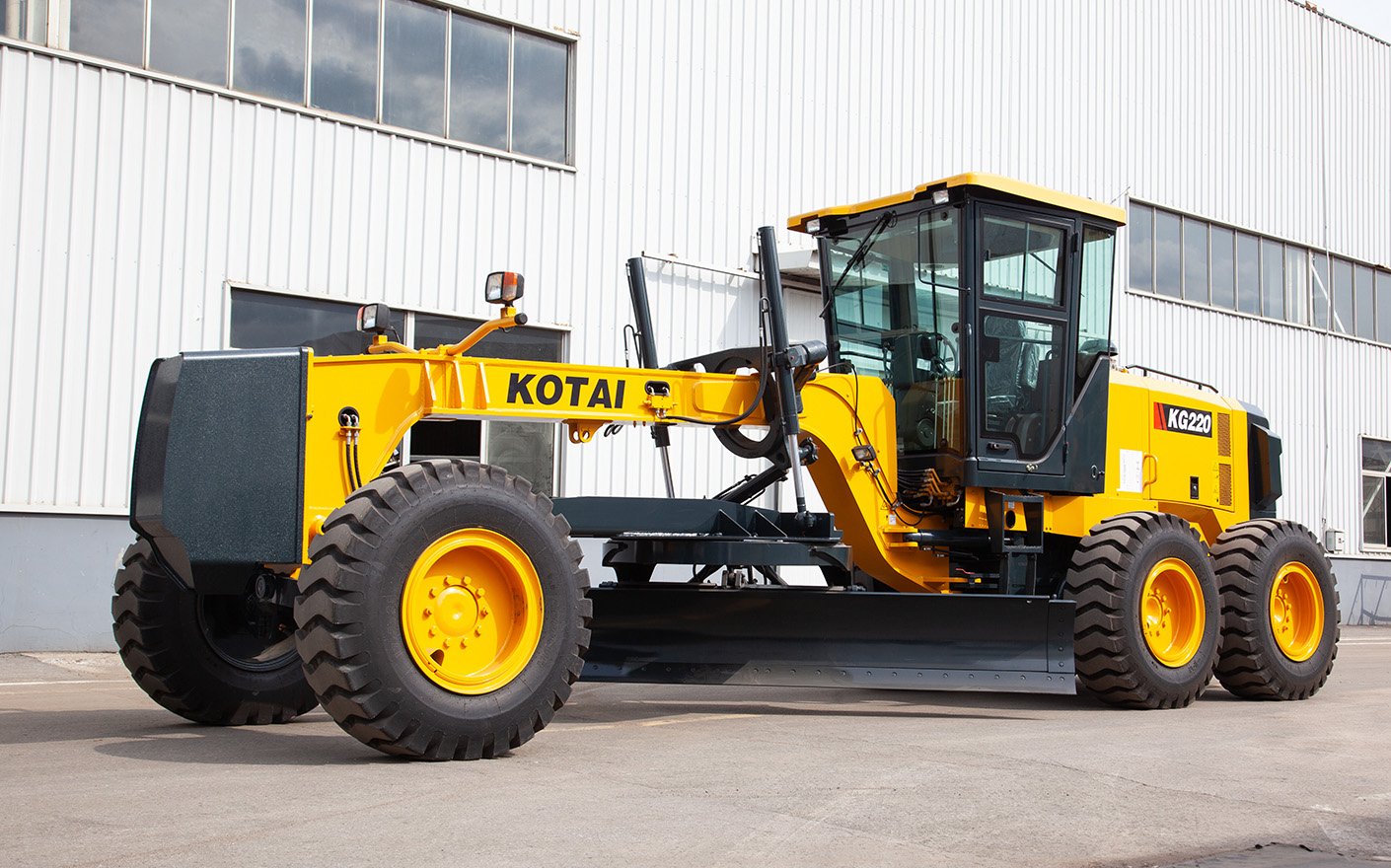

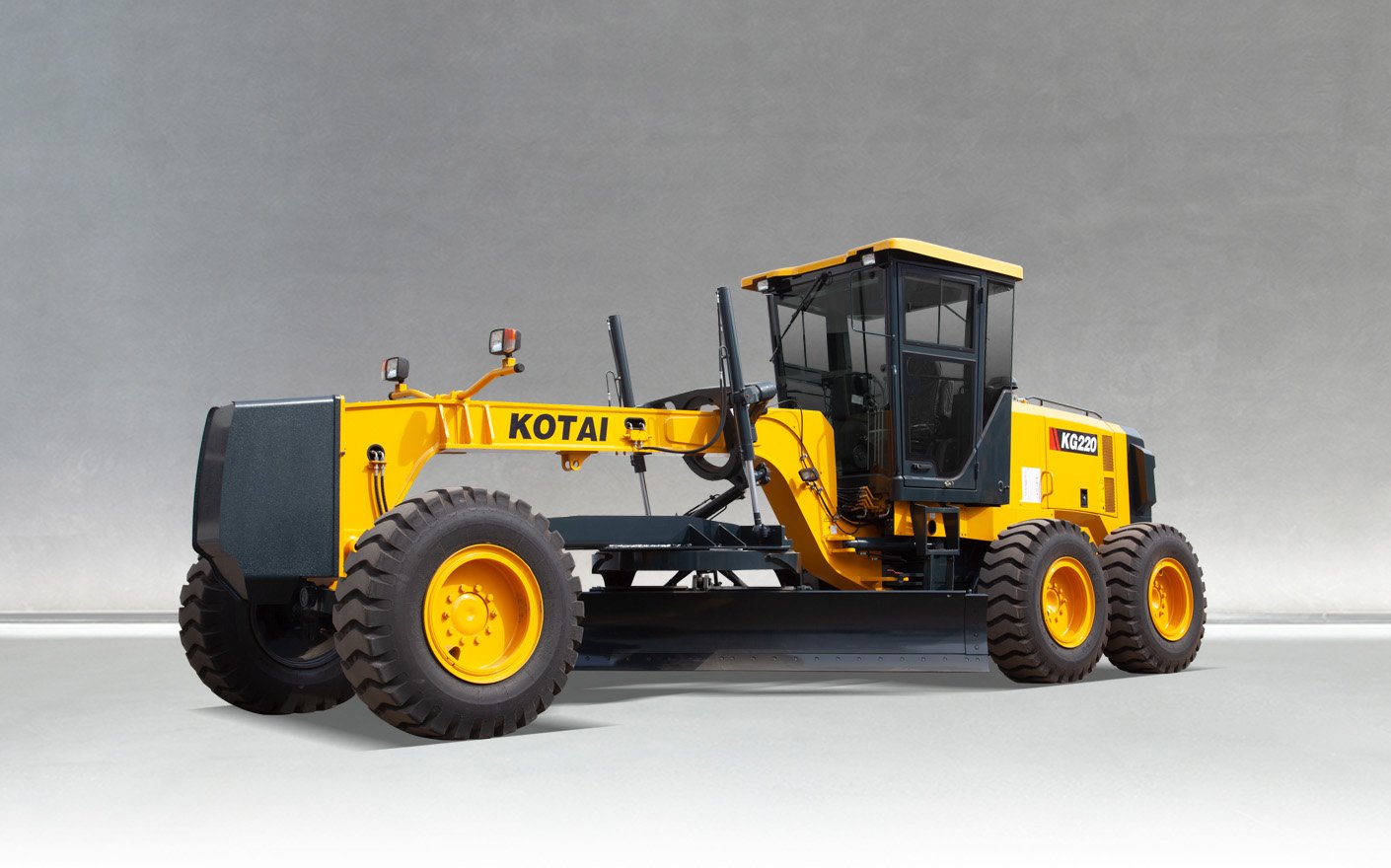

| Model | KG220 |
| Series | KG |
| Description | Motor Grader |
| Weight(kg) | 15800 |
| Engine Brand | Cummins |
| Rated Power(kW) | 160 |
| Rated Speed(r/min) | 2200 |
| Max.Torque(N.m/rpm) | 908/1300 |
| Total Length(mm) | 8950 |
| Total Width(mm) | 4320 |
| Total Height(mm) | 3420 |
| Dimensions(mm) | 4320*580*16 |
| Blade Travel Distance(mm) | ±965 |
| Max. Lifting Height(mm) | 450 |
| Max. Grading Depth(mm) | 535 |
| Max. Rotation Angle(°) | 90 |
| Blade Tilt Angle(°) | 29-77 |
| Tires specifications | 17.5-25-14PR L-3 |
| Number of Tires | 6 |
| Fuel tank(L) | 370 |
| Hydraulic Oil Tank(L) | 65 |
