Loaders are mainly applied in working conditions such as mines, construction sites, ports and material yards. They can perform operations including earth-rock shoveling and loading, sand and gravel handling, stacking, short-distance transportation, site leveling and cleaning.
Equipped with a quick coupler, it can be fitted with attachments such as log grapples, hydraulic breakers and snow plows to realize multi-functional operations like grabbing, crushing and snow removal. Featuring flexible mobility, agile steering and high working efficiency, the loader is a widely used core construction machine in infrastructure construction, mining, as well as agricultural and forestry material transportation.

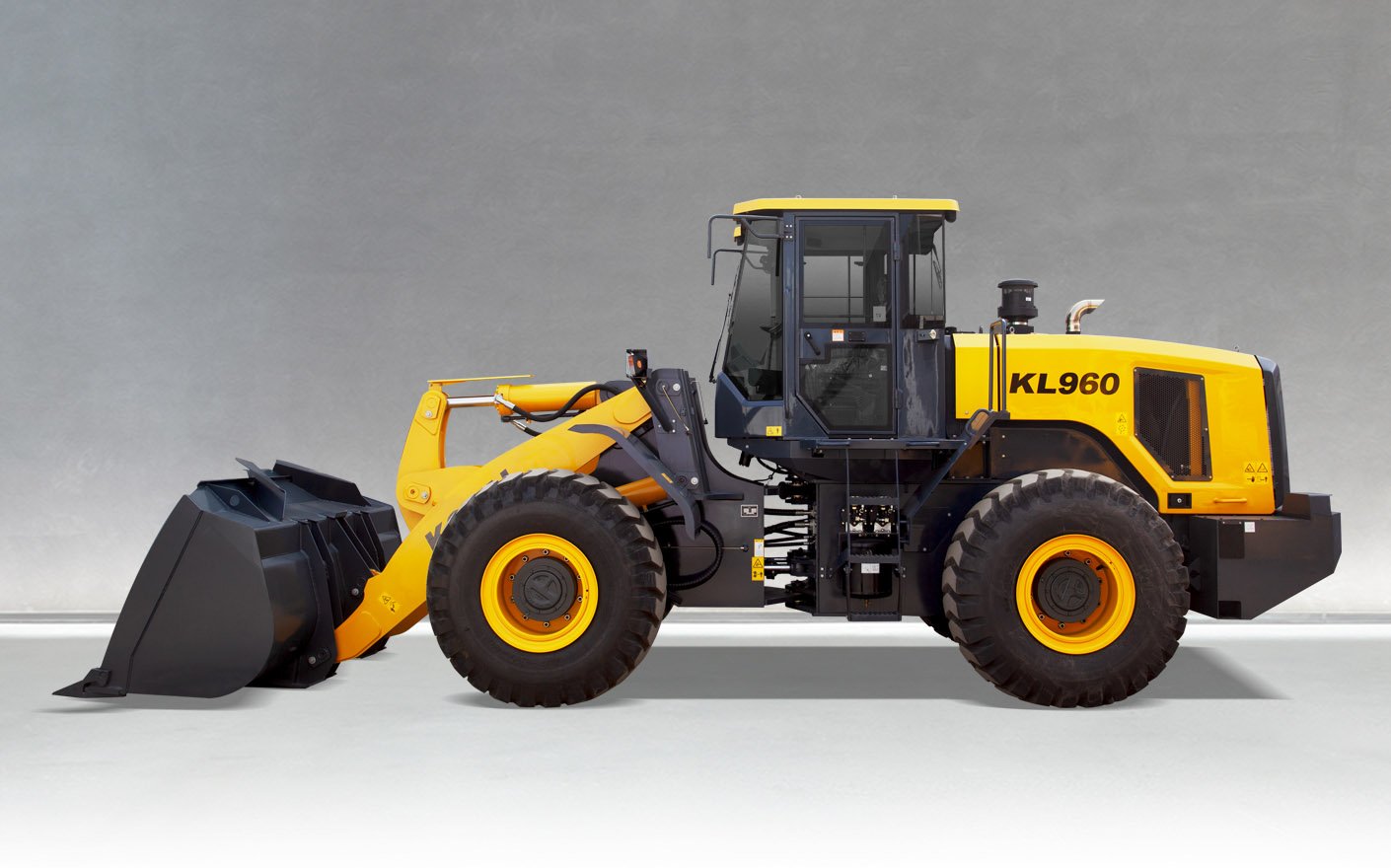

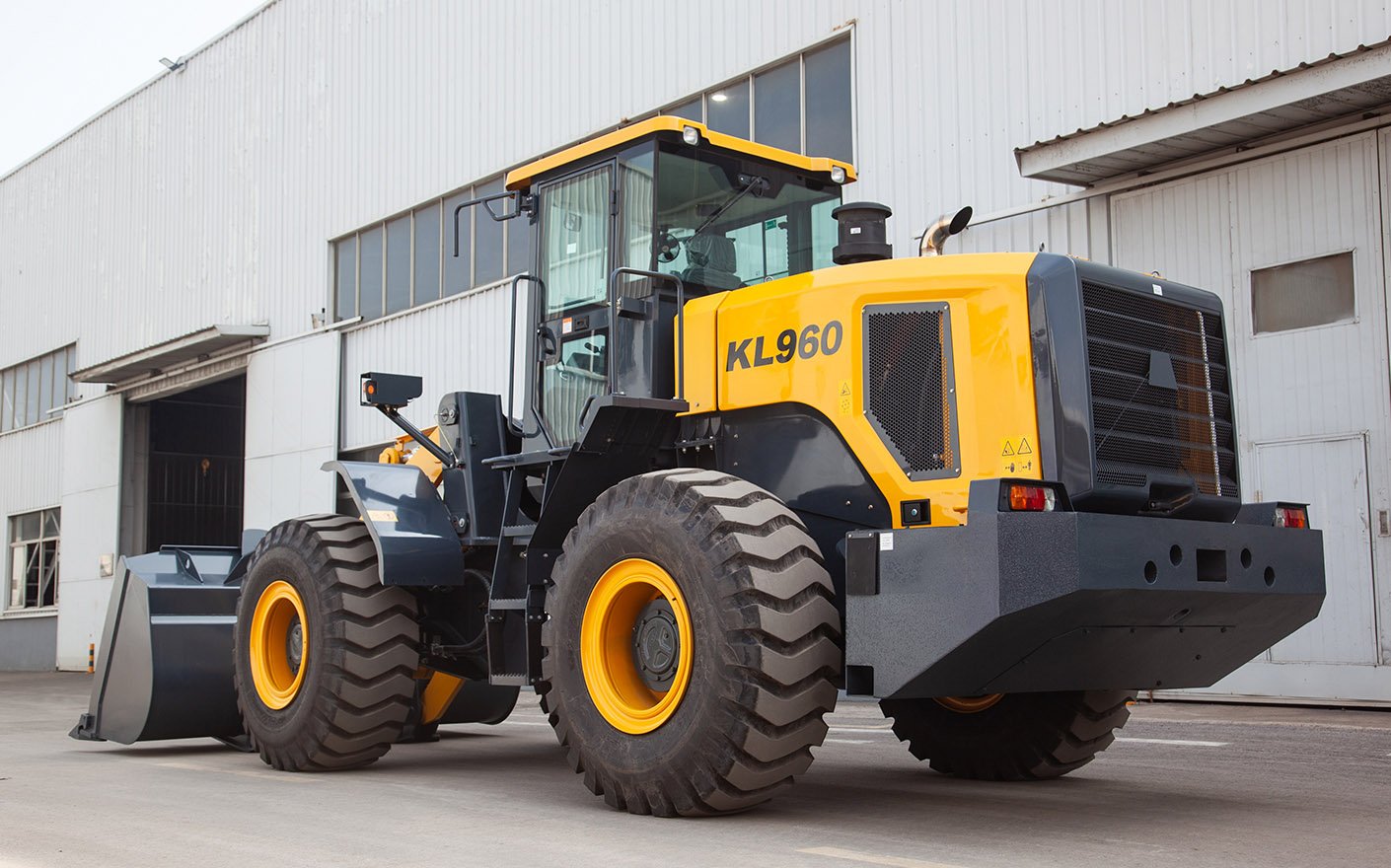

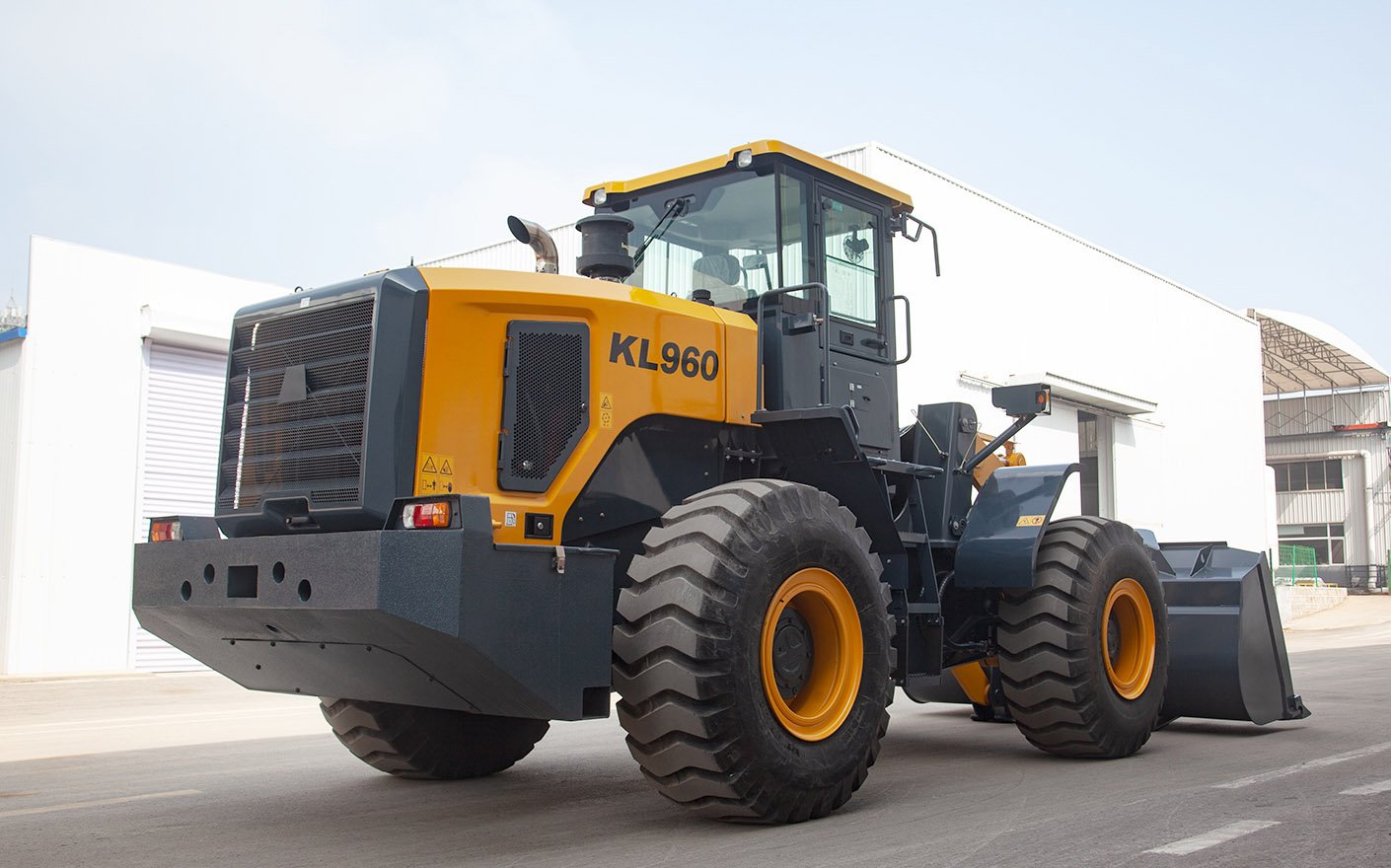

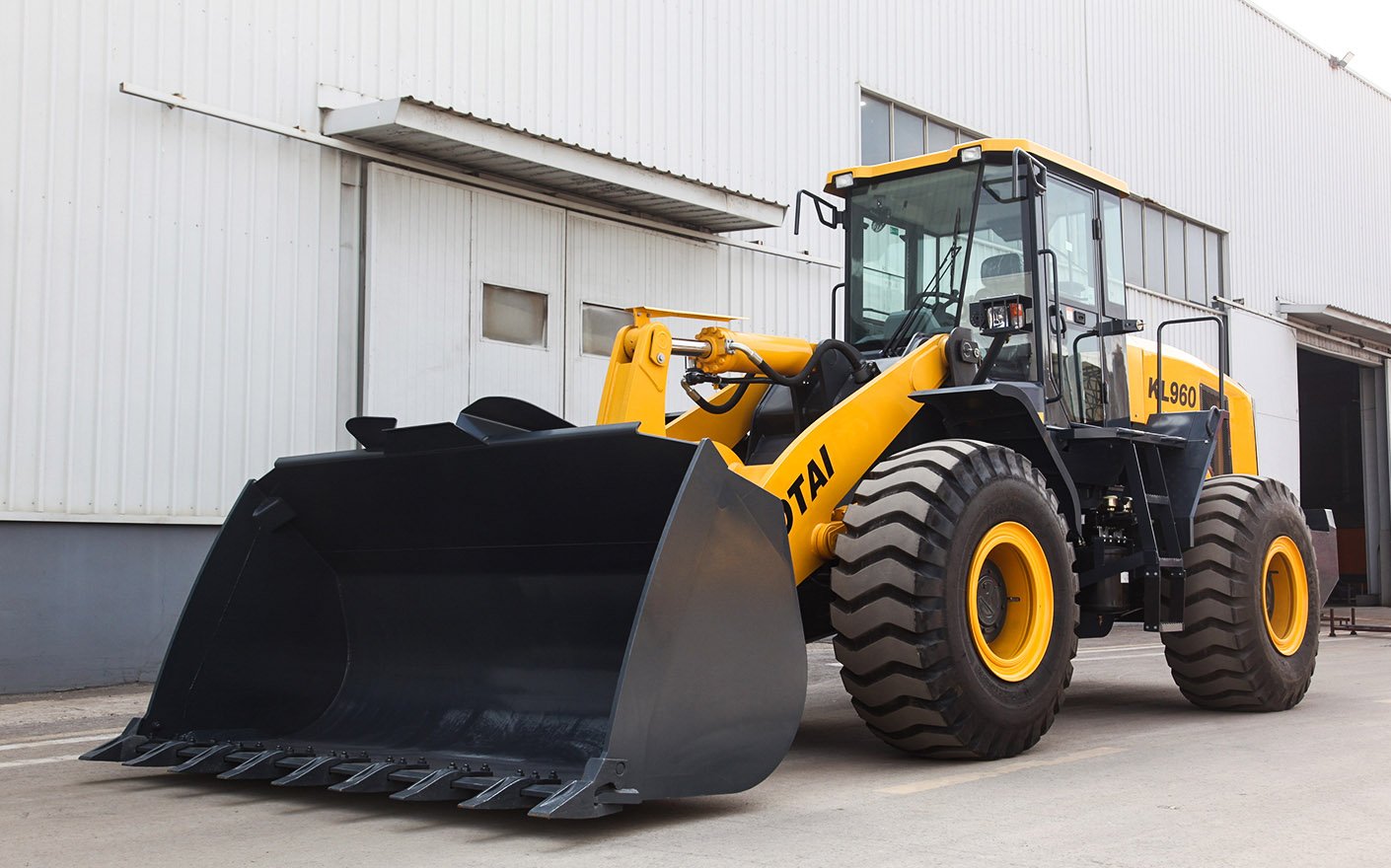

| KL960 | KL960 |
| Series | KL |
| Description | Wheel Loader |
| Weight(t) | 18 |
| Rated Load (kg) | 5800 |
| Engine Brand | Cummins |
| Rated Power(kW) | 168 |
| Rated Speed(r/min) | 2000 |
| Rated Bucket Capacity(m³) | 3.5 |
| Max. Breakout Force (kN) | 165 |
| Dumping Height (mm) | 3110 |
| Dumping Reach (mm) | 1171 |
| Total Length(mm) | 8136 |
| Total Width(mm) | 2800 |
| Total Height(mm) | 3537 |
| Wheelbase (mm) | 3420 |
| Track Width (mm) | 2200 |
| Min.Ground Clearance (mm) | 476 |
| Fuel tank(L) | 400 |
| Hydraulic Oil Tank(L) | 180 |
