Loaders are mainly applied in working conditions such as mines, construction sites, ports and material yards. They can perform operations including earth-rock shoveling and loading, sand and gravel handling, stacking, short-distance transportation, site leveling and cleaning.
Equipped with a quick coupler, it can be fitted with attachments such as log grapples, hydraulic breakers and snow plows to realize multi-functional operations like grabbing, crushing and snow removal. Featuring flexible mobility, agile steering and high working efficiency, the loader is a widely used core construction machine in infrastructure construction, mining, as well as agricultural and forestry material transportation.

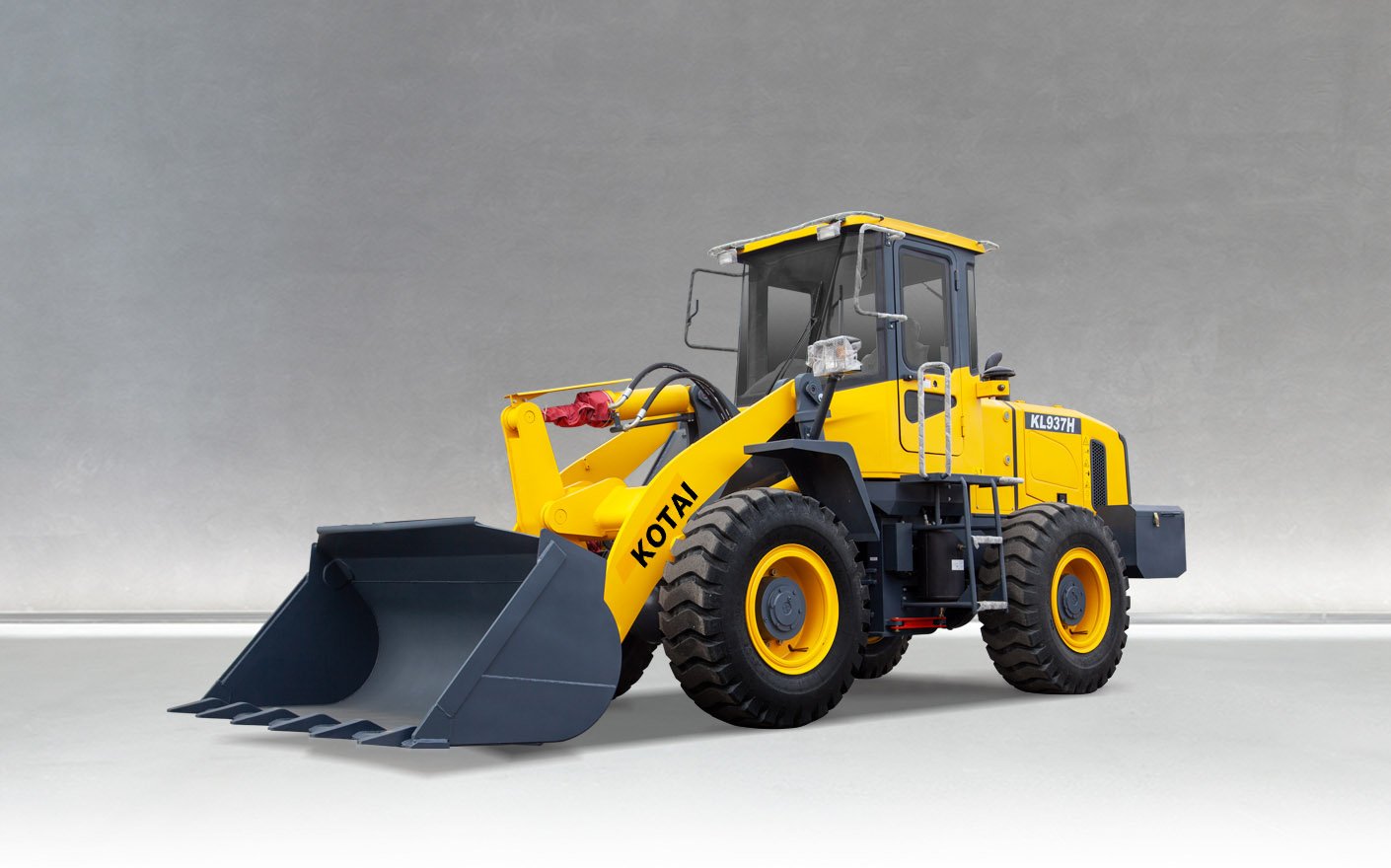

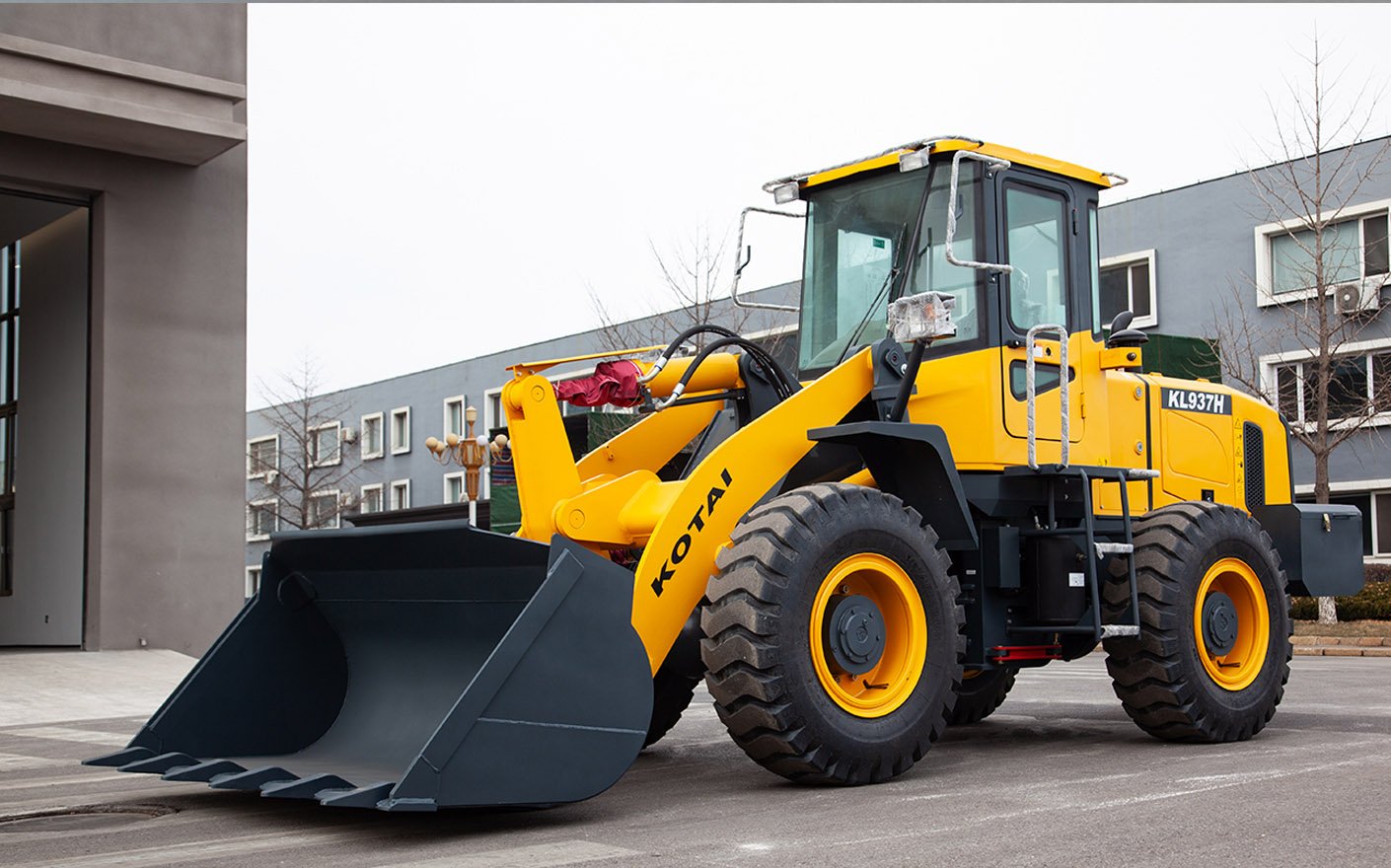

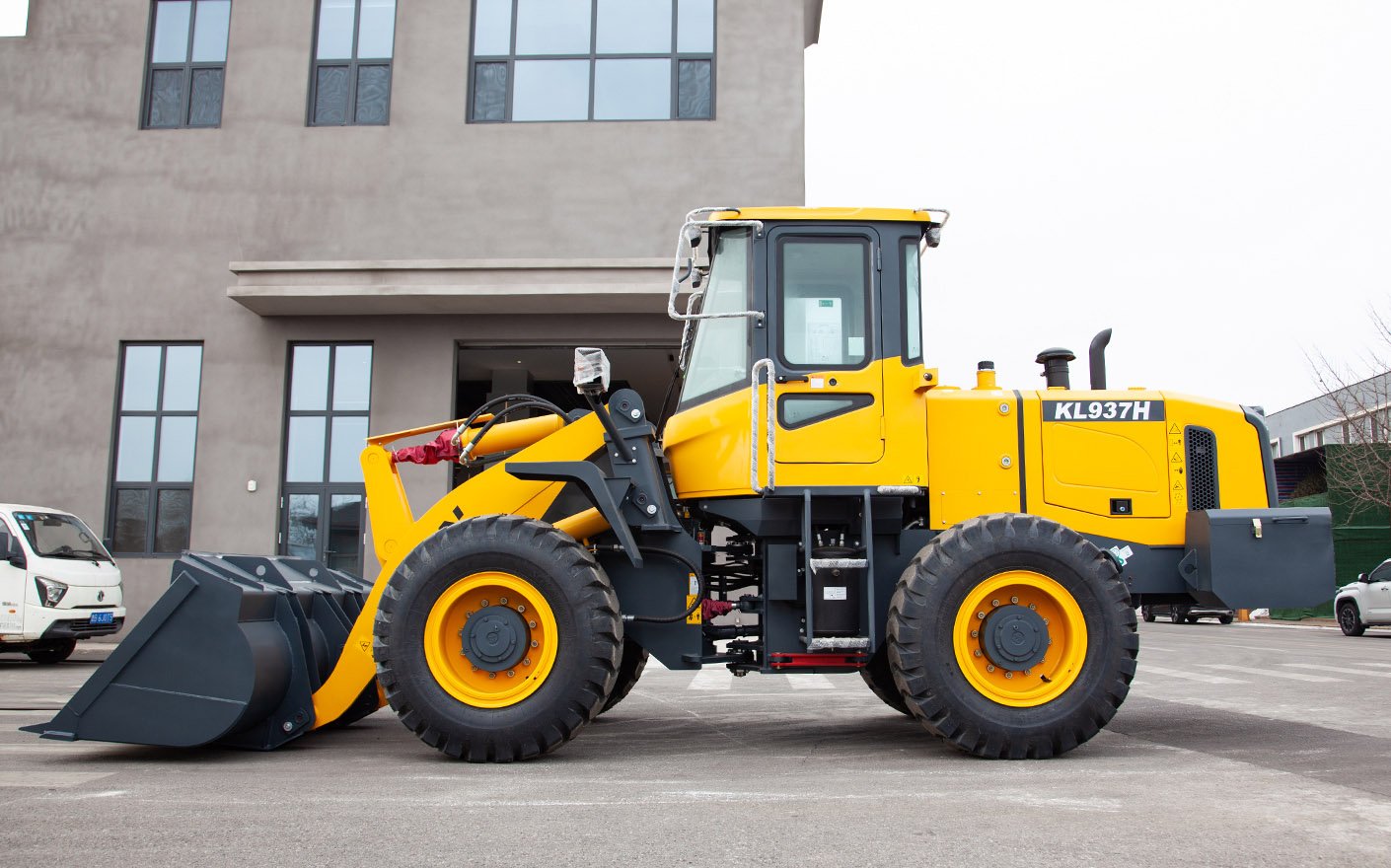

| Model | KL937H |
| Series | KL |
| Description | Wheel Loader |
| Weight(t) | 10.2 |
| Rated Load (kg) | 3000 |
| Engine Brand | Cummins |
| Rated Power(kW) | 97 |
| Rated Speed(r/min) | 2200 |
| Rated Bucket Capacity(m³) | 1.7 |
| Max. Breakout Force (kN) | 96 |
| Dumping Height (mm) | 2934 |
| Dumping Reach (mm) | 1043 |
| Tip Load (kg) | 5880 |
| Total Length(mm) | 7000 |
| Total Width(mm) | 2460 |
| Total Height(mm) | 3136 |
| Wheelbase (mm) | 2750 |
| Track Width (mm) | 1855 |
| Min.Ground Clearance (mm) | 360 |
| Fuel tank(L) | 130 |
| Hydraulic Oil Tank(L) | 120 |
