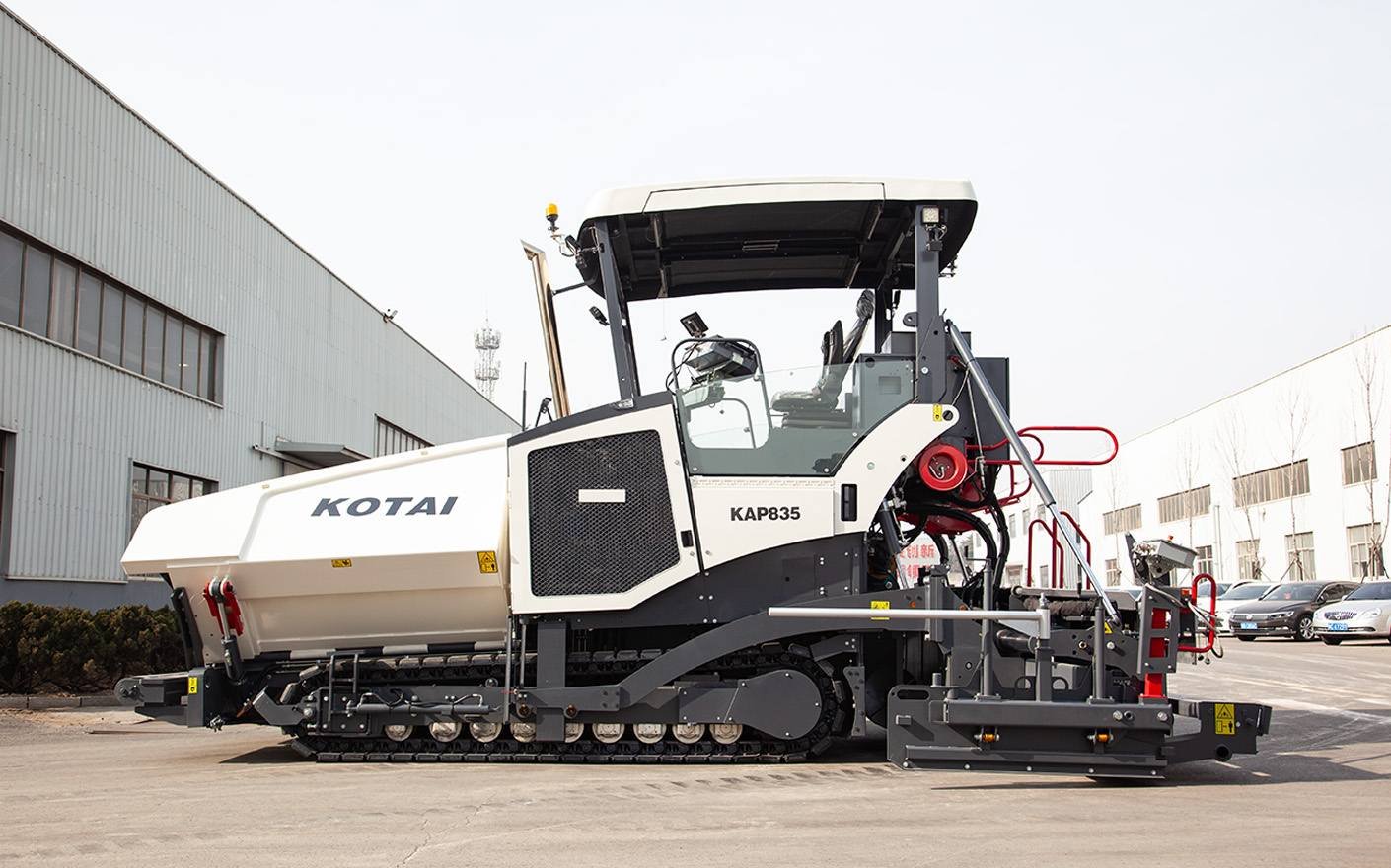

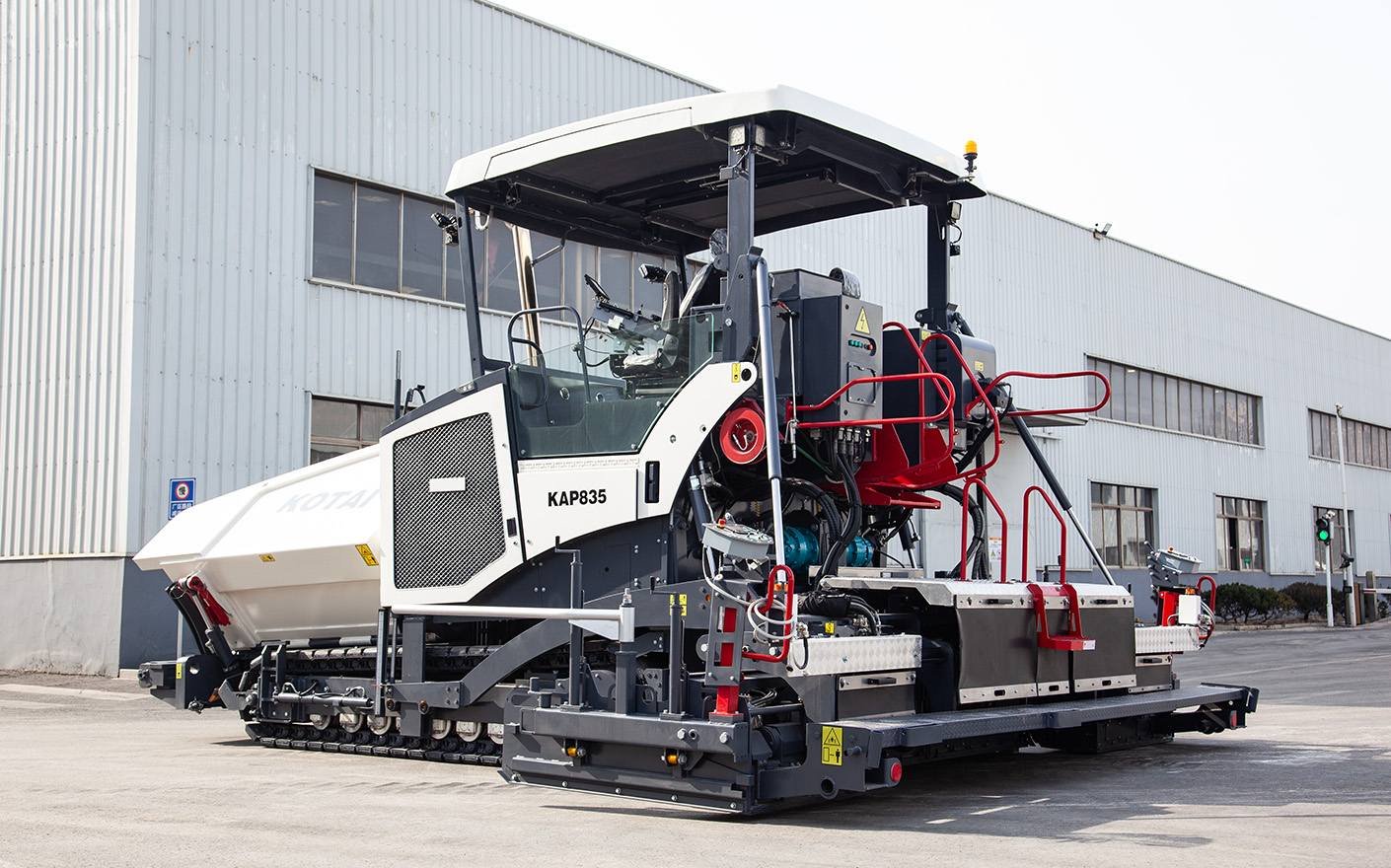

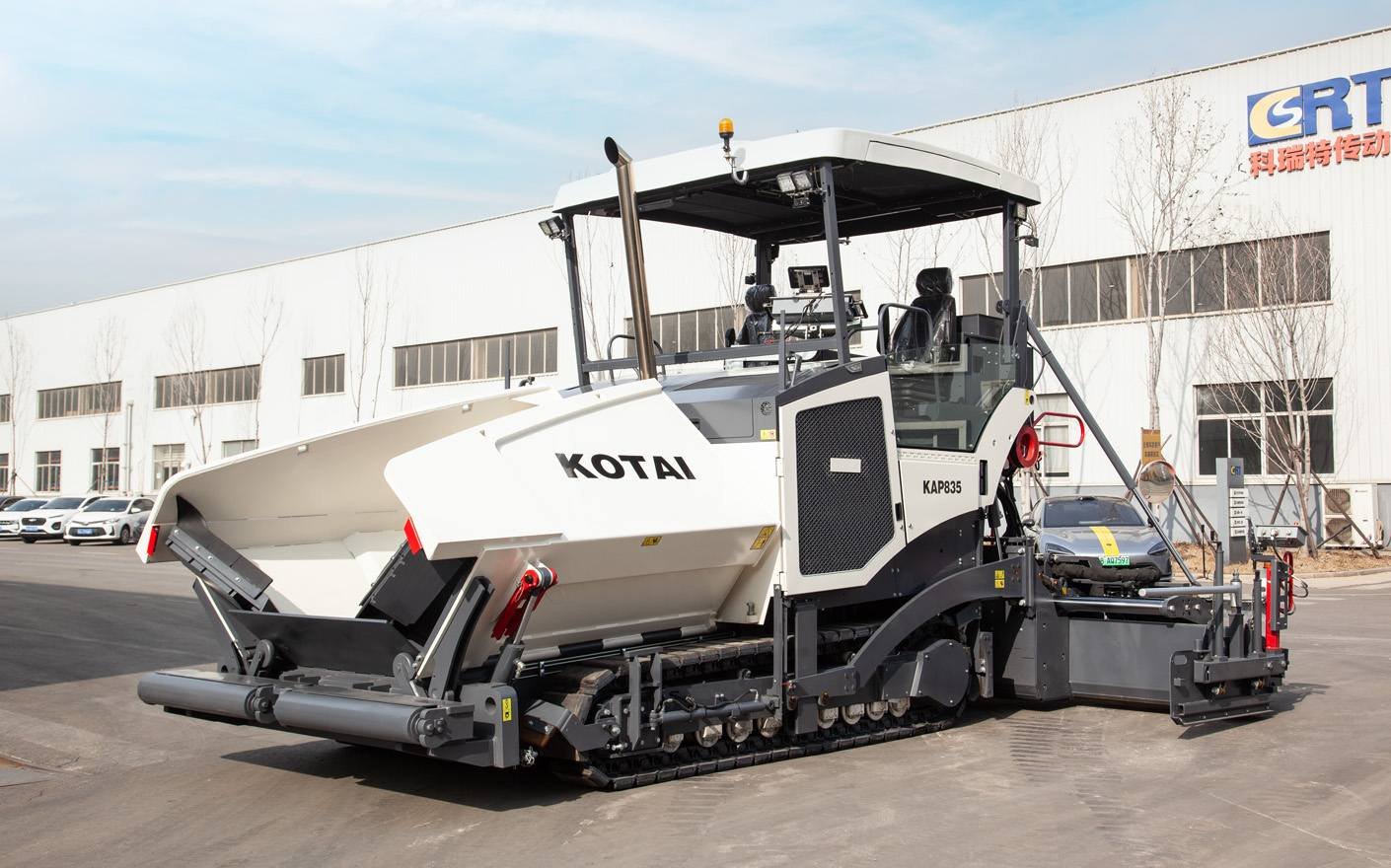

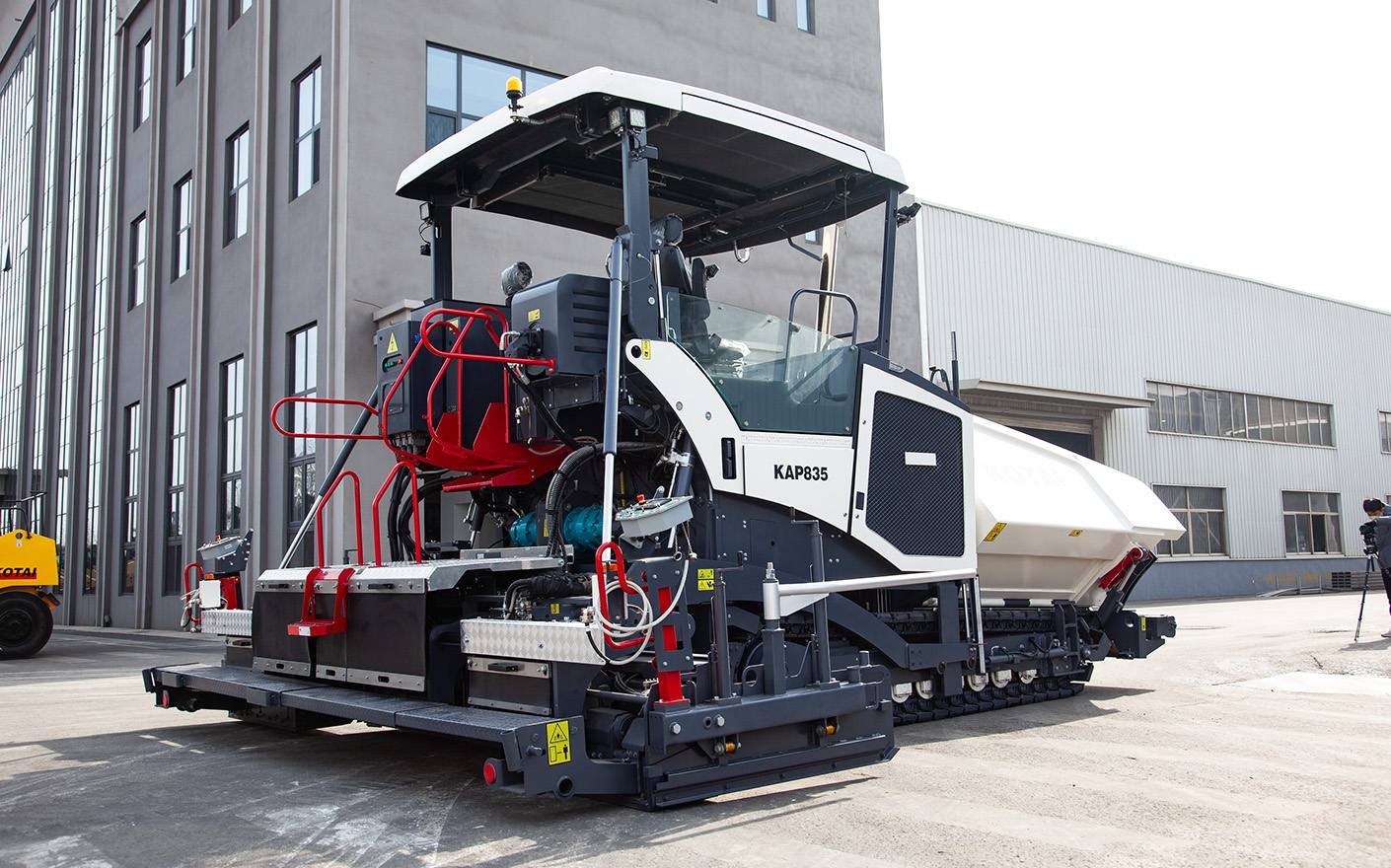

The KAP835 paver can be equipped with assembled screed and telescopic screed devices. It features high power reserve, premium configuration, high precision, high reliability, multi-functionality, convenience and high efficiency, and is widely used in municipal maintenance and rural road paving operations.
Equipped with a 154 kW Cummins engine that complies with China National Stage III emission standards, it meets construction requirements under extreme conditions such as high altitude and low temperature.

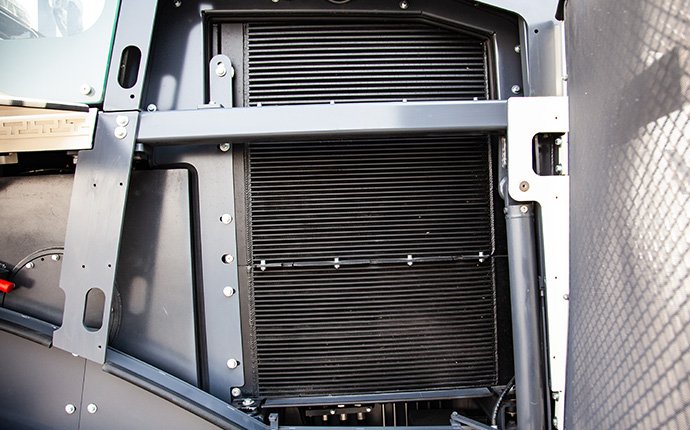

The cooling fan adopts hydrodynamic coupling temperature-sensitive control with speed adjusted on demand. It delivers excellent cooling performance, energy conservation and noise reduction, ensuring continuous operation without overheating under high-temperature environments and full-load working conditions.

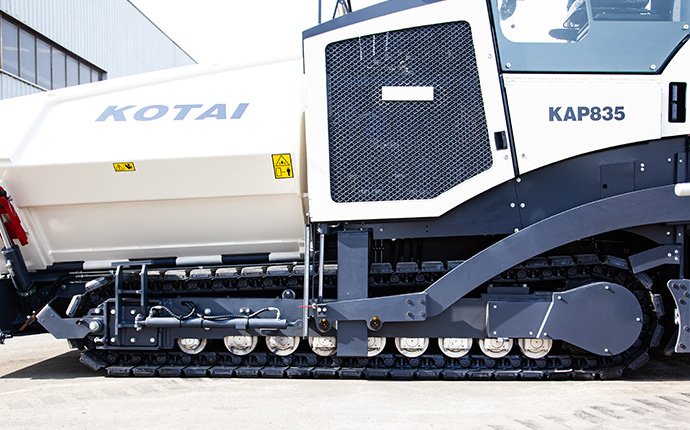

Adopts imported high-torque travel reducer for stable and reliable paving travel. The crawler features automatic hydraulic tensioning with large ground contact area and outstanding longitudinal stability, and is fitted with maintenance-free crawler guide wheels.

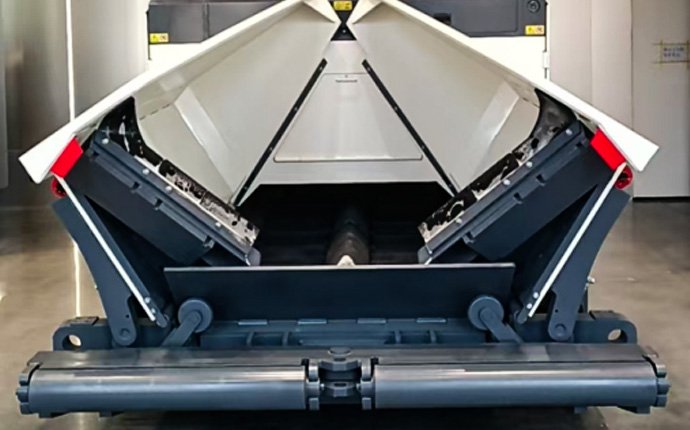

The material conveying and distributing system adopts electro-hydraulic proportional control, which stabilizes the material level in the auger trough, improves construction efficiency and ensures superior paving flatness.

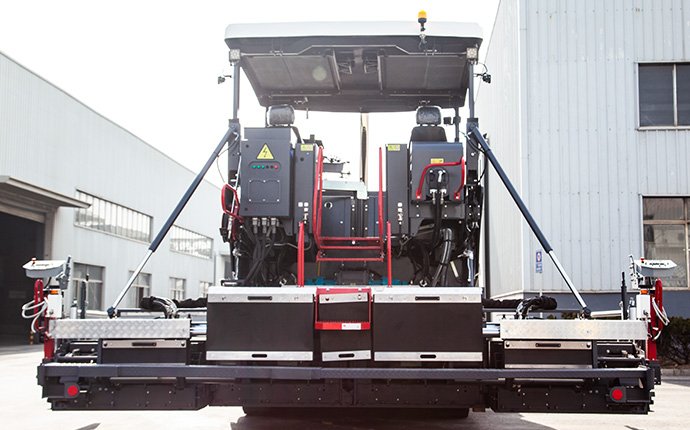

It can be fitted with a telescopic screed with a maximum mechanical extension of 8 meters. A full-width hydraulic telescopic screed is optional, enabling one-touch hydraulic adjustment of camber, step height and material control baffle, with a full telescopic range up to 7.5 meters.
| Model | KAP835 |
| Series | KAP |
| Description | Paver |
| Main Machine Weight (t) | 18.9 |
| Travel Speed(km/h) | 0-2.9 |
| Track Shoe | Split Type |
| Track Ground Contact Length (center of idler to center of drive wheel) | 2940 |
| Theoretical Paving Capacity (t/h) | 1000 |
| Basic Paving Width (m) | 2.5 |
| Maximum Paving Width (m) | 8 |
| Maximum Paving Thickness (cm) | 30 |
| Paving Speed (m/min) | 0-18 |
| Evenness | ≤1.2 mm for asphalt paving / ≤3 mm for stabilized soil paving |
| Pre-compaction Density (%) | ≥88% for asphalt paving / ≥85% for stabilized soil paving |
| Transport Dimensions(mm) | 6963*2550*3080 |
| Fuel tank(L) | 300 |
| Hydraulic Oil Tank(L) | 220 |
| Hopper Capacity (t) | 14.5 |
| Hopper Length (mm) | 2570 |
| Discharge Height (mm) | 565 |
| Hopper Support Cylinder | 2 |
| Front Hopper Flap Lifting | Mechanical front flap lifting available |
| Conveyor Reversing | Reversing function available |
| Adjustable Height Range of Auger Assembly (mm) | 160 |
| Diameter of Auger Distributing Blades (mm) | 420 / 360 |
| Transmission Type of Auger Conveyor Gearbox | Chain Drive |
| Auger Conveyor Speed (r/min) | 120 (max) |
| Conveyor Belt Speed (m/min) | 23 (max) |
| Number of Material Level Sensor Probes | 2 |
| Height Adjustment Mode of Auger System | Hydraulic |
| Engine | 康明斯 | Cummins |
| Transfer Case | 斯宝 | Sibao |
| Radiator | ASA | ASA |
| Fan | 奥卡 | Aoka |
| Fan Clutch | 奥卡 | Aoka |
| Travel Pump | 丹佛斯 | Danfoss |
| Travel Motor | 丹佛斯 | Danfoss |
| Travel Reducer | 力士乐 | Rexroth |
| Conveyor Pump | 伯母克 | Bomag |
| Conveyor Motor | 伊顿 | Eaton |
| Conveyor Reducer | TSUN | TSUN |
| Auger Piston Pump | 丹佛斯 | Danfoss |
| Auger Piston Motor | 力士乐 | Rexroth |
| Auger Reducer | TSUN | TSUN |
| Tamping Piston Pump | 丹佛斯 | Danfoss |
| Tamping Motor | 力士乐 | Rexroth |
| Vibration Motor | 伯母克 | Bomag |
| Cylinder Pump | 康斯克 | Kangsike |
| Generator Pump | 丹佛斯 | Danfoss |
| Generator Motor | 力士乐 | Rexroth |
| Generator | 顶一 | Dingyi |
| Centralized Lubrication Unit | 林肯 | Lincoln |
| Electronic Control System | 博世力士乐 | Bosch Rexroth |
| Monitoring Instrument | 硕博 | Shuobo |
| Automatic Leveling System (Optional) | MOBA | MOBA |
| Track Chain Assembly | 山推 | Shantui |
| Rubber Track Shoe | 元创 | Yuanchuang |
| Full Vehicle Hydraulic Hoses and Fittings | CUST | CUST |
Normally we accept L/C,or TT30% down payment, balanceto be paid against BL copy and loading pictures.
Some of our products are in stock, while standard products without stock usually take 15-35 days.
Yes, we have over 20 years of experience in engineering machinery manufacturing.
We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Yes, we warmly welcome you to join us.
We have built a highly comprehensive product portfolio covering more than 100 core products, including road rollers, excavators, loaders, drilling rigs, motor graders, bulldozers, forklifts, cranes, dump trucks and others. Our products fully serve key sectors such as road equipment, earthmoving machinery, construction equipment and mining equipment.
