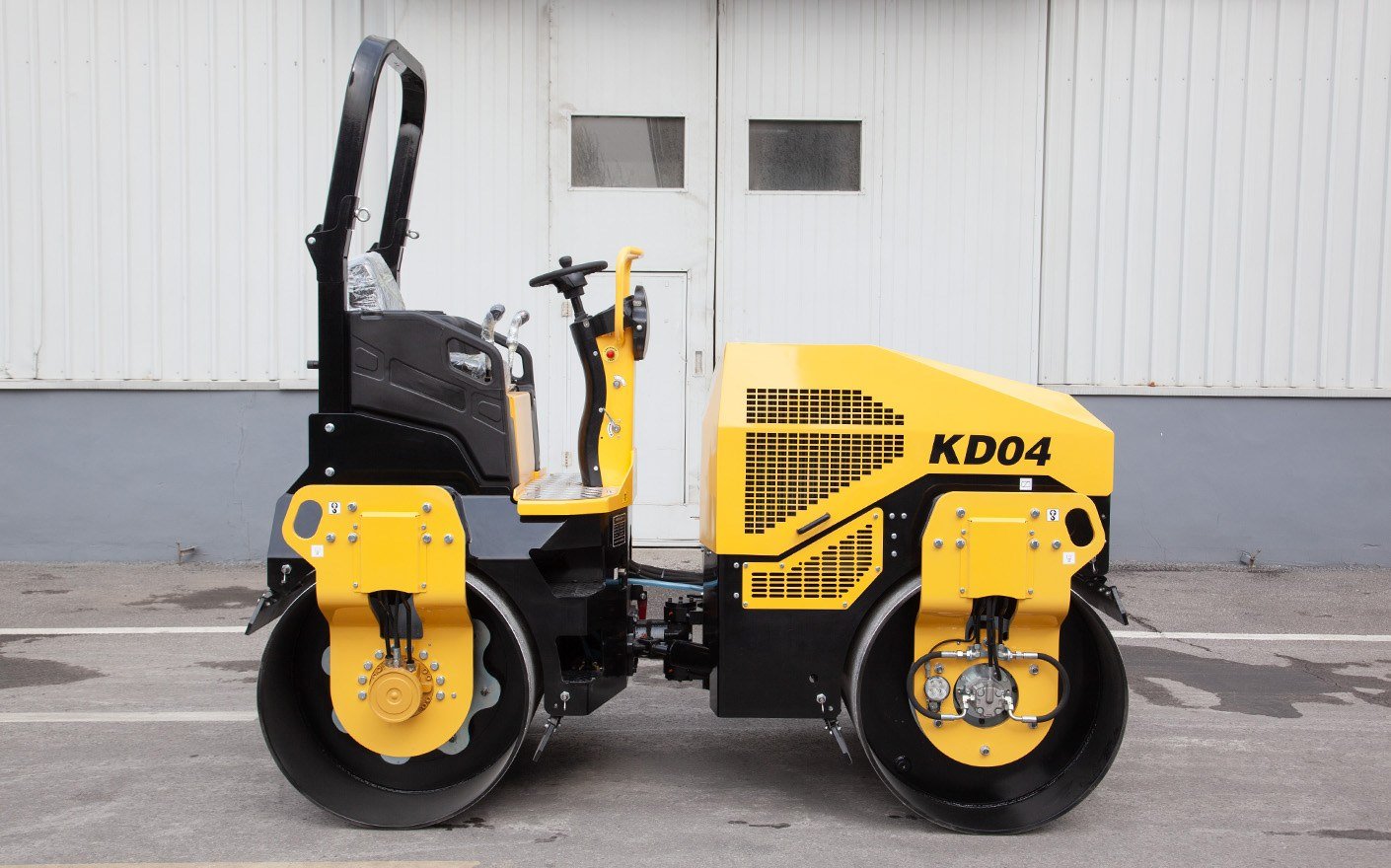

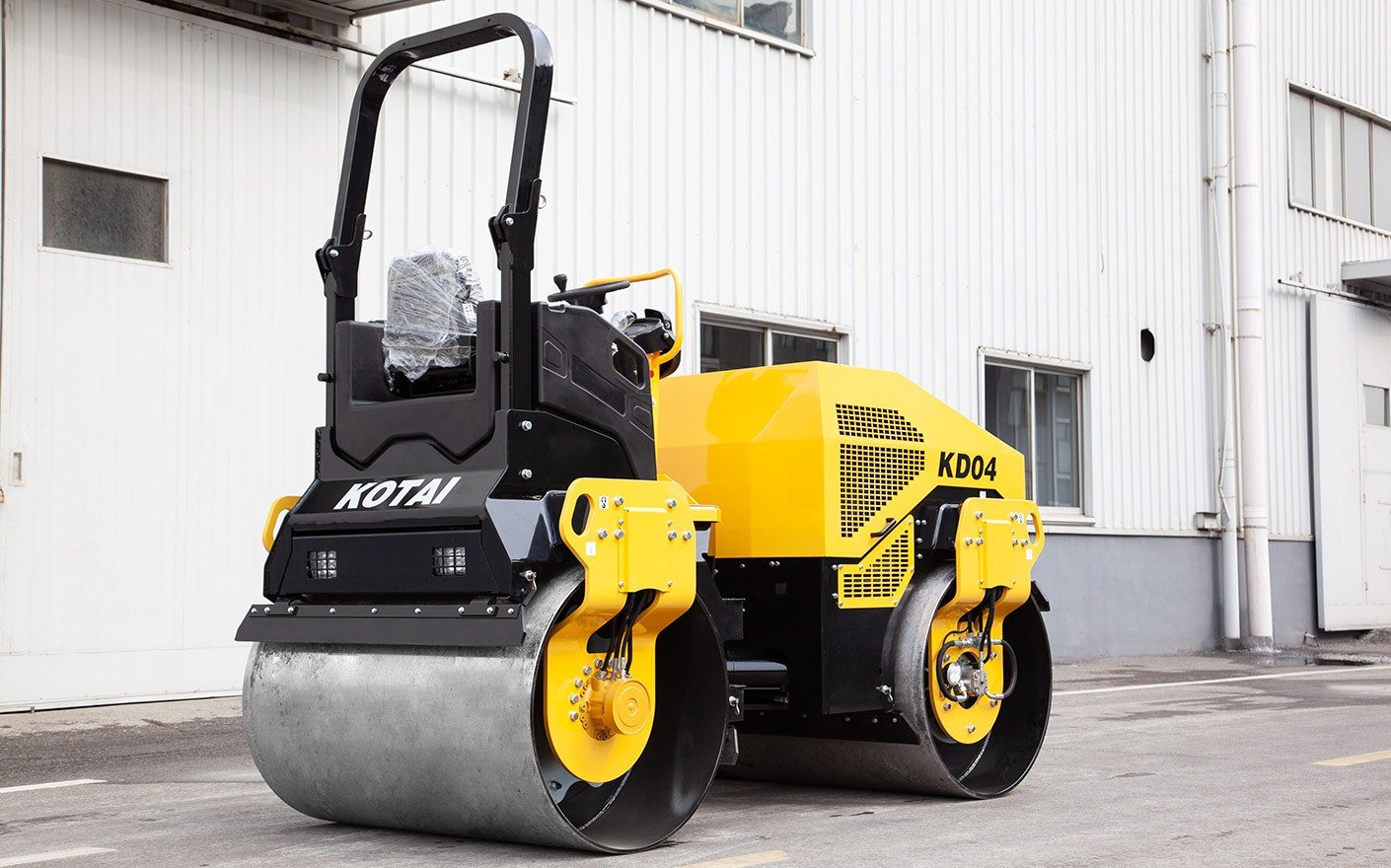

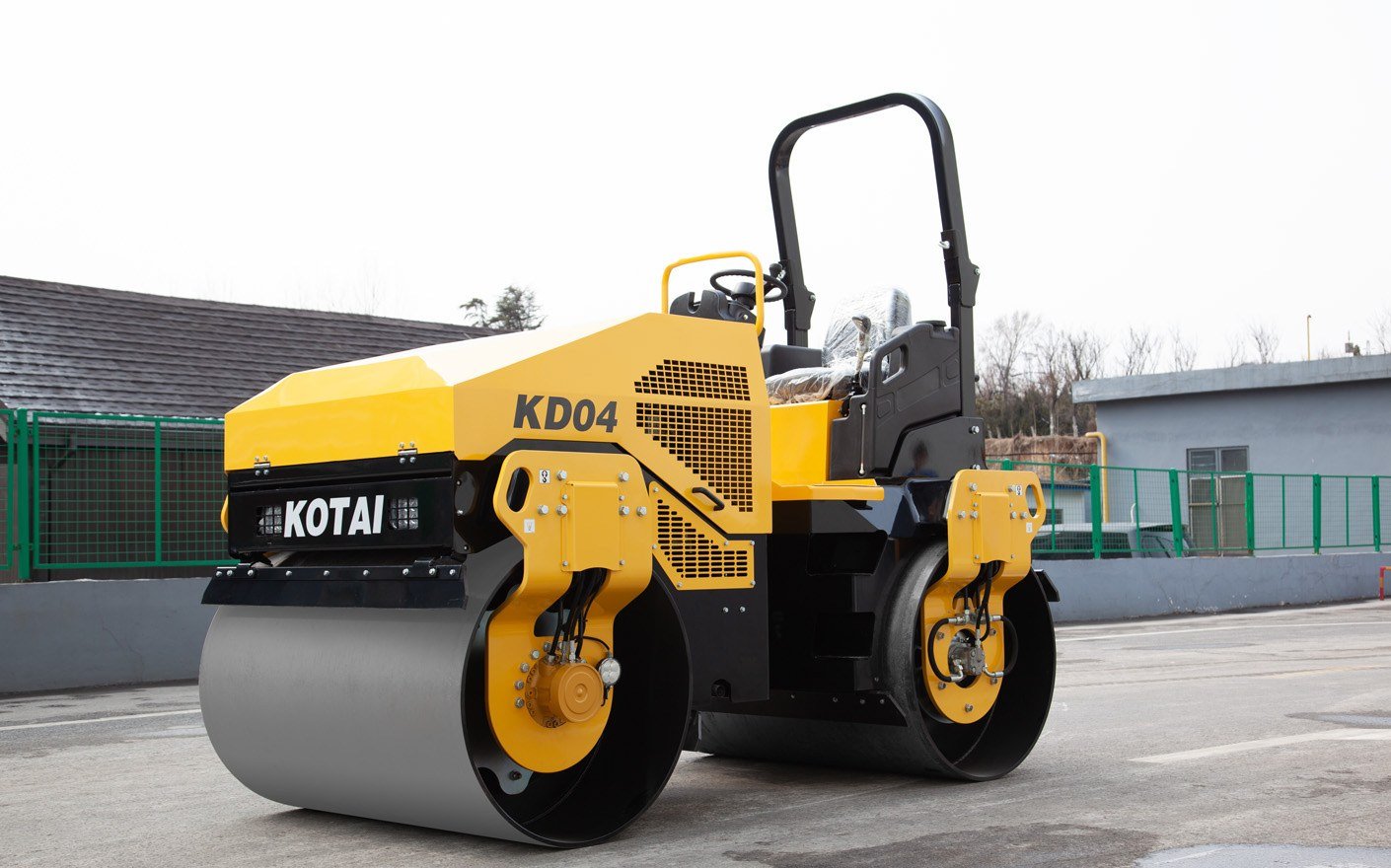

The KD04 Double Drum Vibratory Roller features a compact and flexible body with a small turning radius, enabling smooth operation in narrow spaces and efficient, convenient transit. Its dual-drum vibration ensures uniform compaction without wheel marks, effectively improving the flatness and density of asphalt pavement. Equipped with full hydraulic control, it offers simple operation, stable driving, and strong climbing and anti-slip performance. The whole machine is energy-saving, fuel-efficient, robust and durable with low maintenance costs, suitable for municipal engineering, road repair, park roads and other working conditions, boasting extremely high comprehensive cost performance.

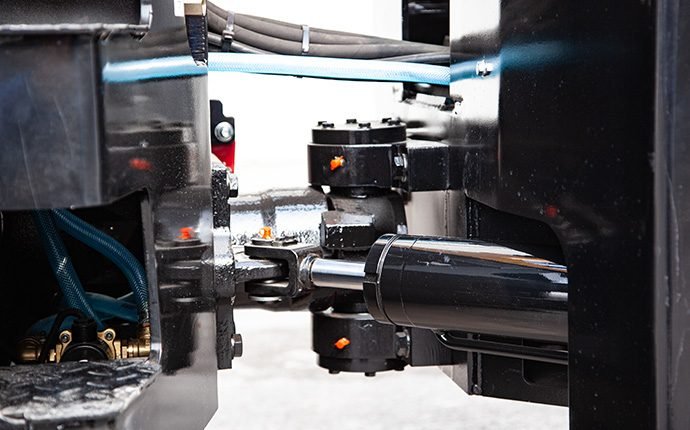

With a small turning radius, it operates flexibly in narrow spaces, ideal for compaction work such as trench backfilling. It easily accesses areas unreachable by large road rollers, eliminates compaction dead angles and ensures excellent compaction quality.

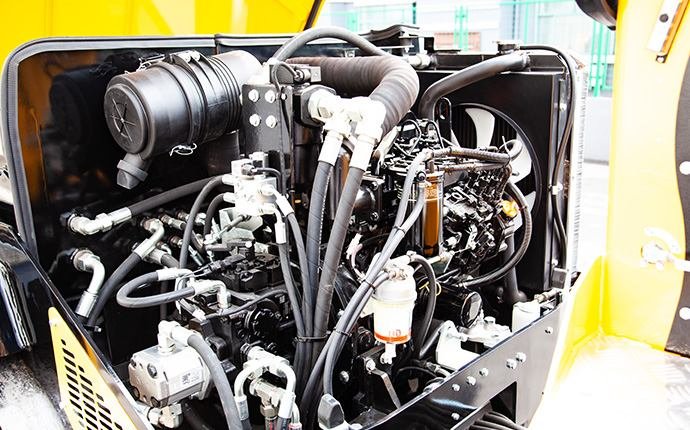

Equipped with Japan Kubota engine, it features reliable quality, superior performance and fuel efficiency.

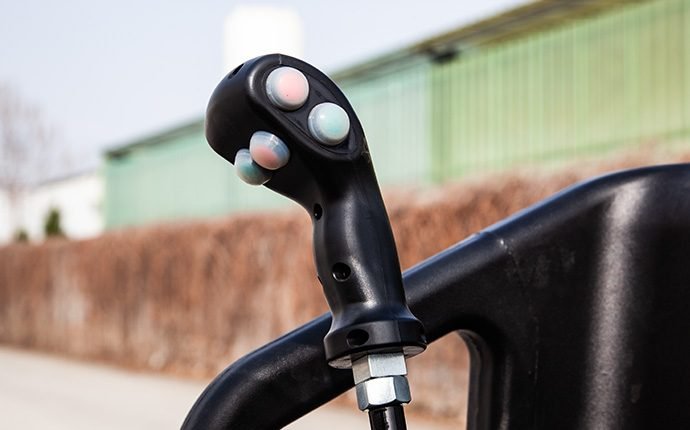

It adopts stepless speed regulation for forward and reverse travel. Buttons for vibration and water spraying are integrated on the control handle for convenient operation. The streamlined and humanized handle ensures comfortable and easy control. A neutral safety mechanism is equipped for engine starting to guarantee safe operation.

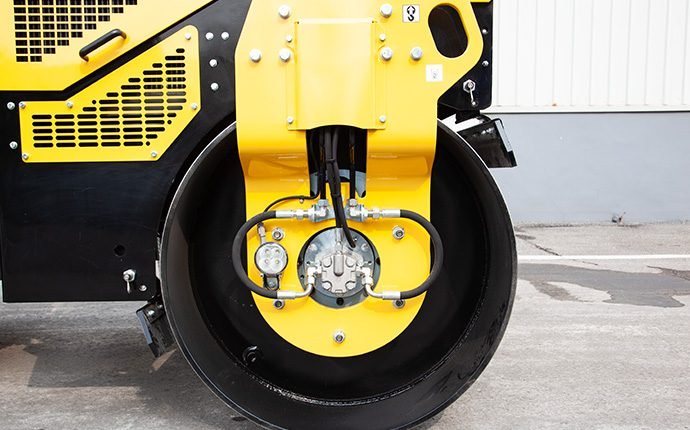

Equipped with American Danfoss orbital hydraulic motor for dual-drive travel. The drum vibration is driven by Danfoss gear motor, which can be activated with one simple button.

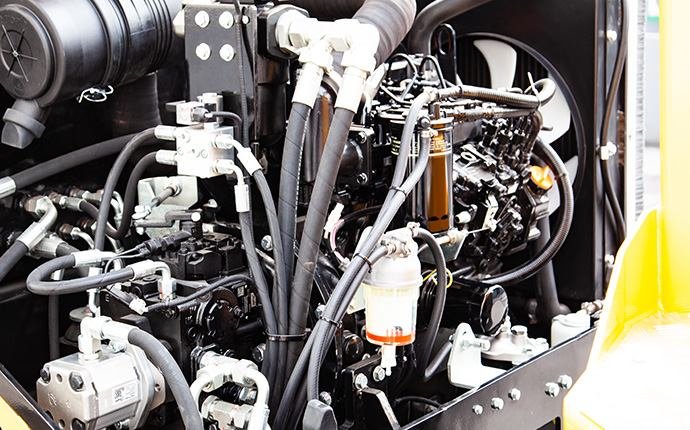

The compact and reasonable overall structure simplifies daily upkeep. Routine maintenance can be completed by a single operator, cutting labor input and long-term operation costs.
| Model | KD04 |
| Series | KD |
| Description | Tandem roller with vibration and oscillation drum |
| Operating Weight(kg) | 4200 |
| Static Line Load(N/cm) | 150/135.5 |
| Vibration Frequency(Hz) | 60 |
| Amplitude(mm) | 0.5 |
| Excitation Force(kN) | 40*2 |
| Vibration Mode | Hydraulic Vibration |
| Travel Mode | Hydraulic Dual Drive |
| Traveling Speed(km/h) | 0-12 |
| Gradeability(%) | 40 |
| Steering Type | Articulated Steering |
| Overall Length(mm) | 2850 |
| Overall Width(mm) | 1520 |
| Overall Height(mm) | 2700 |
| Vibrating Wheel Width(mm) | 1400 |
| Vibrating Wheel Diameter(mm) | 900 |
| Fuel Tankr(L) | 70 |
Normally we accept L/C,or TT30% down payment, balanceto be paid against BL copy and loading pictures.
Some of our products are in stock, while standard products without stock usually take 15-35 days.
Yes, we have over 20 years of experience in engineering machinery manufacturing.
We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Yes, we warmly welcome you to join us.
We have built a highly comprehensive product portfolio covering more than 100 core products, including road rollers, excavators, loaders, drilling rigs, motor graders, bulldozers, forklifts, cranes, dump trucks and others. Our products fully serve key sectors such as road equipment, earthmoving machinery, construction equipment and mining equipment.
