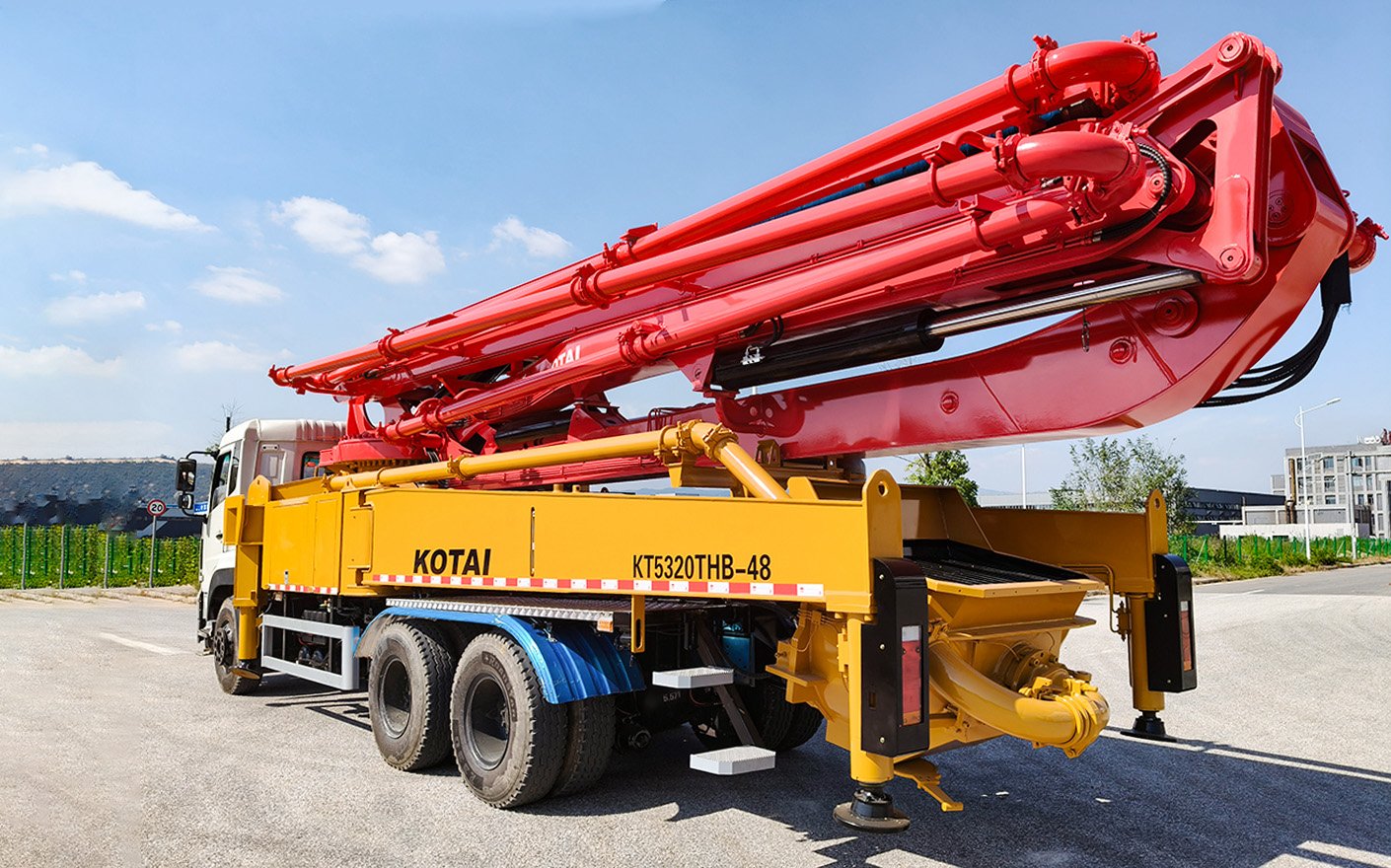

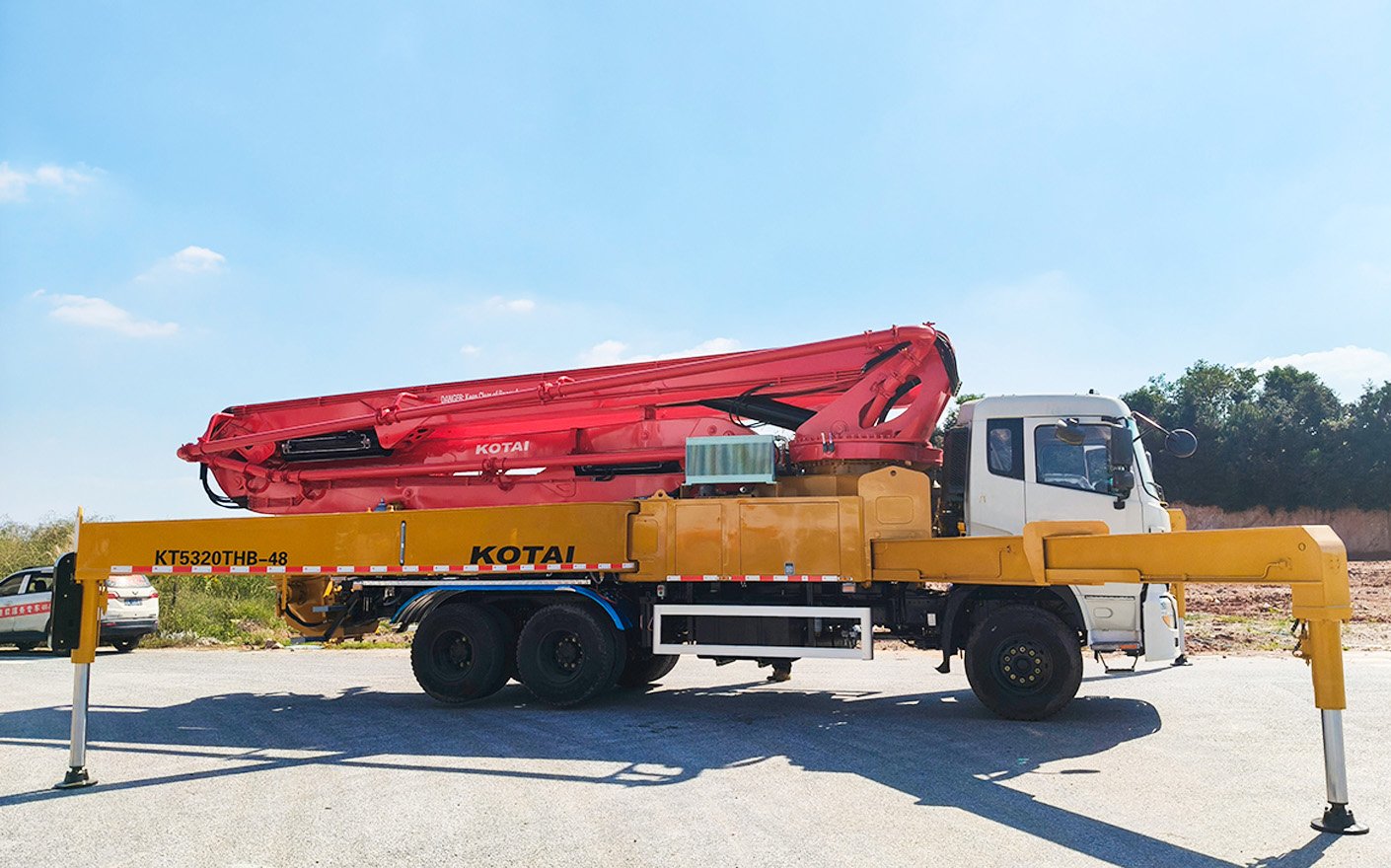

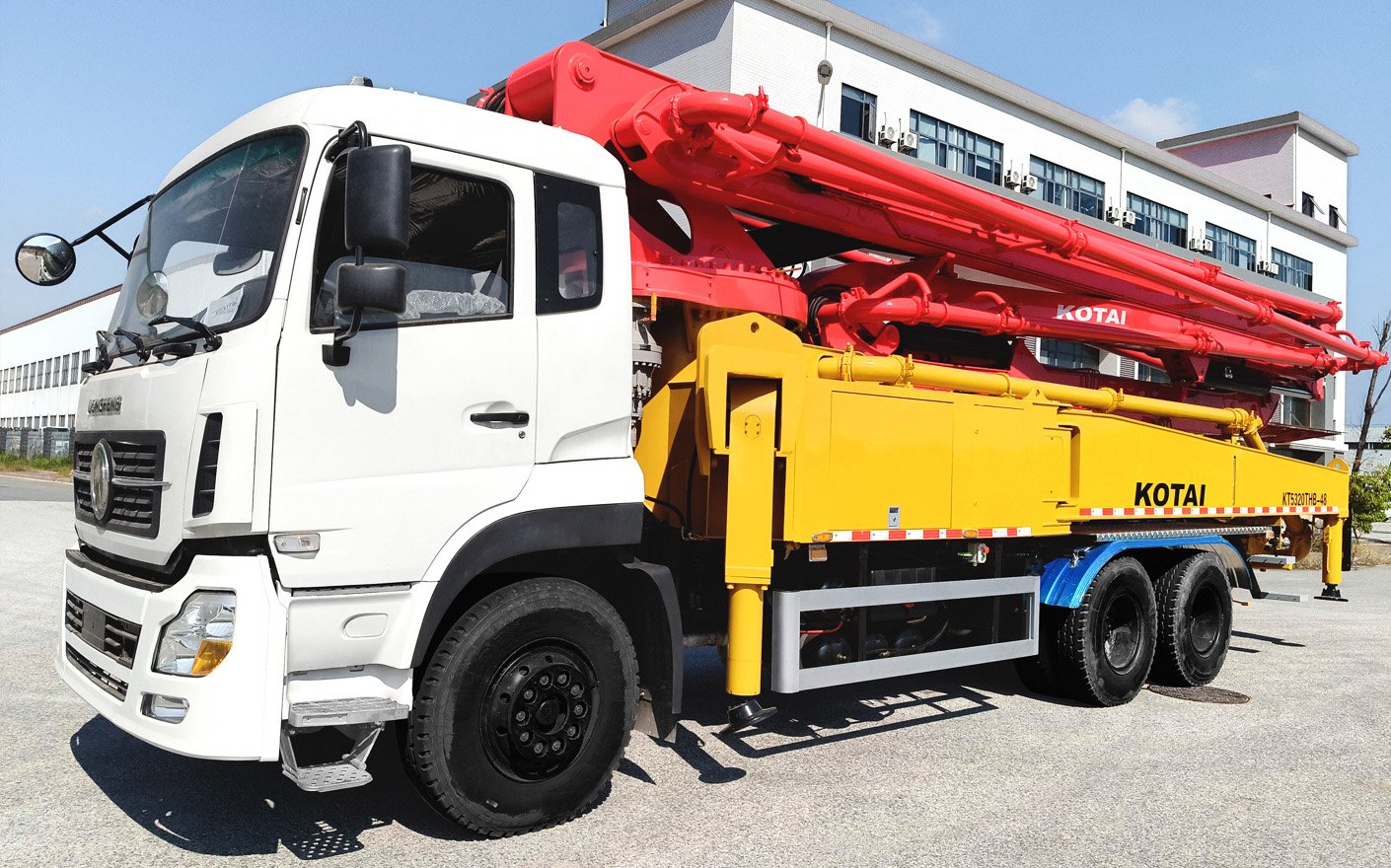

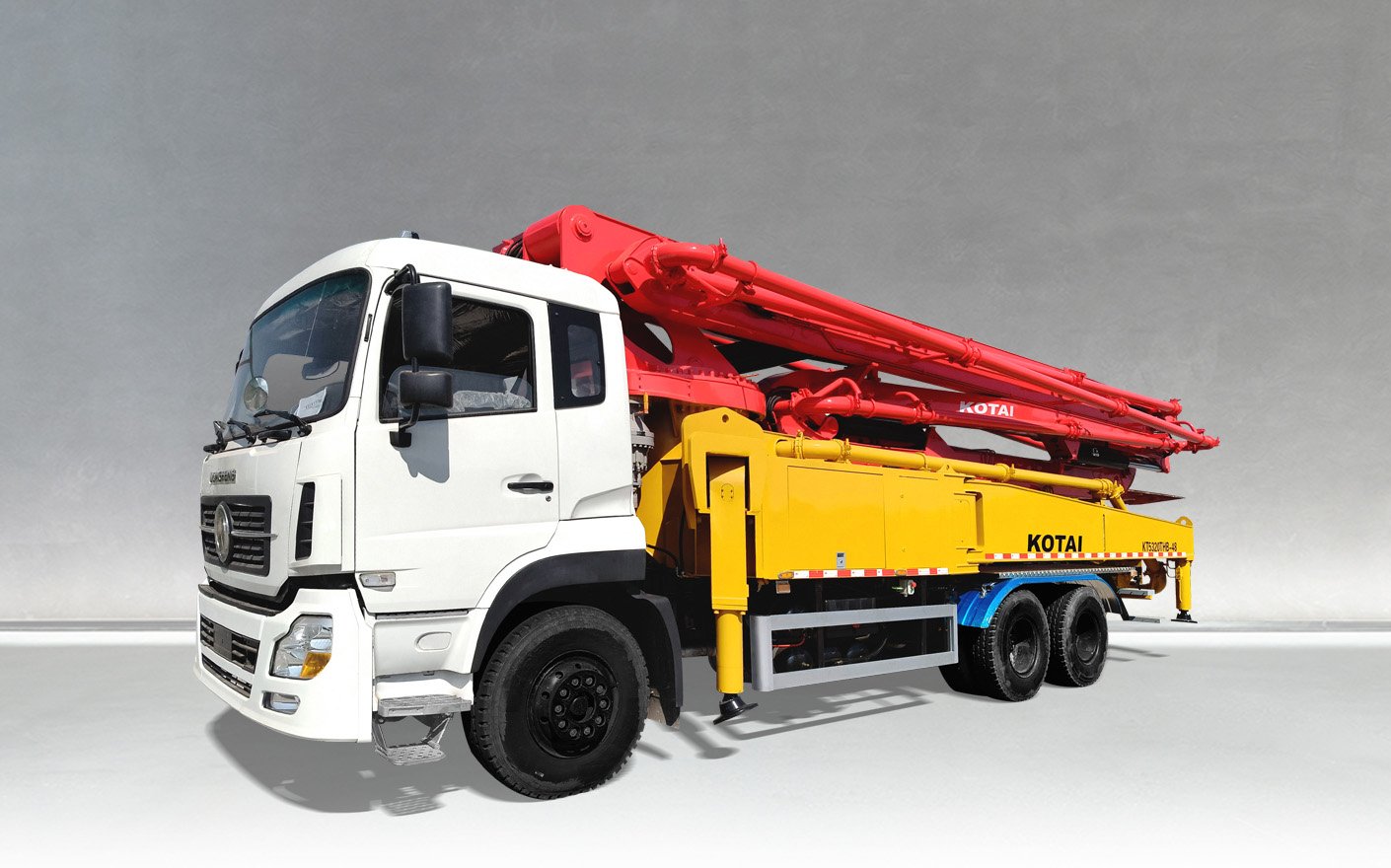

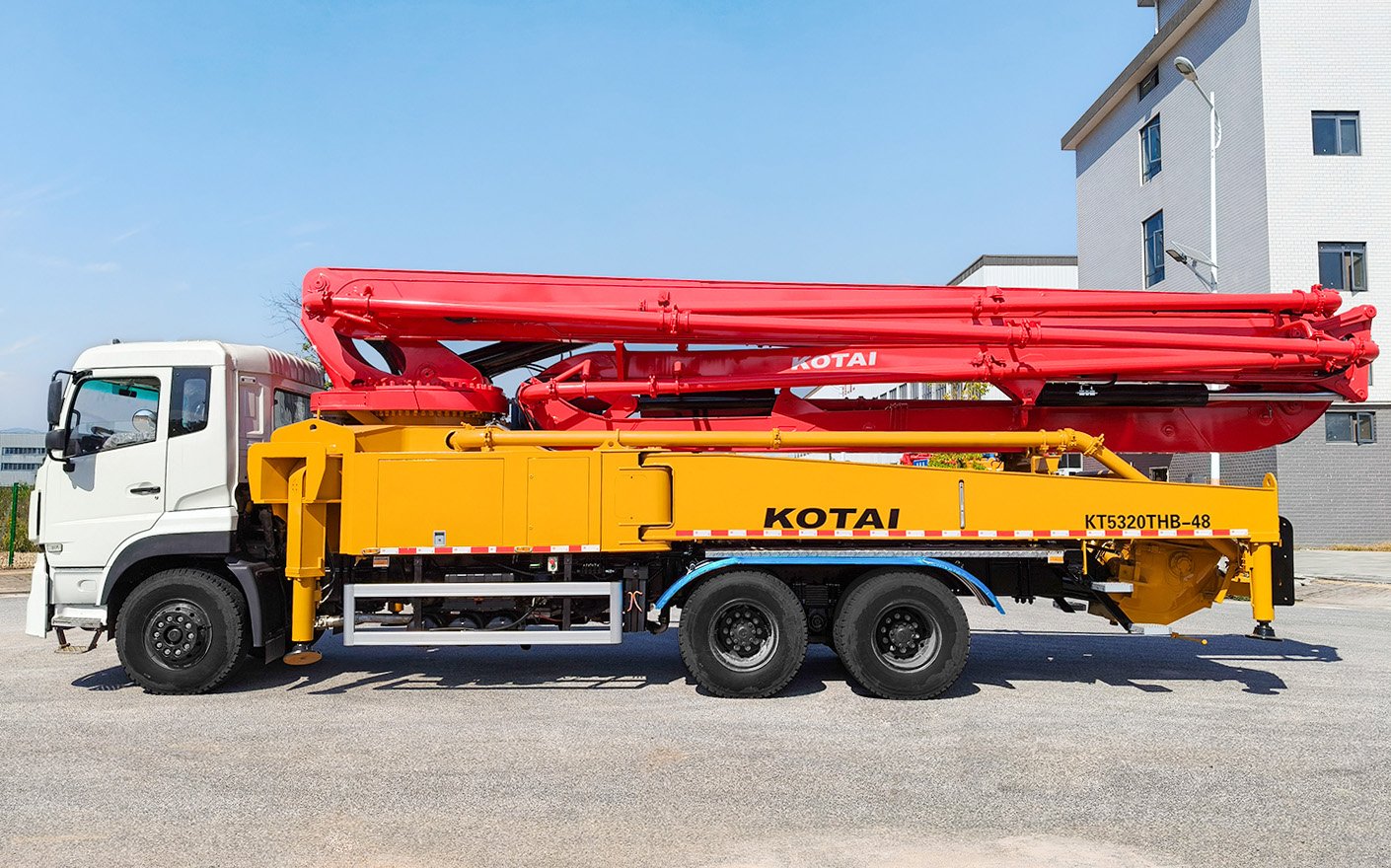

| Model | KT5320THB-48 |
| Series | KT-48 |
| Description | Truck-mounted Concrete Pump |
| Weight(t) | 32 |
| Engine Brand | Yuchai |
| Rated Power(hp) | 350 |
| Total Length(mm) | 12000 |
| Total Width(mm) | 2500 |
| Total Height(mm) | 3980 |
| Wheelbase(mm) | 4750+1350 |
| Vertical Boom Height(m) | 47.2 |
| Horizontal Boom Reach(m) | 42.1 |
| Vertical Boom Depth(m) | 29.4 |
| Minimum Unfolding Height(m) | 13.7 |
| Turntable Rotation Angle (°) | ±270 |
| Front Outrigger Span(mm) | 8159 |
| Rear Outrigger Span(mm) | 9540 |
| Theoretical Max. Output (Low Pressure) ((m³/h)) | 160 |
| Theoretical Pumping Pressure (MPa) | 6.8/10.7 |
| Theoretical Pumping Strokes (times/min) | 28 |
| Fuel Tank(L) | 500 |
| Water Tank(L) | 400 |
