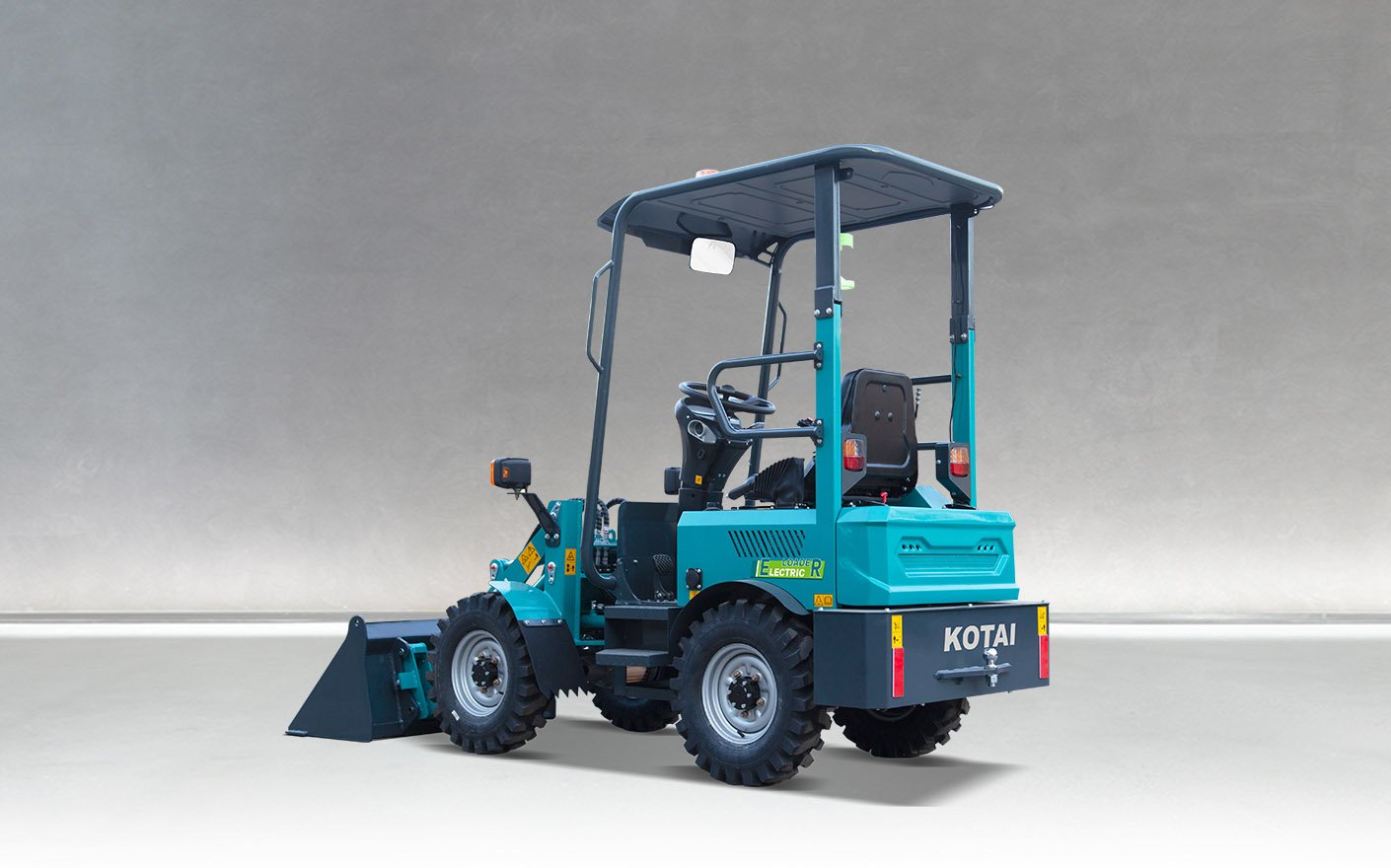

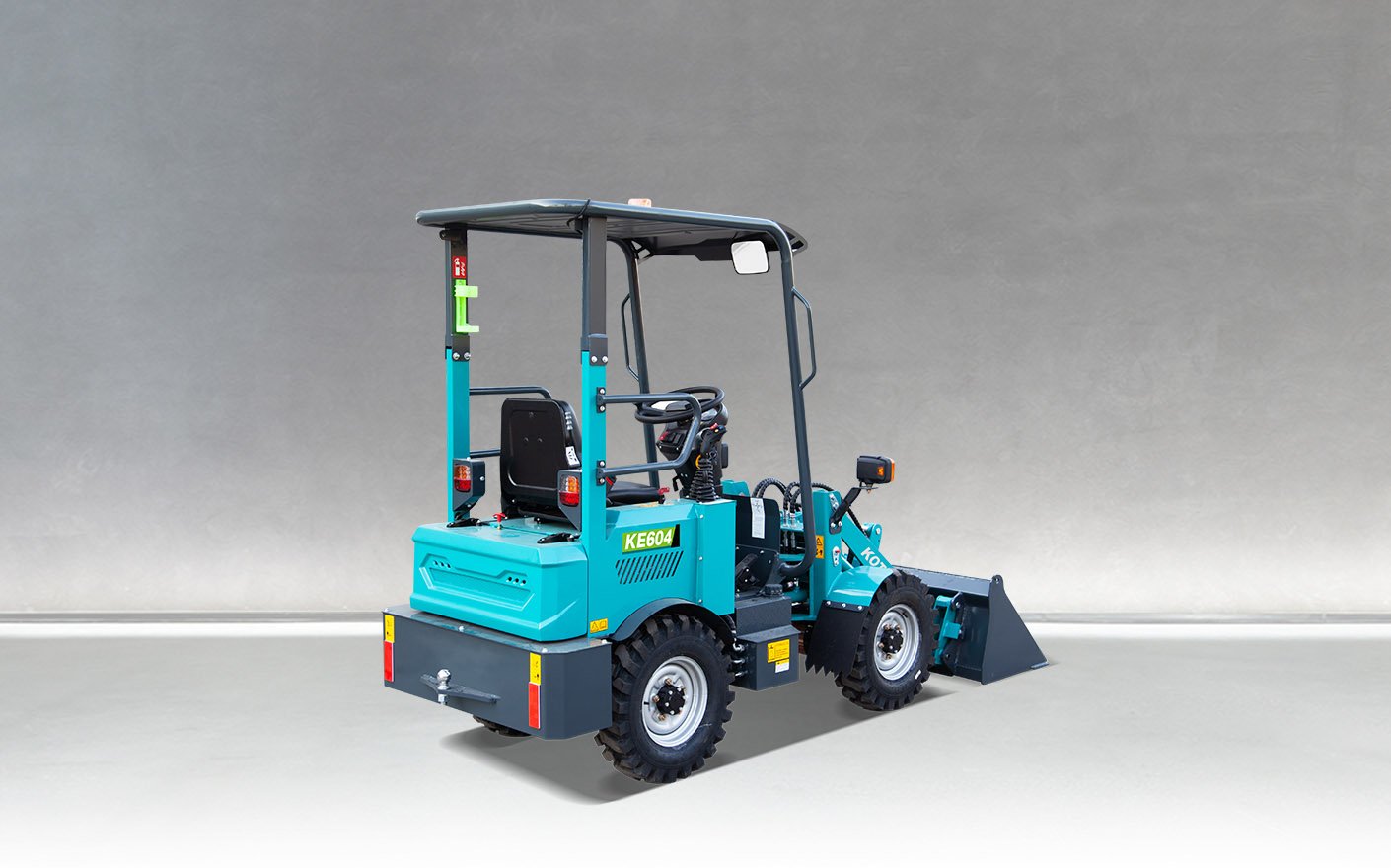

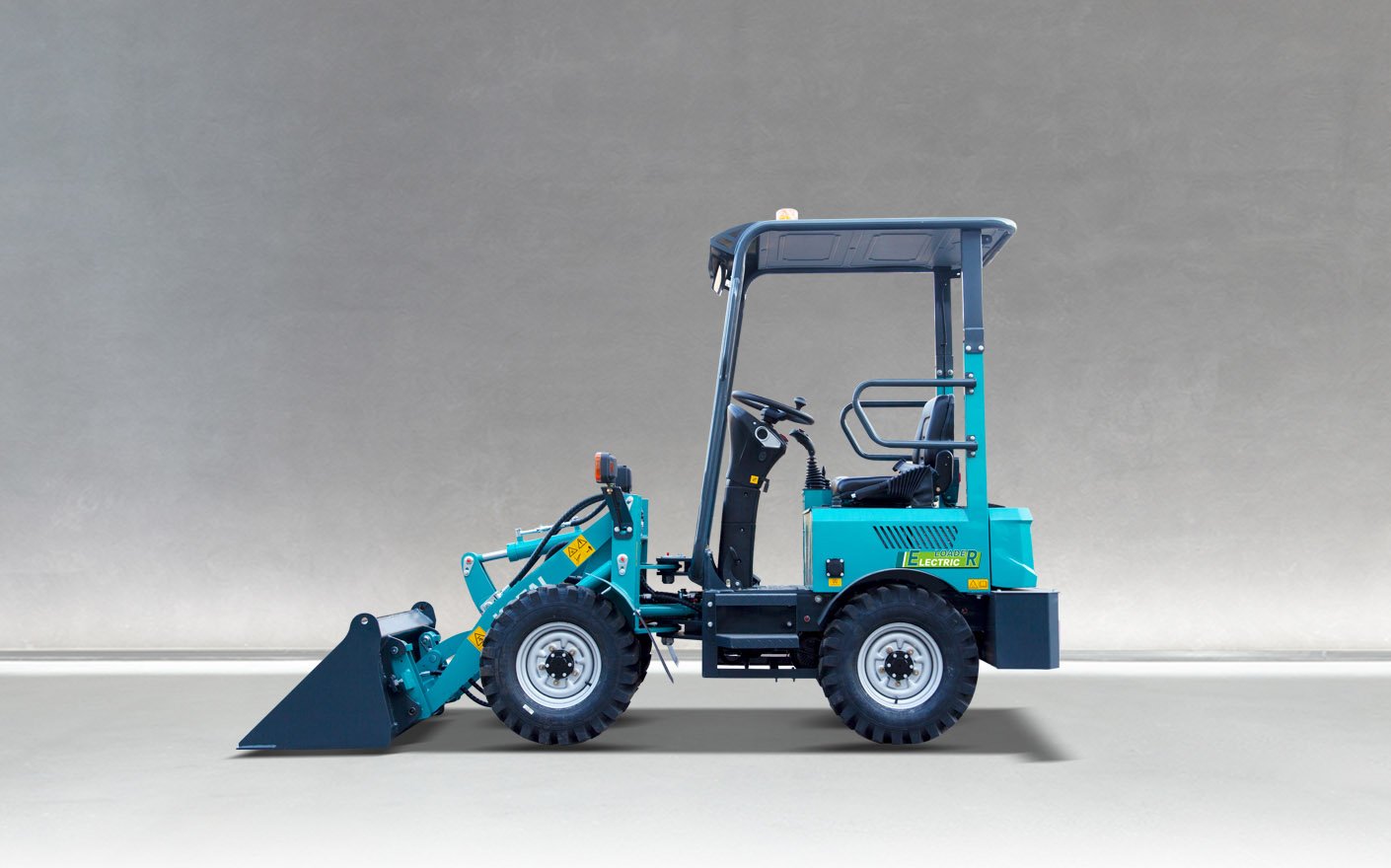

The KE604 electric loader, featuring a compact design and flexible maneuverability, is particularly suitable for applications in warehouses, gardens, construction sites as well as small and medium-sized workplaces. Boasting powerful performance and high energy efficiency, it serves as an ideal choice for users with demands for environmental protection and high productivity.
| Model | KE604 |
| Series | KE |
| Description | New Energy Loader |
| Weight(kg) | 1120 |
| Battery Type | Maintenance-free Lead-acid Type |
| Total Battery Capacity(kW) | 9 |
| Rated Voltage(V) | 60 |
| Battery Charging Time(h) | 8 |
| Tires specifications | 6.00-12 |
| Number of Tires | 4 |
| Rated Load(kg) | 400 |
| Rated Bucket Capacity(m³) | 0.2 |
| Total Cycle Time (s) | 7.5 |
| Travel Speed (km/h) | 18 |
| Turning Radius (mm) | 2520 |
| Dumping Height (mm) | 1400 |
| Dumping Reach (mm) | 600 |
| Total Length(mm) | 3260 |
| Total Width(mm) | 1140 |
| Total Height(mm) | 2085 |
| Ground Clearance (mm) | 200 |
