Backhoe loader integrates excavation and loading functions in one machine. It is suitable for municipal emergency repair, road maintenance, rural infrastructure construction, site leveling, small earthwork projects and narrow construction sites. It can also be fitted with different attachments to perform breaking, hoisting, forklift loading and unloading and other operations.
It features multi-functionality, excellent wheeled mobility and fast and flexible relocation. With a small footprint, simple operation and high utilization rate, it effectively saves equipment procurement and maintenance costs. It delivers high construction efficiency with outstanding economy and versatility.

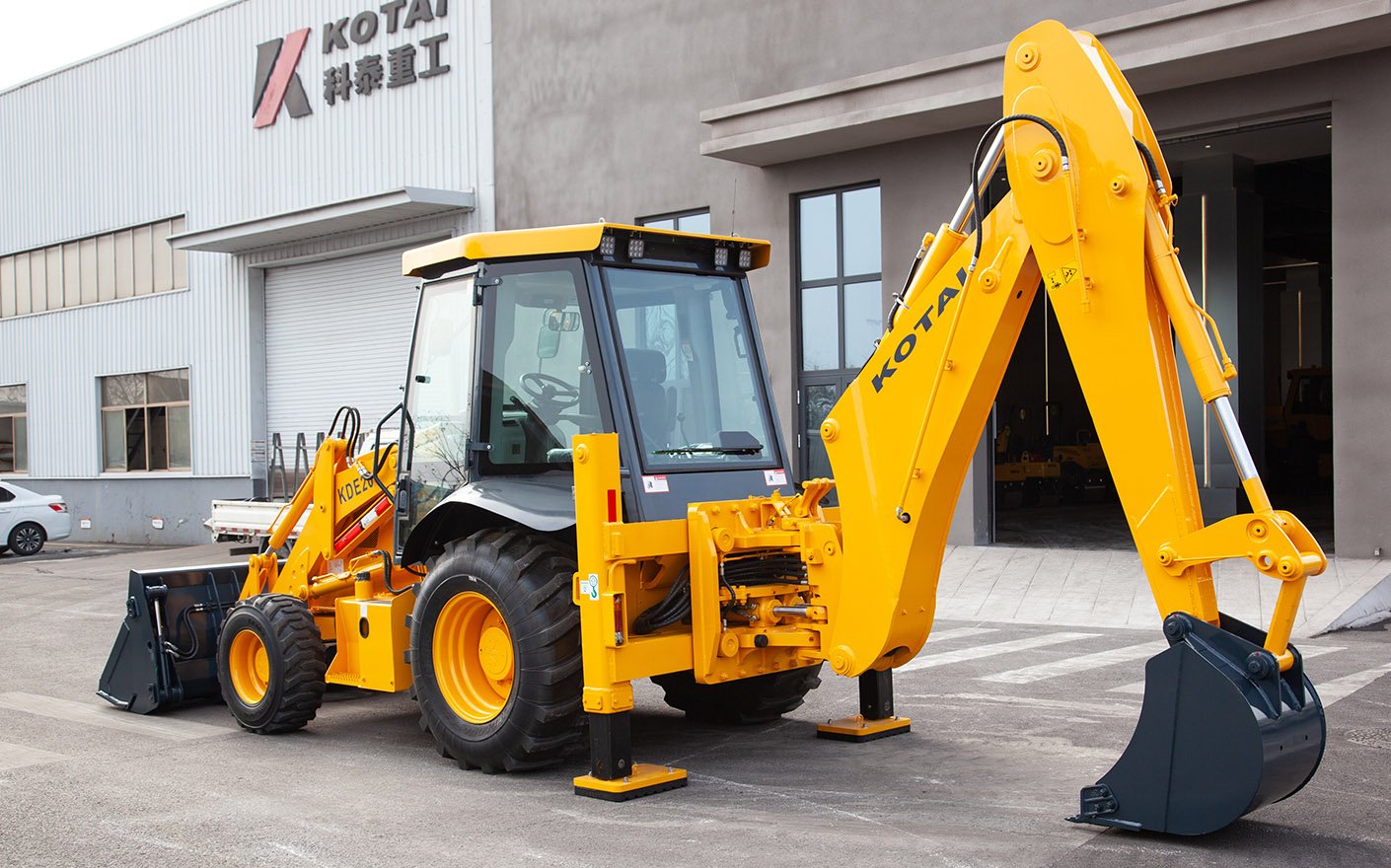

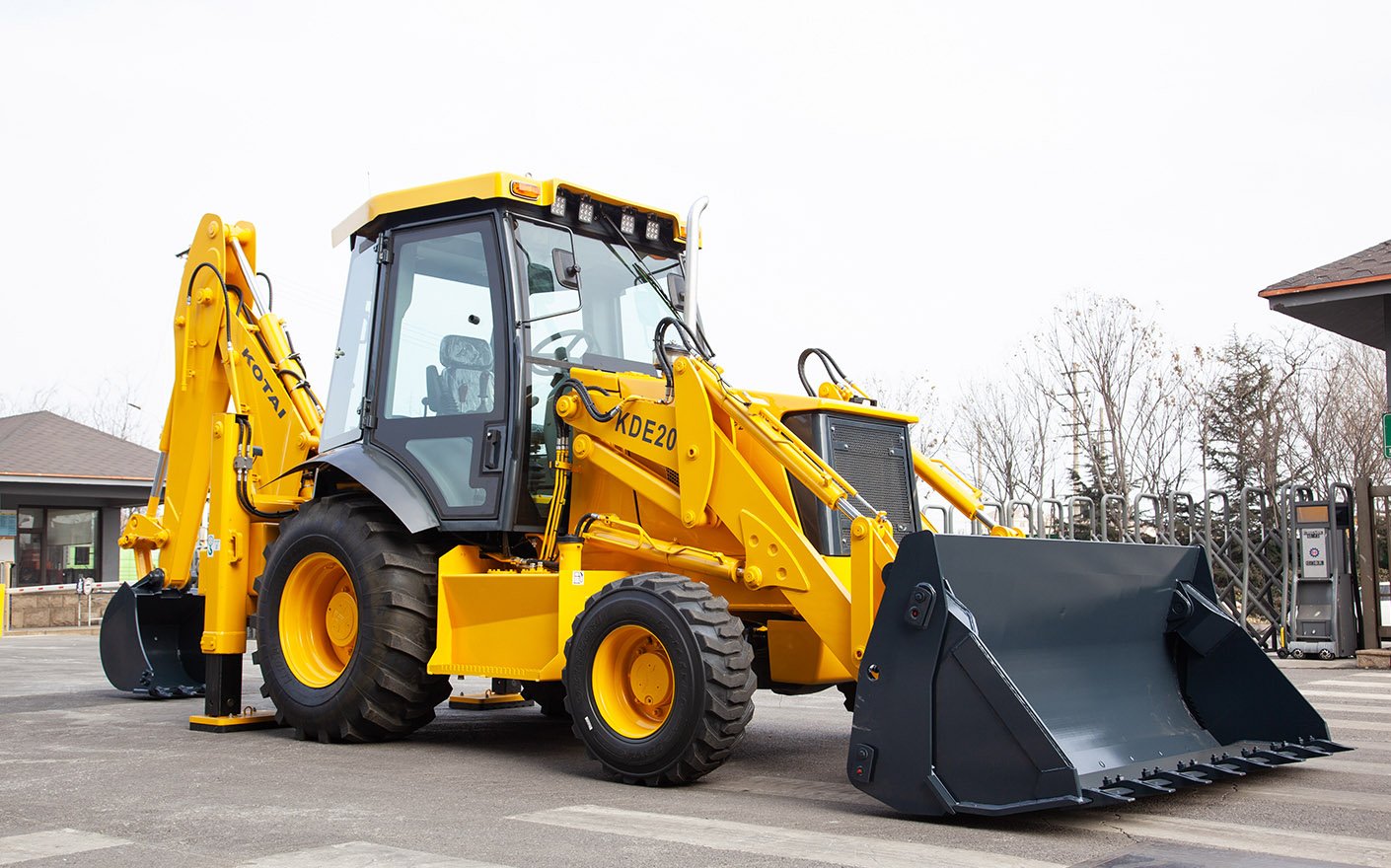

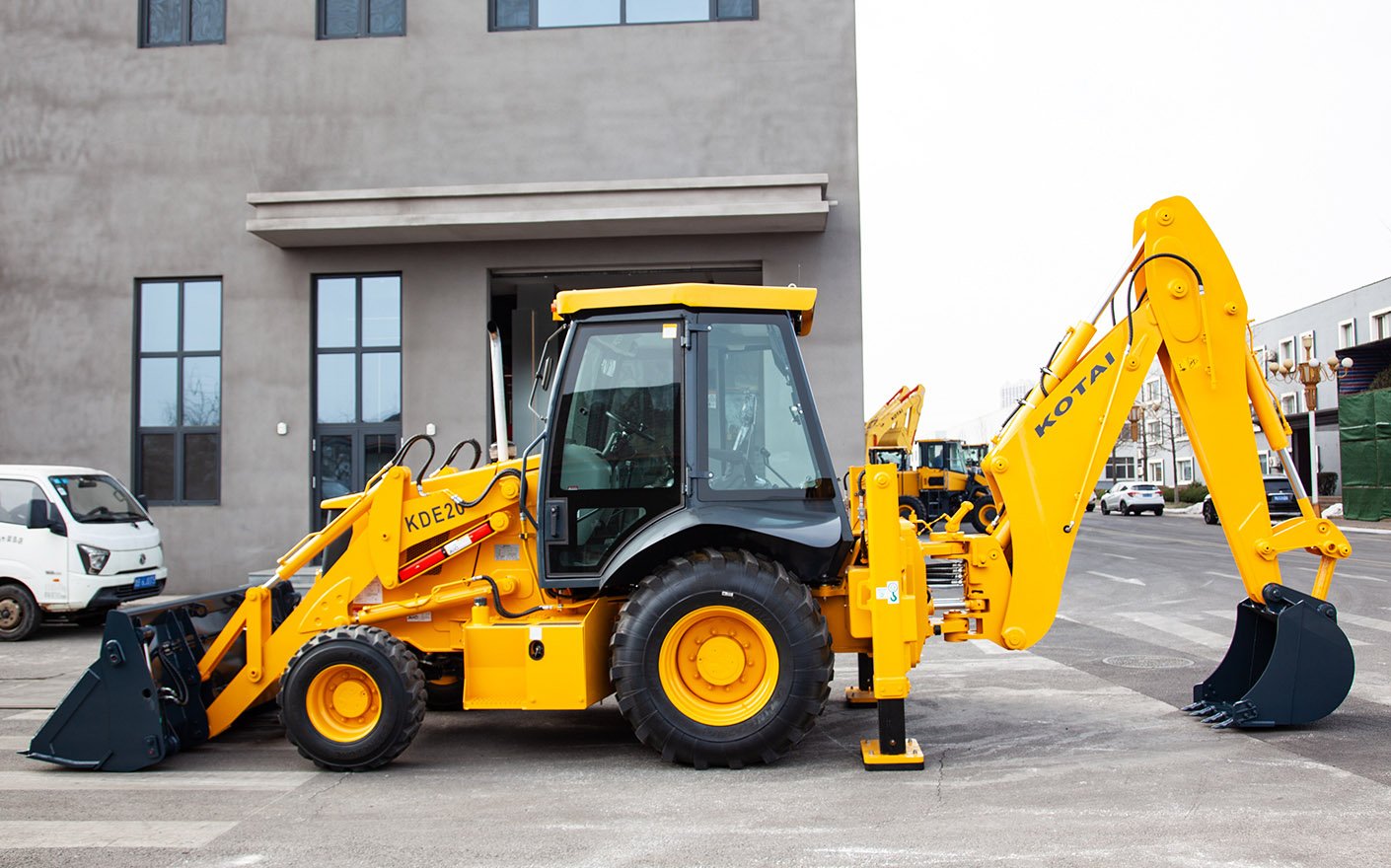

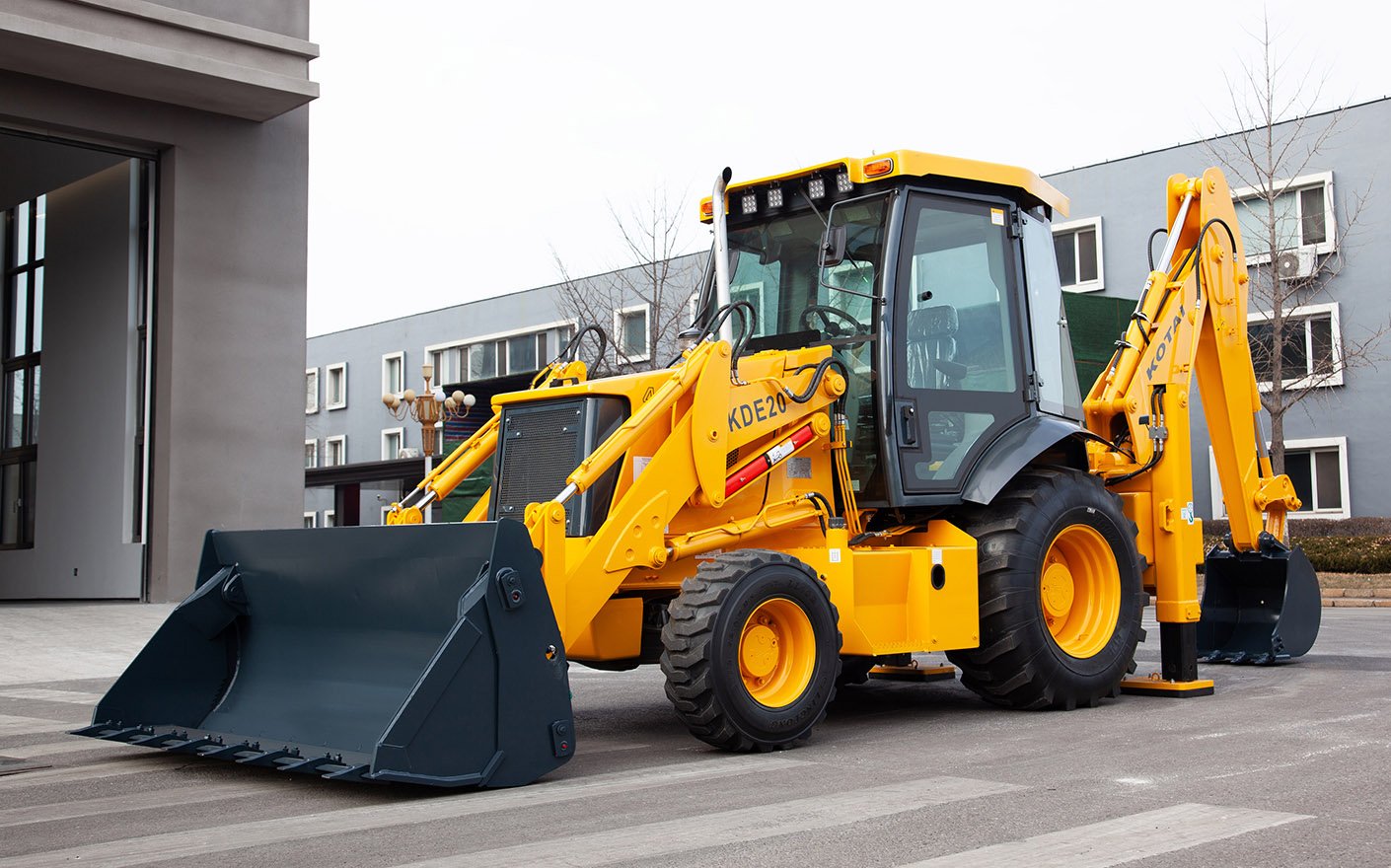

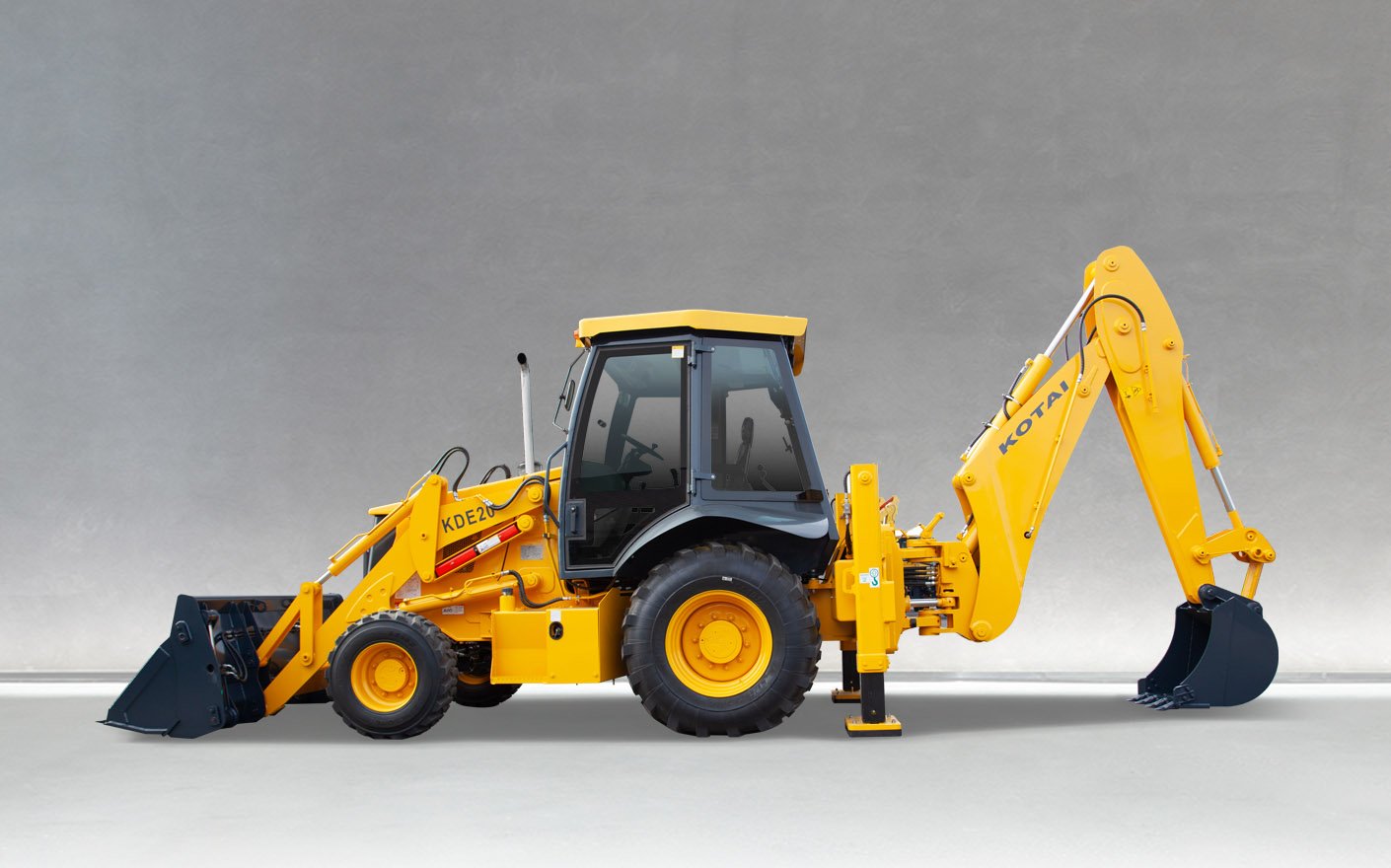

| Model | KDE20 |
| Series | KDE |
| Description | Backhoe Loader |
| Weight(t) | 8 |
| Engine Brand | Weichai |
| Rated Power(kW) | 70 |
| Rated Speed(r/min) | 2200 |
| Displacement(L) | 4.5 |
| Max. Torque(N·m) | 380 |
| Total Length(mm) | 5835 |
| Total Width(mm) | 2240 |
| Total Height(mm) | 2720 |
| Wheelbase(mm) | 2155.5 |
| Track Width(mm) | F:1880/R:1770 |
| Min.Ground Clearance(mm) | 275 |
