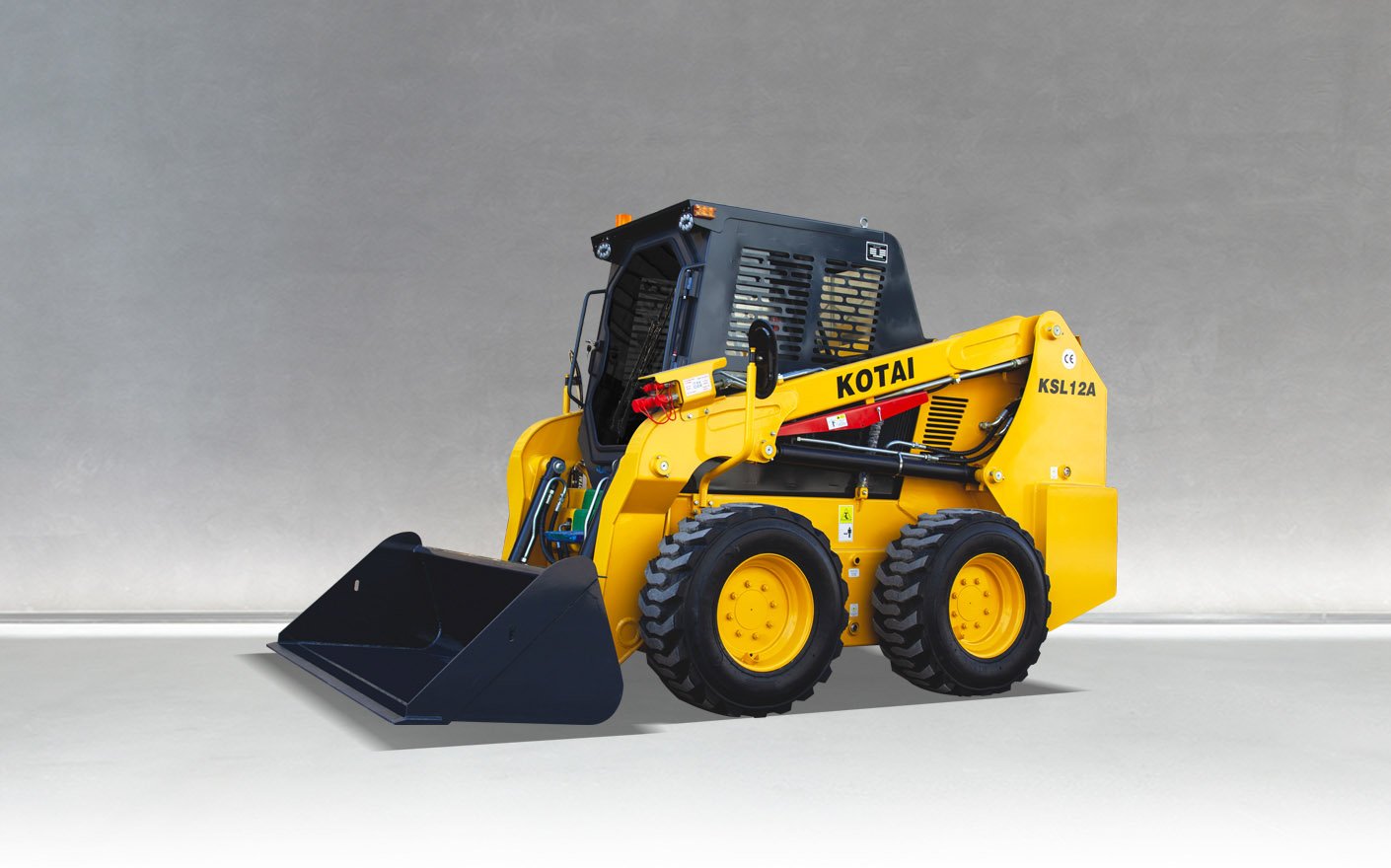

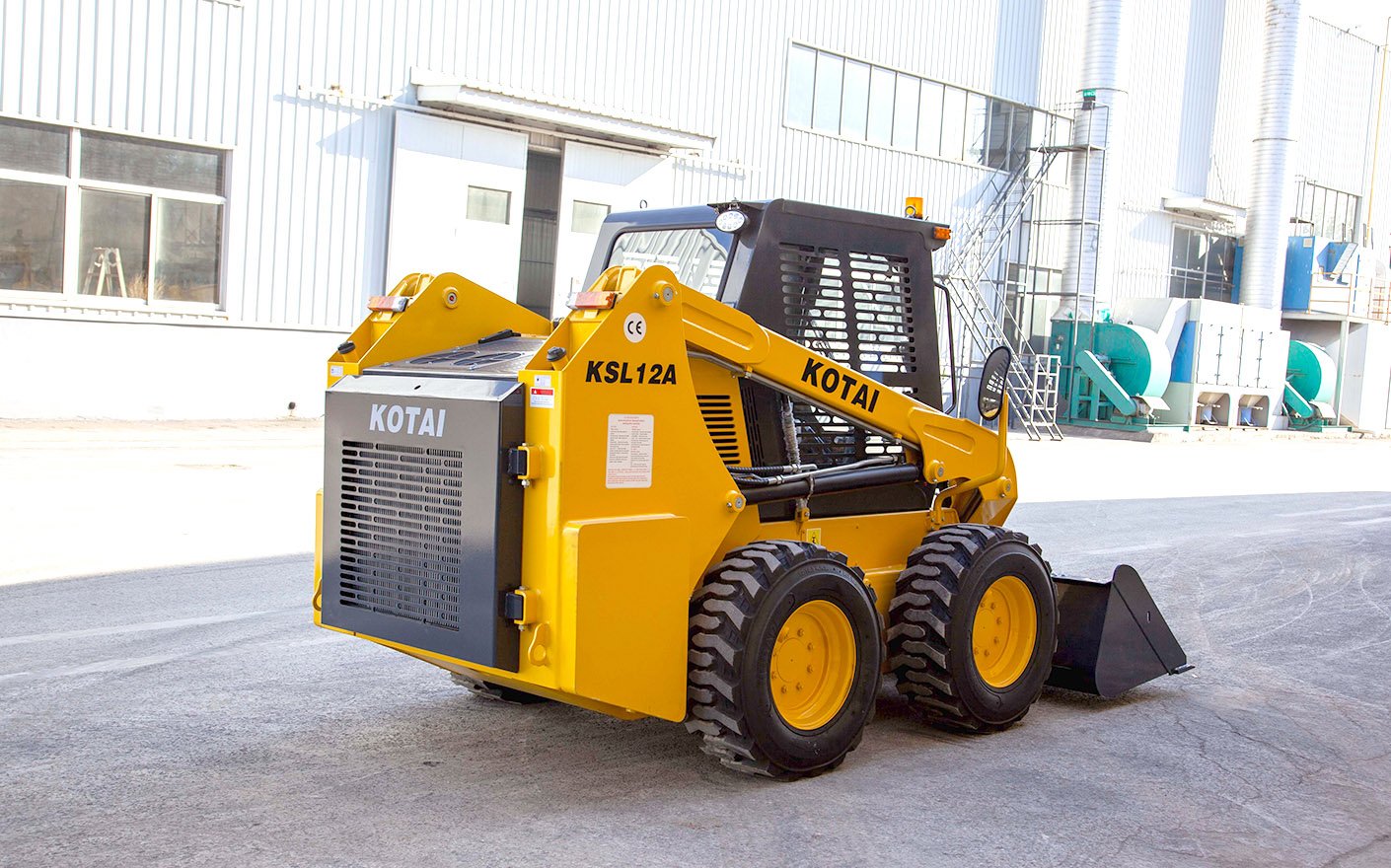

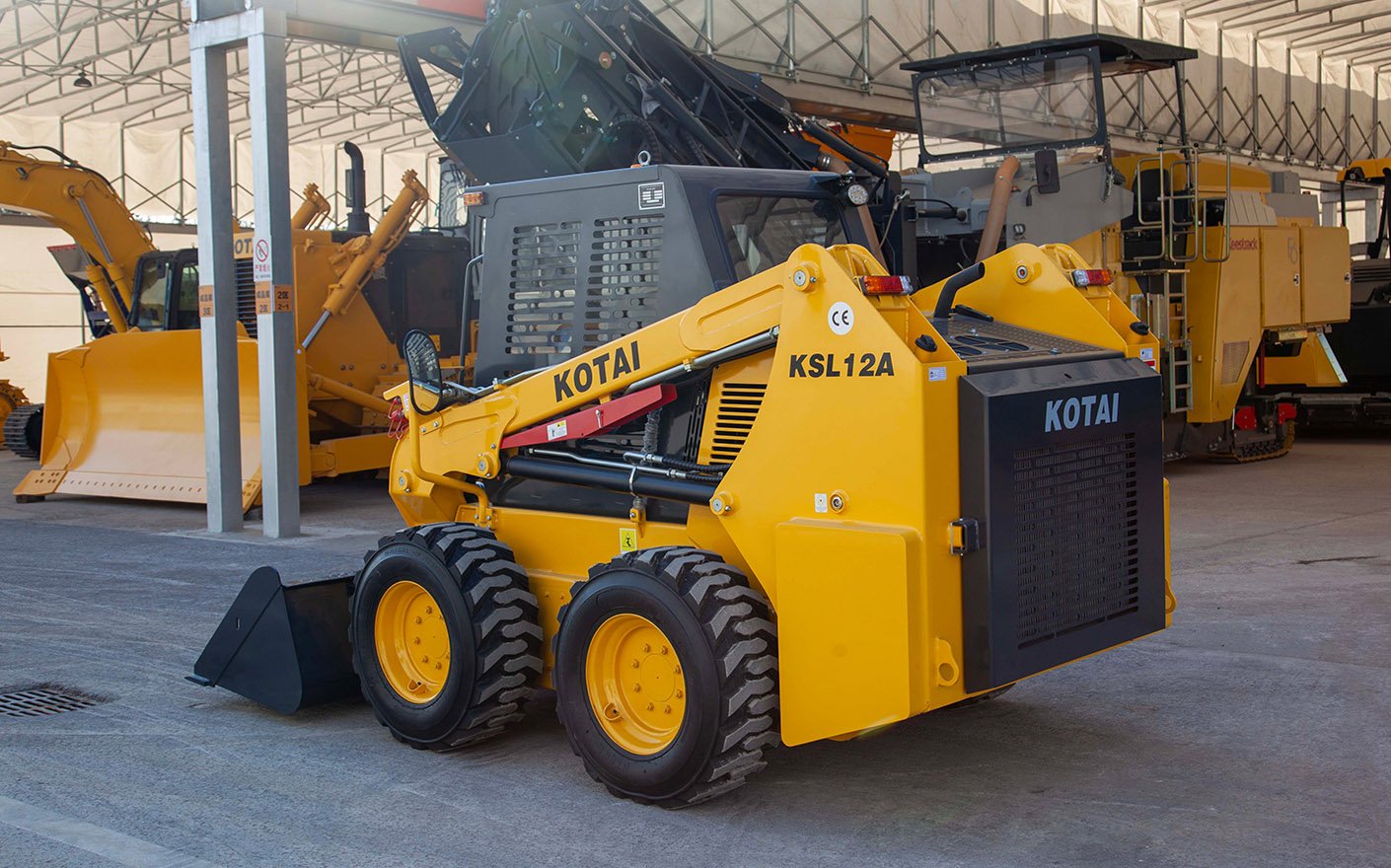

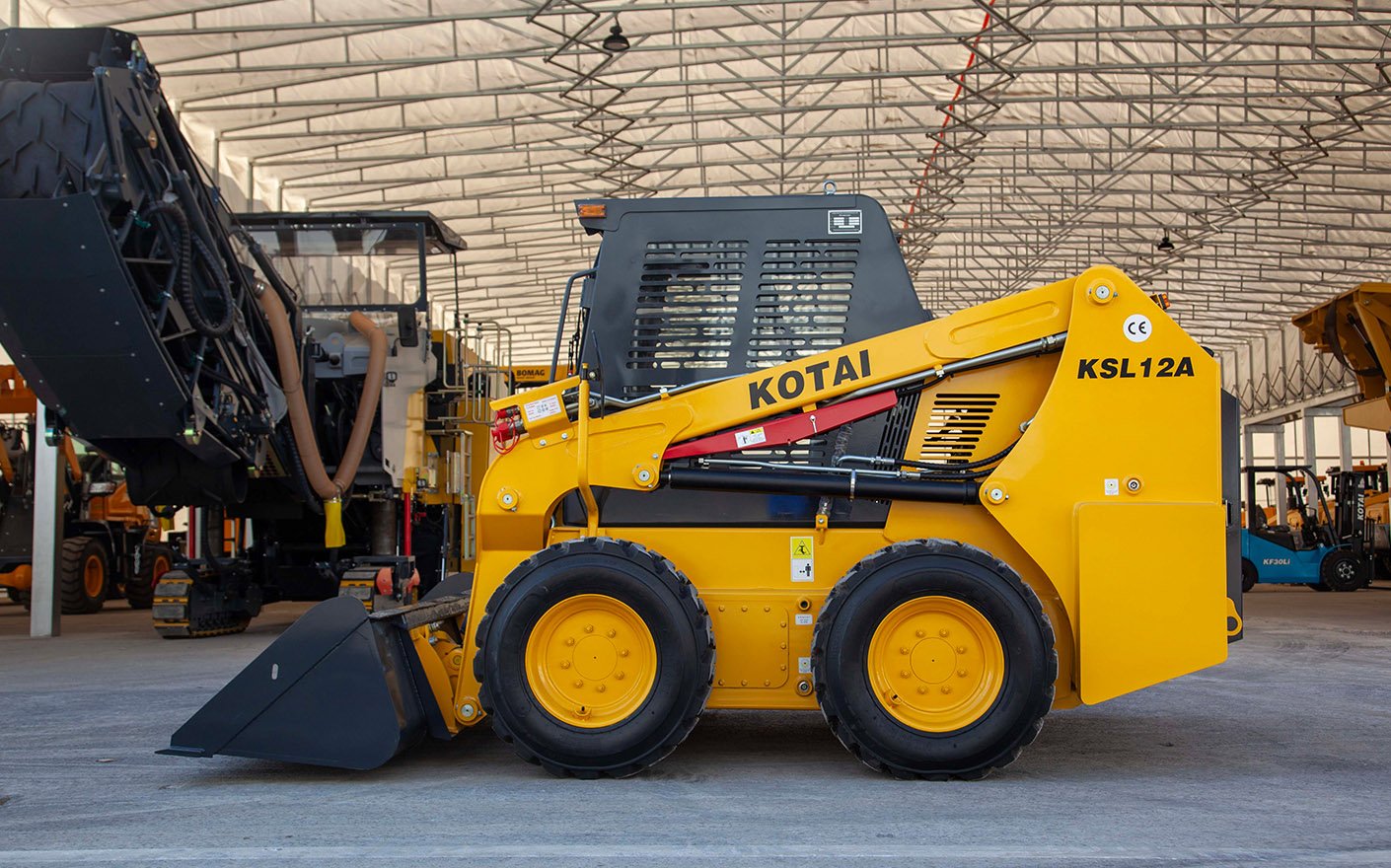

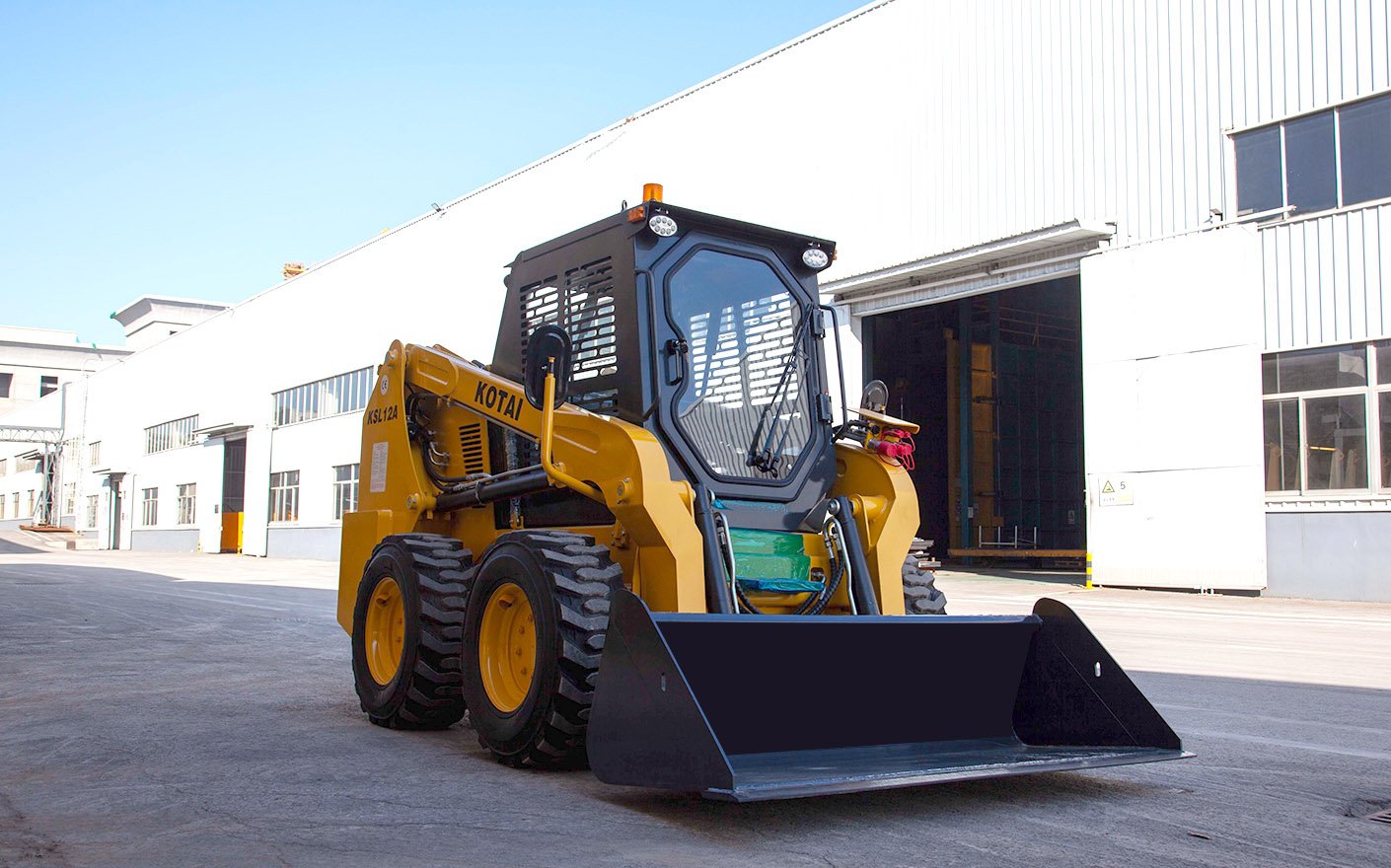

The KSL12A skid steer loader has a wide range of applications. It can be used to clear snow, debris and garbage on roads, as well as for road repair and traffic line marking. It is also suitable for handling construction materials such as sand, cement, bricks and steel, and performing excavation, ground leveling and other operations. It can work efficiently even on narrow urban streets and busy traffic areas, meeting a variety of operation requirements.
| Model | KSL12A |
| Series | KSL |
| Description | Skid Steer Loader |
| Weight(kg) | 3970 |
| Engine Brand | Quanchai |
| Rated Power(kW) | 65 |
| Rated Speed(r/min) | 2500 |
| Rated Load(kg) | 1200 |
| Tip Load (kg) | 2400 |
| Rated Bucket Capacity(m³) | 0.53 |
| Total Cycle Time (s) | 9 |
| Travel Speed (km/h) | 22.4 |
| Max. Operating Height (mm) | 4143 |
| Turning Radius (mm) | 2174 |
| Dumping Height (mm) | 2460 |
| Dumping Reach (mm) | 590 |
| Departure Angle (°) | 26 |
| Total Length(mm) | 3649 |
| Total Width(mm) | 1910 |
| Total Height(mm) | 2065 |
| Overall Length Without Bucket (mm) | 2857 |
| Ground Clearance (mm) | 195 |
| Fuel tank(L) | 106 |
