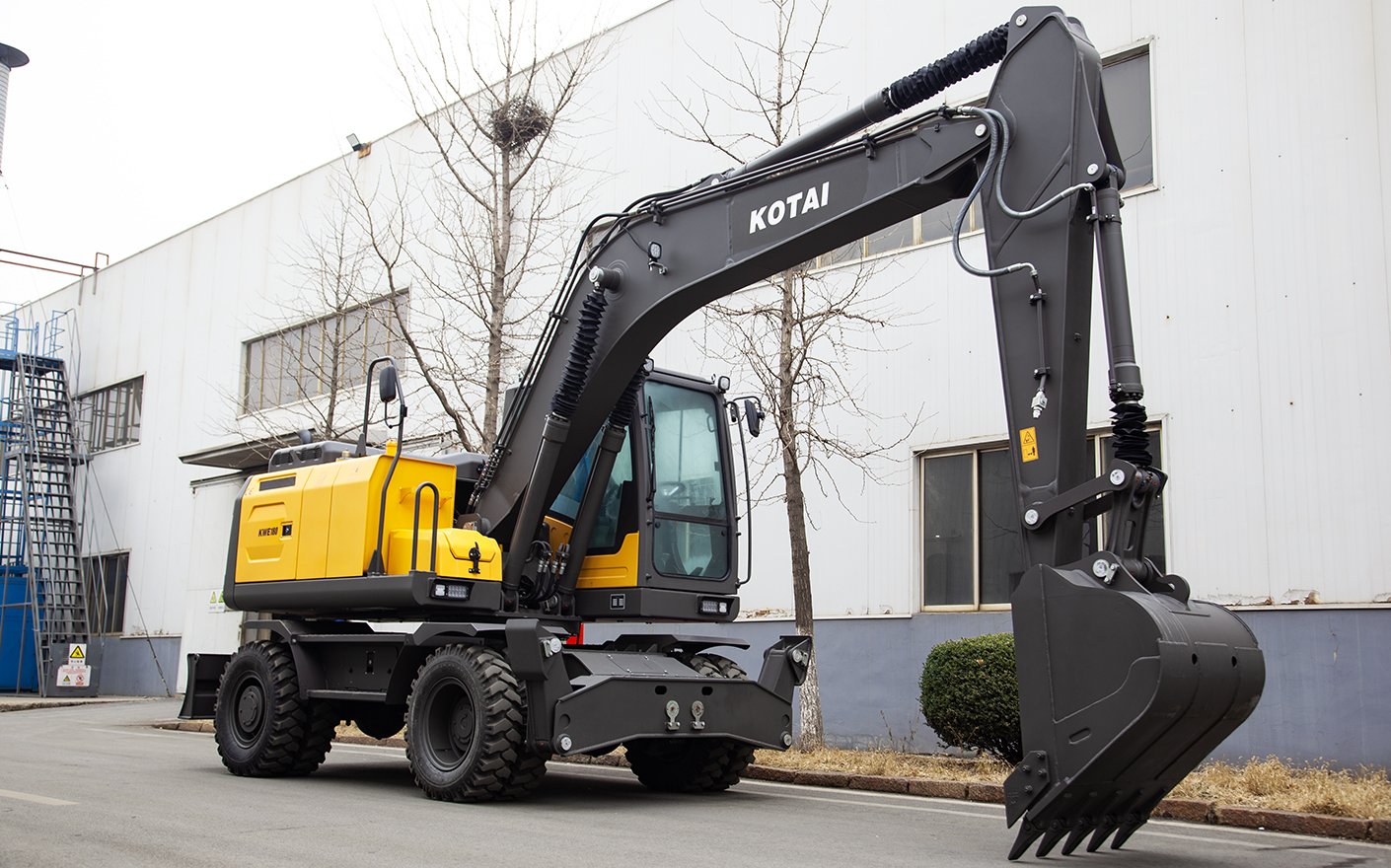

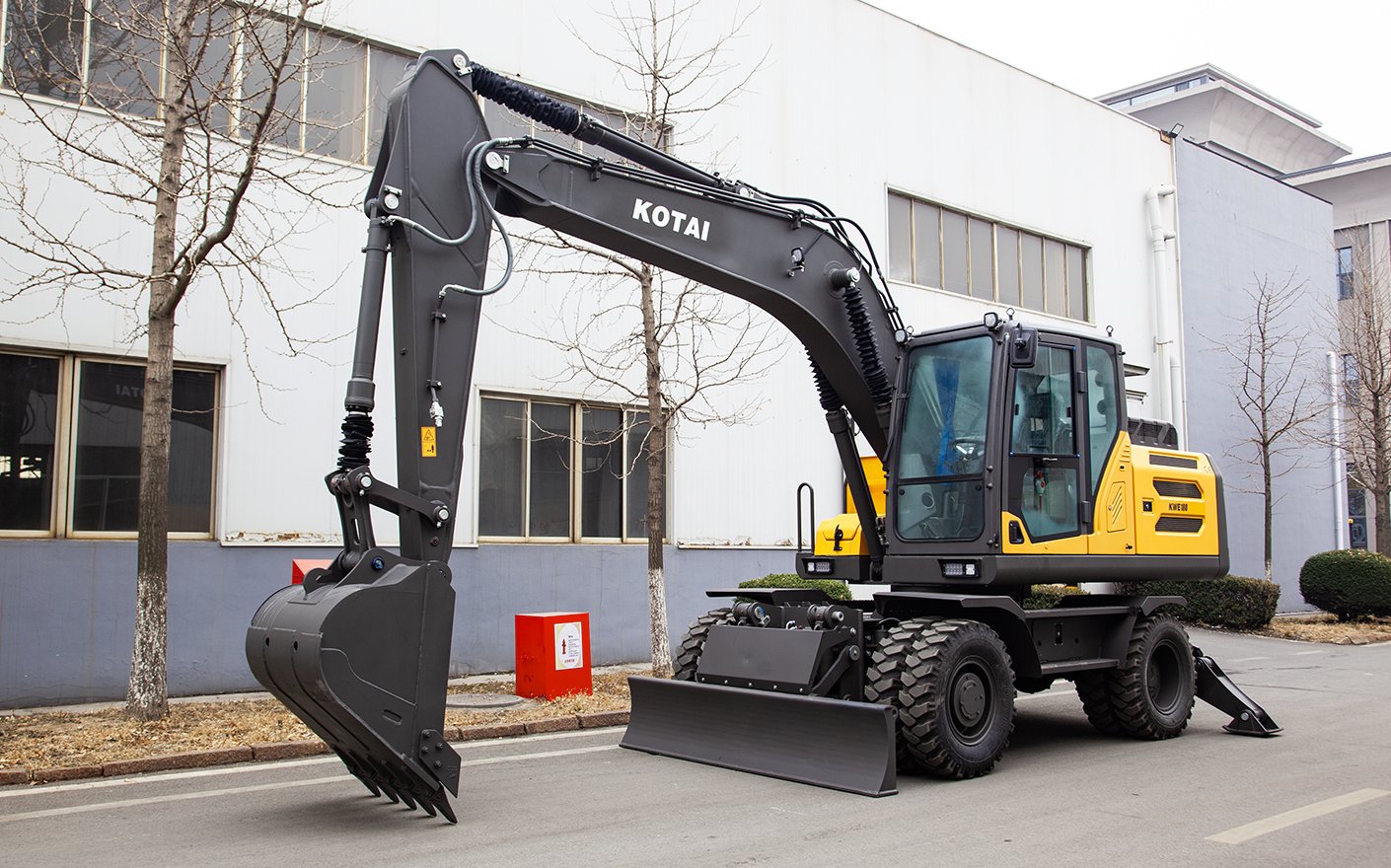

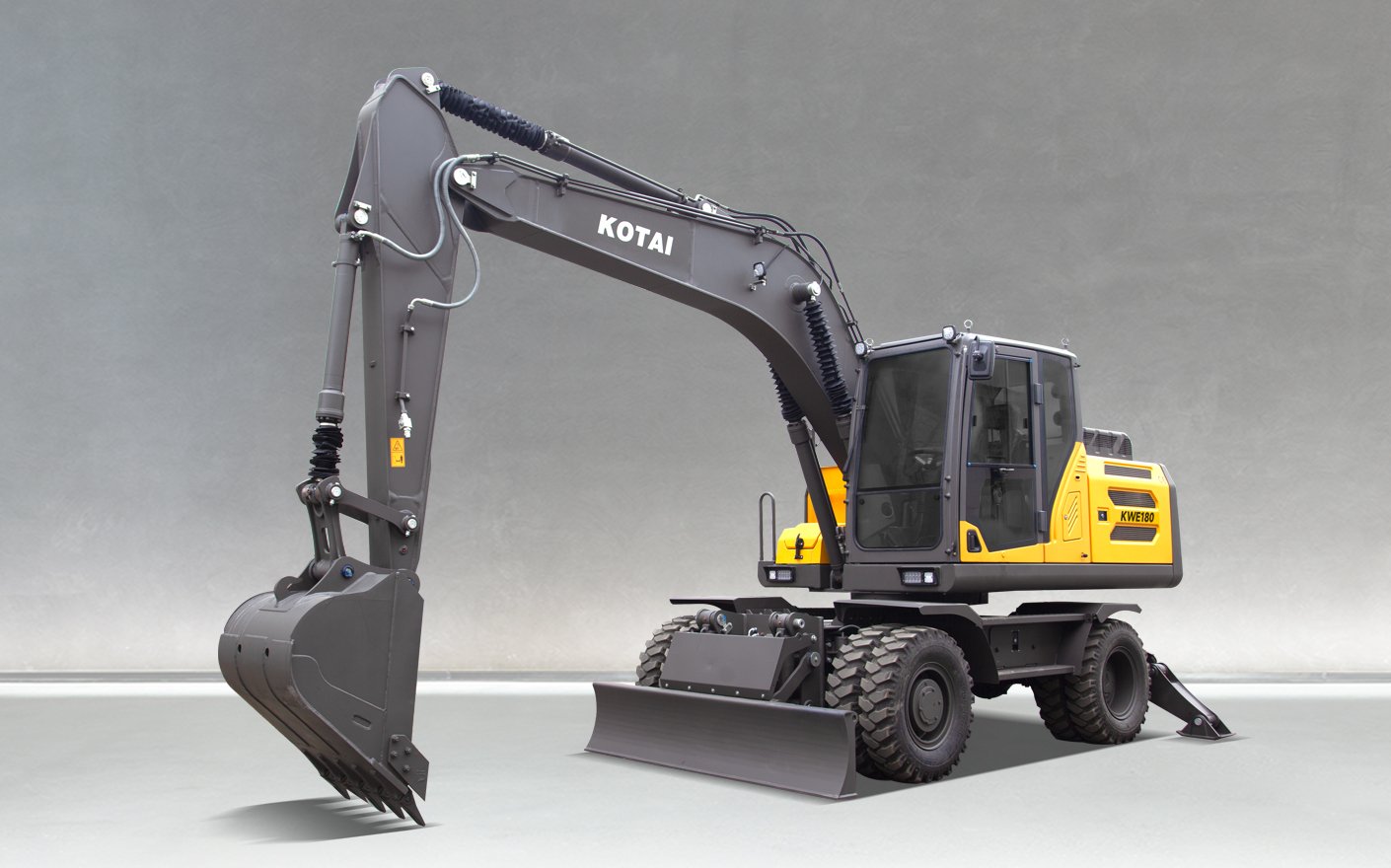

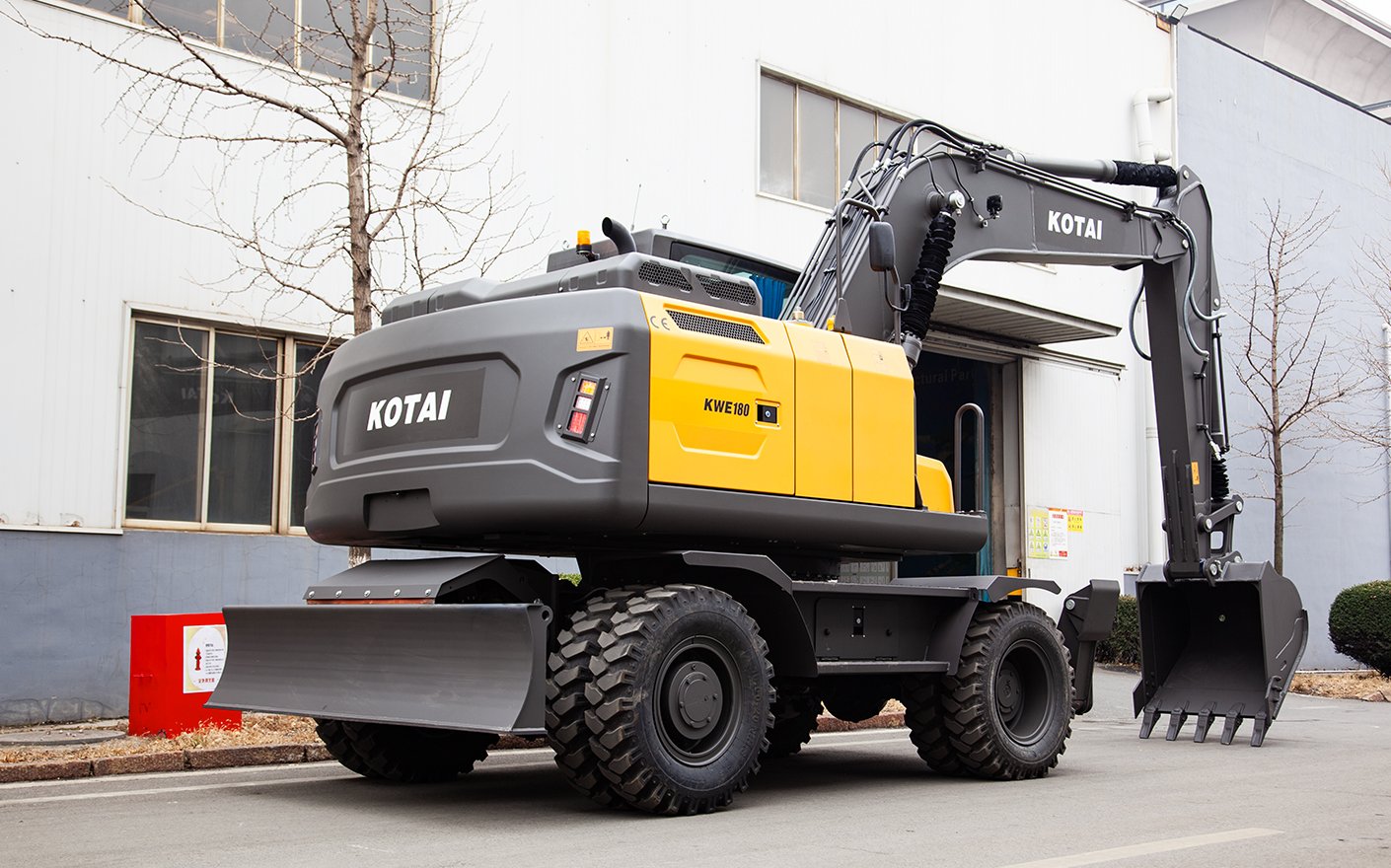

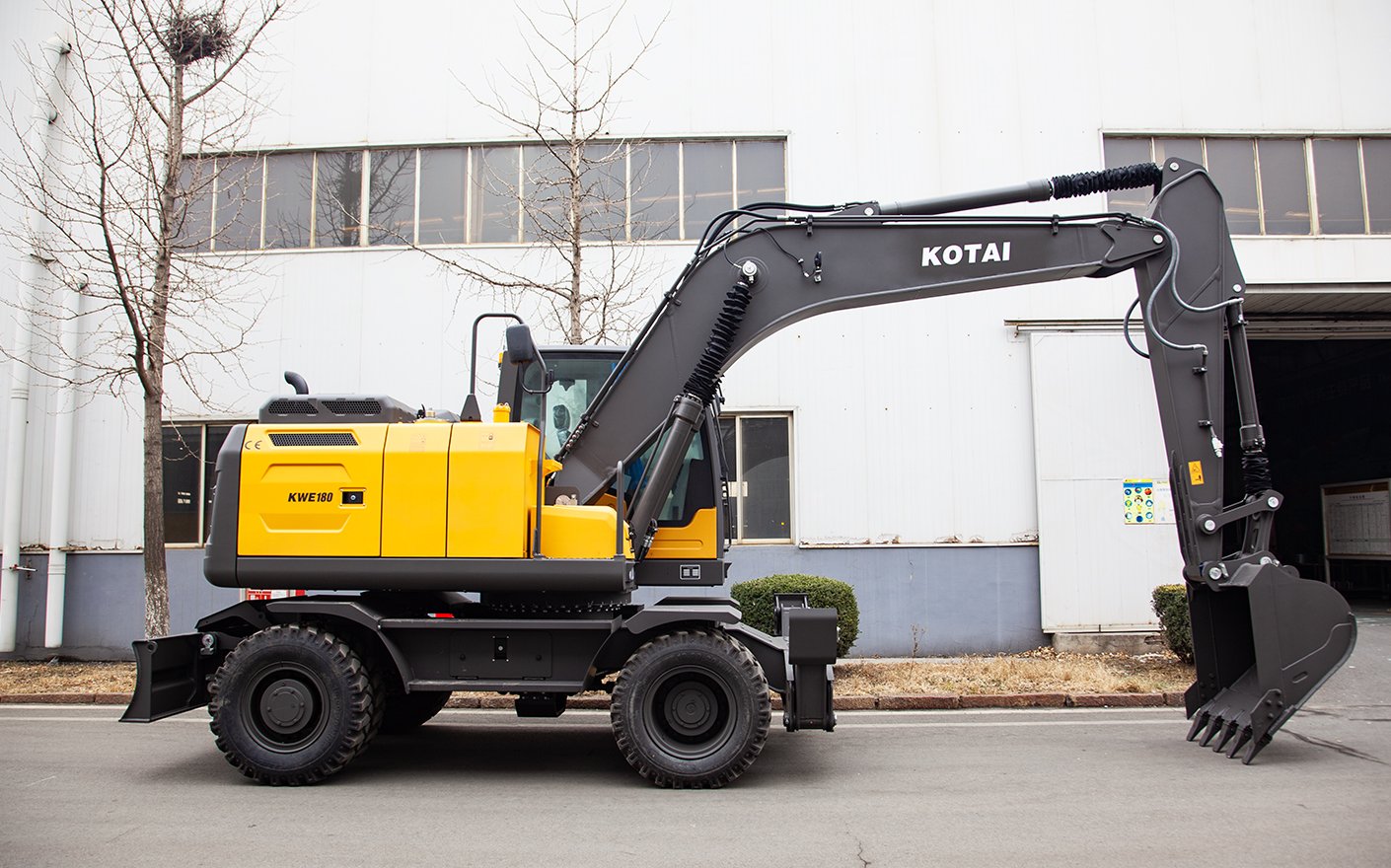

The KWE180 wheeled excavator travels on tires and can drive directly on highways like ordinary vehicles. It does not rely on flatbed trailers for transportation and can quickly relocate to job sites independently. With a small turning radius, it can adjust its position and posture more flexibly, making it more suitable for construction in urban areas and places with high requirements for road conditions.
| Model | KWE180 |
| Series | KWE |
| Description | Wheel Excavator |
| Weight(t) | 16.5 |
| Engine Brand | Cummins |
| Rated Power(kW) | 133 |
| Rated Speed(r/min) | 2000 |
| Bucket Capacity(m³) | 0.8 |
| Travel Speed(km/h) | 32 |
| Swing Speed(r/min) | 12 |
| Gradeability(%) | 25 |
| Bucket Digging Force(kN) | 100 |
| Operating Pressure(MPa) | 32 |
| Total Length(mm) | 8050 |
| Total Width(mm) | 2500 |
| Total Height(mm) | 3255 |
| Wheelbase (mm) | 2600 |
| Track Width (mm) | 1955 |
| Min.Ground Clearance (mm) | 293 |
| Tires specifications | 10.00-20 |
| Max.Digging Height (mm) | 9200 |
| Max.Dumping Height (mm) | 6620 |
| Max.Digging Depth (mm) | 5350 |
| Max.Vertical Digging Depth (mm) | 4685 |
| Max.Digging Radius (mm) | 8480 |
| Min.Swing Radius (mm) | 2723 |
| Tail Swing Radius(mm) | 2335 |
| Max.Blade Lift Height (mm) | 420 |
| Max.Blade Cutting Depth (mm) | 85 |
| Fuel tank(L) | 252 |
| Hydraulic Oil Tank(L) | 160 |
