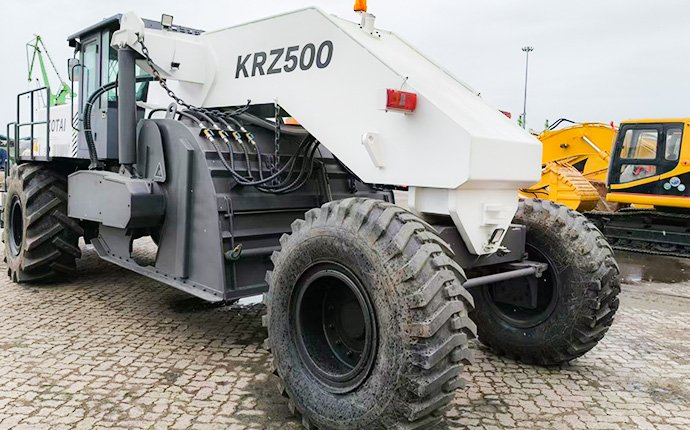

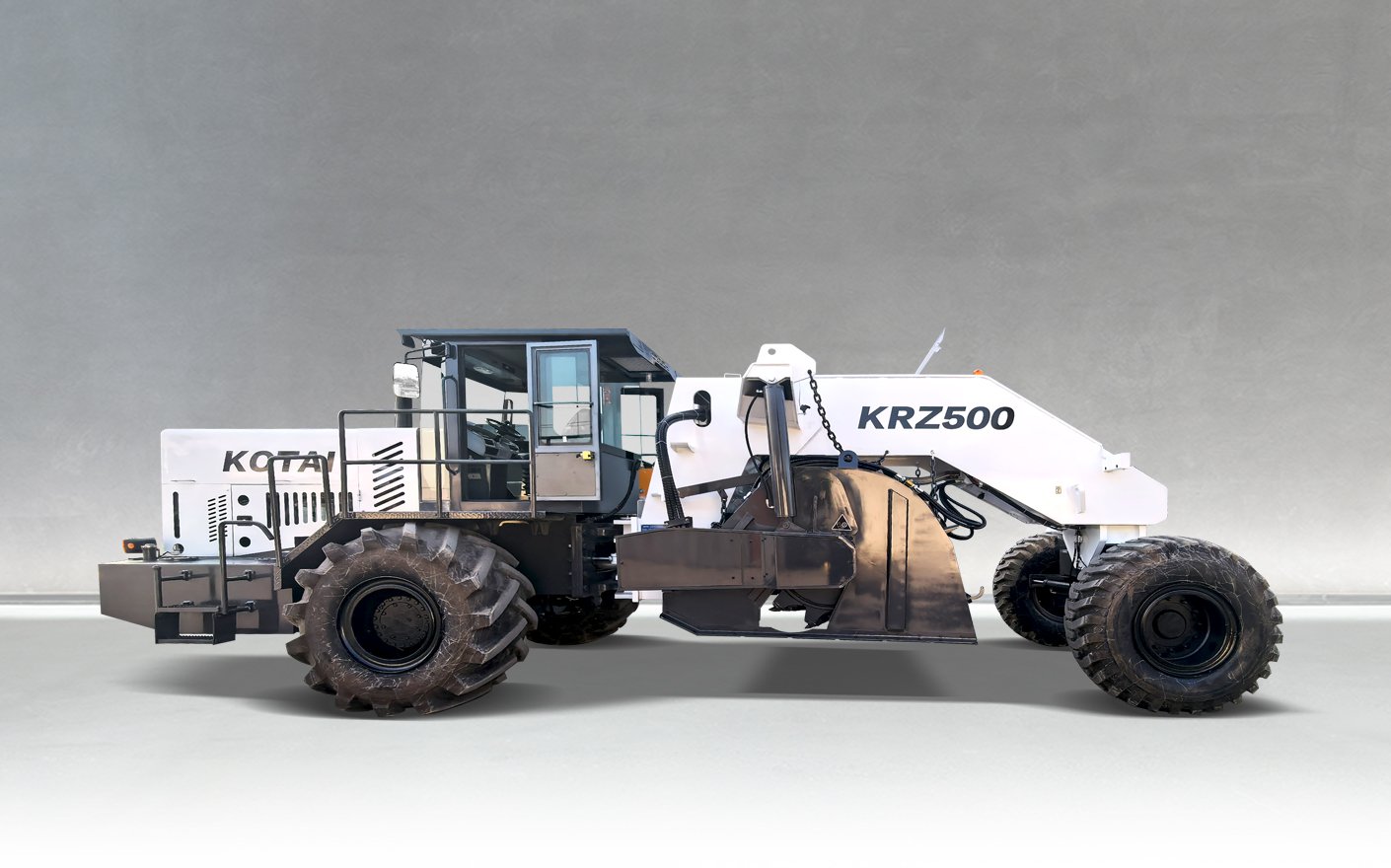

The KRZ500 cold recycler is a multi-functional road construction equipment. It is applicable to the on-site mixing operation of stabilized soil for the base and sub-base courses in projects such as highways, urban roads, squares, docks and parking lots. It mixes fillers, cement, lime and other materials with natural soil to improve the mechanical and physical properties of the soil, and allows adding stones with a particle size below 40mm into the mixed materials.
It is also suitable for the construction of low-grade old roads, namely the crushing, upgrading and reconstruction of damaged asphalt or stabilized soil roadbeds with a thickness not exceeding 200mm.
Weichai engine or Cummins engine is optional.
Adopting world-class hydraulic pumps and motors from Sauer of the United States ensures high efficiency and high reliability of the whole machine.

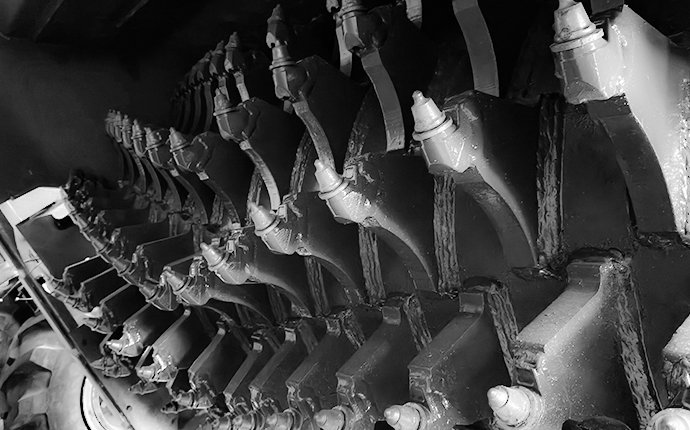

The mixing tools adopt bullet cutter bits from Kennametal (USA) or Wirtgen (Germany), featuring excellent durability and long service life.

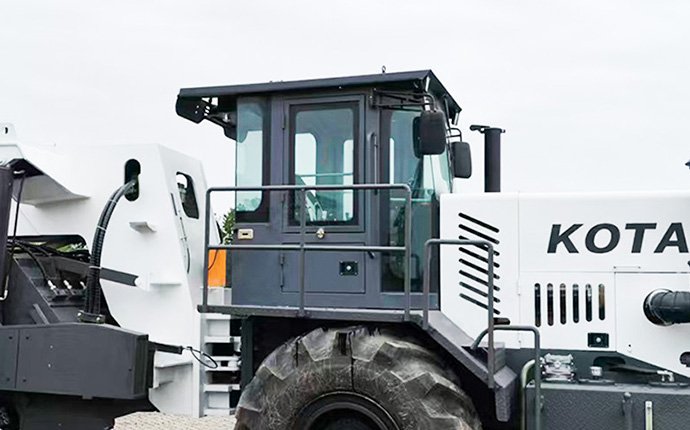

The cab is spacious and comfortable with a wide field of vision and easy operation.
| Model | KRZ500 |
| Series | KRZ |
| Description | Multi functional pavement construction equipment |
| Total Weight (kg) | 21000 |
| Engine Brand | Cummins |
| Rated Power(kW) | 373kW |
| Rated Speed(r/min) | 2000r/min |
| Max. Torque (N·m)/rpm | 2100/1400 |
| Traveling Speed(km/h) | 11km/h |
| Gradeability(%) | 100 |
| Mixing Width (mm) | 2100 |
| Maximum Mixing Depth (mm) | 400 |
| Working Speed (km/h) | 0-3.3 |
| Overall Length(mm) | 9500 |
| Overall Width(mm) | 3150 |
| Overall Height(mm) | 3350 |
| Tires specifications | 23.5-25/20.5-25 |
| Engine | Cummins |
| Rotor drive pump | Sauer(USA) |
| Rotor drive motor | Sauer(USA) |
| Travel drive pump | Sauer(USA) |
| Travel drive motor | Sauer(USA) |
| Mixing tools | Kennametal(USA) or Wirtgen(Germany) |
| Front drive axle | Meritor Axle |
| Hydraulic valve & lock | Yuken |
| Main hydraulic oil filter | Argo(Germany) |
| Hydraulic hose | Semperit(Austria) |
| Large herringbone wide-base drive tire | Xulun Jiazi Tire or Tianjin Tianli |
| Oil cylinder | Shengwangda(Reinforced & Thickened) |
| Air conditioning | Xuzhou Tianyi |
| Cooling system | Standard configuration |
| Sprinkling system | Standard configuration |
| Counterweight box | Standard configuration |
| Multiple protection for hydraulic system | Standard configuration |
| Articulated steering & rear-wheel steering | Standard configuration |
| 3-pump parallel working pump | Standard configuration |
| Three-port transfer case | Standard configuration |
Normally we accept L/C,or TT30% down payment, balanceto be paid against BL copy and loading pictures.
Some of our products are in stock, while standard products without stock usually take 15-35 days.
Yes, we have over 20 years of experience in engineering machinery manufacturing.
We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Yes, we warmly welcome you to join us.
We have built a highly comprehensive product portfolio covering more than 100 core products, including road rollers, excavators, loaders, drilling rigs, motor graders, bulldozers, forklifts, cranes, dump trucks and others. Our products fully serve key sectors such as road equipment, earthmoving machinery, construction equipment and mining equipment.
