Pneumatic tire rollers adopt flexible tire rolling principle with unique kneading and compaction dual effects. They ensure uniform compaction and superior compactness, and effectively avoid surface cracking and shelling issues caused by rigid compaction.
Widely adaptable to various working conditions, the roller is ideal for compaction of road base layers, sub-base layers and cement stabilized macadam layers. It is also perfectly applicable to final compaction and finishing of asphalt surfaces and modified asphalt pavements, closing pavement gaps and enhancing the adhesion and overall service life of asphalt mixtures.
Equipped with flexible operation, high compaction efficiency and strong site adaptability, it is widely used in expressways, municipal roads, ports, airports, industrial parks, factory floors and large-scale infrastructure projects. With robust overall structure, fuel efficiency and low failure rate, it balances construction quality and operating benefits, serving as an essential core compaction equipment for road construction, municipal renovation and transportation infrastructure projects.

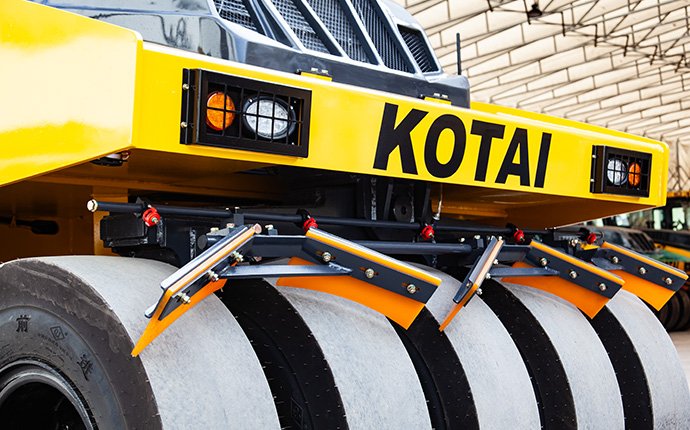

The front wheel is fully floating axle tire for effective compensation compaction.
Equipped with Weichai engine, it features strong power and long-lasting durability.

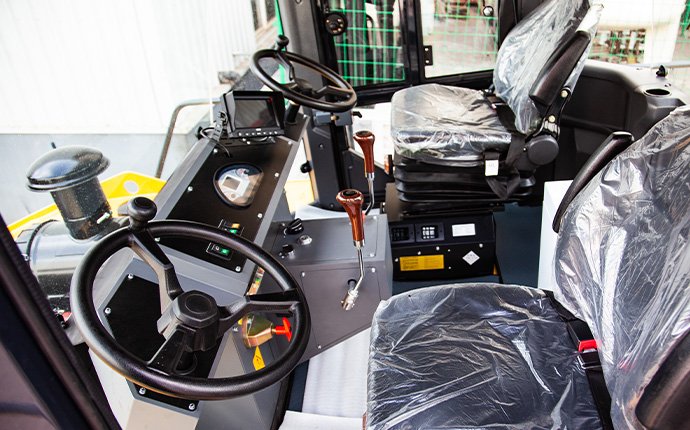

Full hydraulic stepless speed regulation with single lever operation, delivering high safety and low working labor intensity.

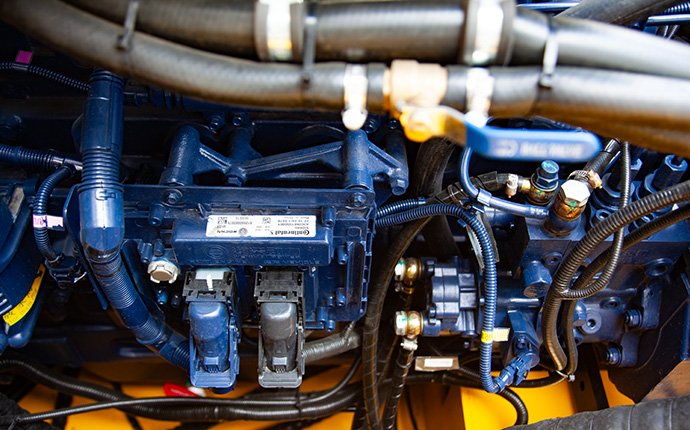

Adopting the well-known closed hydraulic transmission system from Germany’s Linde Group, combined with specially manufactured drive axles, it forms a perfect traveling transmission system. The electronically controlled two-point variable hydraulic motor realizes a two-gear stepless speed regulation combination, easily meeting the speed and traction requirements of various working conditions.

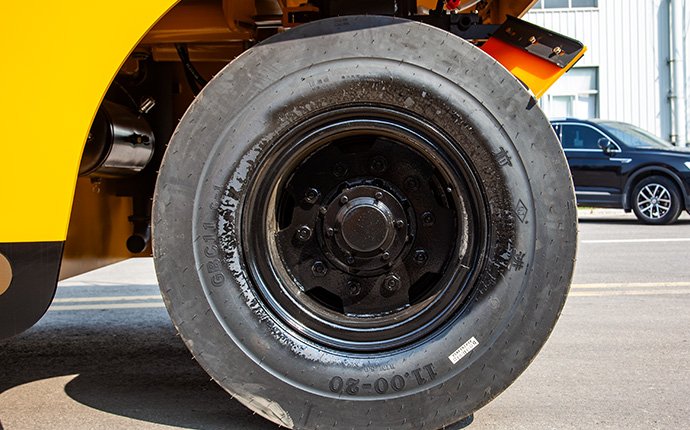

To ensure the operational and driving safety of the pneumatic tire roller, the braking system consists of four types: service brake, parking brake, emergency brake and auxiliary brake.

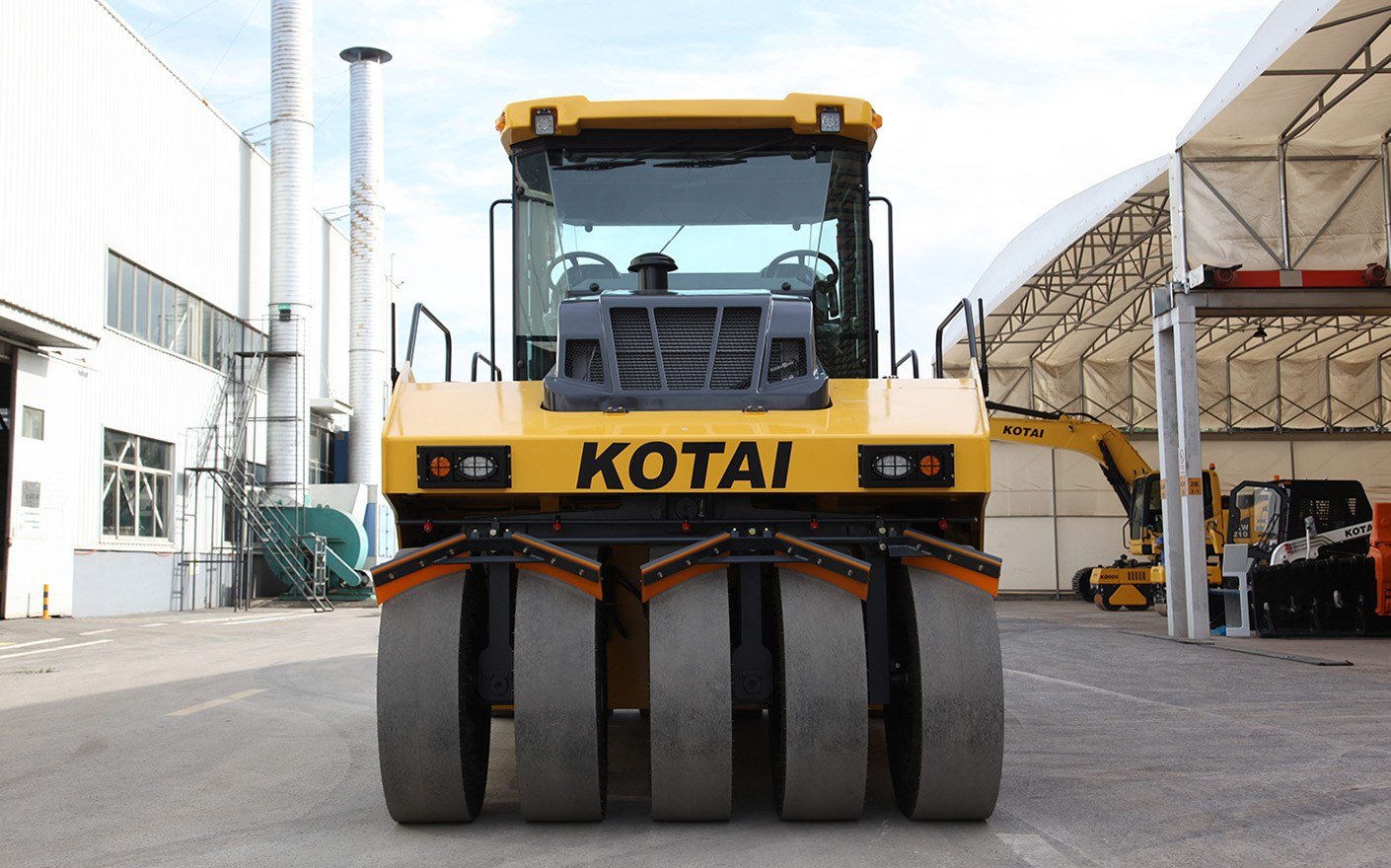

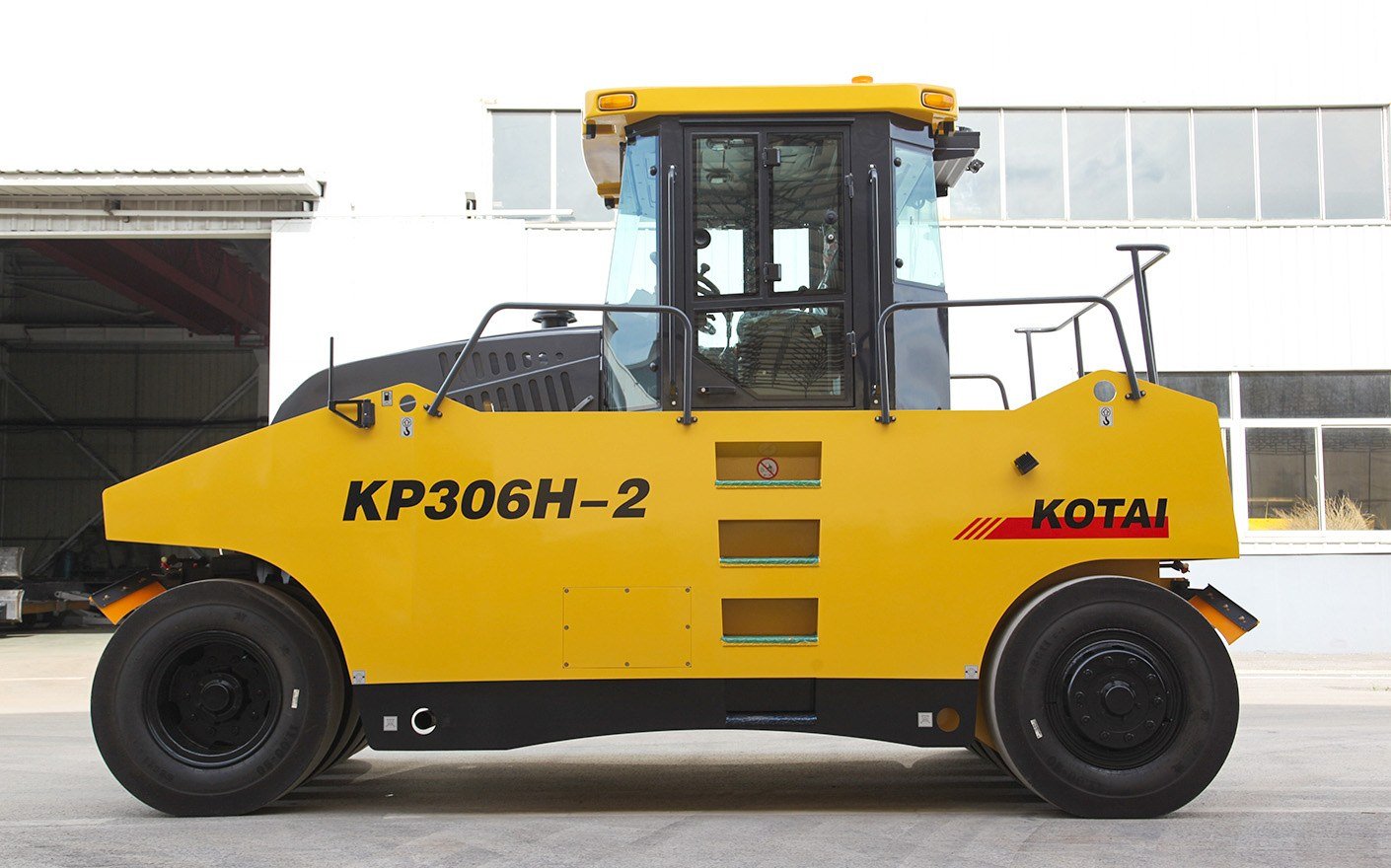

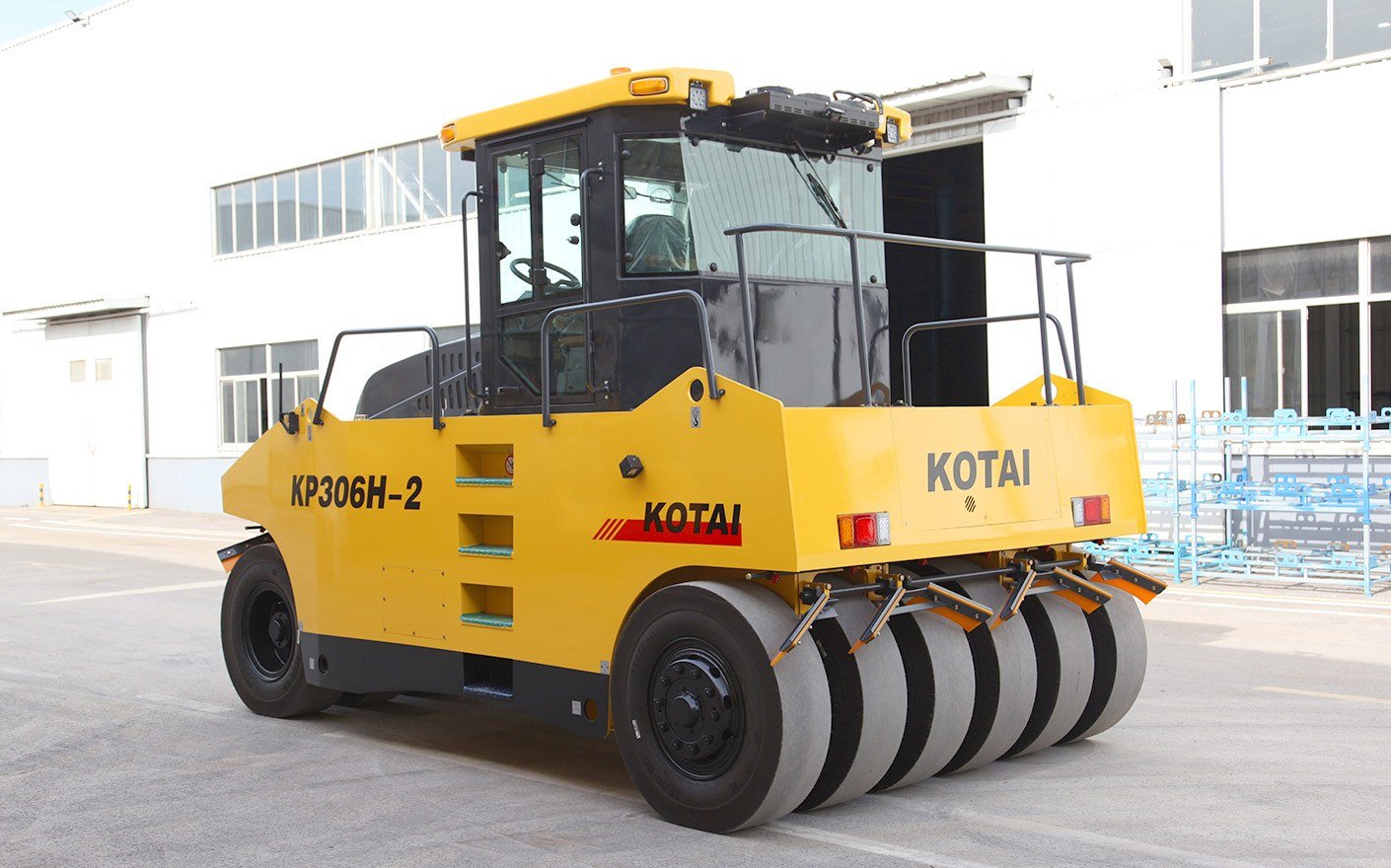

| Model | KP306H-2 |
| Series | KP |
| Description | Pneumatic Tyred Rollers |
| Operating Weight(kg) | 30000 |
| Compating width(mm) | 2750 |
| Ground Pressure(kPa) | 250-460 |
| I Speed(km/h) | 0-7 |
| II Speed(km/h) | 0-14 |
| Front Tire Swing Amount(mm) | ±45 |
| Minimum Turning Radius(mm) | 9000 |
| Gradeability(%) | 20 |
| Steering Type | Hydraulic Steering |
| Overall Length(mm) | 5200 |
| Overall Width(mm) | 2870 |
| Overall Height(mm) | 3380 |
| Minimum Ground Clearance(mm) | 290 |
| Tires specifications | 11.00-20 |
| Number of Tires | F:5/R:6 |
| Front-rear tire overlap(mm) | 50 |
Normally we accept L/C,or TT30% down payment, balanceto be paid against BL copy and loading pictures.
Some of our products are in stock, while standard products without stock usually take 15-35 days.
Yes, we have over 20 years of experience in engineering machinery manufacturing.
We can provide OEM or ODM manufacturing service Accept product customization on special working device, color & brand requirement.
Yes, we warmly welcome you to join us.
We have built a highly comprehensive product portfolio covering more than 100 core products, including road rollers, excavators, loaders, drilling rigs, motor graders, bulldozers, forklifts, cranes, dump trucks and others. Our products fully serve key sectors such as road equipment, earthmoving machinery, construction equipment and mining equipment.
