Hydraulic Crawler Bulldozer is a kind of heavy construction machinery, which is widely used in construction, mining, road construction and land reclamation and other engineering projects. The bulldozer uses a hydraulic system to control various operations, including the lifting and tilting of the blade, providing greater accuracy and flexibility than conventional mechanical operations. The crawler design allows the bulldozer to maintain good stability and traction on all kinds of terrain, especially soft, muddy or rough ground.

Parameters

Model	KS175HD
Operating weight	17500kg
Static linear load	488N/cm
Amplitude	1.9/0.9mm
Vibrating frequency	28/32Hz
Impact force	350/245kN
Width of vibration drum	2110mm
Diameter of vibration drum	1540mm
Speed range	0-9km/h
Climbing Grade ability	45%
Turing radius	6500mm
Min. distance between ground and chassis	440mm
Steering angle	±32°
Swing angle	±12°
Engine brand	Weichai
Engine emission standard	Tier 3
Engine power	140kW
Fuel tank	300L
Hydraulic oil tank	180L
Length	6380mm
Width	2300mm
Height without ROPS	3150mm
Height with ROPS	3310mm

Features

Hydraulic front and rear wheel drive, multi-speed stepless transmission, strong climbing ability;

Hydraulic steering, articulated frame, light and flexible steering, light and flexible operation;

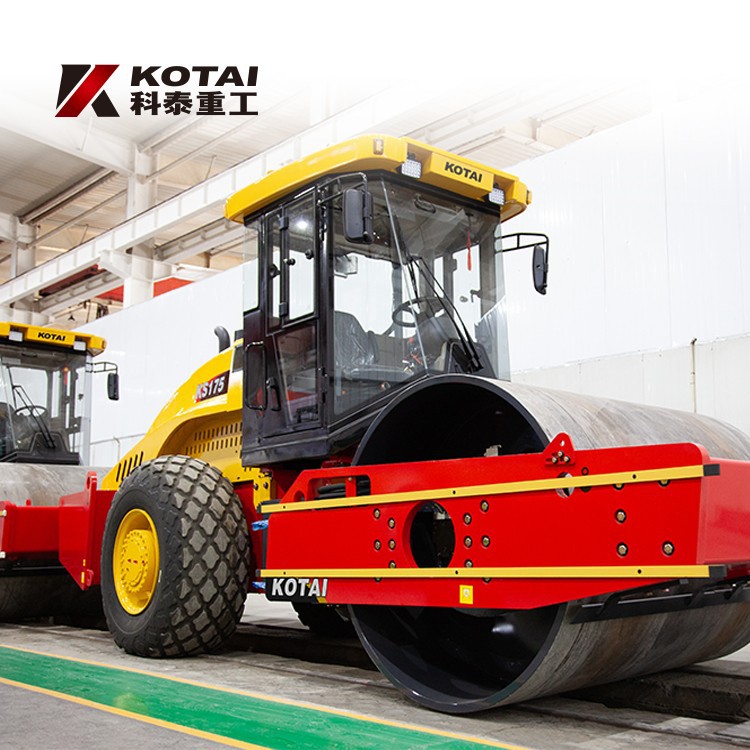

17 Ton Hydraulic Single Drum Vibration Roller equipped with a dedicated drive axle for road rollers, the driving performance is superior;

Hydraulic travel brake, electric control disc brake parking brake, equipped with a brake release device, can be used for short-distance towing, and has good safety performance;

The driving and vibration systems are equipped with hydraulic components of internationally renowned brands, with reliable performance;

Different pattern tires and heating and cooling air conditioners can be selected according to needs.
