Qingdao KOTAI Heavy Industry Machinery Co., Ltd. was established in August 2003. It is a national high-tech enterprise dedicated to the research and manufacture of road construction machinery and high-end structural parts. The company's positioning is to continuously meet the differentiated needs of customers around the world, and to use "quality to lead the future" as the company's development direction.
Our Products
The KOTAI product line of more than 100 machines, attachments, power systems and parts reflects our commitment to our customers' success. We will remain the leader by helping our customers meet their needs with durable and reliable equipment.Product offerings include articulated trucks, backhoe loaders, dozers, engines, excavators, generators, motor graders, skid steer loaders and wheel loaders.
OEM Services
We have world-class technology and custom services that can be tailored to your budget and goals.
Production Market
Since the establishment of the company, Kotai Heavy Industry has always adhered to the principle of people-oriented and customer demand-oriented. The rollers it produces are exported to more than 60 countries in the Middle East, Africa, America, Southeast Asia, Central Asia, etc.
Technical Support
Our team of experts is available to assist with troubleshooting, answer technical inquiries, and provide guidance.
The construction equipment produced by our company mainly include the following types:

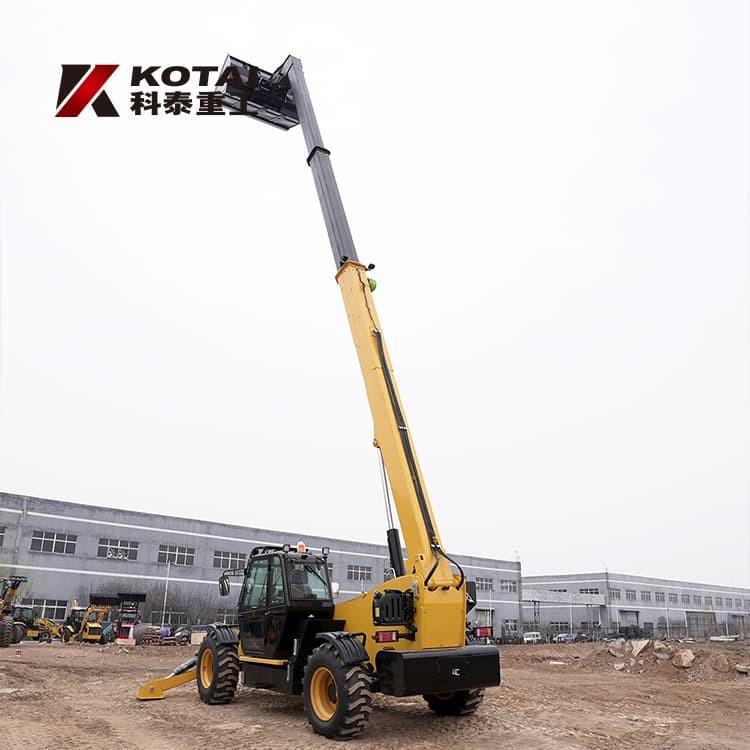

KTR1440 Telehandlers
The KTR1440 Telehandlers is developed for various usage scenarios and is widely applicable for handling, lifting, and other work in construction sites, agricultural fields, warehousing and logistics, municipal engineering, industrial enterprises, and other application scenarios.
|
Rated load |
kg |
4000 |
|
|
Maximum lift height |
mm |
14000 |
|
|
Maximum reach |
mm |
9580 |
|
|
Maximum traction force |
kn |
≥70 |
|
|
Minimum ground clearance |
mm |
420 |
|
|
Overall dimensions ) |
mm |
6970×2430×2550 |
|
|
Minimum width (with hydraulic outriggers fully open) |
mm |
3800 |
|
|
Wheelbase |
mm |
3670 |
|
|
Axle track |
mm |
1990 |
|
|
Rear wheel center to rear |
mm |
1240 |
|
|
Turning radius (outer wheel) ) |
mm |
≤4500 |
|
|
Maximum travel speed |
km/h |
30 |
|
|
Tire model |
/ |
16.8-24 |
|
|
Steering type |
/ |
4 wheel drive |
|
|
|
|
3 steering modes Front Wheel Steering |
|
|
|
|
Crab Steering |
|
|
|
|
Four Wheel Steering |
|
|
Transmission type |
/ |
Closed piston pump + walking motor + gearbox + drive axle |
|
|
|
|
|
|
|
Service brake |
/ |
Oil-immersed multi-disc hydraulic brake[Disc Brake] |
|
|
|
|
|
|
|
Parking brake |
/ |
Negative braking |
|
|
Weight (with forks) |
kg |
12300 |
|
|
|
|
/ |
YUCHAI YCD4J22T-125 |
|
|
Power |
kw/r/min |
91/2600 |
|
|
Optional engine |
|
CUMMINS 4BTA3.9-C125(CHINA 2) YUCHAI (EURO5) |
|
|
|
|
CUMMINS QSB3.8(EURO3)/CUMMINS QSF3.8(EPA4) |
|
Number of gears (forward/reverse,high/low speed) |
/ |
4/4 |
|
|
Gear Control |
/ |
Electronic control |
|
|
Working hours |
Lift |
s |
18 |
|
|
Decline |
|
13 |
|
|
Outreach |
|
17 |
|
|
Retracted |
|
16 |
|
|
Tipping up (filling) |
|
5 |
|
|
Tipping down (unloading) |
|
4 |
|
Standard fork (L x W x D) |
mm |
1200 x 125 x 50 |
|
|
Hydraulic control system |
/ |
Multifunctional centralized handle[Overload Protection System] |
|
|
Frame leveling |
/ |
+/- 9° |
|
Truck Cranes
A Truck crane is a multi-functional lifting device that is usually mounted on a commercial truck chassis. This crane combines the mobility of a truck with the functionality of a crane, making it a very popular device in multiple industries such as construction, manufacturing and logistics.
|
Model |
KTC260 |
KTC640 |
KTC1000 |
KTC1400 |
|
Maximum lifting capacity (kg * m) |
2,630*1.6 |
6350*2.5 |
10100*2.5 |
14100*2.5 |
|
Maximum homework radius (m) |
8.43 |
10.83 |
13.69 |
18.11 |
|
Maximum lifting height (m) |
9.8 |
12.4 |
15.6 |
20 |
|
Number of boom sections |
4 |
4 |
4 |
5 |
|
Horizontal span of hydraulic support legs (m) |
3 |
5.1 |
5.7 |
7.2/4.8 |
|
Rotation range ( ° )) |
360 |
360 |
360 |
360 |
|
Rotation speed (rpm) |
2.5 |
2.5 |
2.0 |
2.0 |
|
Hydraulic oil tank volume (L) |
22 |
60 |
120 |
200 |
Increased Productivity
Designed to lift and move heavy loads on job sites, telehandlers have become an essential tool for increased productivity for projects both large and small. They are particularly useful in construction where they can move heavy materials to higher floors, work in tight spaces, and reach levels of height. Telehandlers also have the ability to quickly switch between attachments (forks, buckets, and grapples), they can perform multiple tasks with additional equipment being needed on the job site. They help save time and increase productivity, make these machines a valuable asset for businesses in a variety of industries.
Increased Reach
A key feature that sets telehandlers arepart from other types of lifting equipment is the ability to reach high and far distances because of their extendable booms. With the ability for increased reach, telehandlers can easily lift heavy loads to elevated heights making them a popular choice for stacking materials, loading and unloading trucks, and erecting structures. They can also be fitted with various attachments such as forks, buckets, and cranes, giving even more functionality and usefulness in a variety of industries.
Versatility
Telehandlers are extremely versatile machines on job sites because of their ability to perform a wide range of tasks. Essentially a telehandler is the combination of a crane and a forklift, with a telescopic arm that can reach levels of height and extend forward to pick up or move heavy loads. Commonly used in construction, agriculture and manufacturing industries, they have the ability to transport materials such as pipes, pallets, and bales of hay.
Maneuverability
Another key advantage telehandlers have is their maneuverability, allowing them to operate in tight spaces and on uneven terrain. These machines are equipped with 4-wheel steering, giving them the ability to turn in a tight radius and maneuver in confined areas. The combination of 4-wheel sterring and telescopic booms makes these machines a popular choice for a range of applications.
Increased Safety
A ignificant advantages of telehandlers is the safety they provide while handling materials. They come equipped with several safety features including load sensing, overload protection, and automatic stability control, which will minimize the risk of accidents and injuries. The telehandler design also allows for improved visibility of the load and the operator's surrounding, reducing potential accidents.
Reduced Labor Costs
Because of their ability to reach high and far, telehandlers can perform tasks that would otherwise require a team of workers for tasks such as loading and unloading materials, or positioning heavy equipment. When companies use a telehandler they are able to streamline operations and reduce the need for manual labor, which can be costly and time-consuming. They can also be operated by a single skilled worker, reducing further labor costs.
Reduced Damage to Property
Telehandlers are equipped with stabilizers that prevent the machine from tipping over during operations, reducing the risk of property damage and worker injury. By using a telehandler in comparison to other heavy equipment machines such as cranes or forklifts, operators can maneuver loads of materials and reduce the potential for accidents or damage to surrounding structures.
Mobility
Because the truck crane is mounted on the truck chassis, it is able to move quickly from one workplace to another without the need for additional transportation equipment. This flexibility is especially important for projects that require work in multiple locations.
Performance
Truck cranes are equipped with powerful lifting capacity, usually ranging from tens to hundreds of tons. They are equipped with telescopic arms to operate over a wide range, and the operating system is often high-tech control to ensure precision and safety.
Diverse configuration
According to different operational needs, truck-mounted cranes can have different arm lengths and load-bearing capacity, and can also be equipped with a variety of accessories, such as hooks, baskets, etc., to adapt to different operating environments.
Economy
Compared to other types of large cranes, truck cranes are generally more economical in terms of purchase and maintenance costs. At the same time, due to its efficient mobility, the overall project time and cost can be reduced.
1. Construction Industry
Material Handling: Telehandlers are adept at loading and unloading materials like bricks, steel beams, lumber, and construction supplies. They efficiently move heavy loads on construction sites with their high lifting capacity and reach.
Work at Heights: With the use of man baskets or aerial platforms, telehandlers help with tasks requiring work at elevated heights. This includes activities like installation, maintenance, and repairs on buildings or structures.
2. Agriculture and Farming
Hay and Straw Handling: Telehandlers efficiently handle bales of hay and straw, allowing for quick loading, stacking, and transportation.
Equipment Manipulation: Telehandlers are used for tasks like moving and positioning agricultural machinery. Such machinery includes seeders, sprayers, and feeders. These machines help optimize farm operations.
Livestock Handling: Telehandlers assist in lifting and placing items like feed troughs, water tanks, and temporary fencing, enhancing livestock management.
3. Manufacturing and Warehousing
Material Loading and Stacking: Telehandlers streamline warehouse operations by efficiently loading and unloading palletized goods. They can place items on shelves, trucks, wheels, or conveyors. This enhances productivity and saves time.
Inventory Management: Telehandlers are utilized for organizing, relocating, and restocking inventory within warehouses, maximizing storage space use and productivity.
4. Landscaping and Maintenance
Tree Care: Telehandlers help with tree tasks using attachments like grapples or trimmers. They aid in trimming, pruning, and removing trees effectively. Specialized attachments like tree grapples or trimmers make the process easier.
Landscaping: Telehandlers help move rocks, soil, and plants for creating gardens, parks, and green spaces.
Snow Removal: Telehandlers with snow blades or blowers clear roads, lots, and pathways of snow. They are used in Infrastructure developments like:
5. Power Line Maintenance
Street Lighting: Telehandlers help with streetlight installation and maintenance, ensuring reliable public illumination. They install and maintain streetlights, ensuring reliable lighting for public areas. Their role is vital for dependable illumination in urban spaces.
Pipe and Cable Installation: Telehandlers lift and position pipes, cables, and utility equipment in infrastructure projects.
Construction
On construction sites, truck-mounted cranes can be used to lift heavy materials such as steel and prefabricated components.
Equipment installation
In industrial projects, such as the installation or replacement of plant machinery, truck cranes can provide the necessary lifting capacity.
Rescue operations
In emergency situations, such as accident sites, truck-mounted cranes can be quickly deployed to move heavy objects or lift accident vehicles.
Logistics handling
In ports or storage facilities, truck cranes can be used to load and unload heavy cargo.
We're professional construction equipment manufacturers and suppliers in China, specialized in providing high quality products and service. We warmly welcome you to buy high-grade construction equipment for sale here from our factory.
