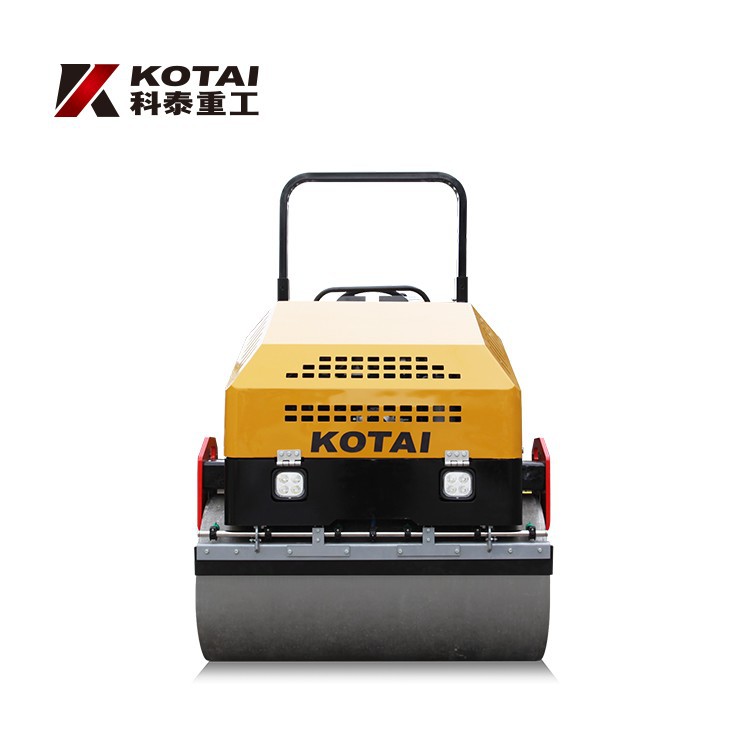

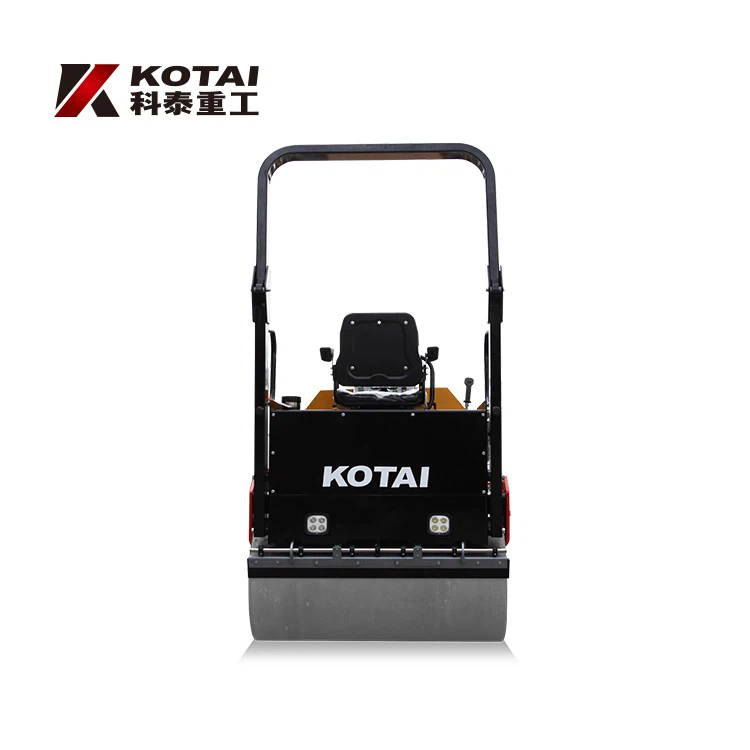

3 Ton Tandem Drum Roller features small amplitude, high frequency vibration, big exciting force as well as independent vibration of front and rear drum.
It is mainly applicable to compaction work on asphalt top layer of newly built pavement and thinner stable soil pavement, and road maintenance work.
With compact structure, high flexibility, small blind area, high operating comfort, it is an ideal compaction equipment for municipal maintenance and highway custody.
Parameters
| Model | KD03 |
| Operation weight | 2800kg |
| Static linearity(f/r) | 118/110N/cm |
| Vibration frequency | 60Hz |
| Centrifugal force | 2*30kN |
| Climbing capability | 40% |
| Turning radius | 2600mm |
| Speed |
0-12km/h |
| Water tank volume | 200L |
| Engine model | Yanmar 3TNV86CT |
| Engine power | 32.4kW |
| Front/rear wheel width | 1200mm |
| Front/rear wheel diameter | 700mm |
| Outline dimension | 2495*1310*2440mm |
Video
Features
•Dual-drive and dual-vibration system
The 3 Ton Tandem Drum Roller's dual-drive system delivers balanced power to both front and rear wheels, ensureing strong traction even on slippery or uneven terrain----elimating slippage during heavy compaction. Equipped with dual-vibration technology, the KD03 achieves uniform compaction depth across the entire working width, significantly reducing rework and improving pavement density effiency.
•Low Maintenance and High Durability
All key imported components (Yanmar engine, Danfoss motor, hydraulic pump) undergo rigorous quality testing, ensuring high reliability and durability. The machine's simplified hydraulic circuit design reduces the risk of leaks and malfunctions, while easy-access maintenance points (oil filters, fuel tanks) save time for daily inspections and repairs. This translates to lower downtime and higher operational efficiency for users.
