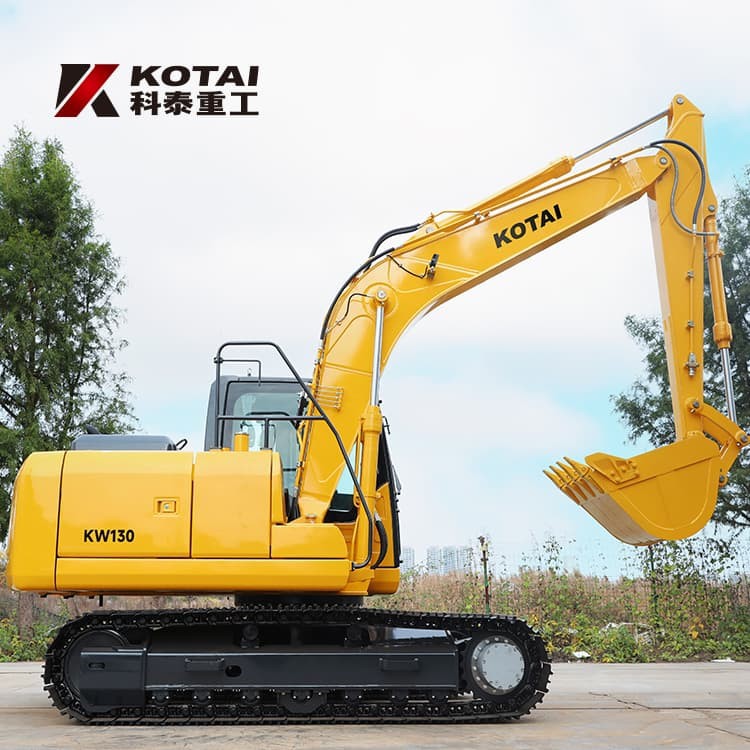

13 Ton Crawler Excavator With Cummins Engine,the design is similar with world famous brand with best parts supply from China. It delivers on five key dimension: work performance,market productivity,operation comfort,durability and long time reliability.
Parameters
| Model | KW130 |
| Weight | 13t |
| Bucket capacity | 0.53-0.64m³ |
| Engine model | CUMMINS QSF3.8 |
| Rated power | 86kW/2200rpm |
| Emission standard | EU Stage Ⅲ |
| Gradeability | 70% |
| Max.bucket digging force | 100kN |
| Arm length | 2500mm |
| Boom length | 4600mm |
| Ground pressure | 38KPa |
| Max. digging height | 8630mm |
| Max. unloading height | 6180mm |
| Max. digging depth | 5500mm |
| Max. digging reach | 8305mm |
| Min. swing radius | 2495mm |
| Total length | 7580mm |
| Total width | 2490mm |
| Total height | 2815mm |
| Ground clearance | 430mm |
| Tail swing radius | 2155mm |
| Track width | 2460mm |
Video
Features
For the 13 Ton Crawler Excavator With Cummins Engine, the durability of its chassis frame enhances the excavator's overall strength, while robot welding ensures high precision and safety.
Enhanced lifting ability with a power boost and auto power boost function .
Expanded cab design improved the comfort for operators,with soft seat and and big front space.
Auxiliary time meter for fuel,oil and pressure vision,could help you control the condition of excavator,so you can maintain on time.
