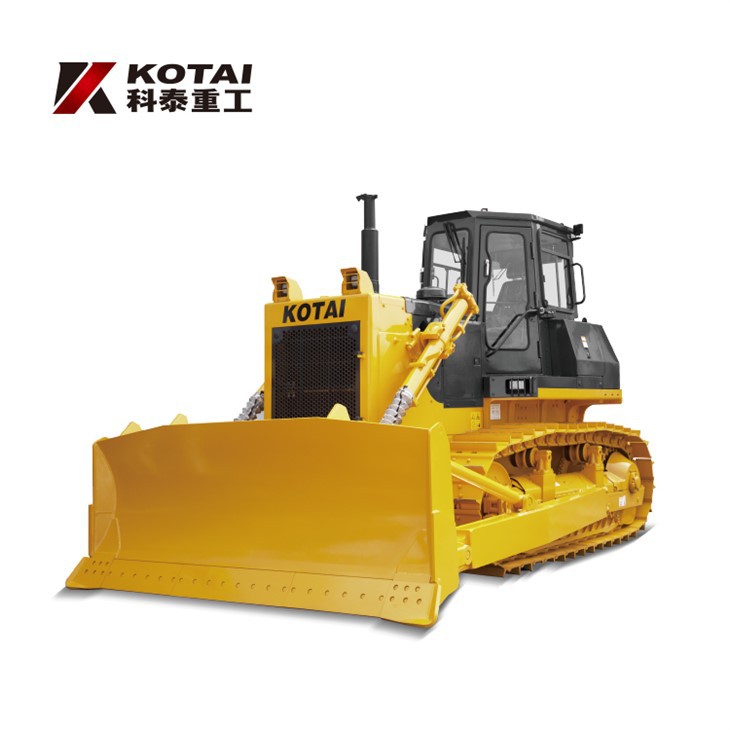

The 260 HP Crawler Bulldozer is a highly efficient mechanical equipment designed for medium and large earthmoving engineering operations. It has powerful bulldozing, shoveling and site leveling capabilities, and integrates advanced technology and reliable manufacturing processes to meet the needs of various complex working conditions.
Parameters
| Model | KBD260 |
| Engine model | CUMMINS NT855 |
| Engine displacement | 14.01L |
| Rated power | 187kW |
| Maximum torque | 1030N.m |
| Emission standard | CHINA-Ⅱ |
| Minimum fuel consumption | 205g/kW·h |
| Operating weight | 23.5t |
| Dimensions [length * width * height] | 5950*2900*3400mm |
| Track shoe width | 560mm |
| Chain track pitch | 216mm |
| Blade capacity | 6.4m³ |
| Blade width | 3725mm |
| Blade height | 1315mm |
| Maximum excavation depth of blade | 538mm |
| Maximum inclination of the blade | ＞735mm |
Features
Core components from world-renowned suppliers - powerful performance. 260 HP Crawler Bulldozer KBD260 is equipped with Cummins engine, which has powerful power, high fuel efficiency and easy maintenance.
The working valve components of the hydraulic system are placed outside for easy maintenance.
The design of the hexahedral cab is ergonomically designed, providing a spacious interior, excellent visibility and a more comfortable operating space.
