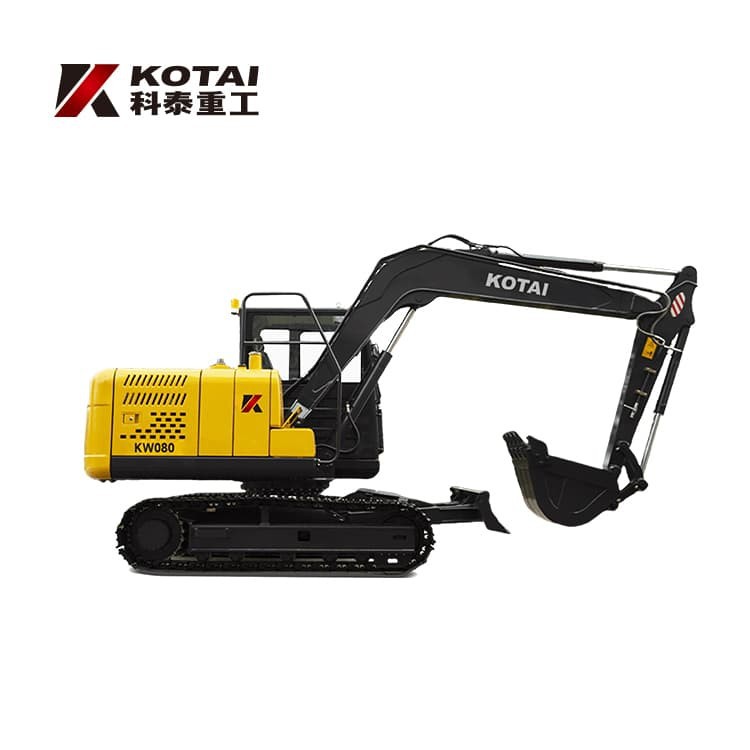

Crawler Excavator With Yammar Engine



Model	KW080
Weight	8.2t
Bucket capacity	0.32m³
Engine model	YAMMAR 4TNV98T
Rated power	56.5kW/2200rpm
Emission standard	EU Stage Ⅲ
Gradeability	70%
Max.bucket digging force	52kN
Arm length	1650mm
Boom length	3710mm
Ground pressure	30KPa
Max. digging height	7165mm
Max. unloading height	5065mm
Max. digging depth	4038mm
Max. digging reach	6330mm
Min. swing radius	1795mm
Total length	6100mm
Total width	2300mm
Total height	2680mm
Ground clearance	380mm
Tail swing radius	1755mm
Track width	2150mm





The impressive features with this Crawler Excavator With Yammar Engine is Yanmar 4 cylinder engine,model number 4TNV94L-SSN 35.5kw,its original Yanmar imported from Japan not produced by Chinese company.



High comfort cab with low noise and optimum safety.



The cabin available in ROPS and FOPS,the seat has damping system make operator comfort in a long term working.



The large capacity radiator enables performance in severe and continuous operations.Access to the radiator and cooler easy,making a simple cleaning process.It can be accessed from the side, with the engine oil and fuel filter attached to the engine body extending out for easy maintenance.
