The 6 Ton Mini Crawler Excavator can meet the needs of excavation, loading,transportation and other work under local conditions, and is an ideal andefficient equipment for earthwork and bulk material shoveling.

Parameters

Model	KW060
Weight	6t
Bucket capacity	0.22m³
Engine model	YAMMAR 4TNV94L
Rated power	36.2kW/2100rpm
Emission standard	EU Stage Ⅲ
Gradeability	70%
Max.bucket digging force	42kN
Arm length	1630mm
Boom length	3000mm
Ground pressure	33.5KPa
Max. digging height	5750mm
Max. unloading height	3980mm
Max. digging depth	3860mm
Max. digging reach	6170mm
Min. swing radius	2380mm
Total length	5960mm
Total width	1960mm
Total height	2690mm
Ground clearance	360mm
Tail swing radius	1700mm
Track width	1960mm

Images

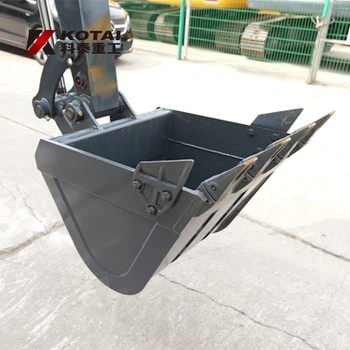

KW060 Bucket View

KW060 Track View

Features

International brand main pumps and main valves.

The 6 Ton Mini Crawler Excavator adopts world-renowned brand hydraulic components, slewing motors and travel motors, ensuring high reliability of the hydraulic system.

The new high-rigidity cab is quiet and comfortable.

Sturdy high-strength fuselage.

Color LCD monitor for convenient monitoring and maintenance.
