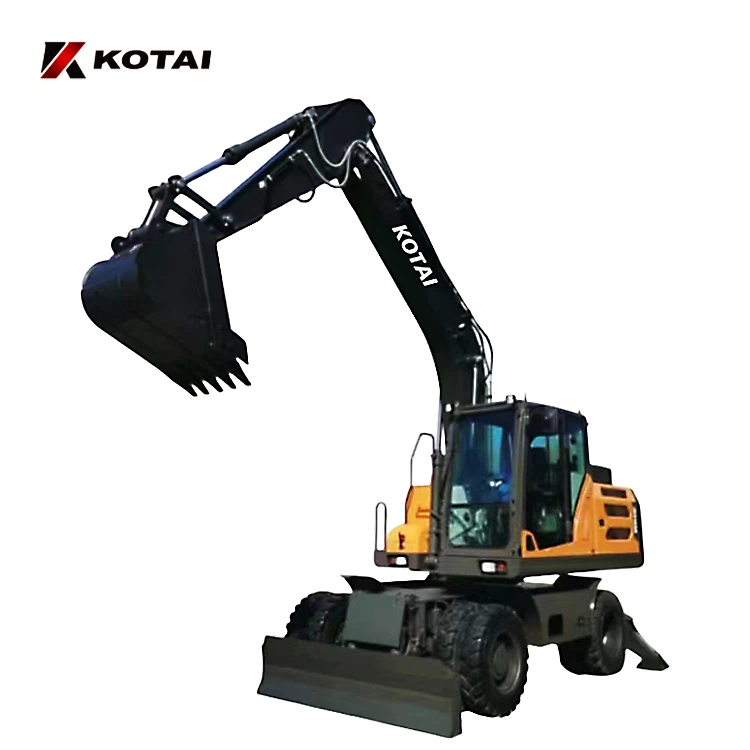

The Full Hydraulic Wheel Excavator travels on its tires, allowing it to drive directly on roads like a regular vehicle without relying on flatbed trailers for transport. It can quickly and independently move between work sites, and its small turning radius allows for more flexible adjustment of position and posture, making it more suitable for construction in urban areas and places with high requirements for road conditions.
Parameters
| Model | KWE675H |
| Operating weight | 6900kg |
| Bucket capacity | 0.23-0.28m³ |
| Engine brand | YC4FA65-T300 |
| Rated power | 48kW@2200rpm |
| Fuel tank capacity | 120L |
| Walking speed | 30km/h |
| Rotation speed | 10r/min |
| Climbing ability | 30° |
| Bucket digging force | 31.5kN |
| Working pressure | 19.5MPa |
| Transportation dimensions [l * w* h] | 6079*1910*2830mm |
| Ground clearance of counterweight | 1050mm |
| Minimum ground clearance | 351mm |
| Tail turning radius | 1842mm |
| Wheelbase | 2400mm |
| Turntable width | 1910mm |
| Maxi. excavation height | 6768mm |
| Maxi. unloading height | 5023mm |
| Maxi. excavation depth | 3419mm |
| Maxi. excavation distance | 6865mm |
| Maxi. unloading height of fixture | 4593mm |
| Maxi. lifting weight of fixture | 400kg |
| Fixture opening size [max/min] | 1240/205mm |
| Max. lifting height of fixture | 7262mm |
Features
Full Hydraulic Wheel Excavator employ a National III emission standard low-speed, high-torque engine with meticulously tuned engine management technology, achieving a balance between fuel consumption and efficiency, delivering strong power, economy, environmental friendliness, and high reliability.
Precise internal transmission design with high structural strength meets the demands of various operating conditions.
Utilizes caliper disc brakes for excellent braking performance.
