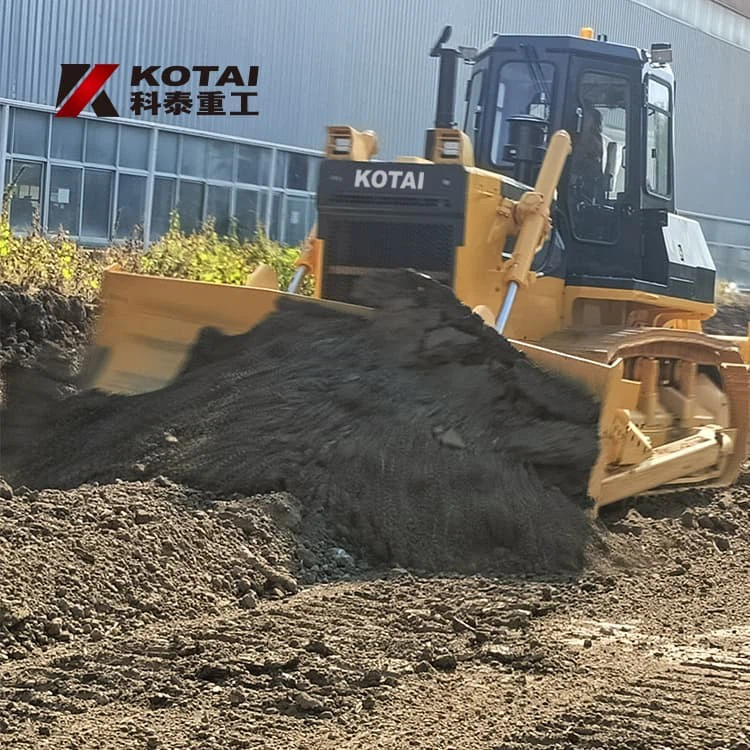

The 350 HP Crawler Bulldozer is a highly efficient mechanical device specially designed for medium and large-scale earthwork operations. It features powerful capabilities in pushing, transporting and site leveling, integrating advanced technology with reliable manufacturing processes to meet the demands of various complex working conditions.

Parameters

Model	KBD350
Engine model	CUMMINS NT855
Engine displacement	14.01L
Rated power	235kW
Maximum torque	1440N.m
Emission standard	CHINA-Ⅱ
Minimum fuel consumption	245g/kW·h
Operating weight	37.2t
Dimensions [length * width * height]	720031003600mm
Track shoe width	560mm
Chain track pitch	228.6mm
Blade capacity	10m³
Blade width	4130mm
Blade height	1590mm
Maximum excavation depth of blade	560mm
Maximum inclination of the blade	1000mm

Images

KBD350 Front View

KBD350 Rear View

Video

Features

This 350 HP crawler bulldozer is equipped with a Cummins engine and an exhaust gas turbocharger, ensuring powerful performance and high energy efficiency.

The 350 HP Crawler Bulldozer features a planetary power shift transmission with 3 forward and 3 reverse gears, and adopts a large-diameter, high-capacity, oil-cooled clutch for high transmission efficiency.
